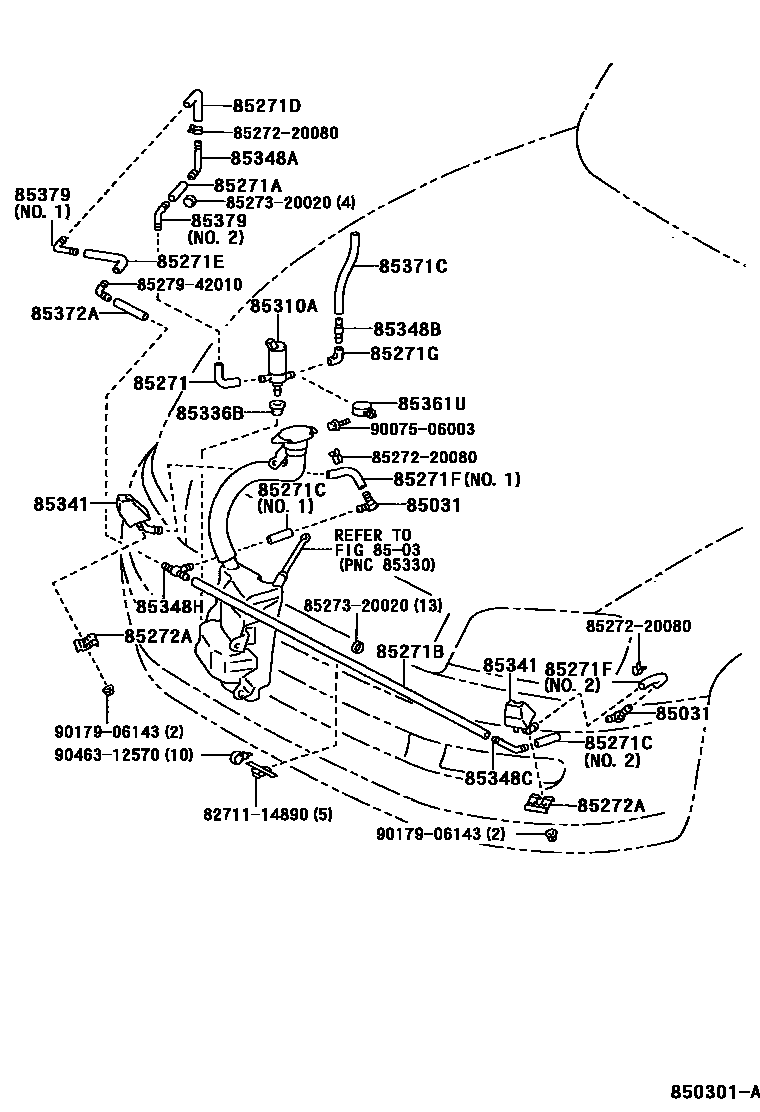

Toyota RAV4 前大灯清洗器 — Figure 8505
Toyota RAV4 EPC diagram 8505, 前大灯清洗器, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031 | Headlight washer hose valve | 85031-30020 |
| 85271 | No. 1 headlight washer hose | 85375-32011 |
| 85271A | No. 2 headlight washer hose | 90445-14055 |
| 85271C | No. 4 headlight washer hose | 85275-33020 · 85275-42010 |
| 85271D | No. 5 headlight washer hose | 85275-60030 · 85375-32180 |
| 85271E | No. 6 headlight washer hose | 85343-95700 · 85375-32180 |
| 85271F | No. 7 headlight washer hose | 85275-42020 · 85375-20171 · 85375-33040 · 90075-15007 |
| 85271G | headlight hose | 85375-33040 |
| 85272A | Headlight washer No. 1 clip | 85272-42010 |
| 85310A | Headlight washer motor and pump assembly | 85280-33020 · 85280-50020 |
| 85336B | Headlight washer seal | 85336-10010 |
| 85341 | Headlight washer nozzle | 85044-42010 · 85044-42020 |
| 85348A | Headlight washer hose connector No. 1 | 85279-30010 |
| 85348B | No. 2 headlight washer hose connector | 85349-89122 |
| 85348C | No. 3 headlight washer hose connector | 85278-20590 |
| 85348H | No. 4 headlight washer hose connector | 85352-12010 |
| 85361U | Headlight washer bracket | 85361-33020 |
| 85371C | No. 1 headlight washer hose | 85275-33060 |
| 85372A | Headlight washer hose (from fitting to fitting or nozzle) | 85376-14301 · 90445-14059 |
| 85379 | Connector | 85279-42010 · 85379-22080 |
