Toyota RAV4 防盗装置 — Figure 8424

Toyota RAV4 EPC diagram 8424, 防盗装置, with 1 images and 7 PNC and OE references.

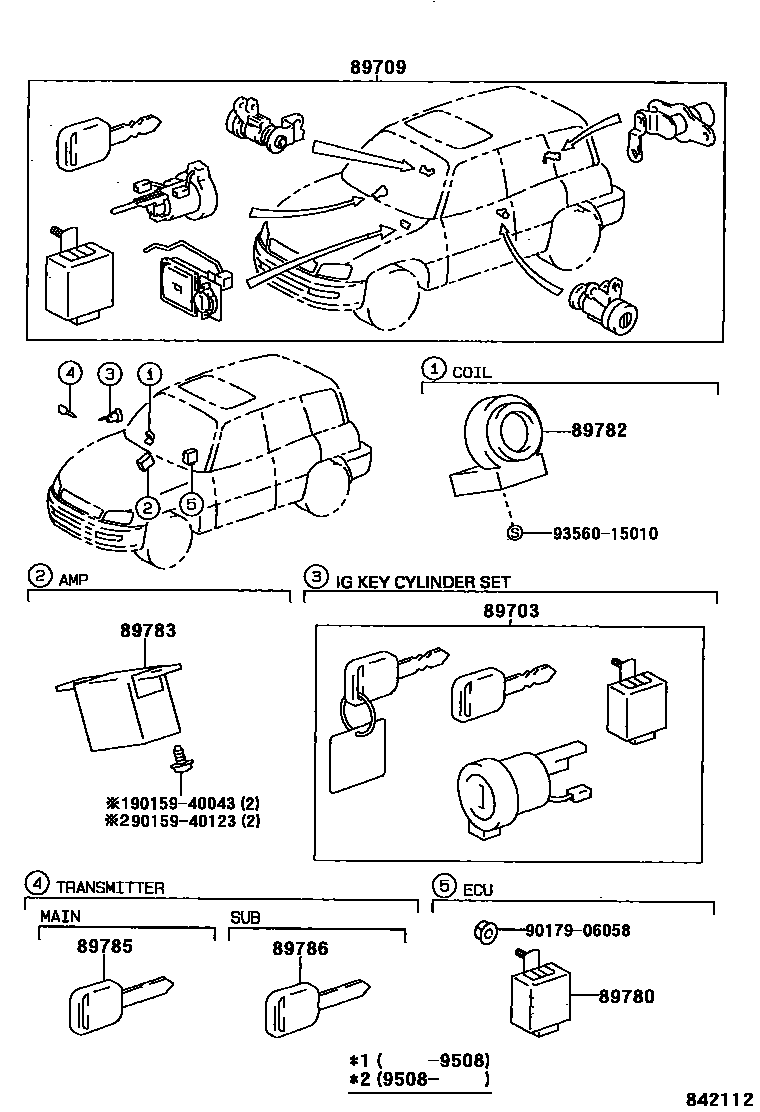

Toyota RAV4 防盗装置 EPC diagram — 842112
防盗装置 — 842112 (199504 – 999999)

PNC and OE references

PNCPart nameOE numbers
89703Ignition lock cylinder and key assembly with transceiver89703-42010 · 89703-42030 · 89703-42040
89709Transceiver key ECU assembly89709-42010 · 89709-42030 · 89709-42050 · 89709-42060 · 89709-42070 · 89709-42080
89780Transceiver key ECU assembly89780-42010 · 89780-42030 · 89780-42040
89782transceiver key coil89782-42010
89783transceiver key amplifier89783-42010
89785transceiver key master transmitter89785-12020 · 89785-26020
89786transceiver key secondary transmitter89786-12020 · 89786-60050
