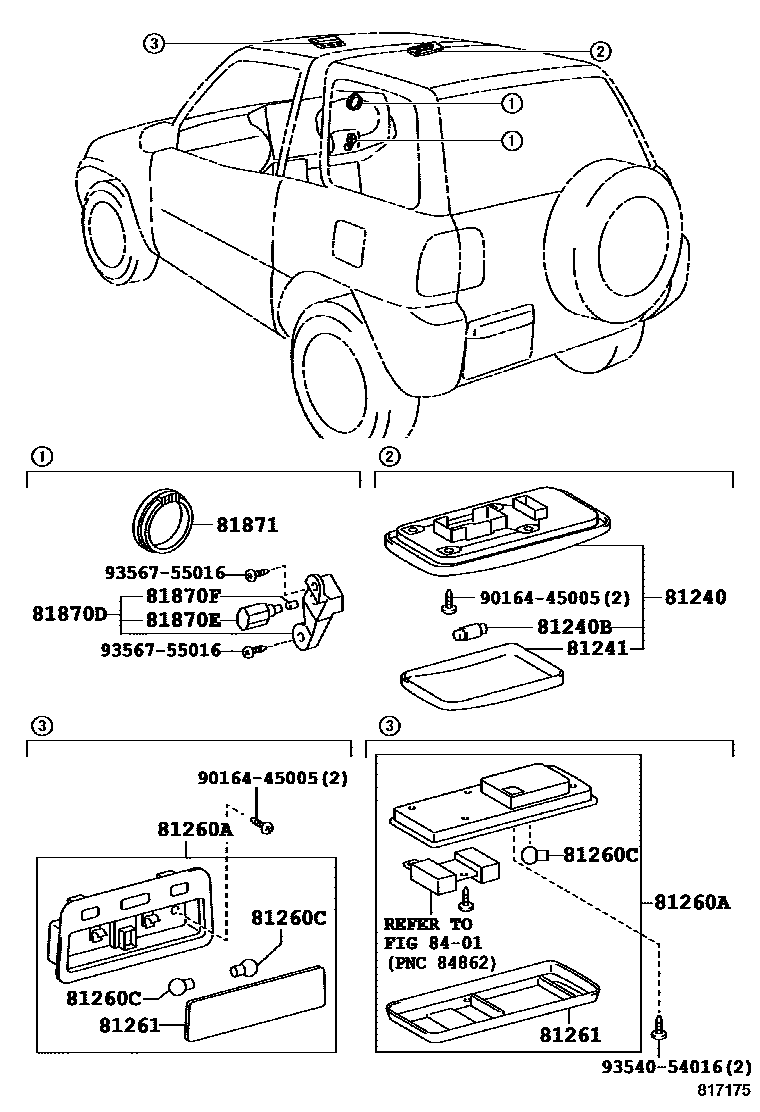

Toyota RAV4 车内灯 — Figure 8121
Toyota RAV4 EPC diagram 8121, 车内灯, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81240B | Interior light bulb No. 1 | 90981-14011 |
| 81241 | Interior light cover No. 1 | 81241-12020 |
| 81260C | Light bulb (for reading lamp) | 90981-12005 · 90981-12014 |
| 81261 | Reading lamp shades and covers | 81261-14080 |
| 81870D | Lock core lighting assembly | 81870-12010 |
| 81870E | Lock cylinder lighting bulb | 84999-10250 |
| 81870F | Lock cylinder lighting bulb cover | 84998-10550 |
| 81871 | Ignition lock cylinder lighting lamp cover | 81871-12010 |
