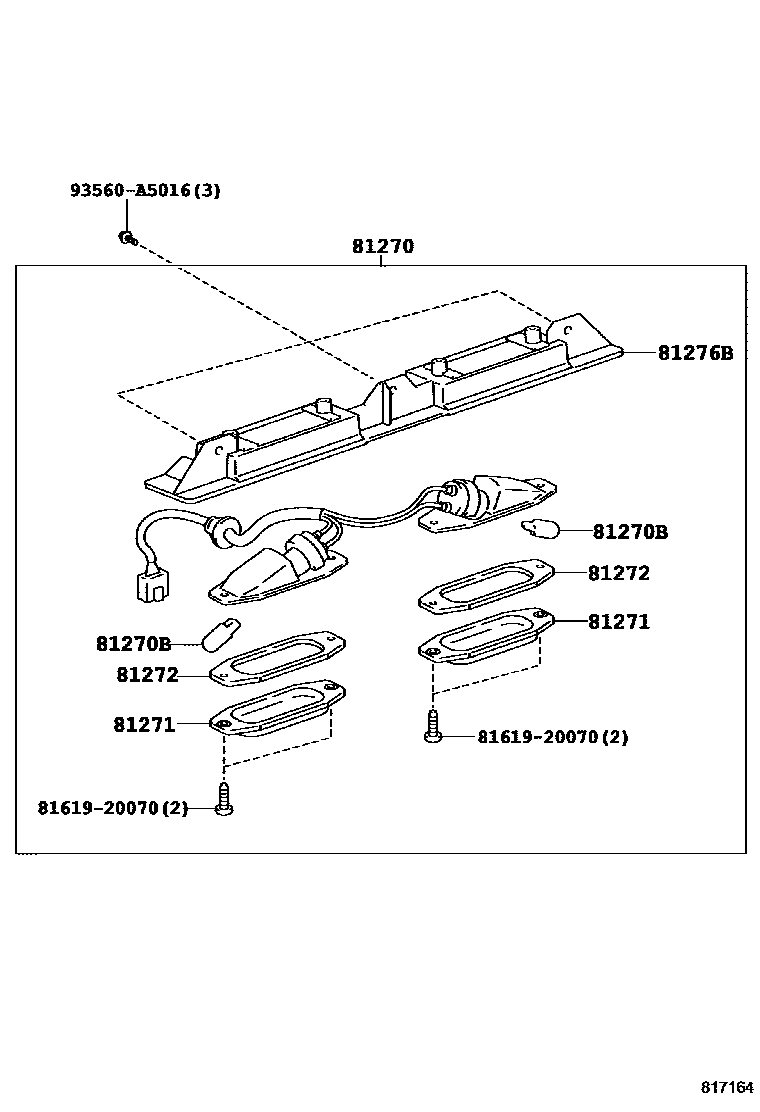

Toyota RAV4 后牌照灯 — Figure 8113
Toyota RAV4 EPC diagram 8113, 后牌照灯, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270 | License plate light assembly | 81270-42020 · 81270-42021 |
| 81270B | Bulb (for license plate light) | 99132-12050 |
| 81271 | license plate lamp shade | 81271-20440 |
| 81272 | License plate lamp shade gasket | 81272-20440 |
| 81276B | license plate light cover | 81276-20440 |
