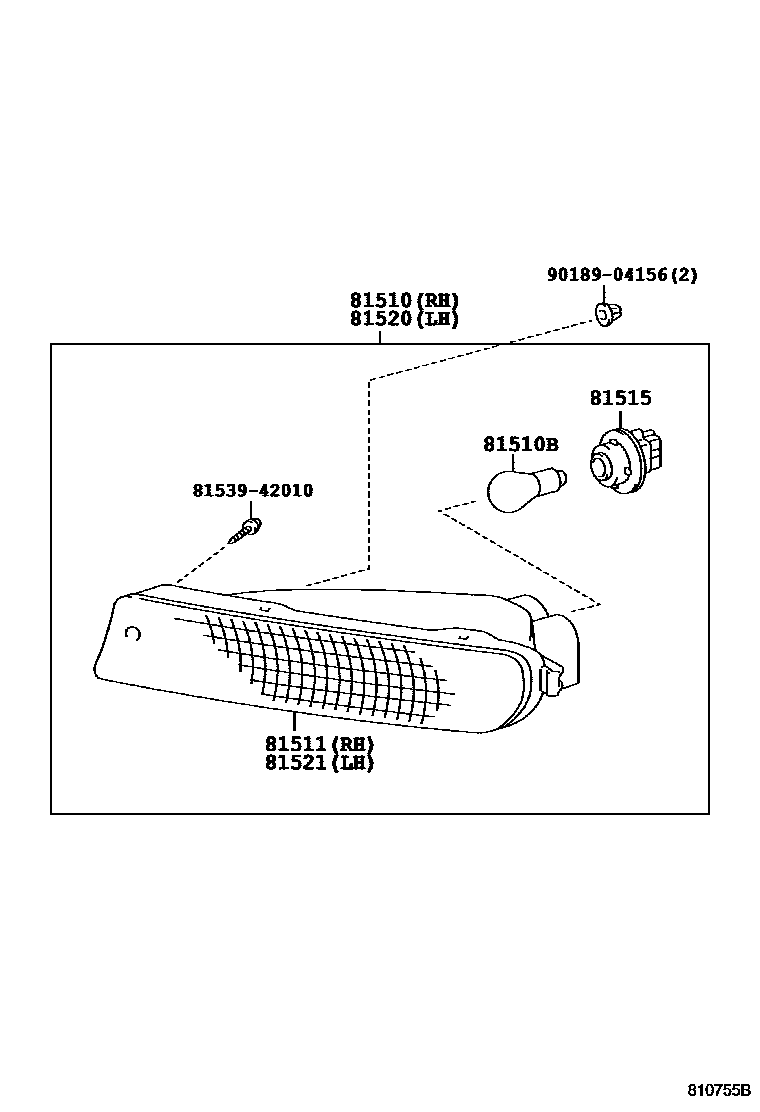

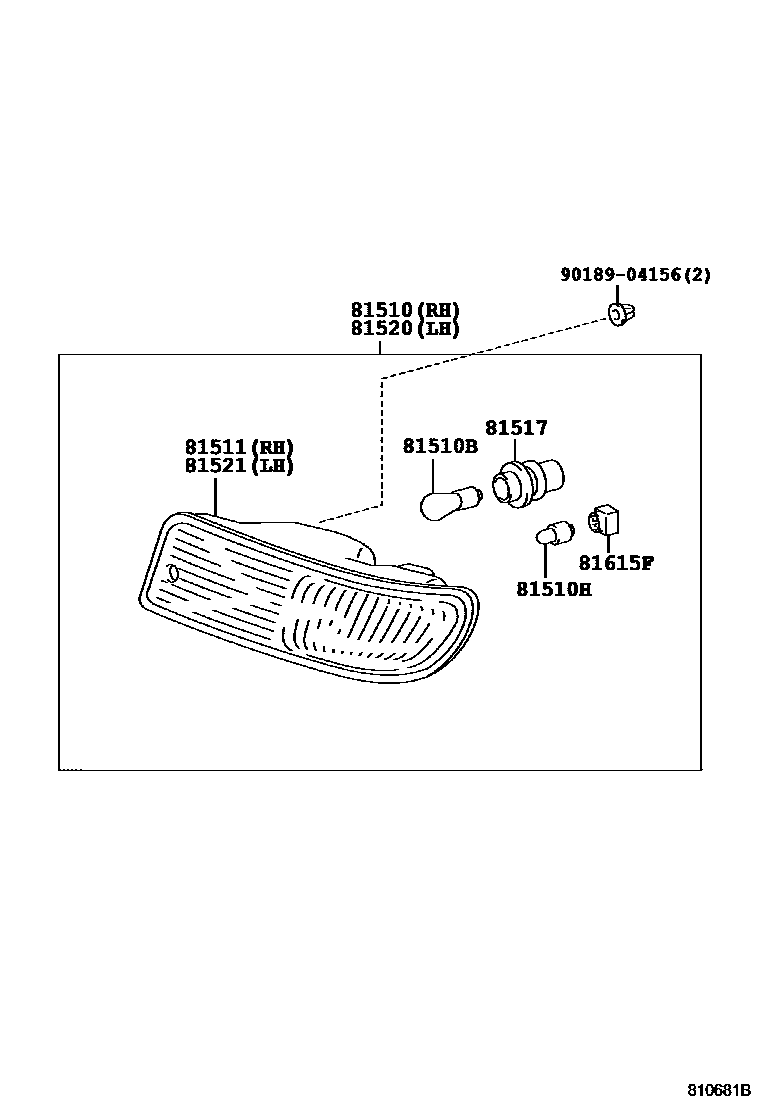

Toyota RAV4 前转向灯 — Figure 8103
Toyota RAV4 EPC diagram 8103, 前转向灯, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81510 | Right front turn signal lamp assembly | 81510-42010 · 81510-42030 |
| 81510B | Bulb (for front turn signal lamp) | 90981-15009 · 99132-11210 |
| 81510H | Bulb (for front side lights) | 99132-12050 |
| 81511 | Right front turn signal lamp cover | 81511-42010 · 81511-42030 |
| 81515 | Front turn signal light body wiring harness sub-assembly | 81515-12520 |
| 81517 | Front turn signal lamp holder | 90075-60006 |
| 81520 | Left front turn signal lamp assembly | 81520-42010 · 81520-42030 |
| 81521 | Left front turn signal lamp cover | 81521-42010 · 81521-42030 |
| 81615F | Width light lamp holder | 81615-12590 |
