Toyota RAV4 accelerator pedal connecting rod — Figure 7851

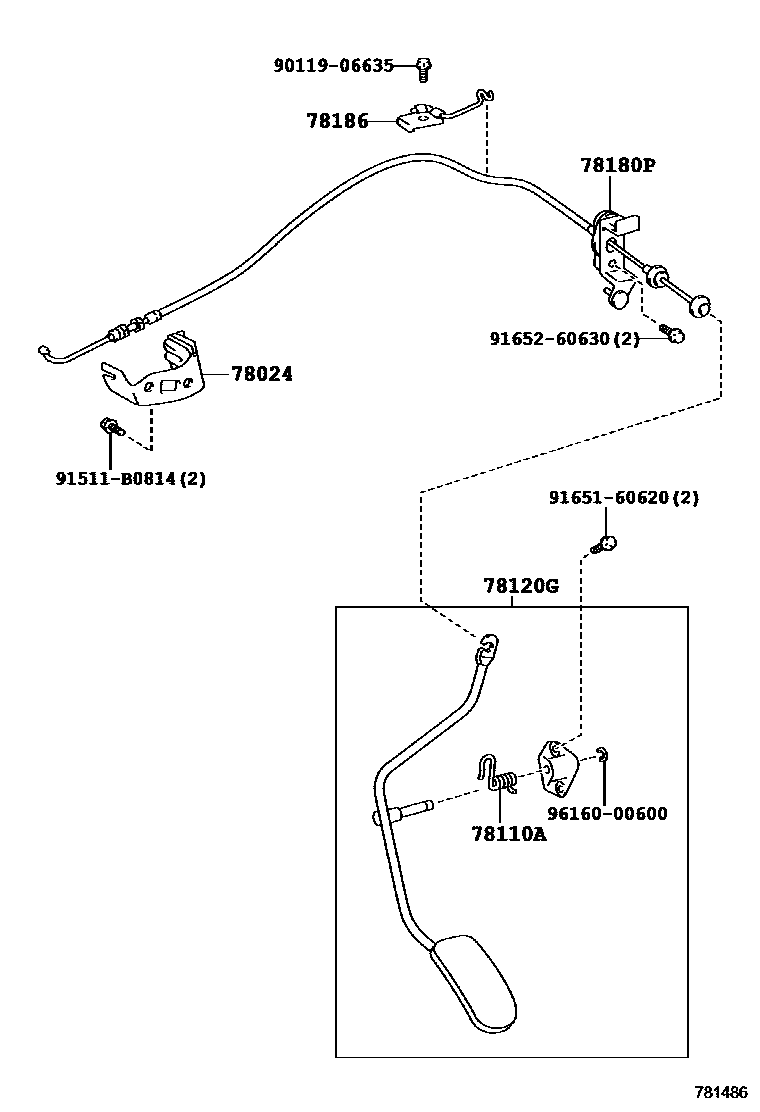

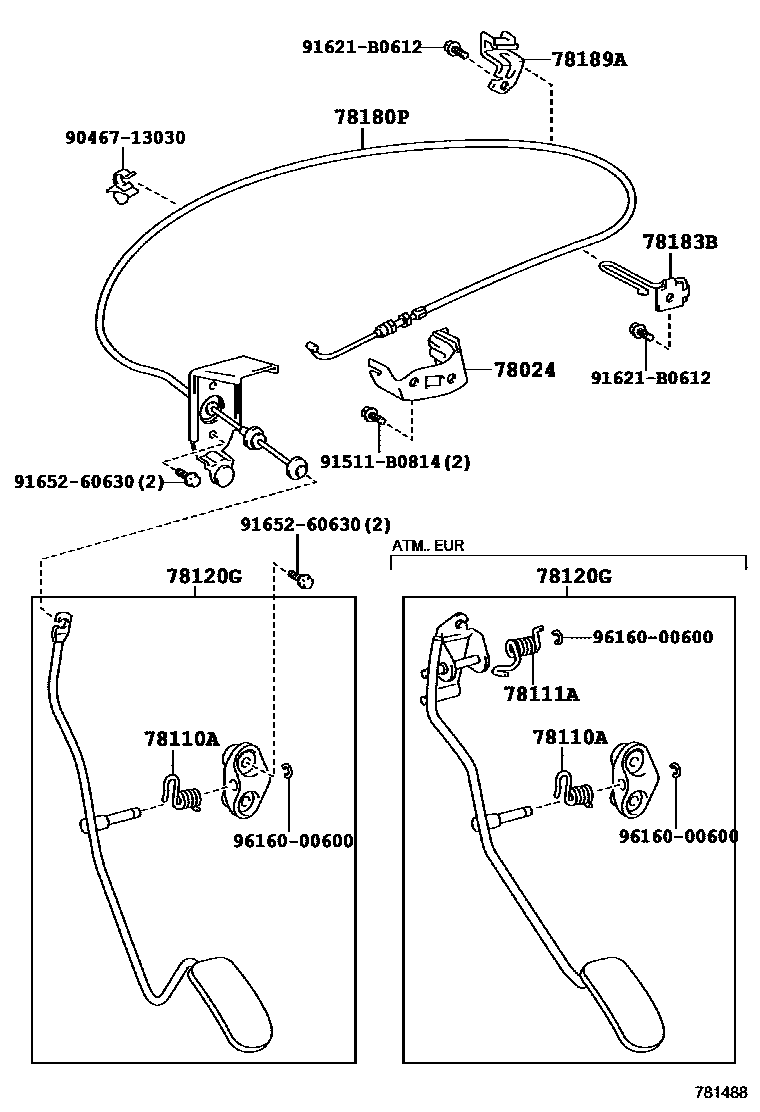

Toyota RAV4 EPC diagram 7851, accelerator pedal connecting rod, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78024 | Accelerator pedal control cable bracket sub-assembly | 78024-20140 · 78024-44020 |
| 78110A | Spring (for accelerator pedal lever) | 90508-26075 · 90959-03049 · 90959-03050 |
| 78111A | Spring (for gas pedal) | 90508-29022 |
| 78120G | Accelerator pedal lever assembly | 78120-42010 · 78120-42020 · 78120-42030 · 78120-42040 · 78120-42050 |
| 78180P | Accelerator pedal control cable assembly | 78180-42010 · 78180-42020 · 78180-42050 · 78180-42060 |
| 78183B | Accelerator pedal control cable clip | 78183-42010 · 78183-42011 · 78186-44010 |
| 78186 | No. 1 accelerator pedal control cable bracket | 78186-42010 · 78186-42020 |
| 78189A | No. 2 accelerator pedal control cable bracket | 78189-20150 |
