Toyota RAV4 后门板和后门玻璃 — Figure 6755

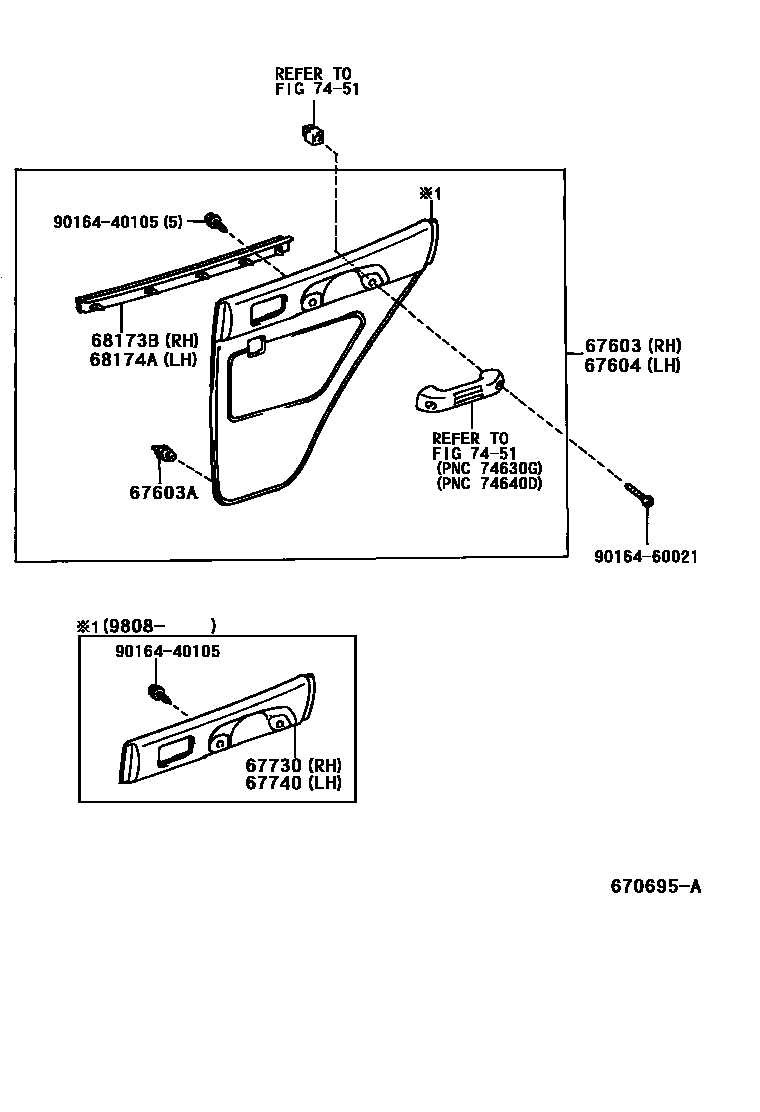

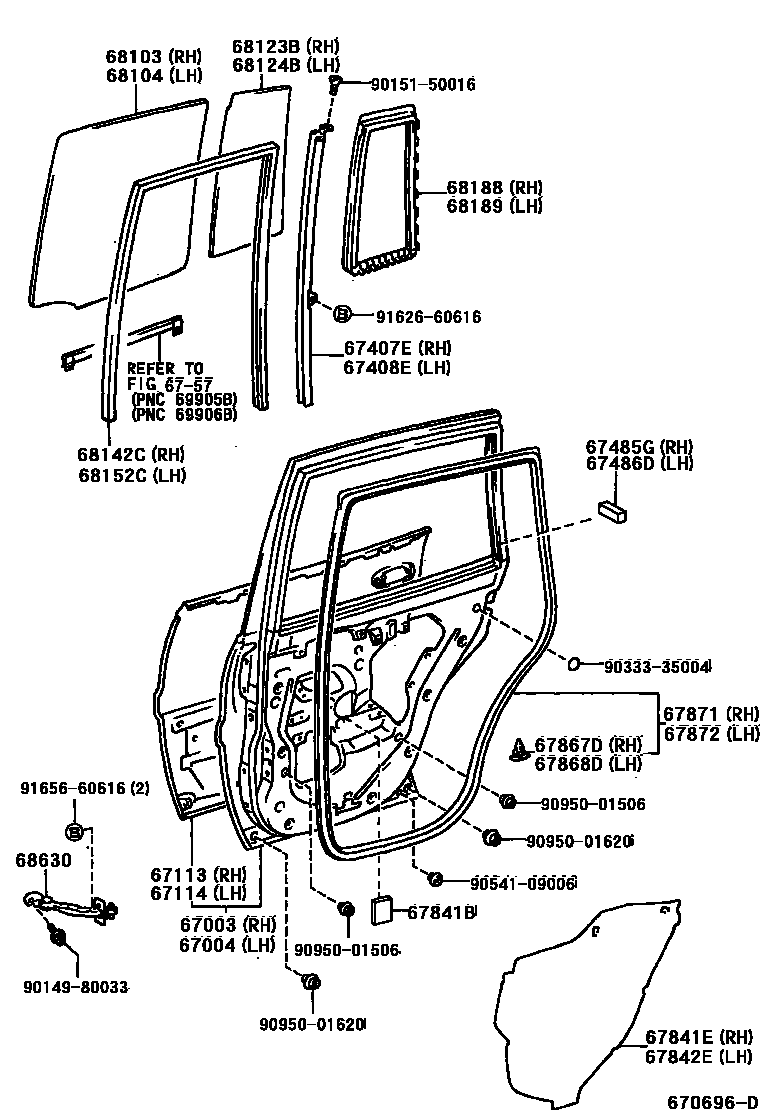

Toyota RAV4 EPC diagram 6755, 后门板和后门玻璃, with 2 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-42010 · 67003-42020 · 67003-42030 |
| 67004 | Left rear door panel sub-assembly | 67004-42010 · 67004-42020 · 67004-42030 |
| 67113 | Right rear door outer panel | 67113-42010 · 67113-42020 |
| 67114 | Left rear door outer panel | 67114-42010 · 67114-42020 |
| 67407E | Right rear door window divider sub-assembly | 67407-42010 |
| 67408E | Left rear door window divider sub-assembly | 67408-42010 |
| 67485G | Right rear door rear lower door frame seal | 67481-42010 |
| 67486D | Left rear door rear lower door frame seal | 67481-42010 |
| 67603A | Fixings (for rear door trim) | 67771-16080 · 67771-20110 · 67771-33020 |
| 67841B | Rear door access hole cover | 61825-12010 · 63161-22010 |
| 67841E | Right rear door access hole cover | 67841-42010 |
| 67842E | Left rear door access hole cover | 67841-42010 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67871 | Right rear door sealing strip | 67871-42010 |
| 67872 | Left rear door sealing strip | 67872-42010 |
| 68103 | Right rear door glass sub-assembly | 68113-42020 |
| 68104 | Left rear door glass sub-assembly | 68114-42020 |
| 68123B | Right rear door corner window glass | 68123-42020 |
| 68124B | Left rear door corner window glass | 68124-42020 · 68124-42030 |
| 68142C | Right rear door glass lift slot | 68142-42010 |
| 68152C | Left rear door glass lift slot | 68152-42010 |
| 68173B | Right rear door glass inner sealing strip | 68173-42010 |
| 68174A | Left rear door glass inner sealing strip | 68173-42010 |
| 68188 | Right rear door corner window seal | 68188-42010 |
| 68189 | Left rear door corner window seal | 68189-42010 |
| 68630 | Rear door opening limiter assembly | 68630-42010 · 68640-42010 |
