Toyota RAV4 仪表板和手套箱 — Figure 5551

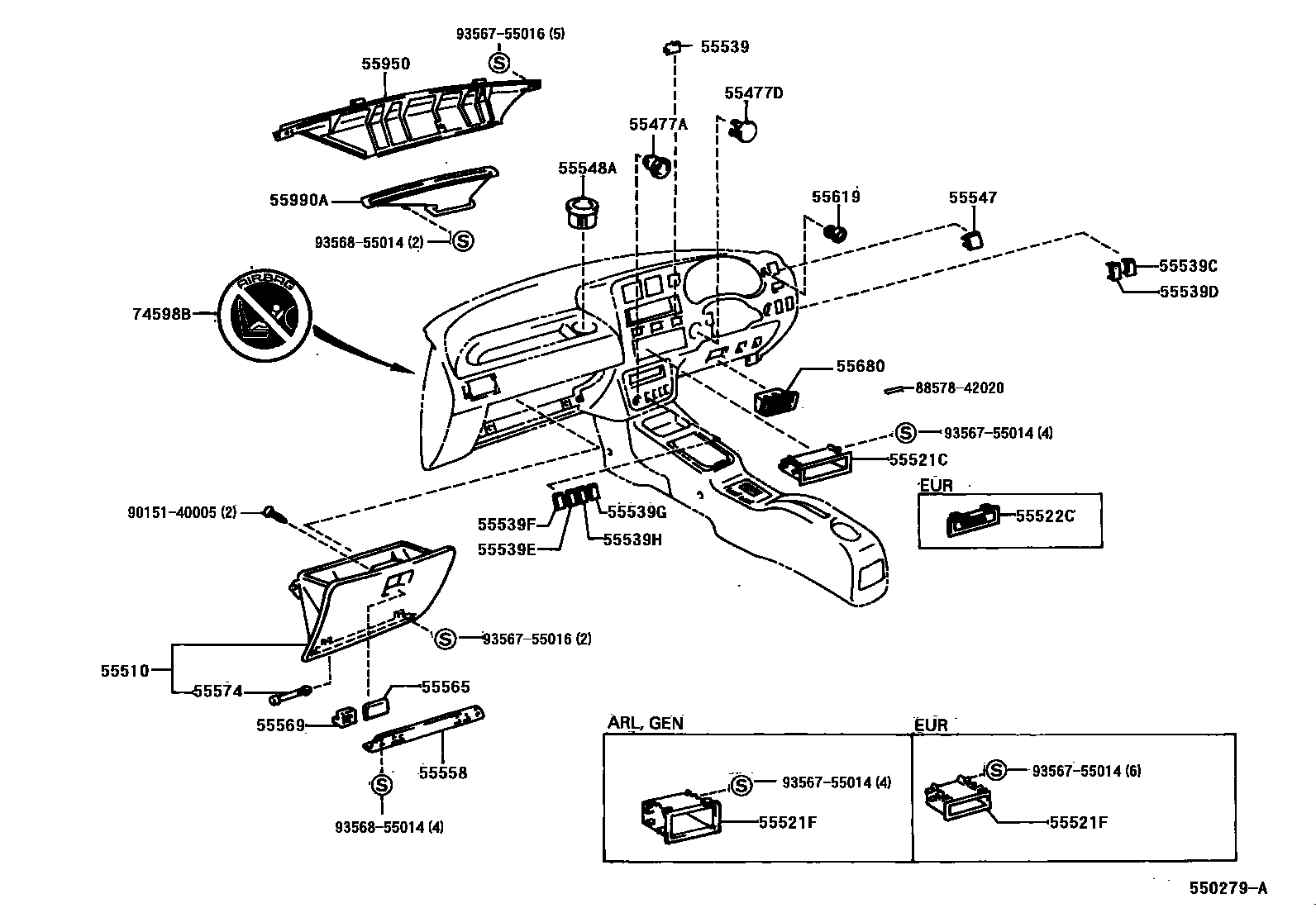

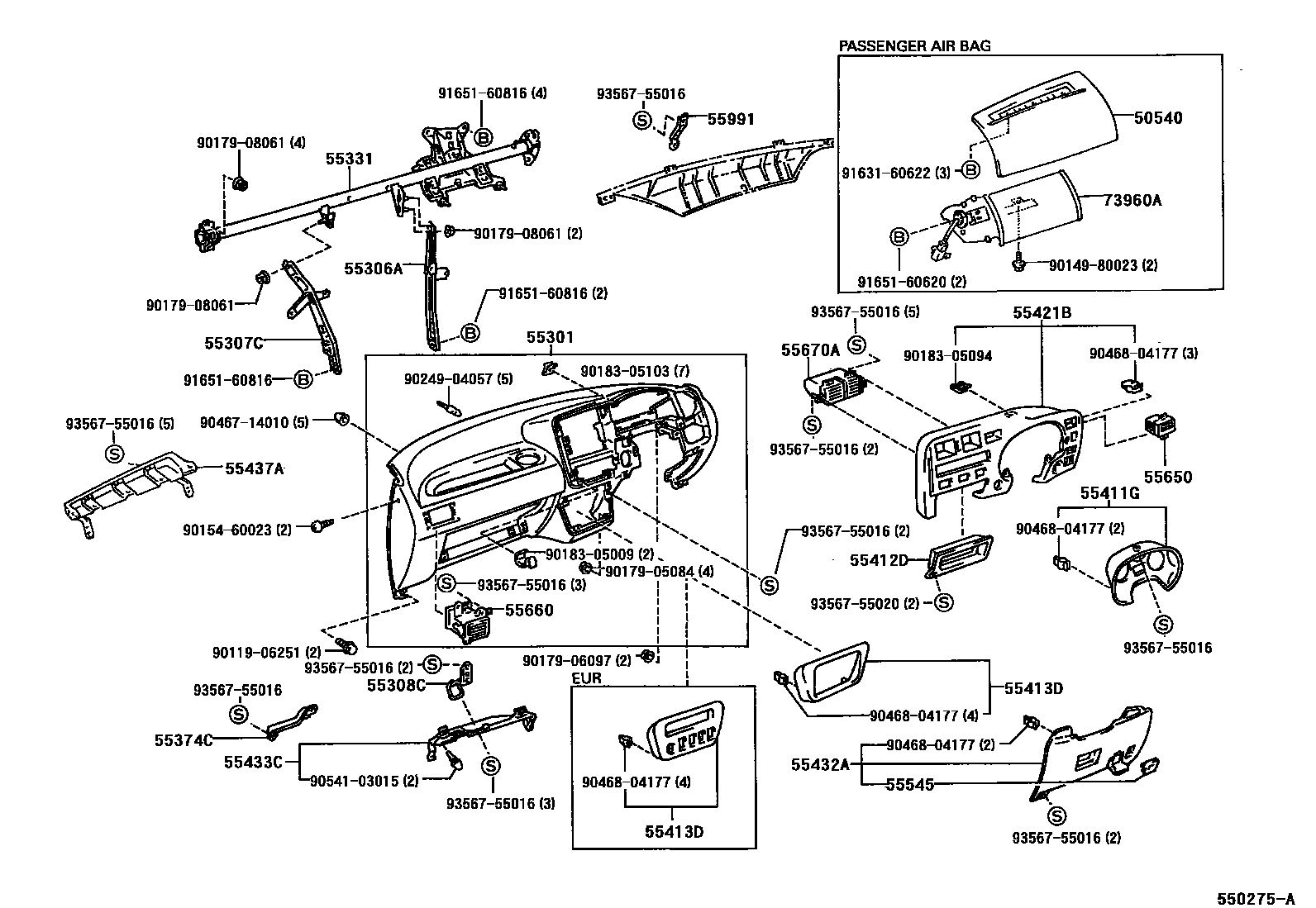

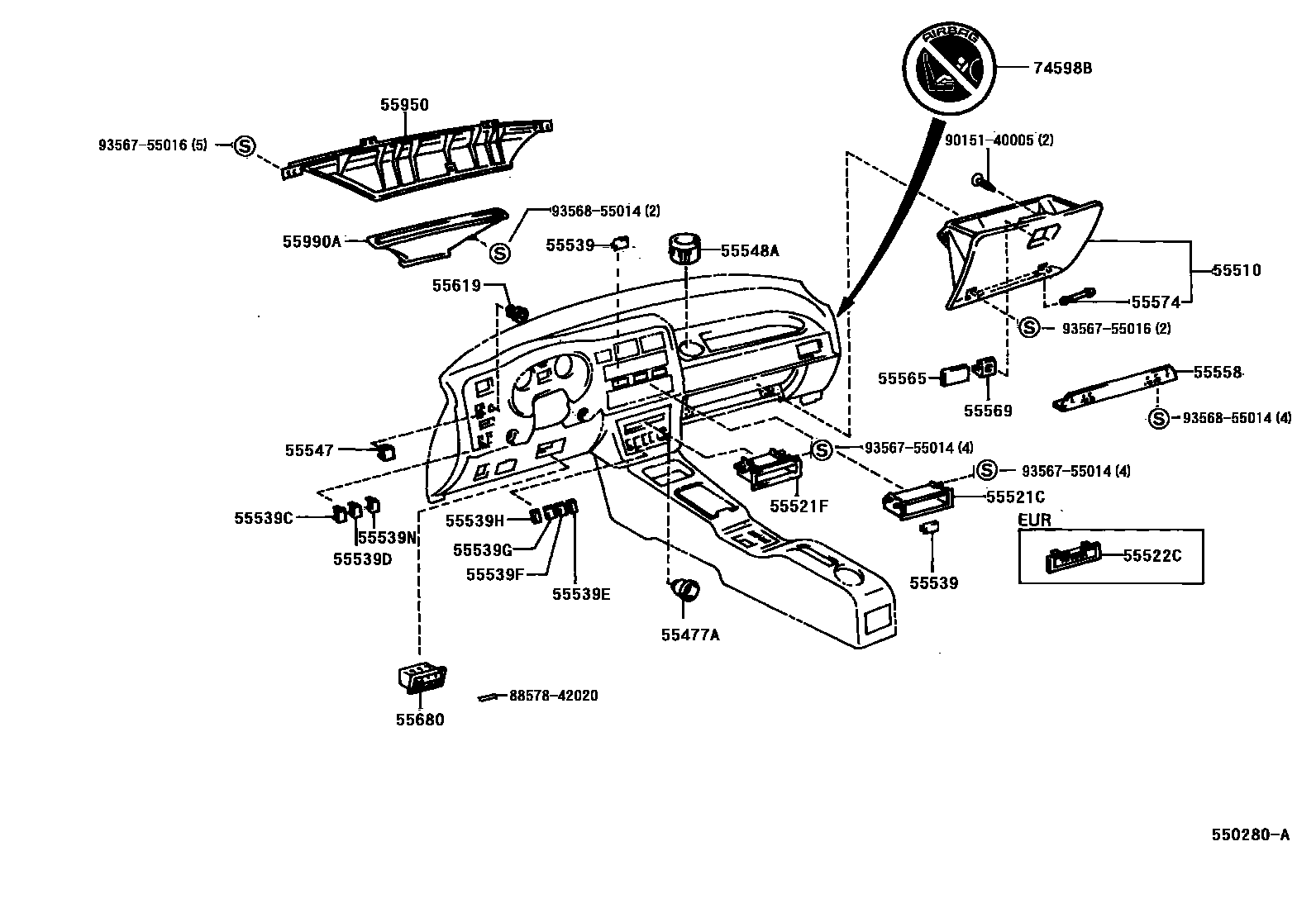

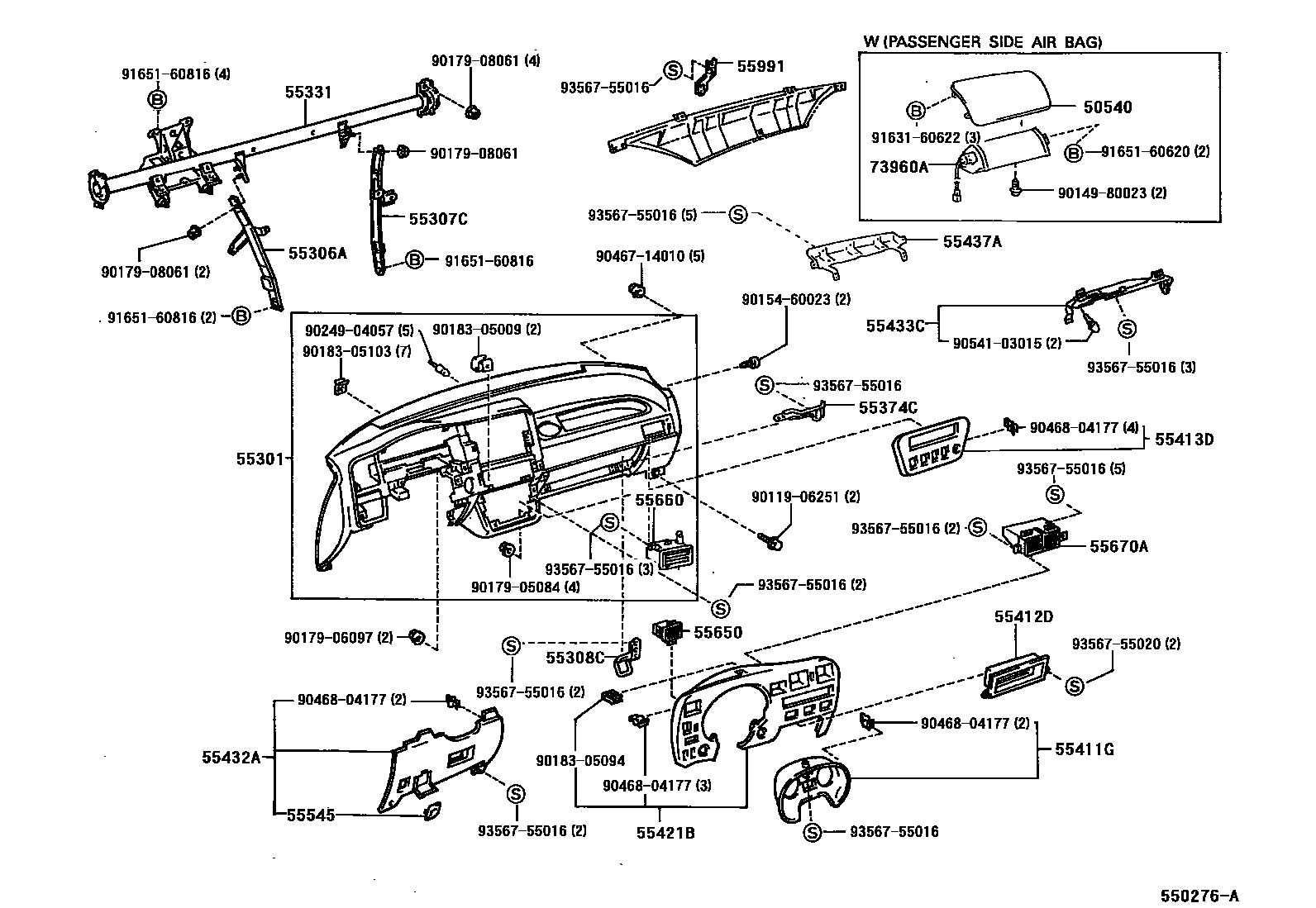

Toyota RAV4 EPC diagram 5551, 仪表板和手套箱, with 4 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-42010 · 55306-42020 · 55306-42030 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-42010 · 55307-42020 · 55307-42030 · 55307-42040 |
| 55308C | Center instrument panel bracket sub-assembly | 55308-42010 · 55308-42020 · 55308-42030 |
| 55331 | Dashboard reinforcement | 55330-42010 · 55330-42011 · 55330-42020 · 55330-42030 · 55330-42050 · 55330-42090 · 55330-42100 · 55330-42110 |
| 55374C | Instrument panel No. 1 lower mounting bracket | 55374-42010 · 55374-42020 |
| 55411G | Instrument cluster No. 1 decorative panel | 55411-42010 |
| 55433C | Instrument panel lower left decorative panel | 55433-42010 |
| 55437A | Instrument panel No. 1 decorative panel fixings | 55437-42010 · 55437-42020 |
| 55477A | Cigarette lighter hole frame | 55477-33010 |
| 55477D | Cigarette lighter hole cover | 55477-95J00 |
| 55521C | stereo system hole cover | 55521-16030 |
| 55521F | Stereo system hole cover No. 2 | 55521-16030 · 55521-16040 |
| 55522C | radio opening cover | 55522-20060 |
| 55539C | Spare switch hole cover | 55539-42020 |
| 55539D | Spare switch hole cover | 55539-42020 |
| 55539N | Spare switch hole cover | 55539-42020 |
| 55547 | Remote control rearview mirror hole cover | 55547-42010 · 55547-95J00 |
| 55558 | Glove box cover reinforcement | 55558-42010 |
| 55574 | Glove box cover hinge shaft | 55574-10010 |
| 55619 | switch hole cover | 55539-42010 |
| 55950 | Defroster nozzle assembly | 55950-42010 |
| 55990A | Lower defroster nozzle assembly | 55990-42010 · 55990-42020 |
| 55991 | Defroster No. 1 air duct bracket | 55991-42010 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-0W120 · 73960-0W140 · 73960-0W181 · 73960-0W191 |
| 74598B | Passenger air bag warning label | 74598-20010 |
