Toyota RAV4 后保险杠及附件 — Figure 5253

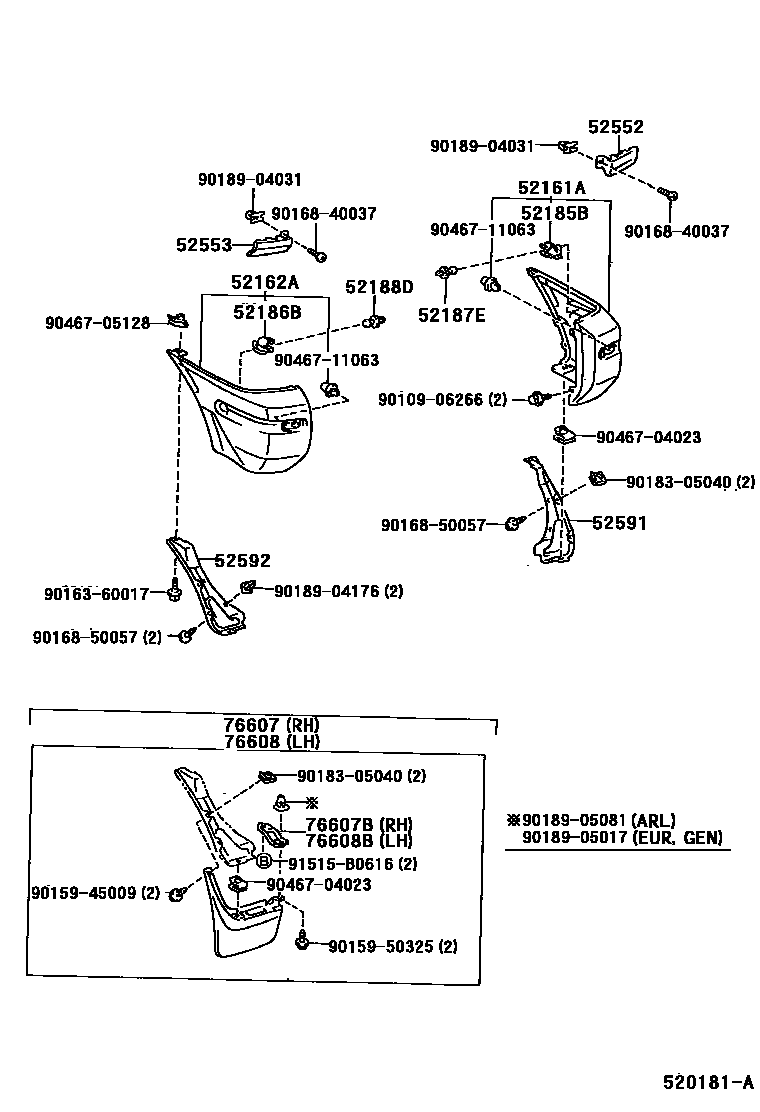

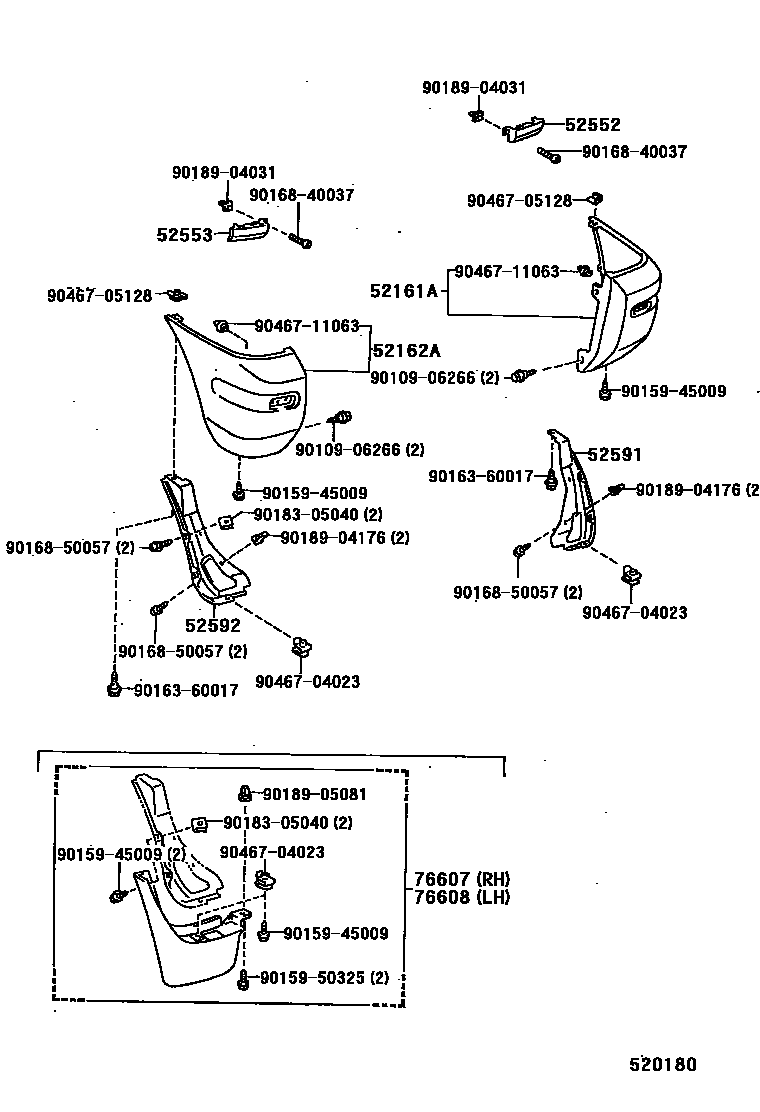

Toyota RAV4 EPC diagram 5253, 后保险杠及附件, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161A | Rear bumper right side gap filler | 52161-42010 · 52161-42020 · 52161-42070 · 52161-42090 |
| 52162A | Rear bumper left insert | 52162-42010 · 52162-42020 · 52162-42070 · 52162-42090 |
| 52185B | Installation support on the right side of the rear bumper | 52185-42010 |
| 52186B | Rear bumper left side mounting support | 52185-42010 |
| 52187E | Rear bumper right positioning guide rod | 52187-12160 |
| 52188D | Rear bumper left positioning guide rod | 52187-12160 |
| 52552 | Arc filler on the right side of the rear bumper | 52506-42010 |
| 52553 | Rear bumper left curved filler | 52507-42010 |
| 52591 | Rear bumper right seal | 52591-42010 · 52591-42011 |
| 52592 | Rear bumper left seal | 52592-42010 · 52592-42011 |
| 76607 | Right rear side fender sub-assembly | 76625-49015 · 76625-49025 · 76625-49035 · 76625-49045 · 76625-49065 · 76625-49075 |
| 76607B | Right rear side panel fender bracket | 76645-42010 |
| 76608 | Left rear side fender sub-assembly | 76626-49015 · 76626-49025 · 76626-49035 · 76626-49045 · 76626-49065 · 76626-49075 |
| 76608B | Left rear side panel fender bracket | 76646-42010 |
