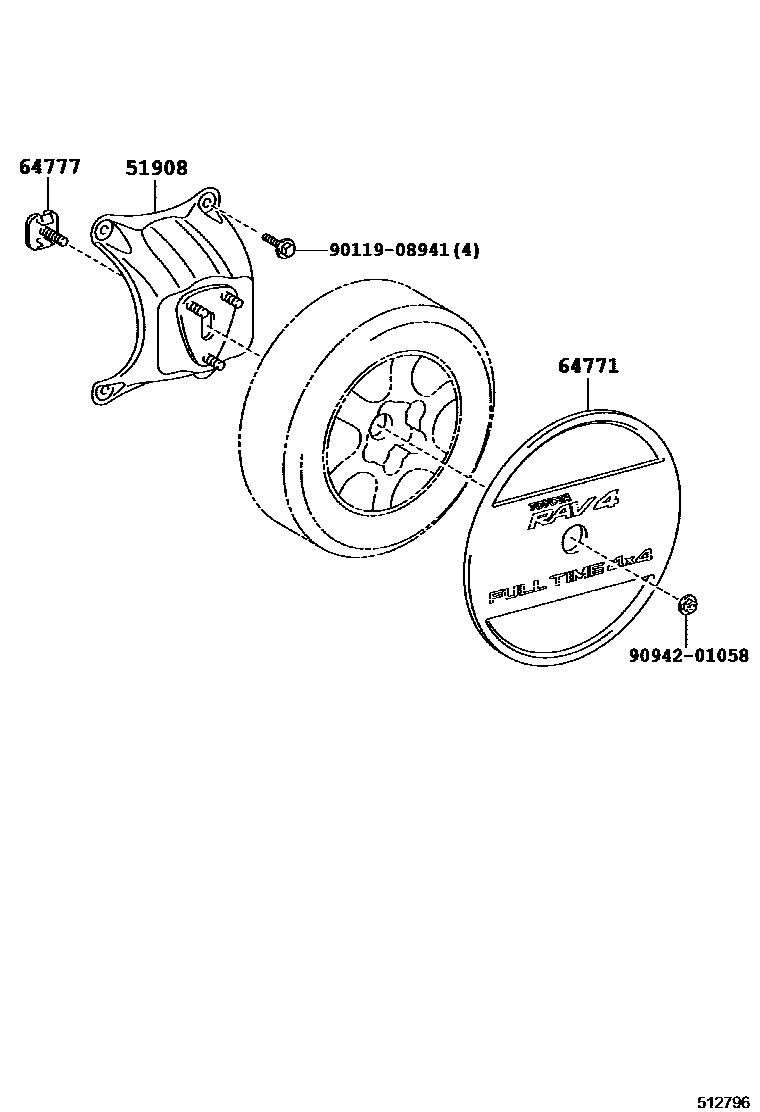

Toyota RAV4 Spare tire rack — Figure 5153
Toyota RAV4 EPC diagram 5153, Spare tire rack, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51908 | Spare tire rack bracket sub-assembly | 51908-42010 · 51908-42020 |
| 64771 | Spare Wheel Cover | 64771-42010 · 64771-42020 · 64771-42030 |
| 64777 | Spare tire cover clip | 64777-42011 · 64777-42012 |
