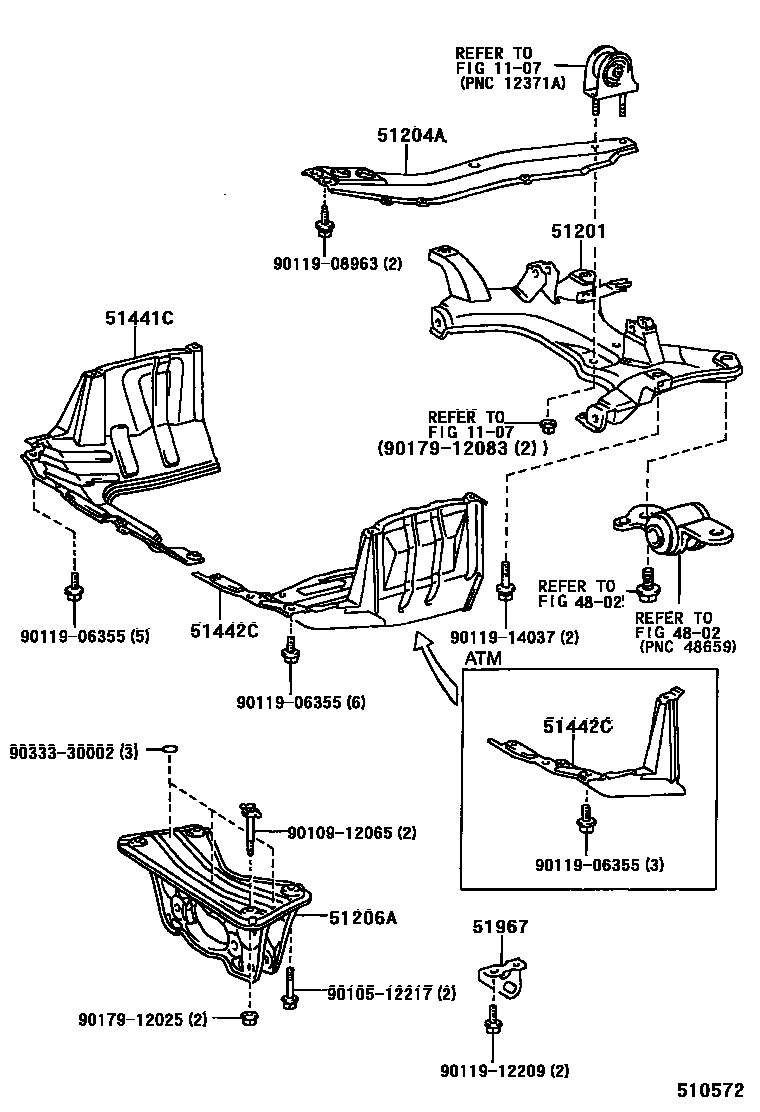

Toyota RAV4 悬架横梁和发动机底罩 — Figure 5152
Toyota RAV4 EPC diagram 5152, 悬架横梁和发动机底罩, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-42010 · 51201-42011 · 51201-42012 · 51201-42040 |
| 51204A | Engine center mount beam sub-assembly | 51204-42010 · 51204-42011 · 51204-42012 · 51204-42013 |
| 51206A | Rear suspension cross member sub-assembly | 51206-42010 · 51206-42011 |
| 51441C | Engine right bottom cover | 51441-42010 |
| 51442C | Engine left bottom cover | 51442-42010 · 51442-42011 · 51442-42020 · 51442-42021 |
| 51967 | Rear transport hook | 51967-42010 |
