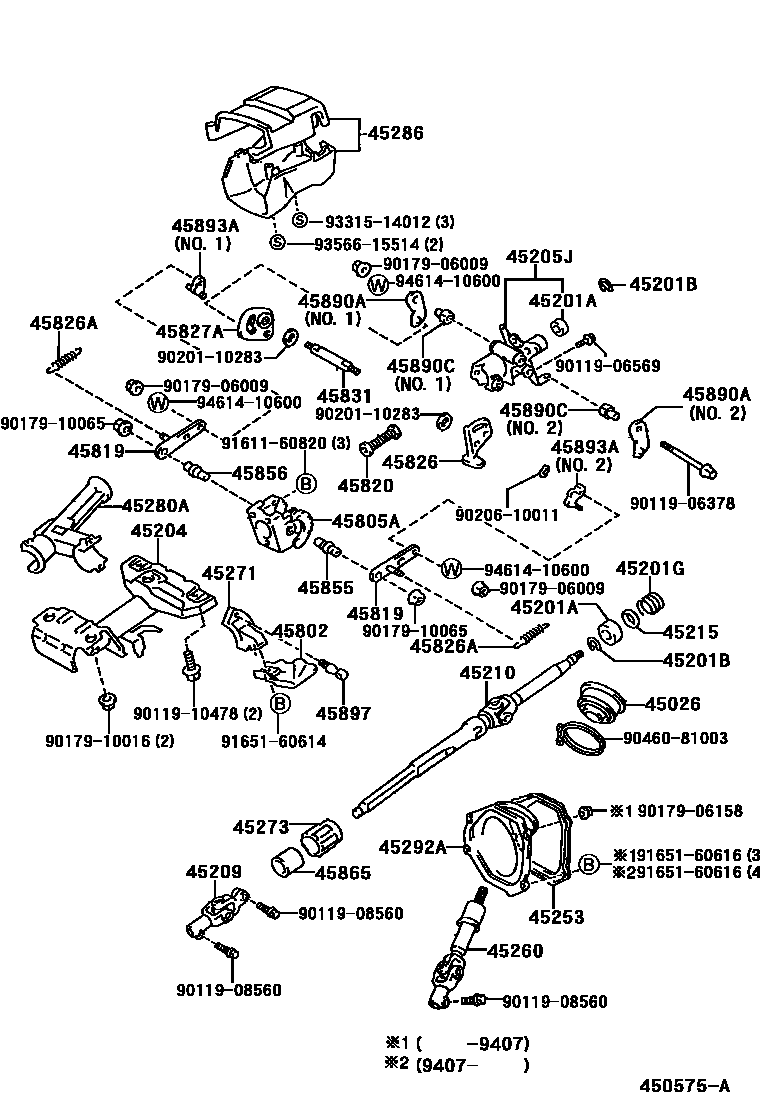

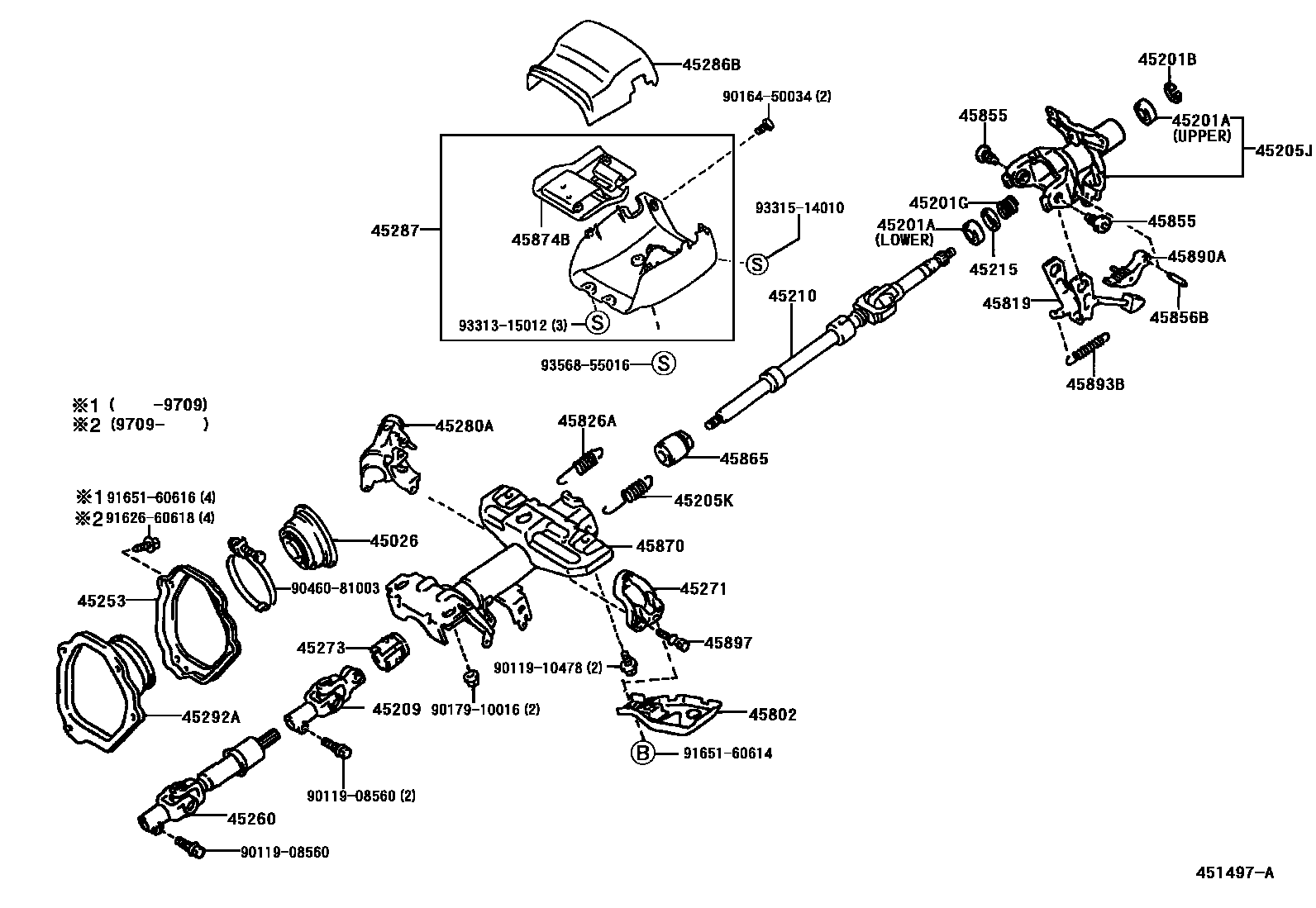

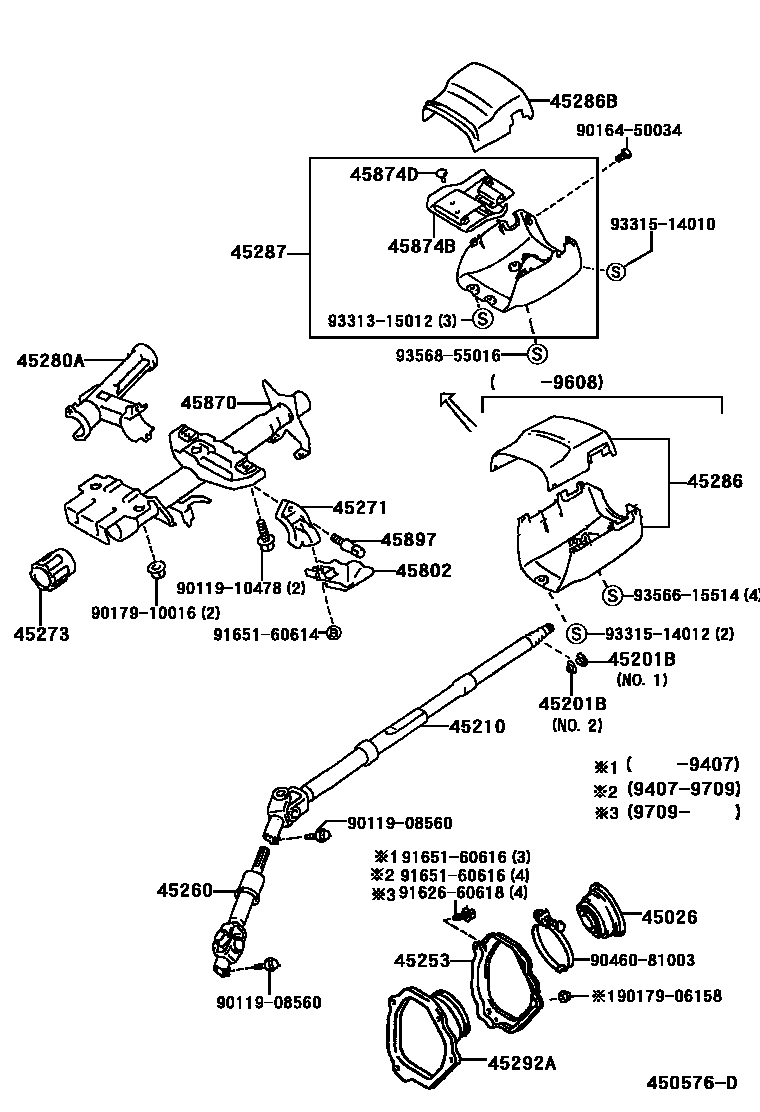

Toyota RAV4 Steering Column & Shaft — Figure 4501
Toyota RAV4 EPC diagram 4501, Steering Column & Shaft, with 3 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45026 | No. 2 steering column hole cover sub-assembly | 45026-42010 |
| 45201A | Bearings (for steering spindle) | 90363-18005 · 90363-18009 |
| 45201B | Shaft snap ring (for steering spindle) | 90520-17042 · 90520-17269 |
| 45201G | Compression spring (for steering spindle) | 90501-40017 |
| 45204 | Steering column down tube assembly | 45204-42010 · 45204-42020 |
| 45205J | Steering column upper tube sub-assembly | 45205-42010 · 45205-42020 · 45205-42030 |
| 45205K | Spring (for steering column tube) | 90506-25004 |
| 45209 | Steering slip fork sub-assembly | 45209-32010 |
| 45210 | Steering spindle assembly | 45210-12400 · 45210-20260 · 45210-35170 |
| 45215 | Spindle bearing thrust collar | 45215-12010 |
| 45253 | Steering column hole cover | 45253-42010 · 45253-42020 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-42010 · 45260-42020 · 45260-42030 · 45260-42040 |
| 45271 | Clamp on steering column | 45271-12070 · 45271-12080 |
| 45273 | Steering spindle bushing | 45273-16020 · 45273-20030 · 45273-20040 · 45273-20050 |
| 45280A | Steering column upper bracket assembly | 45280-42010 · 45280-42011 · 45280-42030 · 45280-42031 · 45280-42050 · 45280-42070 |
| 45292A | Dust cover under spindle | 45292-42010 · 45292-42020 |
| 45802 | No. 1 steering column guard sub-assembly | 45802-12020 · 45802-42010 |
| 45805A | Tilt-adjustable steering bracket sub-assembly | 45805-12010 |
| 45819 | Tilt adjustment lever retaining ring | 45819-12020 · 45819-42010 |
| 45820 | Tilt-adjustable steering bracket spring assembly | 45820-12020 |
| 45826 | Steering tilt adjustment lever | 45826-12021 |
| 45826A | Tension spring (for steering tilt adjustment lever) | 90506-25005 · 90507-12029 |
| 45827A | Steering tilt adjustment lever | 45827-12020 |
| 45831 | No. 1 tilt adjustment lever locking bolt | 45831-12010 |
| 45855 | No. 1 tilt-adjustable steering column bolt | 45855-12030 · 45855-12040 · 45855-35010 |
| 45856 | No. 2 tilt-adjustable steering column bolt | 45856-12030 · 45856-12040 |
| 45856B | No. 2 tilt-adjustable steering shaft | 45856-42010 |
| 45865 | Steering spindle collar | 45865-12060 |
| 45870 | Steering column tube assembly | 45870-42010 · 45870-42020 · 45870-42070 · 45870-42090 |
| 45874B | No. 1 steering column guard | 45874-42010 · 45874-42020 · 45874-42030 |
| 45874D | Cushion pad (for steering column guard) | 90541-06008 |
| 45890A | Tilt-adjustable steering pawl assembly | 45890-12021 · 45890-12031 · 45890-35010 |
| 45890C | Collar (for tilt-adjustable steering pawl) | 90389-07004 · 90389-07005 · 90389-07006 · 90389-07007 · 90389-07008 · 90389-07009 · 90389-07010 · 90389-07011 |
| 45893A | Tilt-adjustable steering pawl stop | 45893-12021 · 45893-12071 · 45893-12120 · 45893-12130 · 45893-12140 · 45893-12150 · 45893-12160 · 45893-12170 · 45893-12180 · 45893-12190 |
| 45893B | Tension spring (for tilt-adjustable steering pawl stop) | 90905-07013 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
