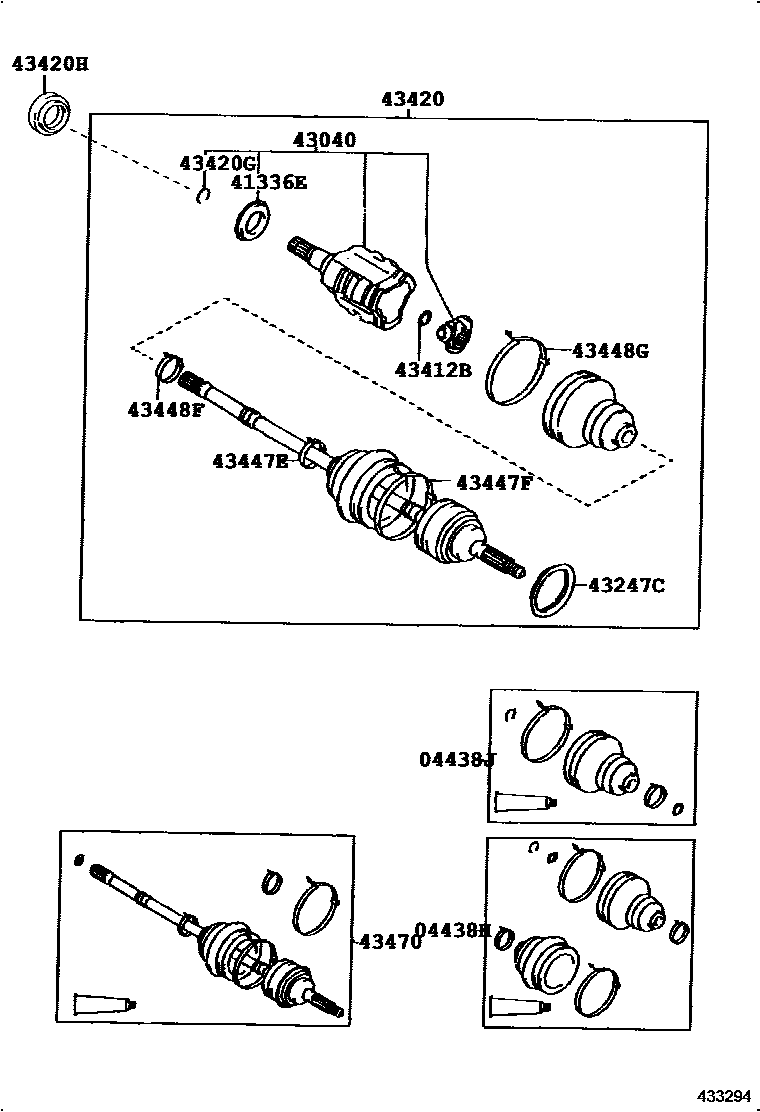

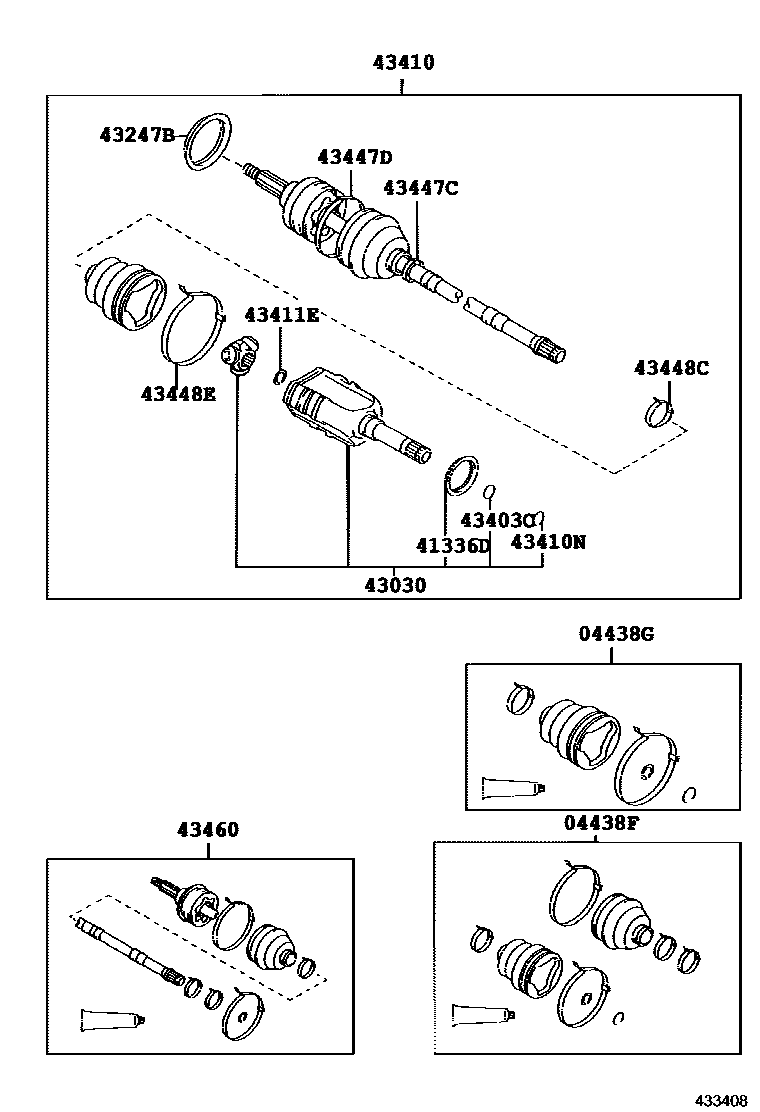

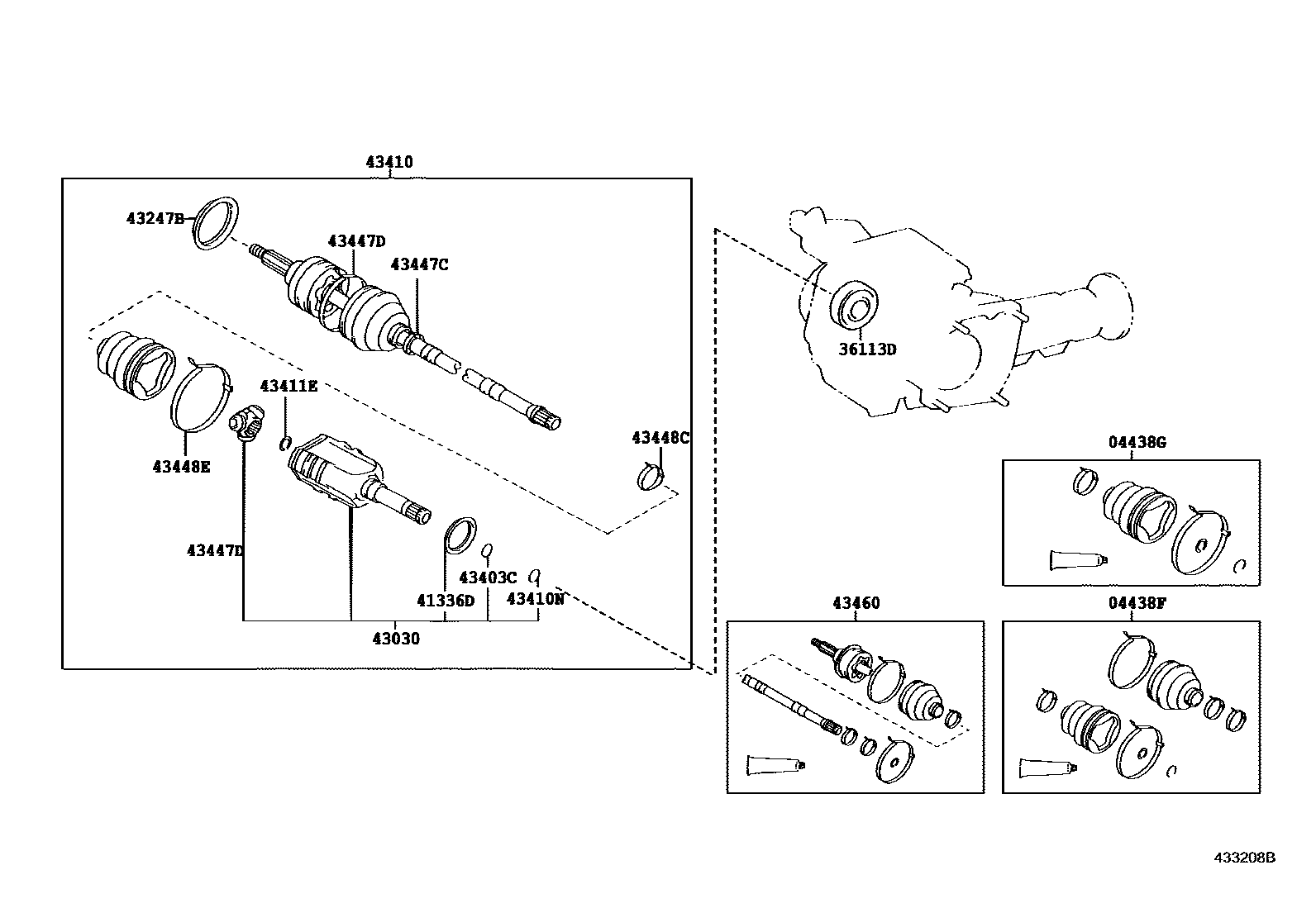

Toyota RAV4 Front Drive Shaft — Figure 4302
Toyota RAV4 EPC diagram 4302, Front Drive Shaft, with 3 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04438-12300 · 04438-12301 · 04438-12302 · 04438-32172 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04438-32161 · 04438-32230 · 04438-32231 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04438-12300 · 04438-12301 · 04438-12302 · 04438-32172 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04438-32161 · 04438-32230 · 04438-32231 |
| 36113D | Oil seal (for right transfer case) | 90310-50002 · 90311-50025 |
| 41336D | Right front driveshaft dust cover | 41336-20040 |
| 41336E | Left front driveshaft dust cover | 41336-12040 |
| 43030 | Right front drive shaft inner universal joint assembly | 43403-12050 |
| 43040 | Left front drive shaft inner universal joint assembly | 43403-12060 |
| 43247B | No. 2 right front wheel bearing dust cover | 43247-12010 · 43247-33010 |
| 43247C | No. 2 left front wheel bearing dust cover | 43247-12010 · 43247-33010 |
| 43403C | O-ring (for front drive shaft inboard universal joint) | 90301-26006 |
| 43410 | Right front driveshaft assembly | 43410-42010 · 43410-42011 · 43410-42012 · 43410-42020 · 43410-42021 · 43410-42022 |
| 43410N | Hole snap ring (for right front driveshaft) | 90521-26004 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 90520-22005 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 90520-22005 |
| 43420 | Left front drive shaft assembly | 43420-42010 · 43420-42011 · 43420-42012 · 43420-42020 · 43420-42021 · 43420-42022 |
| 43420G | Hole snap ring (for left front driveshaft) | 90521-26004 |
| 43420H | Front drive shaft left oil seal | 90311-44003 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-16030 · 42345-20090 · 42345-20100 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-16040 · 42345-20110 · 42345-20120 · 90949-01076 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-16030 · 42345-20090 · 42345-20100 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-16040 · 42345-20110 · 42345-20120 · 90949-01076 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-16010 · 90949-01078 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-16040 · 90949-01076 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-16010 · 90949-01078 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-16040 · 90949-01076 |
| 43460 | Right front outer drive universal joint shaft assembly | 43470-49015 · 43470-49016 · 43470-49017 · 43470-49025 · 43470-49026 · 43470-49027 · 43470-49028 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-49015 · 43470-49016 · 43470-49017 · 43470-49025 · 43470-49026 · 43470-49027 · 43470-49028 |
