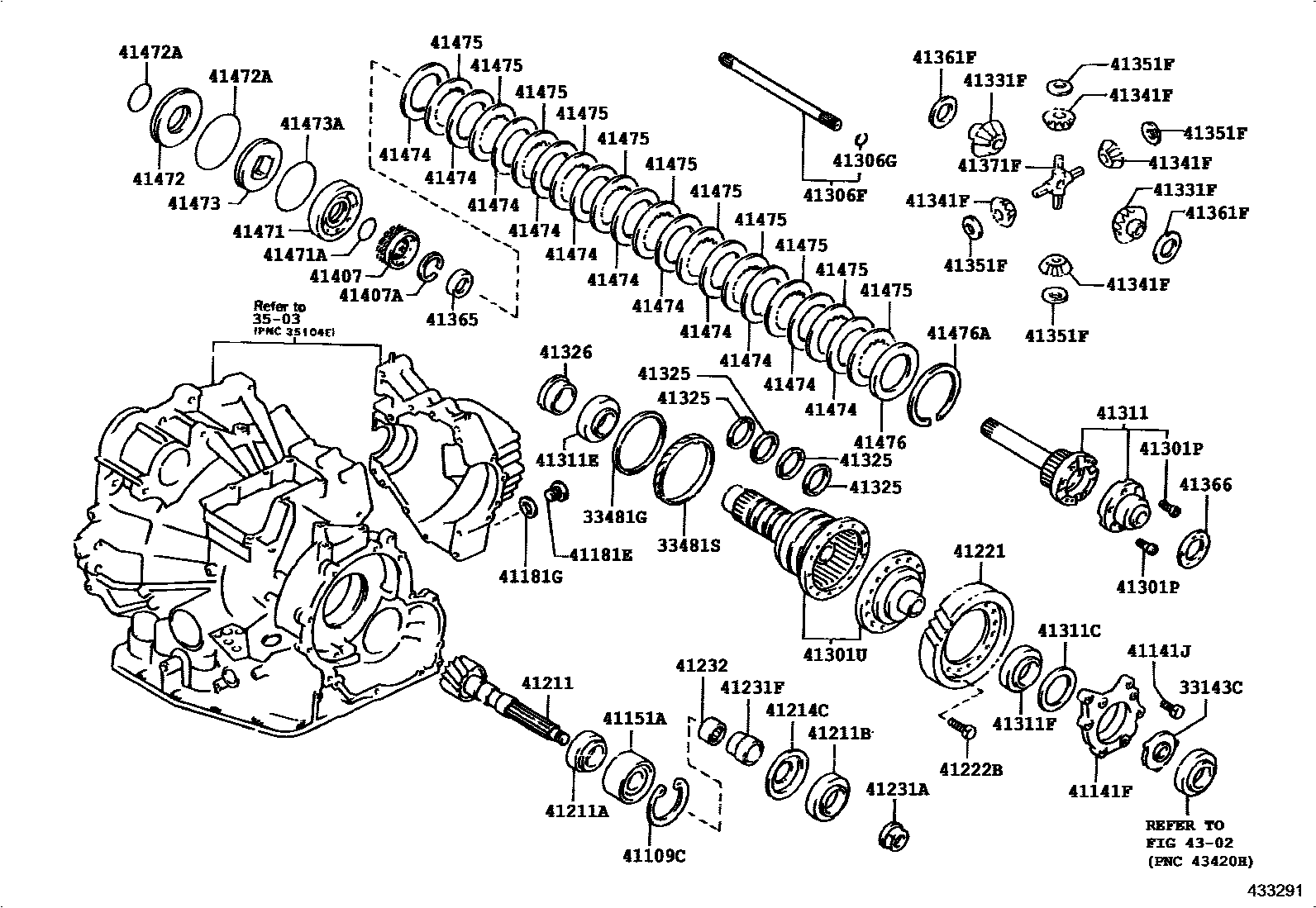

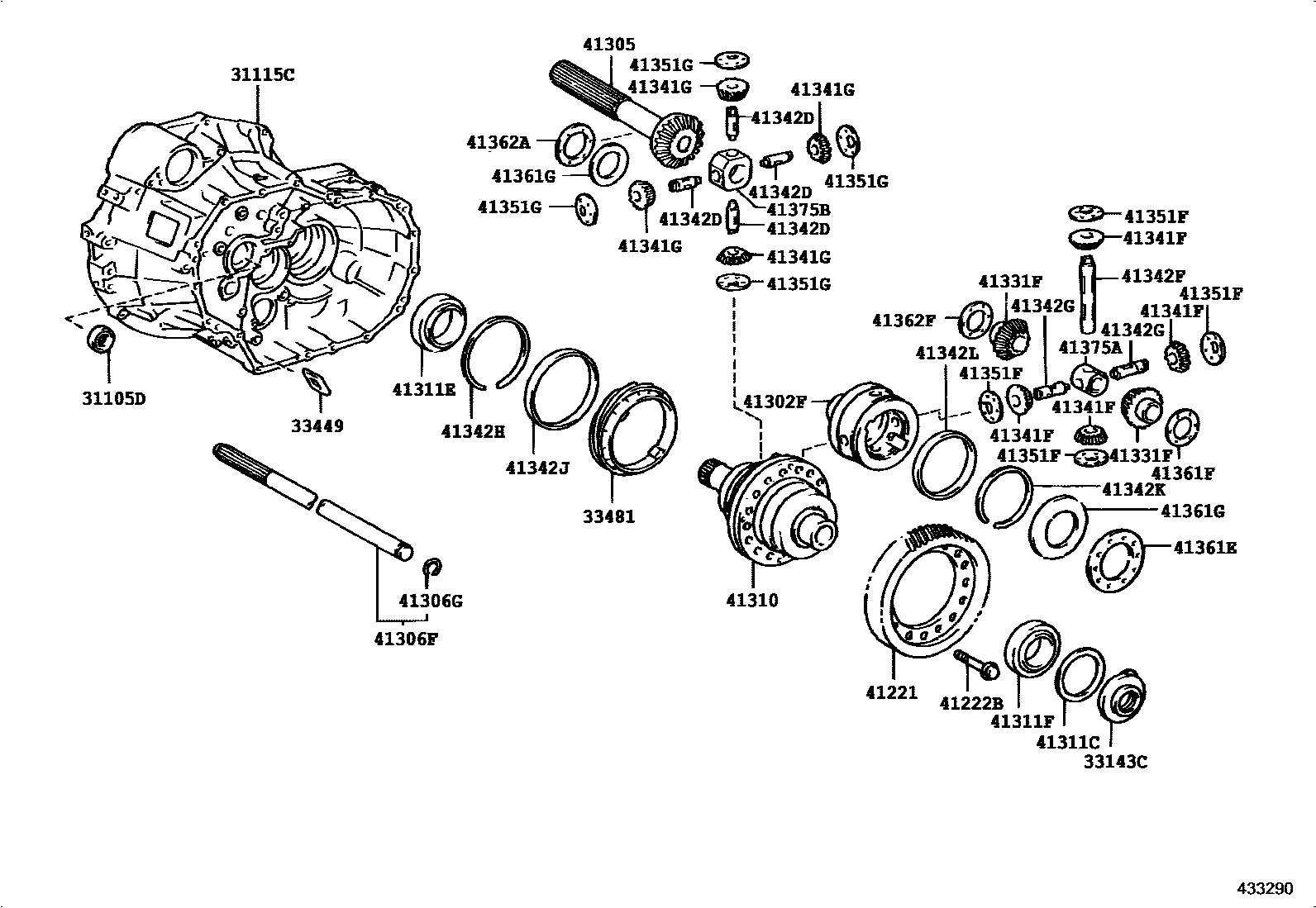

Toyota RAV4 前桥壳和差速器 — Figure 4301
Toyota RAV4 EPC diagram 4301, 前桥壳和差速器, with 2 images and 69 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105D | No. 1 oil seal (for front transmission axle housing) | 90311-30006 |
| 31115C | Front transmission axle housing (MTM) | 31115-33011 · 31115-33012 · 31115-33013 |
| 33143C | Front differential oil baffle | 33143-12010 |
| 33449 | derailleur magnet | 33449-20010 |
| 33481 | Speedometer driving gear (MTM) | 33481-42020 · 33481-42030 |
| 33481G | Shaft snap ring (for ATM speedometer driving gear) | 90520-99006 |
| 33481S | Speedometer driving gear (ATM) | 33481-42010 |
| 41109C | Hole snap ring (for differential drive pinion bearing housing) | 90521-79008 |
| 41141F | Front differential side bearing retainer | 41101-32030 |
| 41141J | Bolt (for front differential side bearing retainer) | 90105-08331 |
| 41151A | Differential drive pinion tapered bearing housing | 41151-32031 |
| 41181E | Screw plug (for front differential drain port) | 90341-18021 |
| 41181G | Gasket (for front differential drain plug) | 90430-18008 |
| 41211 | Differential drive pinion | 41211-32072 |
| 41211A | Front roller tapered bearing (for front driving pinion) | 90366-36003 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90366-40051 |
| 41214C | Front differential drive pinion oil retaining ring | 41214-32020 |
| 41221 | Front differential ring gear | 41221-32070 · 41221-42020 · 41221-42021 |
| 41222B | Bolt (for front differential ring gear assembly) | 90105-12150 |
| 41231A | Drive pinion lock nut | 90179-24006 |
| 41231F | Front differential drive pinion bearing spacer | 41231-32020 · 41231-45010 |
| 41232 | No. 2 driving pinion bearing spacer | 41232-32011 |
| 41301P | Screw (for front differential case) | 90149-80017 |
| 41301U | Front differential ring gear mounting housing sub-assembly | 41301-32040 |
| 41302F | Front differential housing sub-assembly | 41302-12030 |
| 41305 | Differential side gear sub-assembly | 41305-32020 |
| 41306F | Differential side gear countershaft sub-assembly | 41306-32010 |
| 41306G | Hole snap ring (for differential side gear countershaft) | 90521-26004 |
| 41310 | Differential case assembly | 41310-32020 · 41310-42020 |
| 41311 | front differential case | 41302-32030 |
| 41311C | Rear gasket (for front differential case) | 90564-76001 · 90564-76002 · 90564-76003 · 90564-76004 · 90564-76005 · 90564-76006 · 90564-76007 · 90564-76008 · 90564-76009 · 90564-76010 · 90564-76011 · 90564-76012 · 90564-76013 · 90564-76014 · 90564-76015 · 90564-76016 · 90564-76017 · 90564-76018 |
| 41311E | Roller cone bearing (for front differential housing) | 90366-57001 · 90366-67004 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-50014 · 90366-55034 |
| 41325 | Front differential ring gear mounting housing oil seal ring | 41325-12010 |
| 41326 | Ring gear mounting shell sleeve | 41326-32010 |
| 41331F | Front differential side gear | 41331-12030 |
| 41341F | Front differential planetary gear | 41341-20011 |
| 41341G | Center differential planetary gear | 41341-12040 · 41341-42010 |
| 41342D | Center differential planetary gear shaft | 41342-12120 · 41342-42010 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-12040 |
| 41342G | No. 2 front differential planetary gear shaft | 41342-12050 |
| 41342H | Shaft snap ring (for center differential planetary gear shaft) | 90520-99007 |
| 41342J | Spacer (for center differential planetary gear shaft) | 90560-99002 |
| 41342K | Shaft snap ring (for front differential planetary gear shaft) | 90520-94001 |
| 41342L | Spacer (for differential planetary gear shaft) | 90560-97001 |
| 41351F | Front differential planetary gear thrust washer | 41351-12010 · 41351-32030 |
| 41351G | Center differential planetary gear thrust washer | 41351-12060 · 41351-42010 |
| 41361E | No. 1 center differential side gear thrust washer | 41362-20020 · 41362-20030 · 41362-20040 · 41362-20050 · 41362-20060 · 41362-20070 · 41362-20080 · 41362-20090 · 41362-20100 · 41362-20110 · 41362-20120 · 41362-20130 · 41362-20140 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-12330 · 41361-12340 · 41361-12350 · 41361-12360 · 41361-12370 · 41361-12380 · 41361-12390 · 41361-12400 · 41361-12410 · 41361-12420 |
| 41361G | Conical spring washer (for center differential side gears) | 90208-36001 · 90208-41001 |
| 41362A | No. 2 center differential side gear thrust washer | 41362-20150 · 41362-20160 · 41362-20170 · 41362-20180 · 41362-20190 · 41362-20200 · 41362-20210 · 41362-20220 · 41362-20230 · 41362-20240 · 41362-20250 · 41362-20260 · 41362-20270 |
| 41362F | No. 2 front differential side gear thrust washer | 41361-12340 · 41361-12350 · 41361-12360 · 41361-12370 · 41361-12380 · 41361-12390 · 41362-20230 |
| 41365 | No. 1 front differential side gear thrust washer | 41365-12010 |
| 41366 | No. 2 front differential side gear thrust washer | 41366-12010 |
| 41371F | Front differential cross shaft | 41371-32020 |
| 41375A | Front differential planetary gear shaft support | 41375-12020 |
| 41375B | Center differential planetary gear shaft support | 41375-12050 · 41375-12051 |
| 41407 | Differential lock piston return spring sub-assembly | 41407-32010 |
| 41407A | Shaft snap ring (for differential lock piston return spring) | 90520-43008 |
| 41471 | No. 1 differential lock clutch piston | 41471-32010 |
| 41471A | O-ring (for No. 1 differential lock clutch piston) | 90301-46002 |
| 41472 | No. 2 differential lock clutch piston | 41472-32010 |
| 41472A | O-ring (for No. 2 differential lock clutch piston) | 90301-59004 · 90301-99055 |
| 41473 | Differential lock clutch piston reaction sleeve | 41473-32010 |
| 41473A | O-ring (for piston reaction sleeve) | 90301-96001 |
| 41474 | Differential lock clutch plate | 41474-32011 · 41474-32020 |
| 41475 | Differential lock clutch disc | 41475-32020 · 41475-32030 |
| 41476 | Differential lock clutch flange | 41476-32011 |
| 41476A | Hole snap ring (for differential lock clutch flange) | 90521-99061 |
