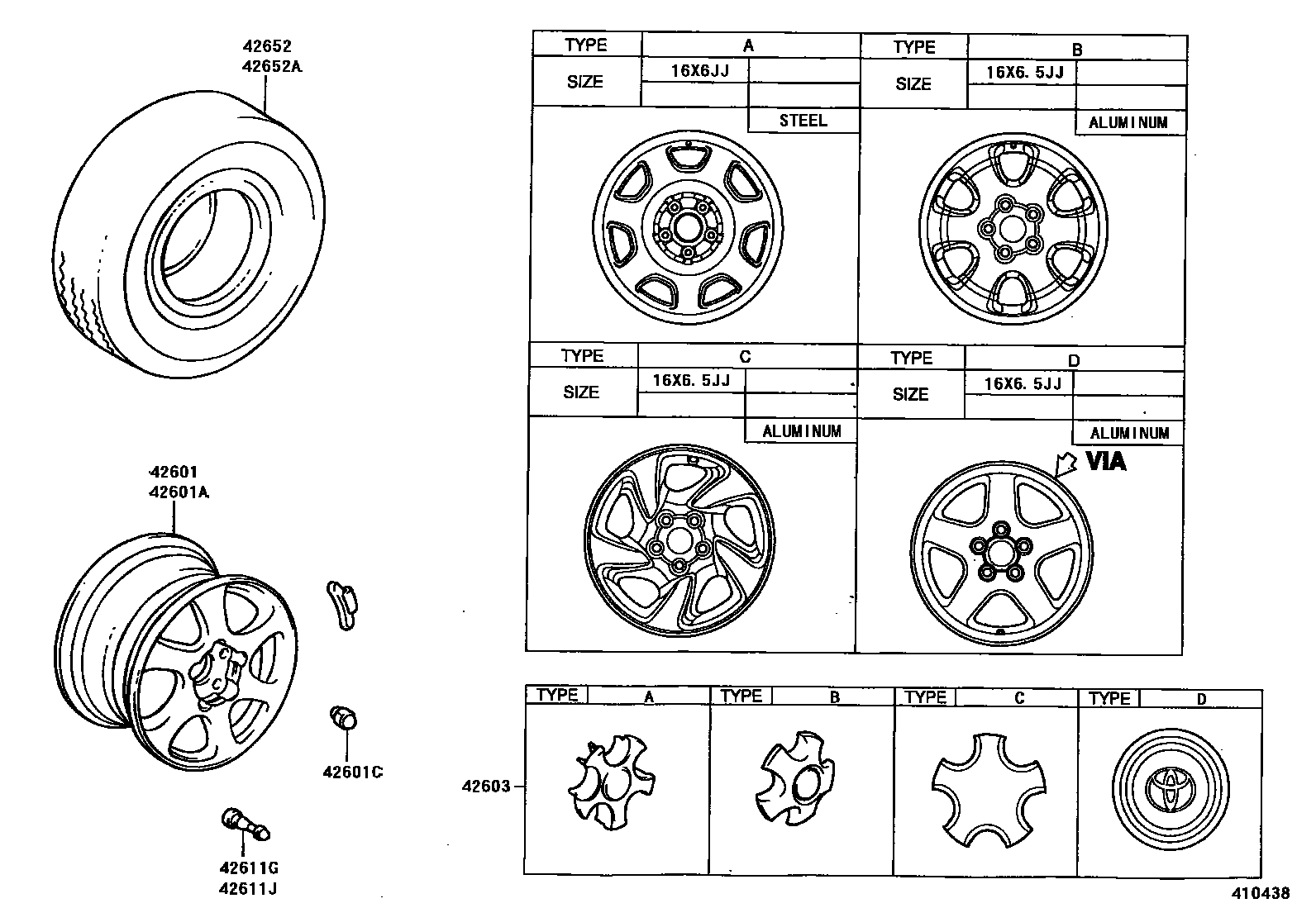

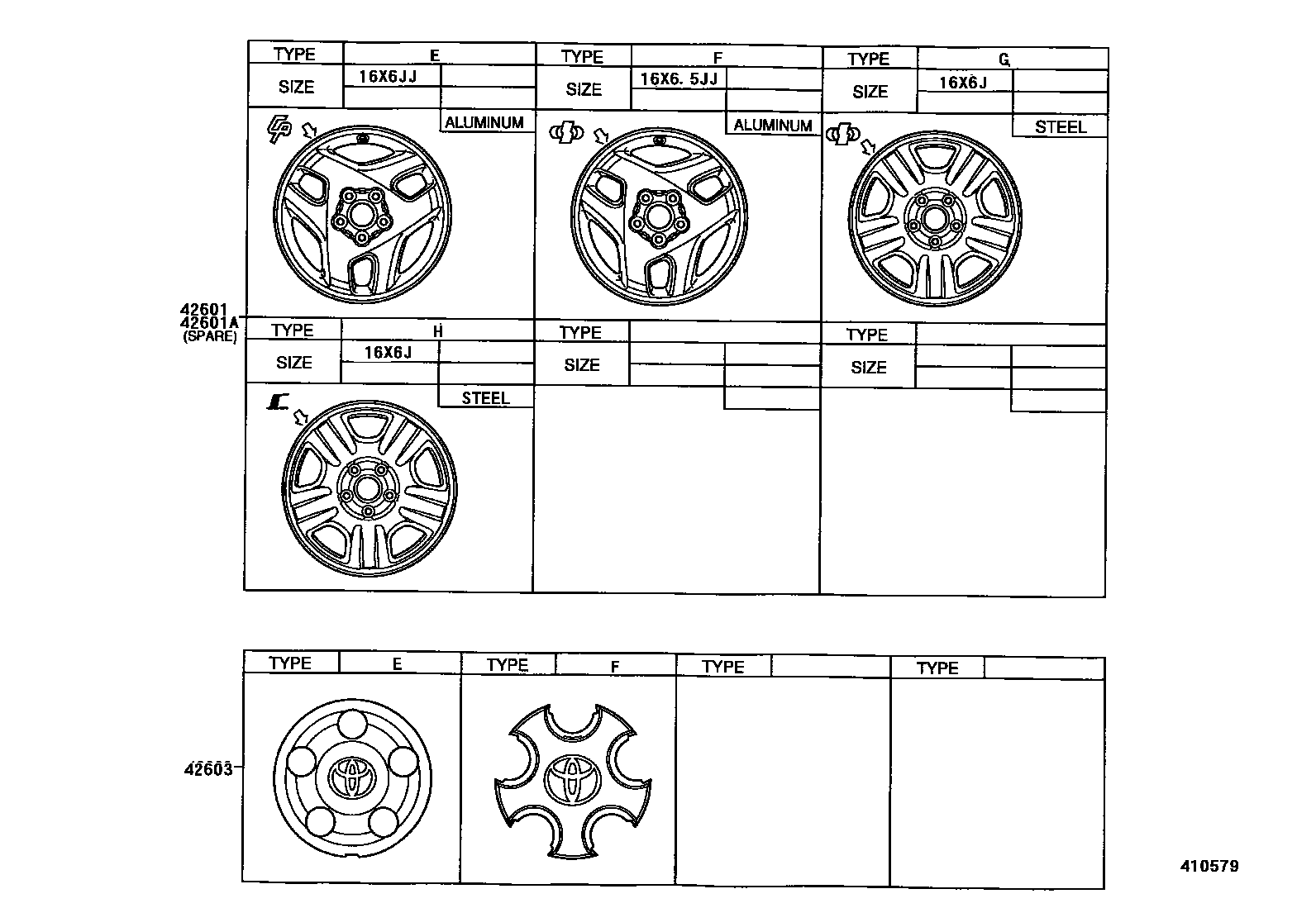

Toyota RAV4 车轮和车轮盖 — Figure 4103
Toyota RAV4 EPC diagram 4103, 车轮和车轮盖, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601 | spoke wheel | 42611-0W080 · 42611-42010 · 42611-42011 · 42611-42020 · 42611-42050 · 42611-42060 · 42611-42070 · 42611-42080 · 42611-42090 |
| 42601A | Spoke wheel (for spare tire) | 42611-0W080 · 42611-42010 · 42611-42011 · 42611-42020 · 42611-42050 · 42611-42060 · 42611-42070 · 42611-42080 · 42611-42090 |
| 42601C | Hub nut (for axle) | 90942-01021 · 90942-01058 · 90942-01082 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-42010 · 42603-42020 · 42603-42030 · 42603-42040 · 42603-42050 · 42638-42010 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42652 | tires | 42605-42010 · 42652-42010 · 42652-42011 · 42652-42020 · 42652-42021 · 42652-42041 · 42652-42070 · 42652-42080 · 42652-42081 · 42652-42110 · 42652-42120 · 42652-42130 |
| 42652A | Tire (for Spare Wheel) | 42605-42010 · 42652-42010 · 42652-42011 · 42652-42020 · 42652-42021 · 42652-42041 · 42652-42070 · 42652-42080 · 42652-42081 · 42652-42110 · 42652-42120 · 42652-42130 |
