Toyota RAV4 Propeller Shaft & Universal Joint — Figure 3701

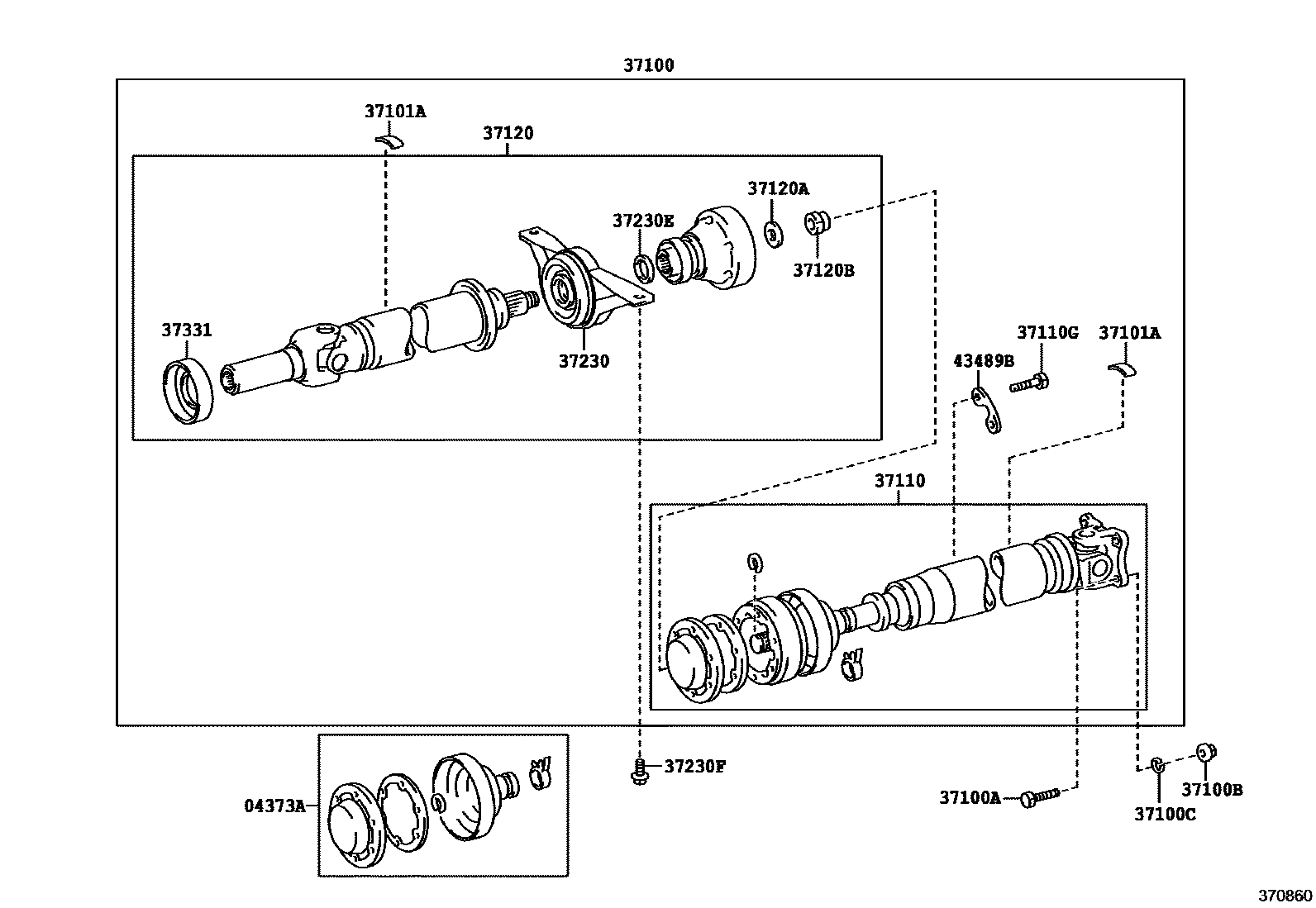

Toyota RAV4 EPC diagram 3701, Propeller Shaft & Universal Joint, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04373A | Universal joint dust boot assembly | 04373-12010 |
| 37100 | Drive shaft assembly with central bearing | 37100-42010 · 37100-42020 · 37100-42021 · 37100-42030 · 37100-42040 · 37100-42041 |
| 37100A | No. 1 bolt (used to secure the drive shaft and differential) | 90105-10085 |
| 37100B | No. 1 nut (used to secure the drive shaft and differential) | 90179-10059 |
| 37100C | No. 1 washer (used to secure drive shaft and differential) | 90204-10002 |
| 37101A | Balance weight No. 1 (for drive shaft) | 90937-01140 · 90937-01157 · 90937-01158 · 90937-01355 · 90937-01356 · 90937-01357 · 90937-01358 · 90937-01359 · 90937-01360 · 90937-01361 · 90937-01362 · 90937-01363 · 90937-01364 · 90937-01385 · 90937-01386 |
| 37110 | Drive shaft assembly | 37110-42010 · 37110-42020 |
| 37110G | Bolt (for rear driveshaft) | 90110-08016 |
| 37120 | Intermediate drive shaft assembly | 37120-42010 · 37120-42020 · 37120-42021 |
| 37120A | Flat Washer (for intermediate drive shaft assembly) | 90201-18182 |
| 37120B | Nut (for fixing the intermediate drive shaft) | 90179-18009 |
| 37230 | No. 1 intermediate support bearing assembly | 37230-42010 |
| 37230E | No. 1 washer (for intermediate support bearing) | 90201-25005 |
| 37230F | No. 1 bolt (for intermediate support bearing) | 90119-10441 |
| 37331 | Sliding shaft dust cover | 37331-30010 |
| 43489B | Constant velocity joint washer | 43489-20030 |
