Toyota RAV4 Shift Lever & Retainer — Figure 3312

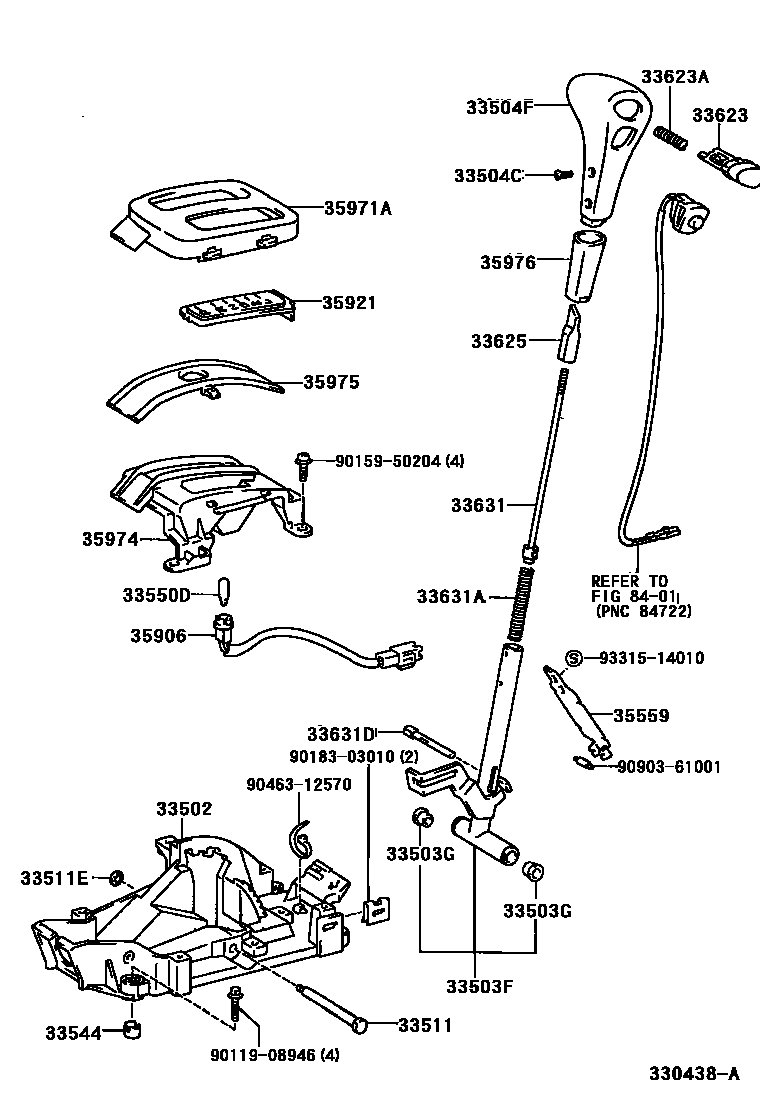

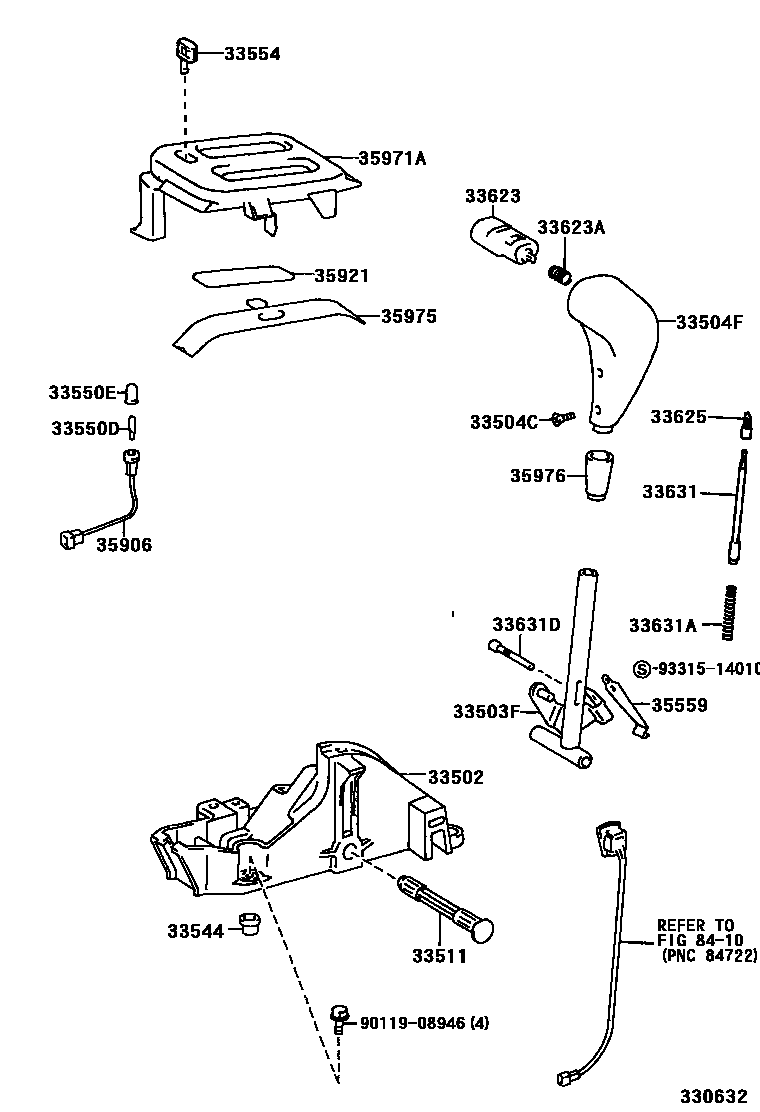

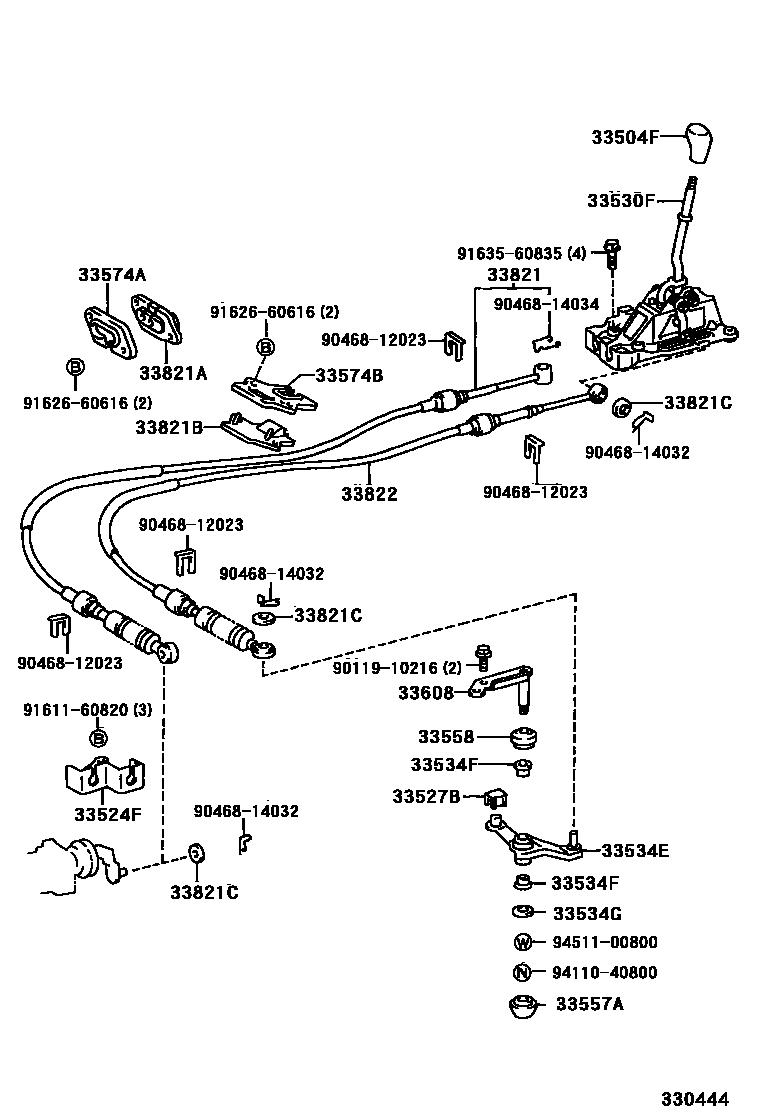

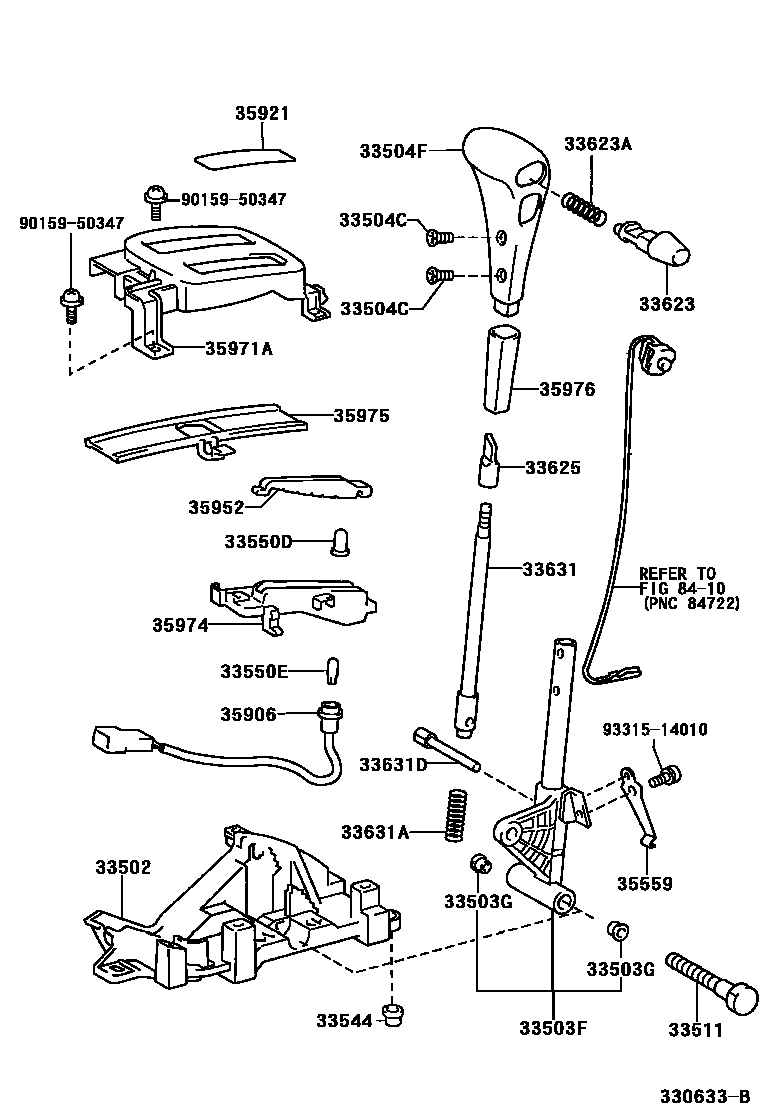

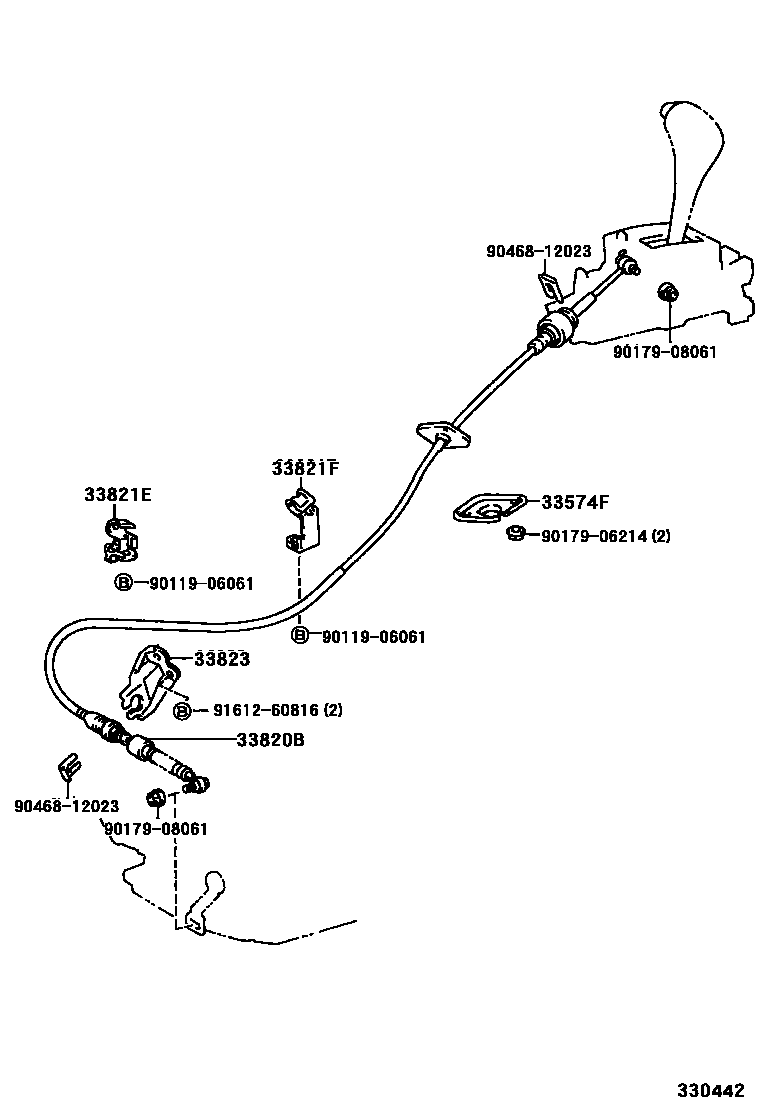

Toyota RAV4 EPC diagram 3312, Shift Lever & Retainer, with 5 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33502 | Shift lever base plate sub-assembly | 33521-12221 · 33521-12240 · 33521-12250 · 33521-42010 |
| 33503F | Shift lever sub-assembly (for floor shift) | 33055-42030 · 33503-42010 · 33503-42020 · 33503-42030 |
| 33503G | Bushing (for shift lever) | 90386-08062 · 90386-09024 |
| 33504C | Screw (for securing shift lever knob) | 90159-40238 · 90159-40244 |
| 33511 | Control shaft (for floor shifting) | 33511-12100 · 33511-12110 · 33511-42010 |
| 33511E | Snap ring (for floor mounted shift control shaft) | 90520-08001 |
| 33524F | Lever housing bracket (for floor shift) | 33524-20010 |
| 33527B | Bushing (for shift control lever) | 33557-33010 |
| 33530F | Shift lever assembly (for floor shift) | 33530-12570 · 33530-12620 · 33530-42010 · 33530-42020 |
| 33534E | No. 2 gear selection right-angle lever | 33534-12091 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-12022 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33544 | Shift lever insert No. 1 | 33544-33010 |
| 33550D | position indicator light bulb | 90981-11018 · 90981-11036 |
| 33550E | position indicator cover | 90339-04062 · 90339-09001 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-32010 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-10030 |
| 33574A | No. 1 shift cable retaining ring retaining ring | 33574-12080 |
| 33574B | No. 2 shift cable seal | 33574-12060 |
| 33574F | Dust seal retainer (for floor shift) | 33574-42010 |
| 33608 | Gear selection right-angle lever bracket sub-assembly | 33608-12031 |
| 33623A | Compression spring (for shift lever knob button) | 90501-07037 · 90501-07110 |
| 33625 | Shift lever handle sleeve | 33625-12020 · 33625-12030 |
| 33631 | Locking lever | 33631-12120 · 33631-33020 |
| 33631A | Compression spring (for locking lever) | 90501-06103 · 90501-07074 · 90501-07117 |
| 33631D | Grooved pin (for locking lever) | 90245-04009 · 90256-04008 |
| 33820B | Transmission control cable assembly | 33820-42011 · 33820-42021 · 33820-42022 · 33820-42100 · 33820-42120 · 33820-42130 |
| 33821 | Transmission shift control cable (for floor-mounted shifting) | 33821-42040 · 33821-42070 |
| 33821A | No. 1 retaining ring (for transmission control cable) | 90480-01400 |
| 33821B | No. 2 retaining ring (for transmission control cable) | 33577-42020 |
| 33821C | Flat Washer (for transmission control cable) | 90201-08077 · 90201-10042 |
| 33821E | Clamp No. 1 (for transmission control cable) | 90949-01681 |
| 33821F | Clamp No. 2 (for transmission control cable) | 90949-01955 |
| 33822 | Transmission selector control cable (for floor-mounted shifting) | 33822-42020 · 33822-42030 |
| 33823 | No. 1 transmission control cable bracket | 33823-32031 |
| 35559 | Manual locking spring | 35559-12040 · 35559-33010 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-12140 · 35906-12160 · 35906-42010 · 35906-42020 |
| 35921 | control position indicator board | 35921-12330 · 35921-12380 · 35921-12390 · 35921-12420 |
| 35952 | Position indicator lampshade | 35952-42010 |
| 35974 | Position indicator light lower shell | 35974-12130 · 35974-12161 · 35974-42010 |
