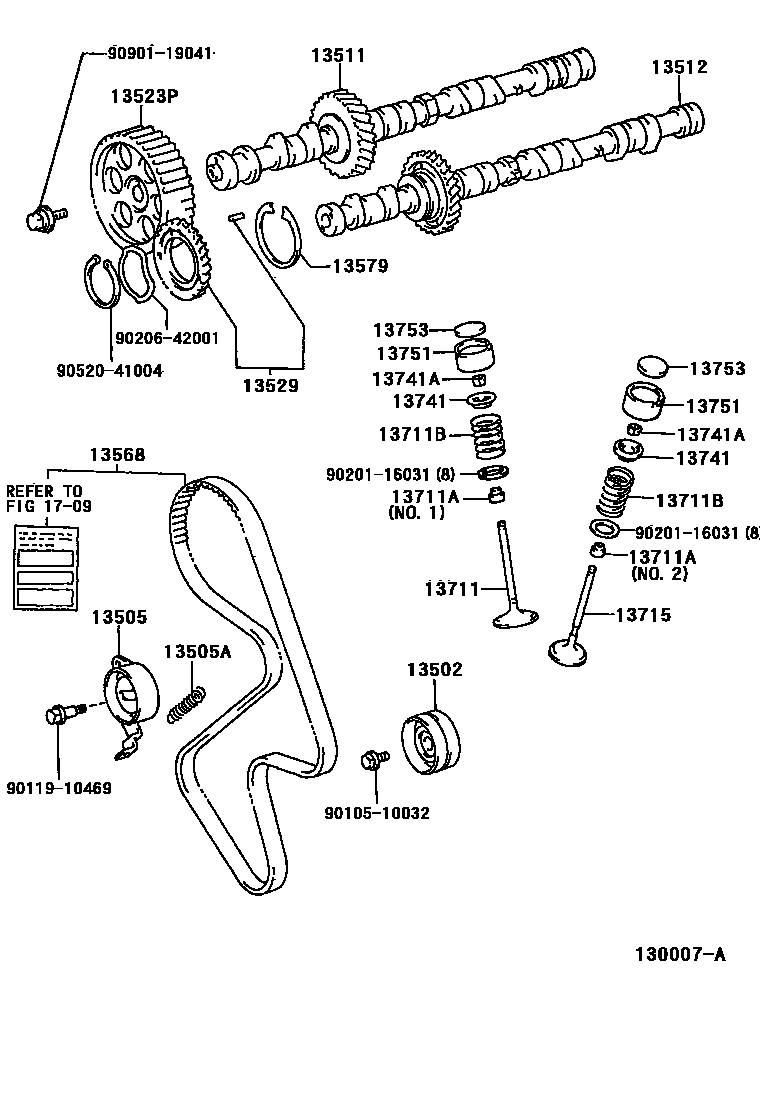

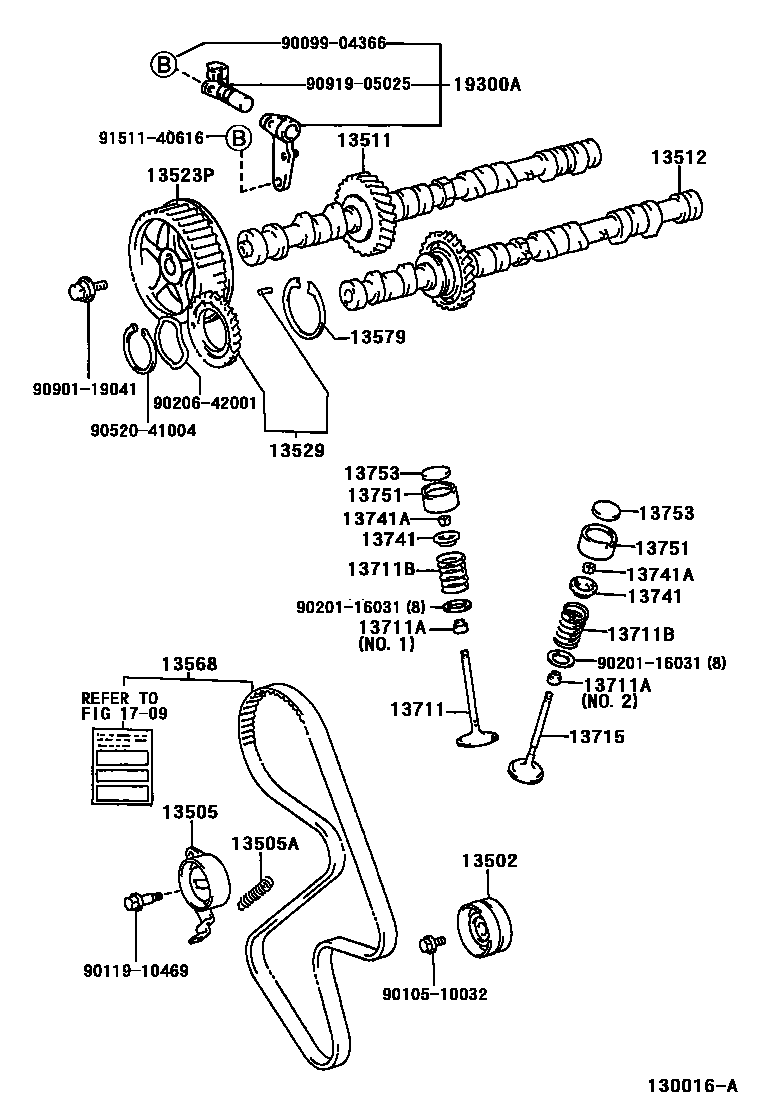

Toyota RAV4 Camshaft & Valve — Figure 1302
Toyota RAV4 EPC diagram 1302, Camshaft & Valve, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13502 | No. 2 timing belt idler pulley sub-assembly | 13503-63011 |
| 13505 | No. 1 timing belt idler pulley sub-assembly | 13505-74011 |
| 13505A | Tension spring (for idler pulley) | 90507-17003 · 90507-18030 |
| 13511 | camshaft | 13501-74050 · 13501-74070 |
| 13512 | Camshaft No. 2 | 13502-74030 · 13502-74040 |
| 13523P | Camshaft timing pulley | 13523-03030 · 13523-74020 · 13523-74040 · 13523-74050 |
| 13529 | Camshaft counter gear | 13529-74900 |
| 13568 | timing belt | 13568-79095 · 13568-79225 |
| 13579 | Camshaft timing gear bolt washer | 13579-74010 |
| 13711 | intake valve | 13711-74080 · 13711-74101 |
| 13711A | Oil seal or O-ring (for valve stem) | 90913-02066 · 90913-02088 · 90913-02090 |
| 13711B | Compression spring (for inner side) | 90504-37002 |
| 13715 | exhaust valve | 13715-74080 · 13715-74100 |
| 13741 | Valve spring seat ring | 13741-50020 |
| 13741A | Valve spring seat lock plate | 90913-03021 |
| 13751 | valve lifter | 13751-74020 |
| 13753 | valve adjustment gasket | 13753-74010 · 13753-74030 · 13753-74050 · 13753-74070 · 13753-74090 · 13753-74110 · 13753-74130 · 13753-74150 · 13753-74170 · 13753-74190 · 13753-74210 · 13753-74230 · 13753-74250 · 13753-74270 · 13753-74290 · 13753-74310 · 13753-74330 |
| 19300A | Cam position sensor assembly | 19300-74010 |
