Toyota RAV4 Ventilation Hose — Figure 1201

Toyota RAV4 EPC diagram 1201, Ventilation Hose, with 2 images and 6 PNC and OE references.

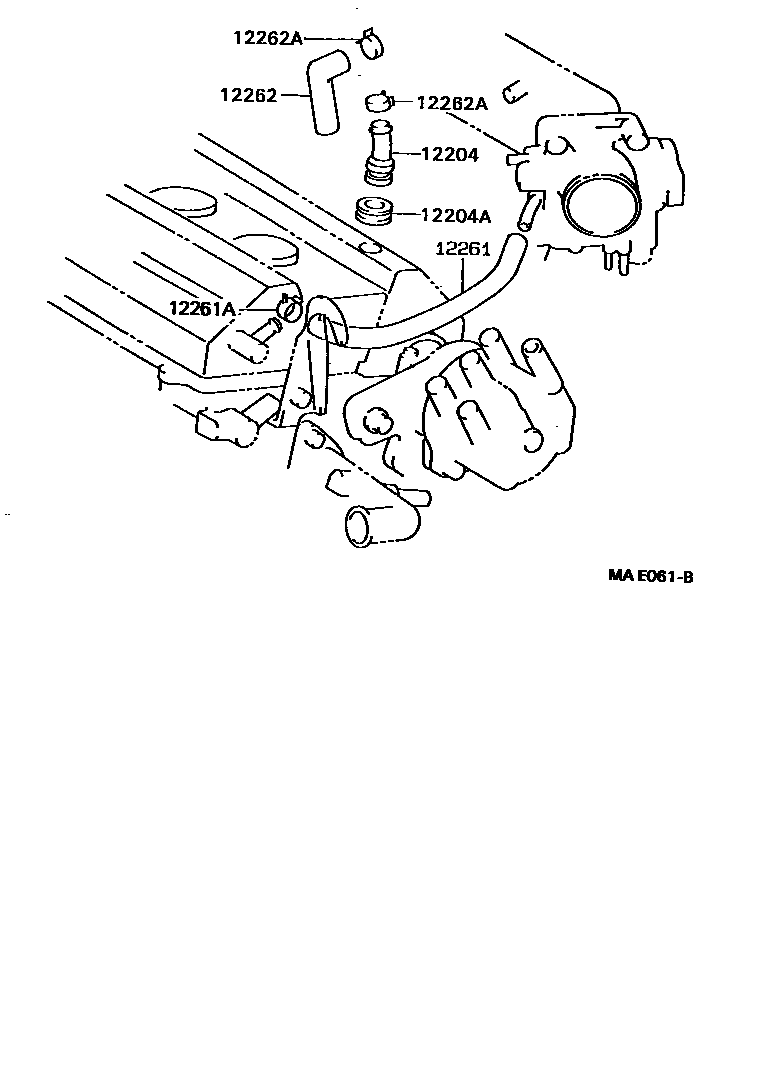

Toyota RAV4 Ventilation Hose EPC diagram — MAE061B
Ventilation Hose — MAE061B (199404 – 199709)
Toyota RAV4 Ventilation Hose EPC diagram — MAJ857
Ventilation Hose — MAJ857 (199608 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-74020 · 12204-74030
12204AGasket (for ventilation system)90480-18001
12261Ventilation Hose12260-74050 · 12261-74020 · 12261-74140 · 12261-74141
12261AClip or clip (for vent hose)90467-14043 · 90467-15016 · 90467-15022
12262Ventilation hose No. 212262-74050 · 12262-74100
12262AClamp (for vent hose No. 2)90467-13103 · 90467-14043 · 90467-15016 · 90467-15022
