Toyota RAV4 Timing Gear Cover & Rear End Plate — Figure 1106

Toyota RAV4 EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 2 images and 14 PNC and OE references.

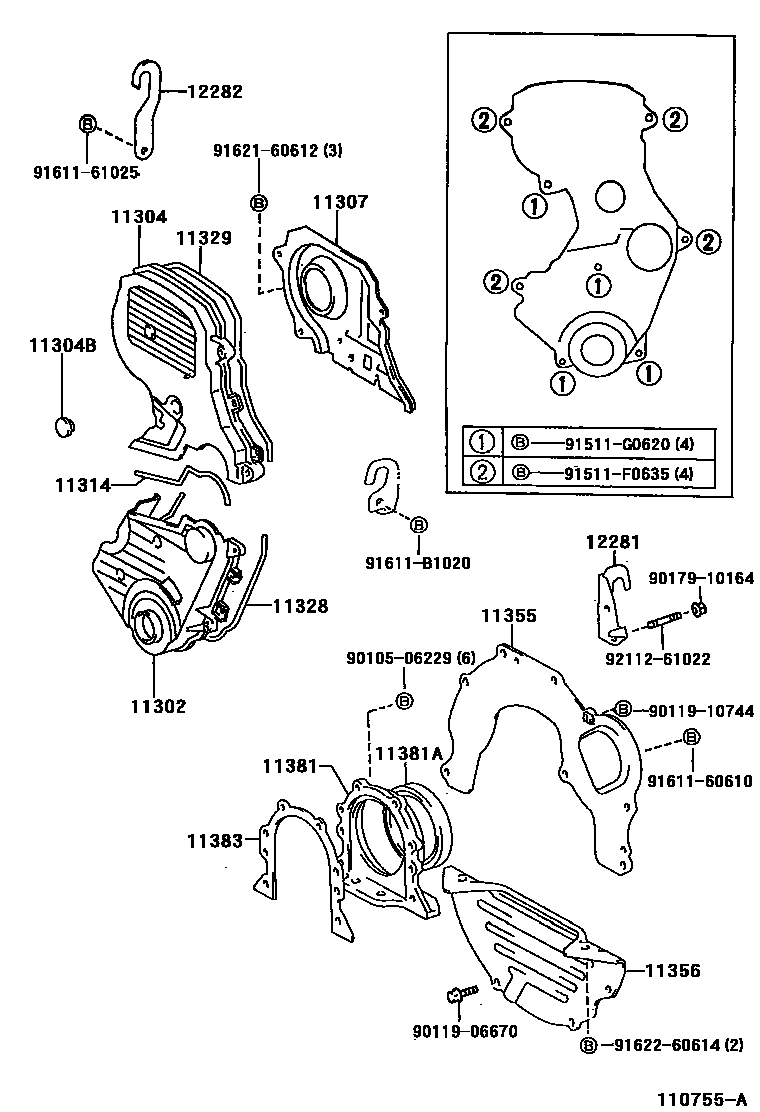

Toyota RAV4 Timing Gear Cover & Rear End Plate EPC diagram — 110755A
Timing Gear Cover & Rear End Plate — 110755A (199608 – 999999)

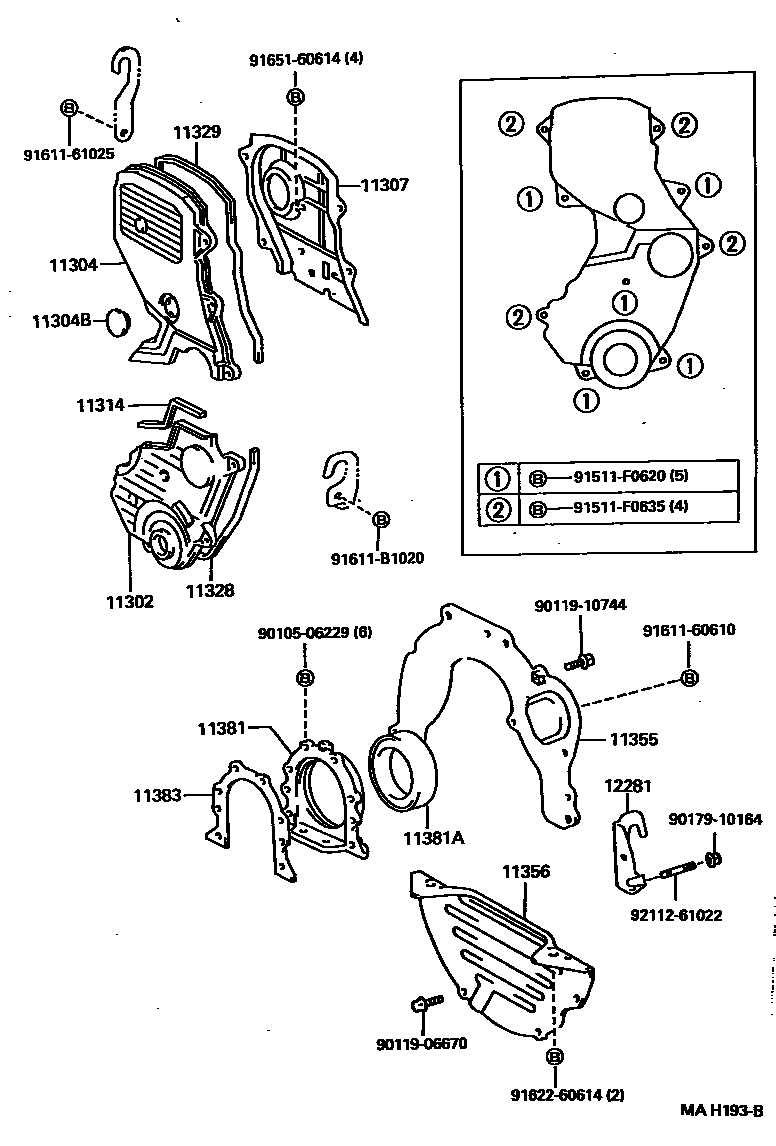

Toyota RAV4 Timing Gear Cover & Rear End Plate EPC diagram — MAH193B
Timing Gear Cover & Rear End Plate — MAH193B (199404 – 199608)

PNC and OE references

PNCPart nameOE numbers
11302TIMING CHAIN OR BELT COVER SUB-ASSY11302-74030 · 11302-74040
11304No. 2 timing chain or timing belt cover11303-74040 · 11303-74050
11304BHalf-round plug (for No. 2 timing chain cover)90950-01489
11307No. 3 timing belt cover sub-assembly11304-74030 · 11304-74040 · 11304-74060
11314No. 2 timing chain cover gasket11319-74020 · 11319-74030
11328GASKET, TIMING GEAR OR CHAIN COVER11328-74040 · 11328-74060
11329Timing gear rear cover gasket11329-74070 · 11329-74080
11355rear end plate11355-74040
11356No. 2 rear end plate11356-74030
11381RETAINER, ENGINE REAR OIL SEAL11381-63012
11381ASEAL, ENGINE REAR OIL90311-85006 · 90311-85009
11383Engine rear oil seal seat gasket11383-74021
12281Engine No. 1 hanger12281-74060
12282ENGINE HANGER, NO.212282-74030
