Toyota RAV4 Engine Overhaul Gasket Kit — Figure 1103

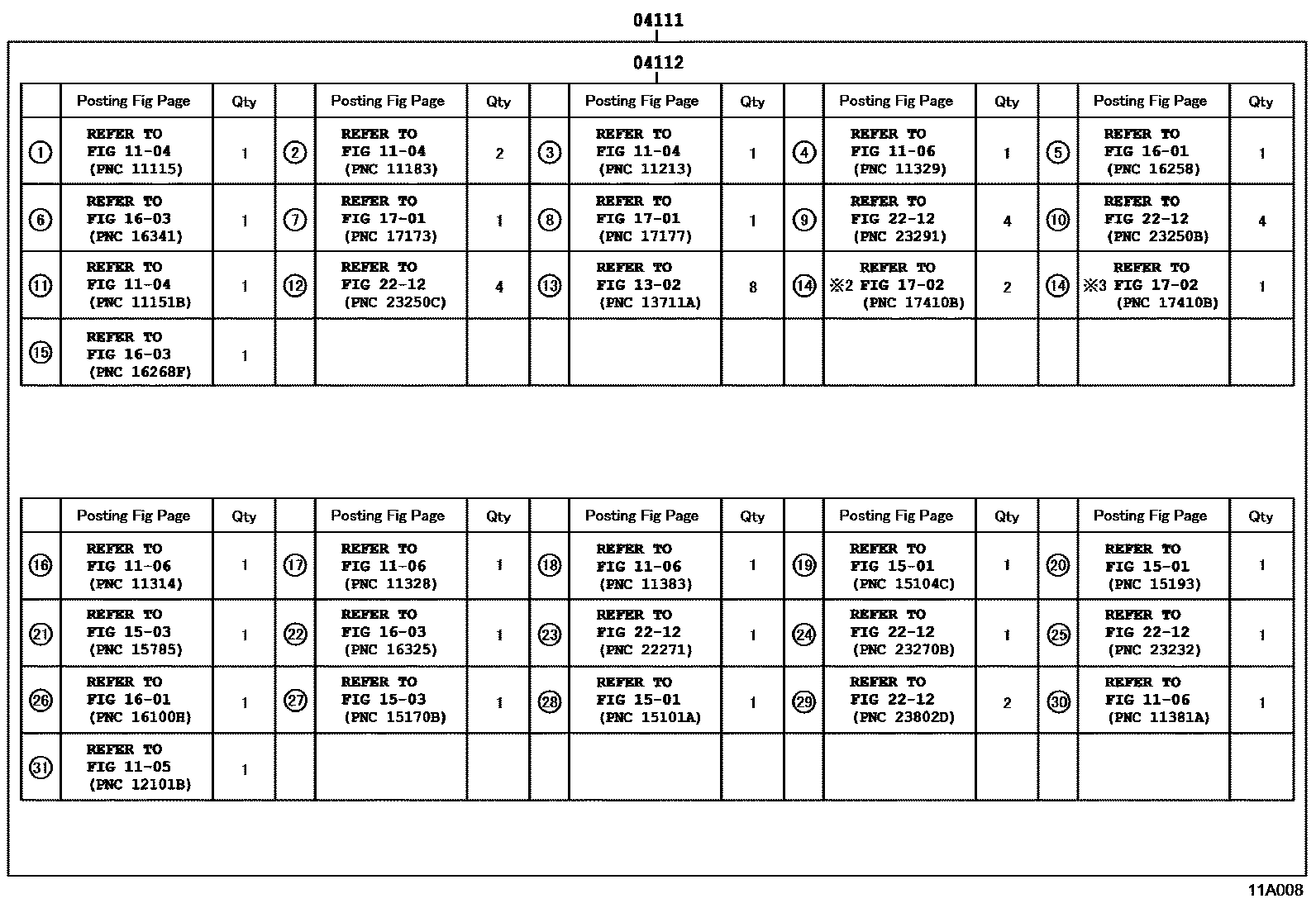

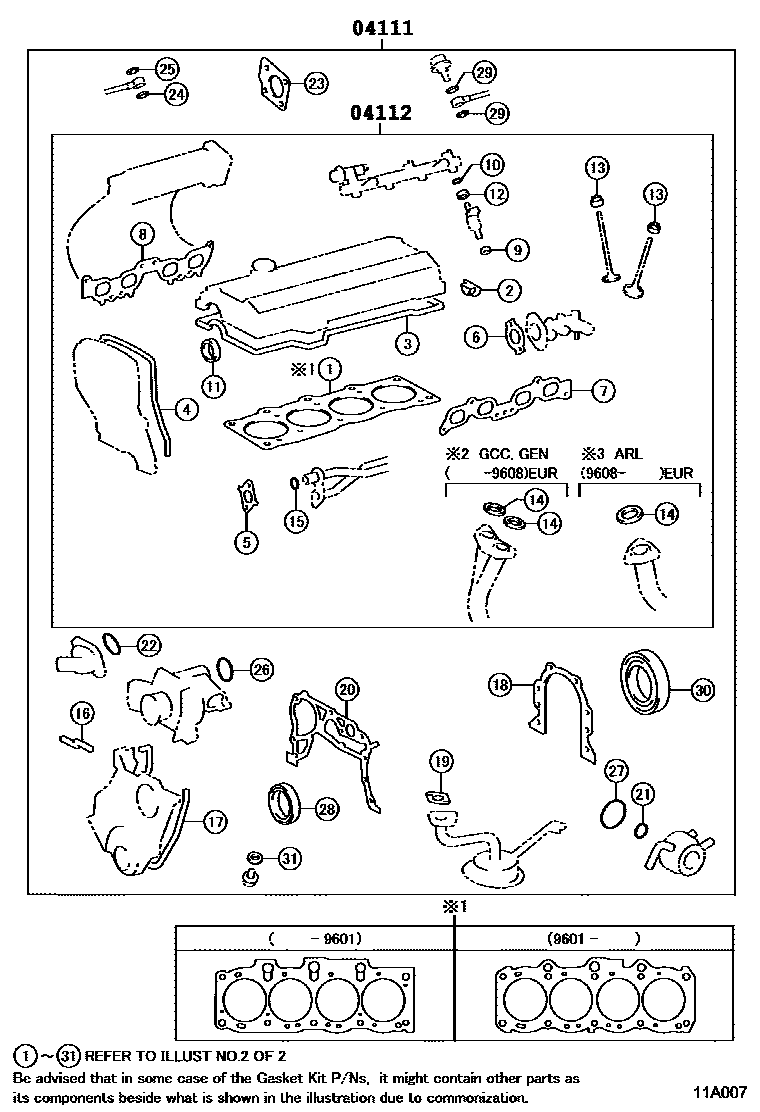

Toyota RAV4 EPC diagram 1103, Engine Overhaul Gasket Kit, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04111 | Engine overhaul gasket assembly | 04111-74490 · 04111-74491 · 04111-74492 · 04111-74590 · 04111-74591 · 04111-74592 |
| 04112 | Engine valve grinding pad assembly | 04112-74490 · 04112-74491 · 04112-74560 · 04112-74561 · 04112-74562 |
