Toyota RAV4 Partial Engine Assembly — Figure 1101

Toyota RAV4 EPC diagram 1101, Partial Engine Assembly, with 1 images and 1 PNC and OE references.

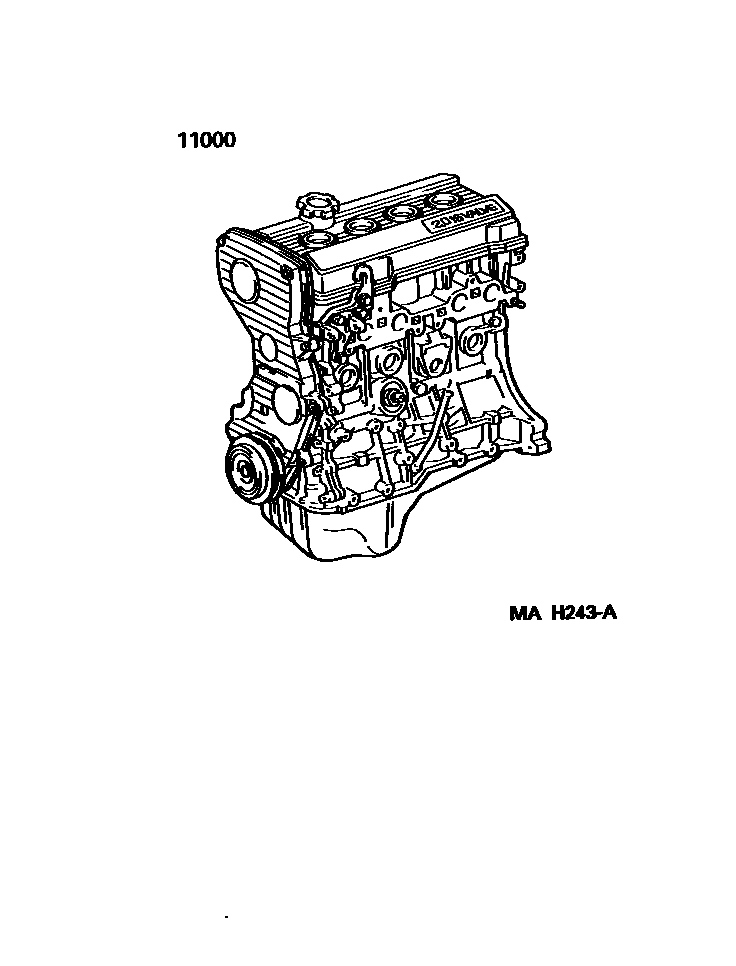

Toyota RAV4 Partial Engine Assembly EPC diagram — MAH243A
Partial Engine Assembly — MAH243A (199404 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-74780 · 19000-74781 · 19000-74790 · 19000-74791 · 19000-74800 · 19000-74801 · 19000-7A170 · 19000-7A180 · 19000-7A280
