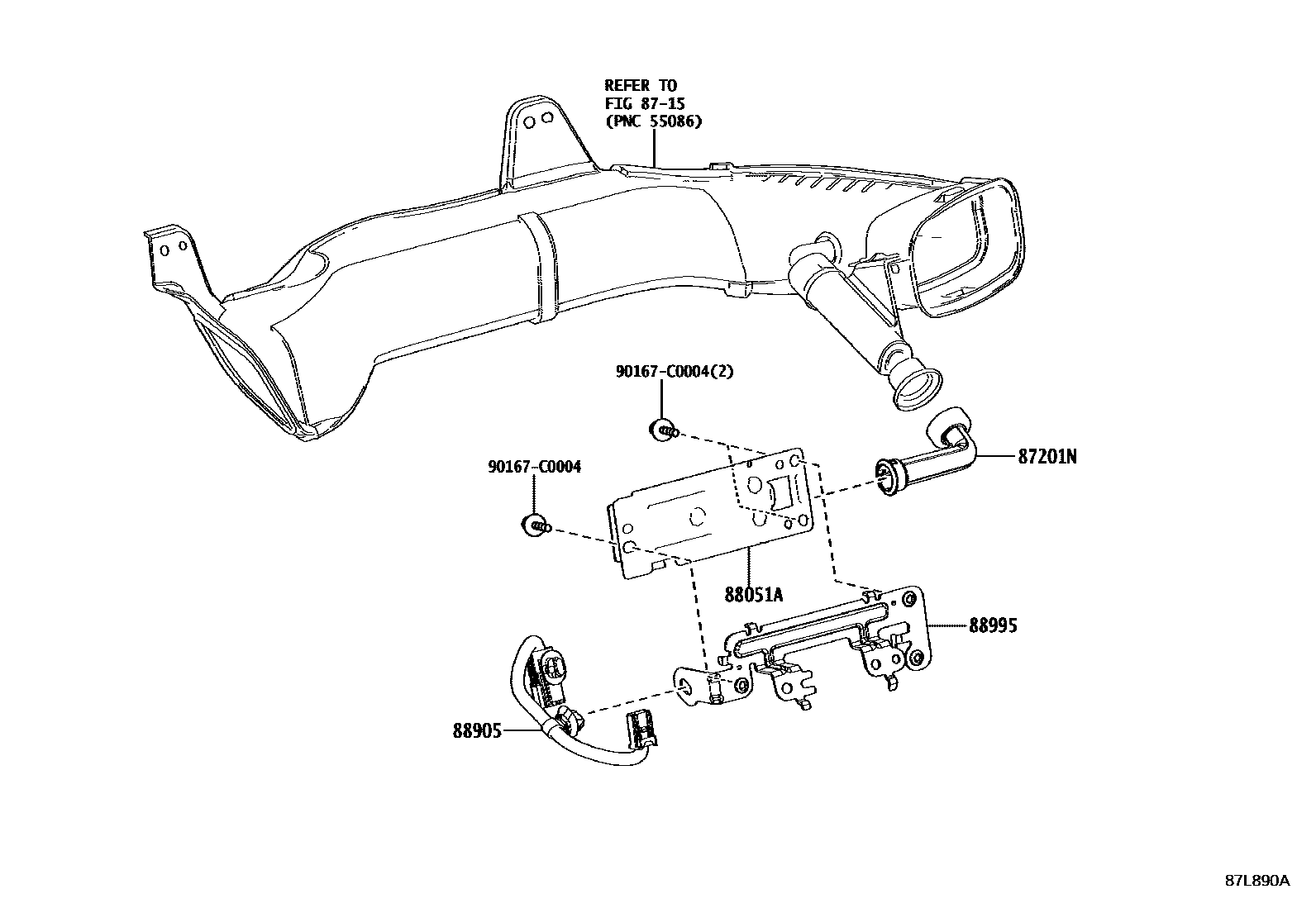

Toyota RAV4 空气净化器或离子发生器 — Figure 8724
Toyota RAV4 EPC diagram 8724, 空气净化器或离子发生器, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87201N | Air duct sub-assembly | 87201-0R310 |
| 88051A | Ion generator sub-assembly | 88051-08020 |
| 88905 | Air purifier No. 1 wiring harness sub-assembly | 82144-0R030 |
| 88995 | No. 1 ion generator bracket | 55425-0R090 |
