Toyota RAV4 Heating & Air Conditioning - Compressor — Figure 8719

Toyota RAV4 EPC diagram 8719, Heating & Air Conditioning - Compressor, with 2 images and 3 PNC and OE references.

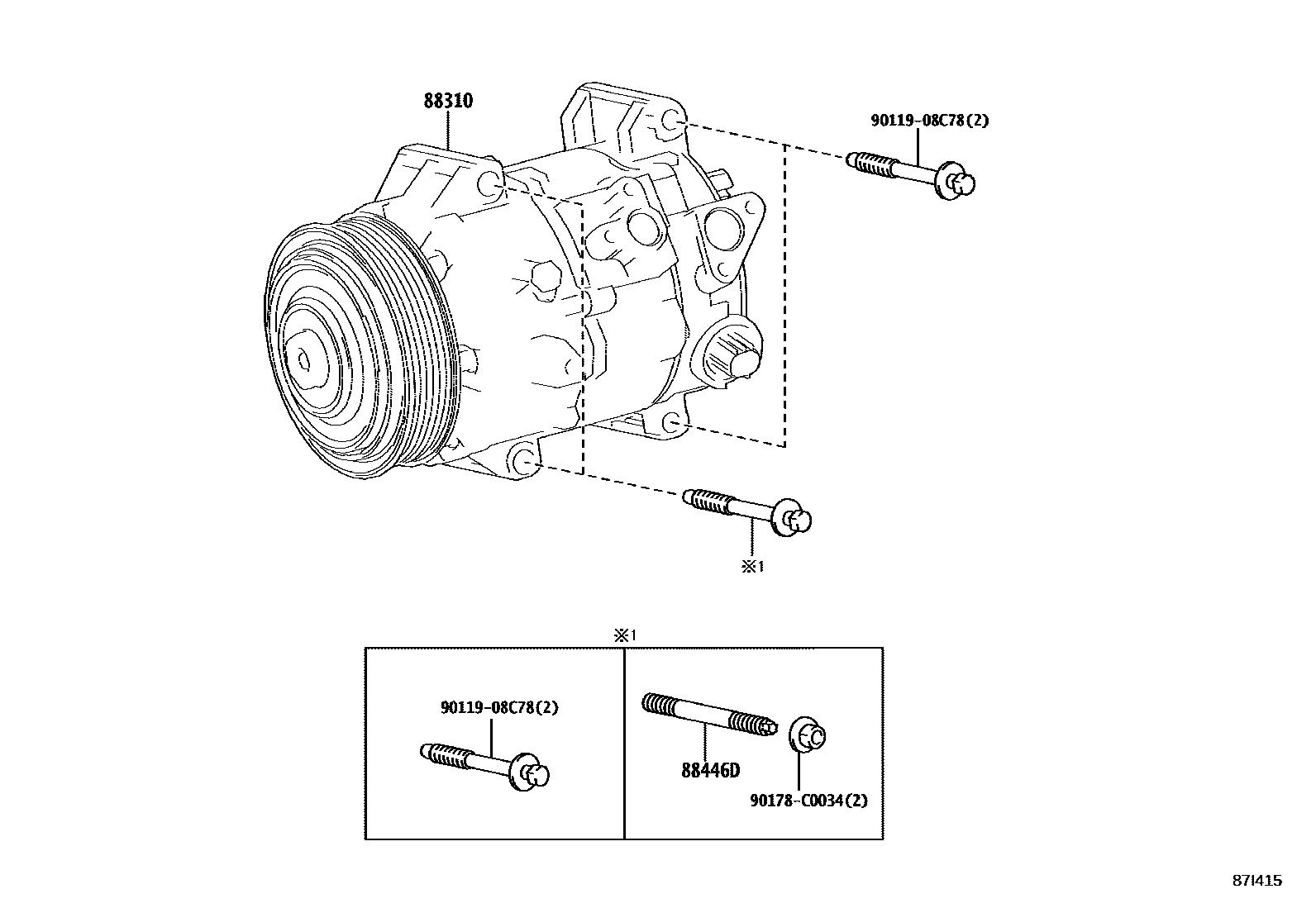

Toyota RAV4 Heating & Air Conditioning - Compressor EPC diagram — 87I415
Heating & Air Conditioning - Compressor — 87I415 (201911 – 999999)

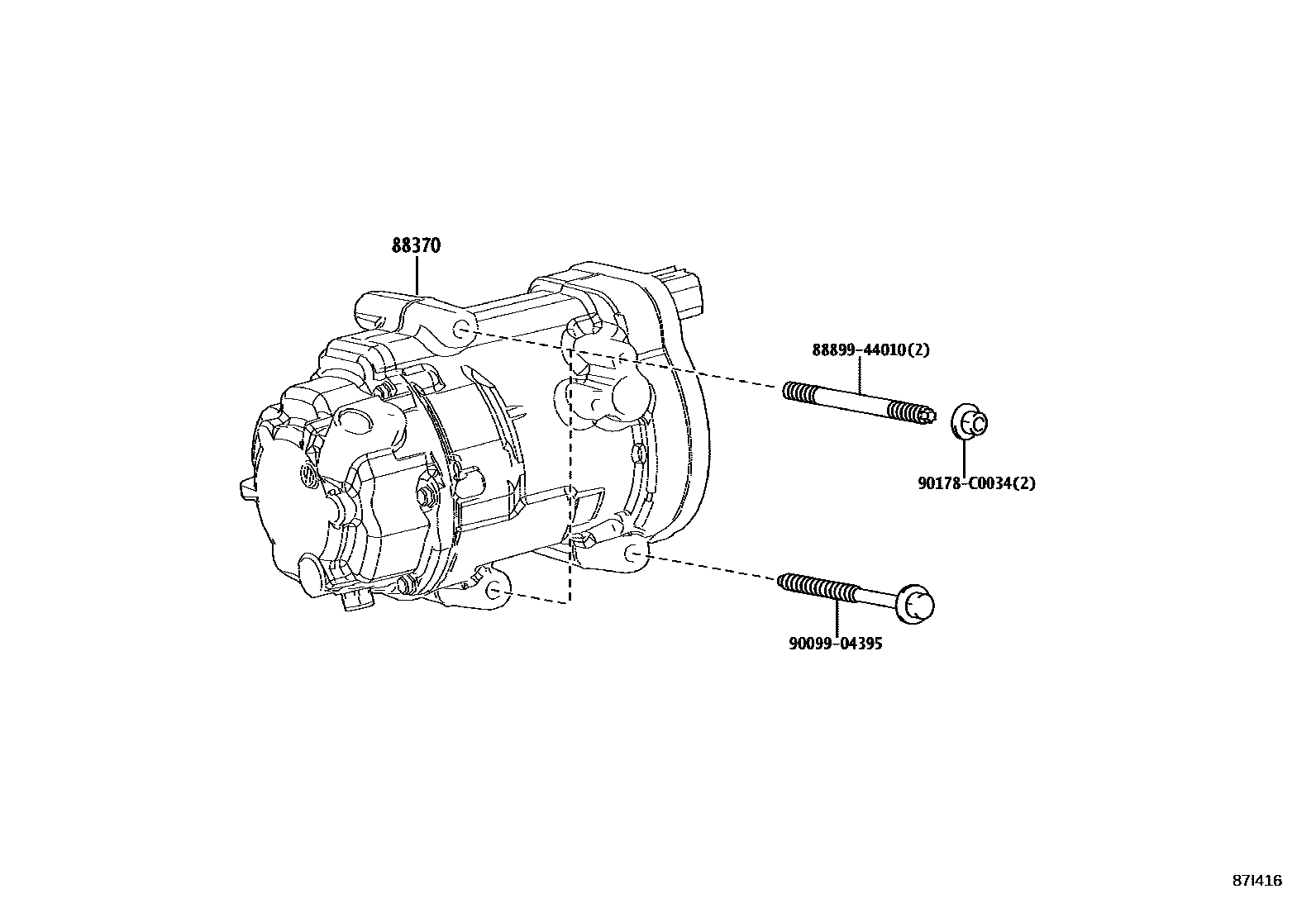

Toyota RAV4 Heating & Air Conditioning - Compressor EPC diagram — 87I416
Heating & Air Conditioning - Compressor — 87I416 (201911 – 999999)

PNC and OE references

PNCPart nameOE numbers
88310Compressor assembly with pulley88310-07090
88370Compressor assembly with motor88370-07010 · 88370-07011 · 88370-33050
88446Dcooler bolt88446-42030
