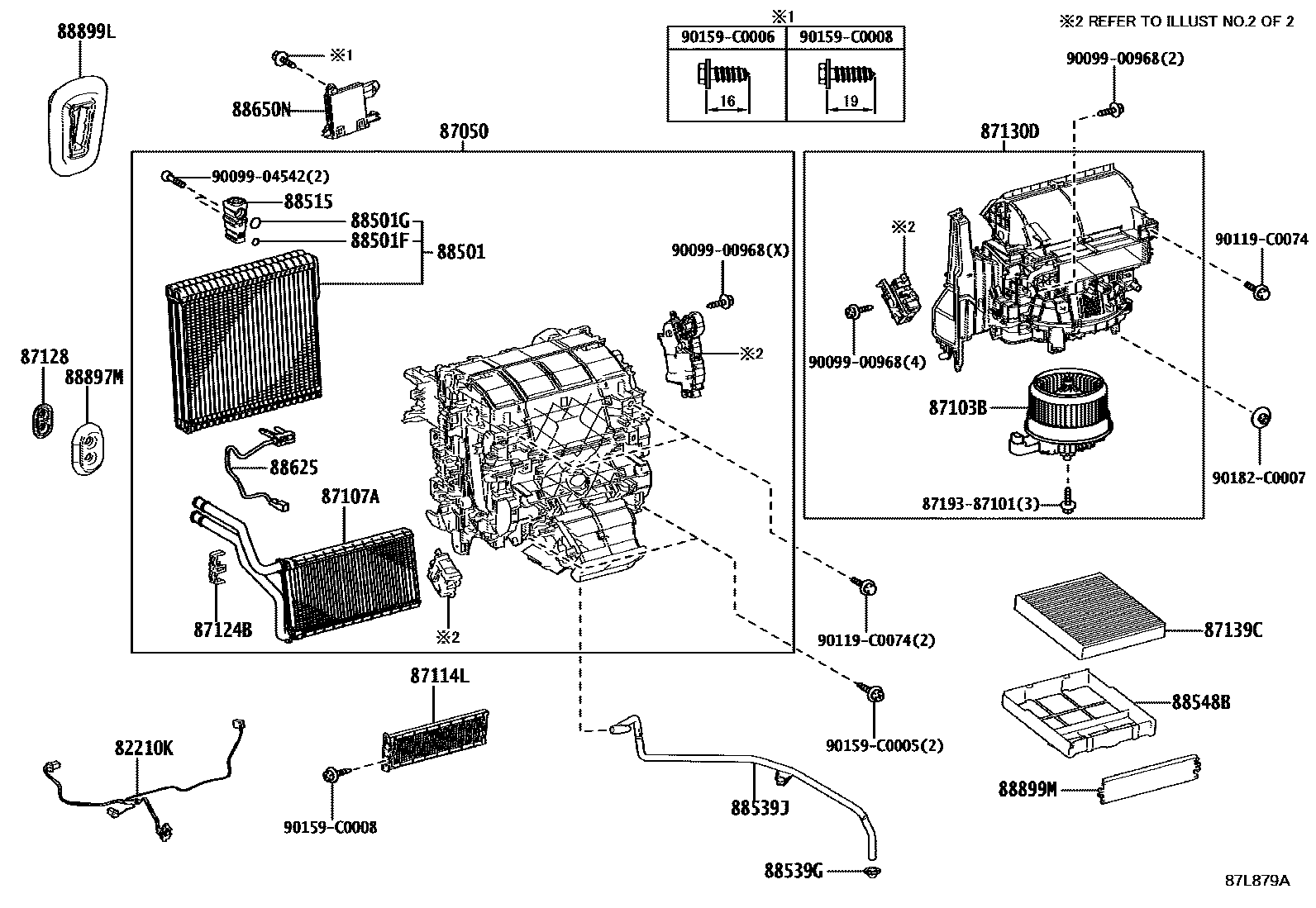

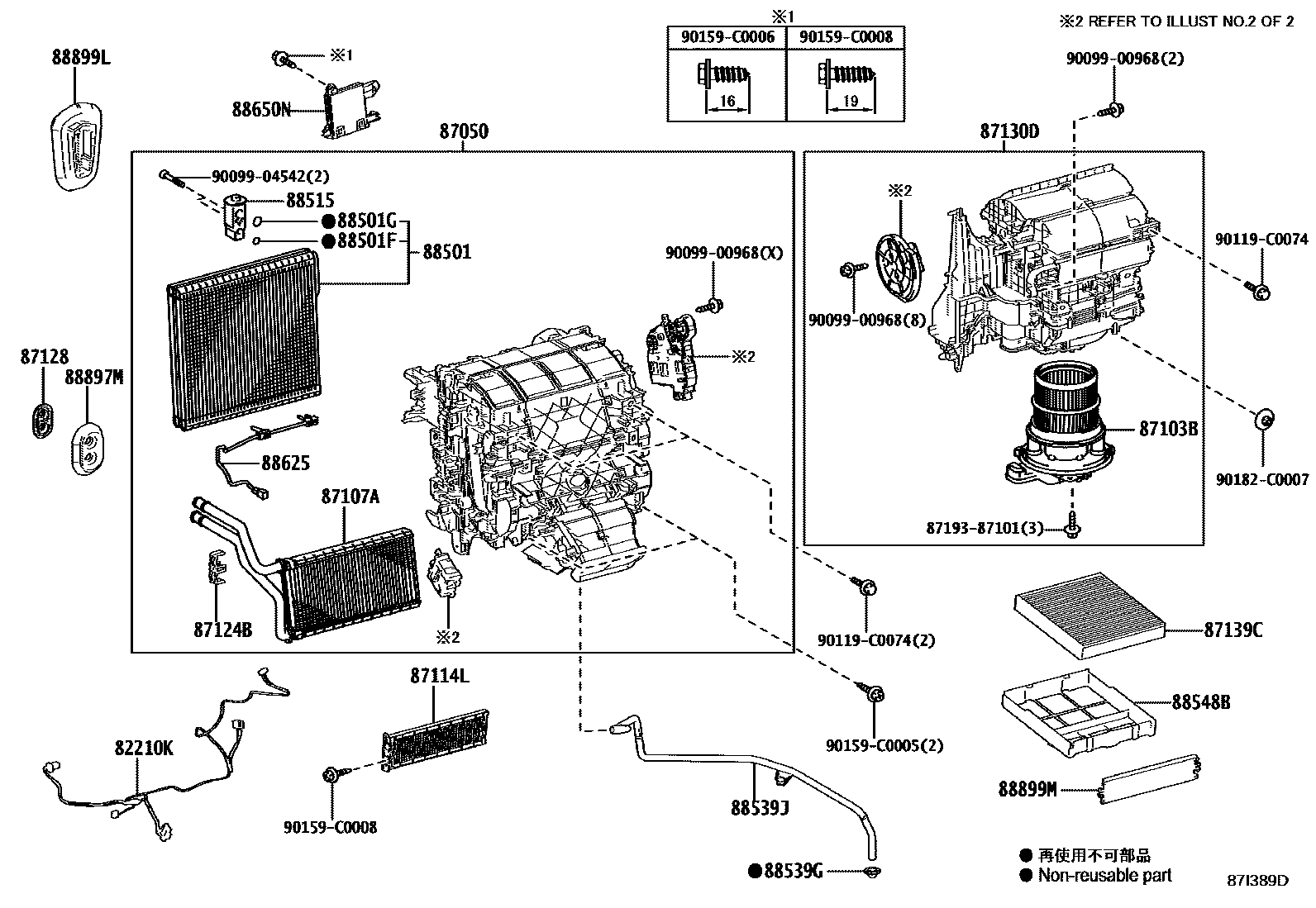

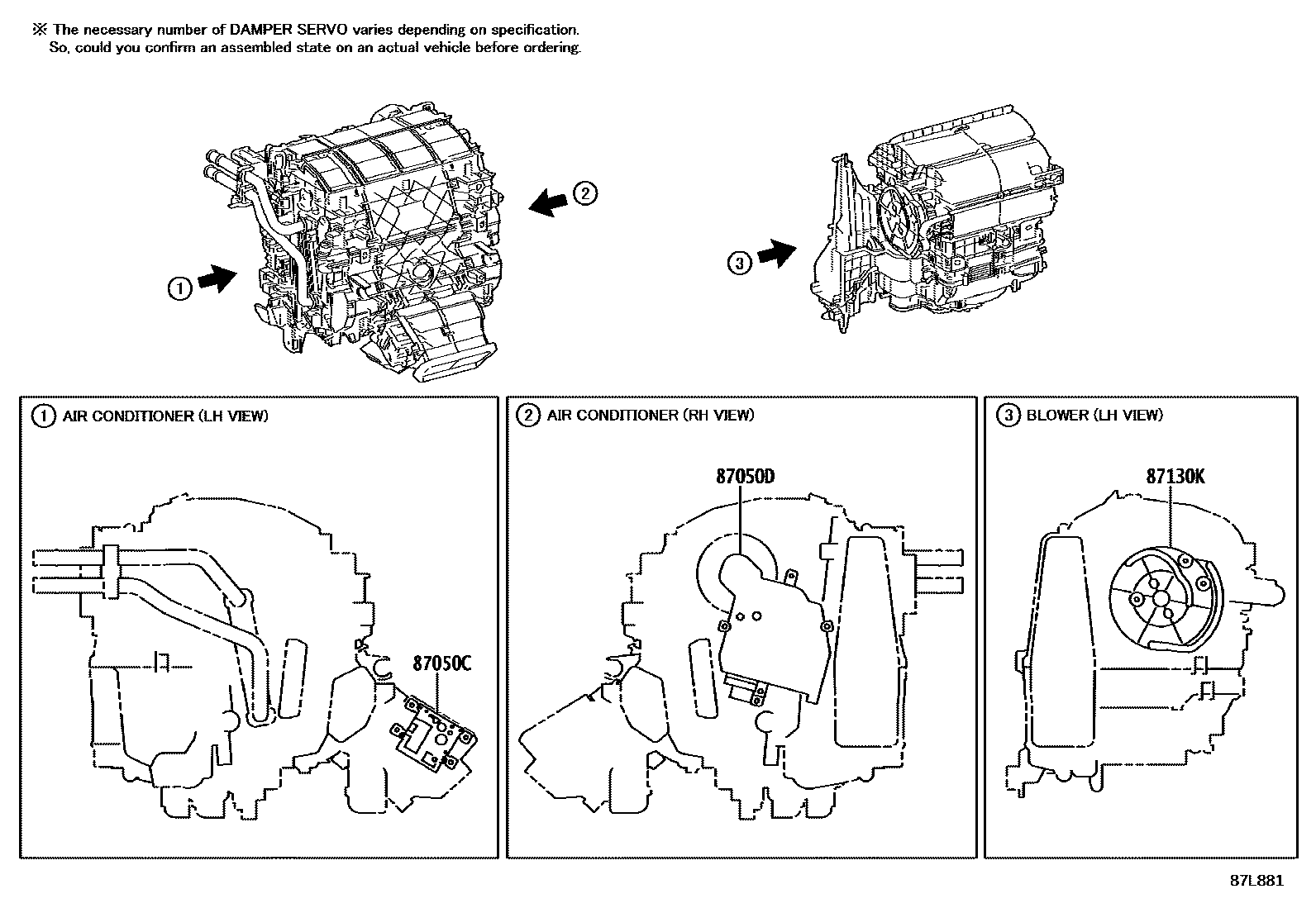

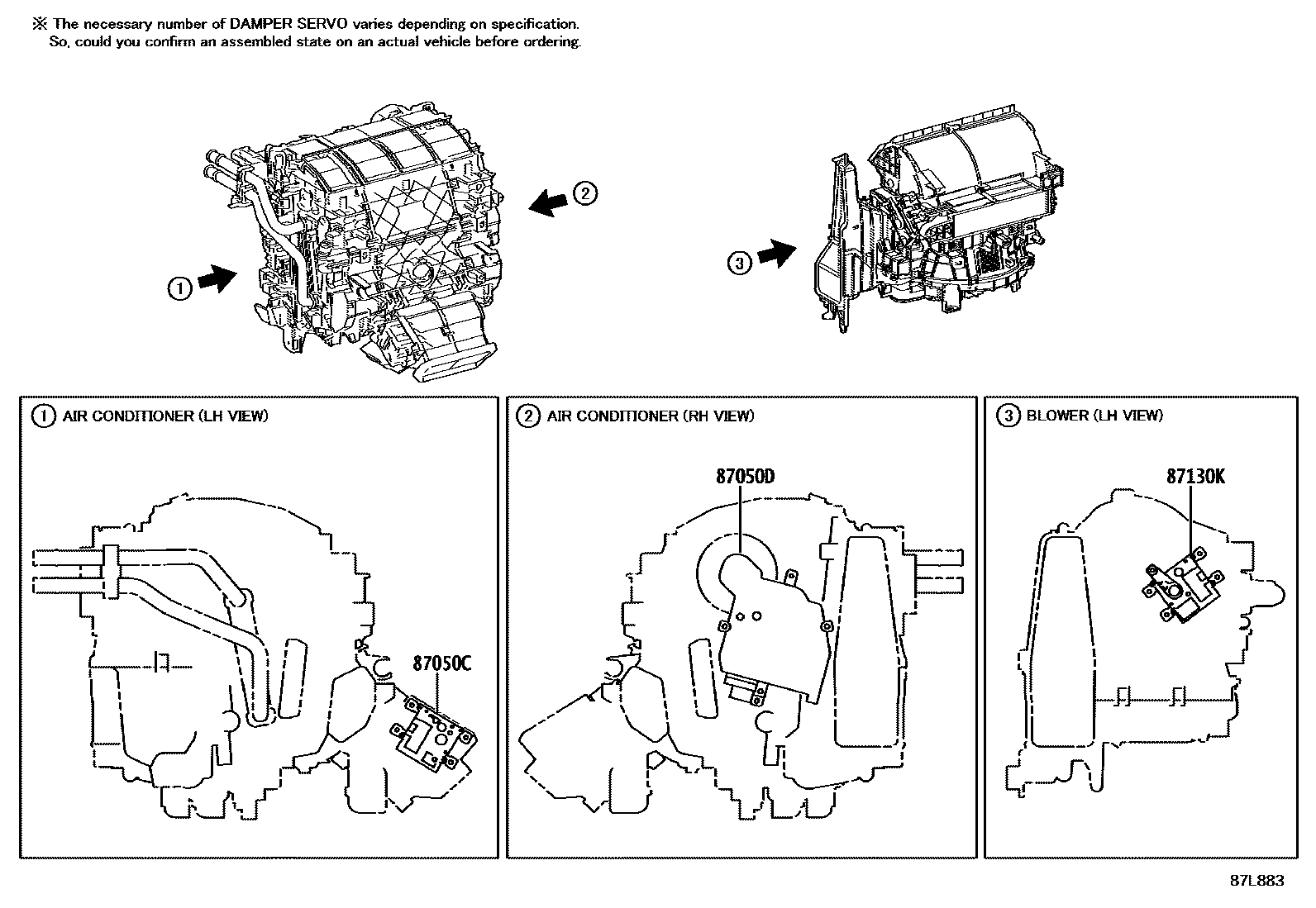

Toyota RAV4 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota RAV4 EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 6 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-07030 · 82212-0E140 |
| 87050 | Air conditioning radiator assembly | 87050-07220 · 87050-07230 · 87050-07260 · 87050-0E410 · 87050-0E420 · 87050-0R190 · 87050-0R260 · 87050-0R460 |
| 87050C | No. 1 air conditioner radiator damper servo mechanism sub-assembly | 87106-07160 |
| 87050D | No. 2 air conditioner radiator damper servo mechanism sub-assembly | 87106-0E200 · 87106-42230 · 87106-F4080 · 87106-F4150 |
| 87103B | Blower motor sub-assembly with fan | 87103-0E060 · 87103-F4060 |
| 87107A | Heater radiator device sub-assembly | 87107-07040 |
| 87114L | Heater cover No. 2 | 87114-07010 |
| 87124B | heater clip | 87124-F4060 |
| 87128 | heater seal | 87128-28010 |
| 87130D | Blower assembly | 87130-0E050 · 87130-F4070 |
| 87130K | No. 1 blower damper servo mechanism sub-assembly | 87106-0E210 · 87106-F4090 |
| 87139C | air purification filter | 87139-02260 · 87139-02290 · 87139-58010 · 87139-F4050 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-07070 · 88501-07090 · 88501-07110 |
| 88501F | No. 1 cooler evaporator O-ring (discharge) | 90099-14120 |
| 88501G | No. 1 cooler evaporator O-ring (suction) | 90099-14121 |
| 88515 | Cooler expansion valve | 88515-07060 · 88515-0R020 · 88515-F4040 · 88515-F4080 |
| 88539G | Seal (for cooler unit drain hose) | 88888-06030 |
| 88539J | Cooler drain hose | 88539-0R060 |
| 88548B | air filter housing | 88899-02260 · 88899-F4350 |
| 88625 | Cooler No. 1 Thermistor | 88620-07020 · 88620-F4030 |
| 88650N | Air conditioning amplifier assembly | 88650-0R320 · 88650-0R360 · 88650-0R430 · 88650-0R540 |
| 88897M | Seals (for heater tubes) | 87128-07010 |
| 88899L | Cooling unit parts | 88899-07030 · 88899-07040 |
| 88899M | cover (for air cleaner) | 88899-F4290 |
