Toyota RAV4 车载电话和呼救装置 — Figure 8615

Toyota RAV4 EPC diagram 8615, 车载电话和呼救装置, with 2 images and 4 PNC and OE references.

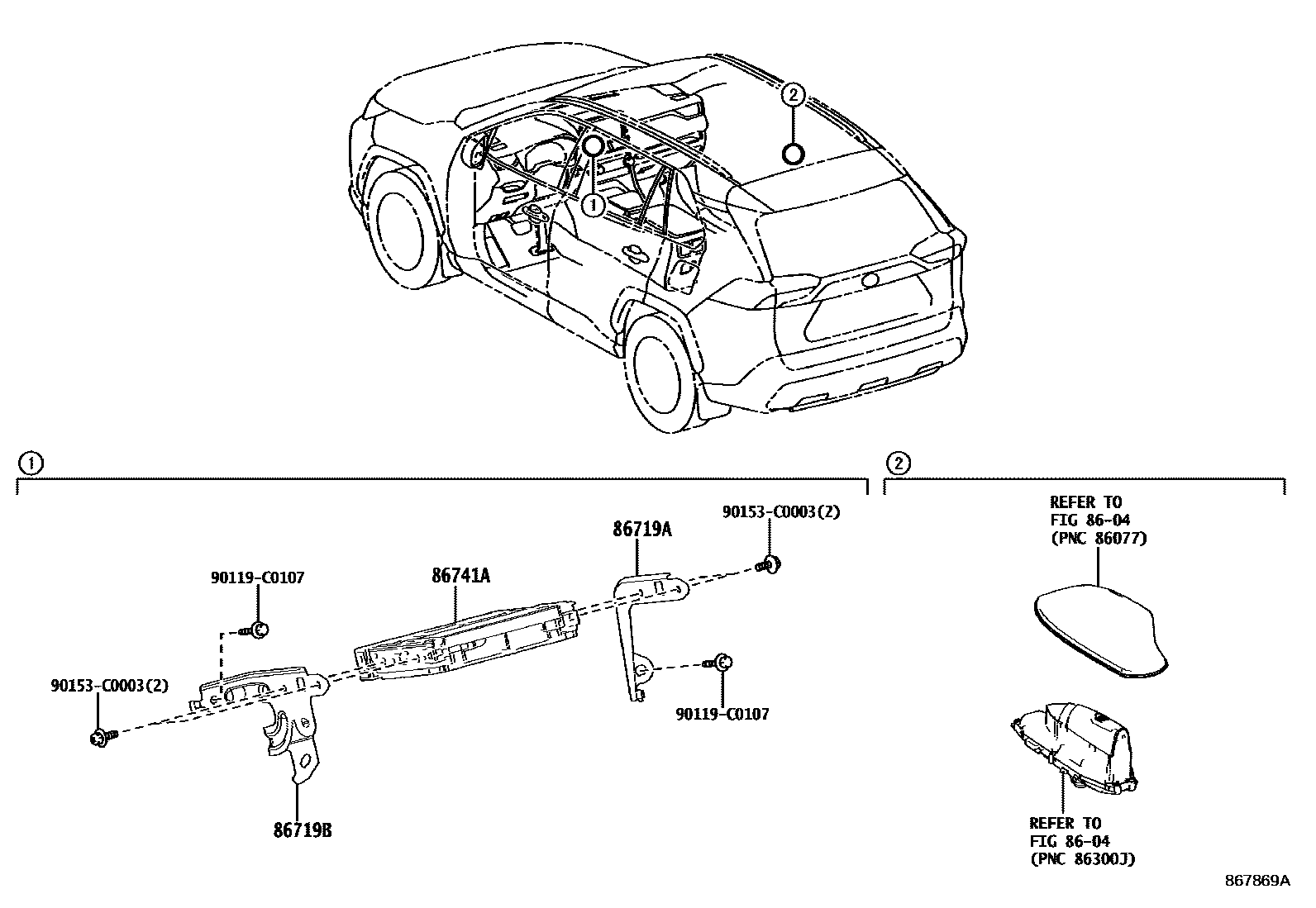

Toyota RAV4 车载电话和呼救装置 EPC diagram — 867869A
车载电话和呼救装置 — 867869A (201911 – 202010)

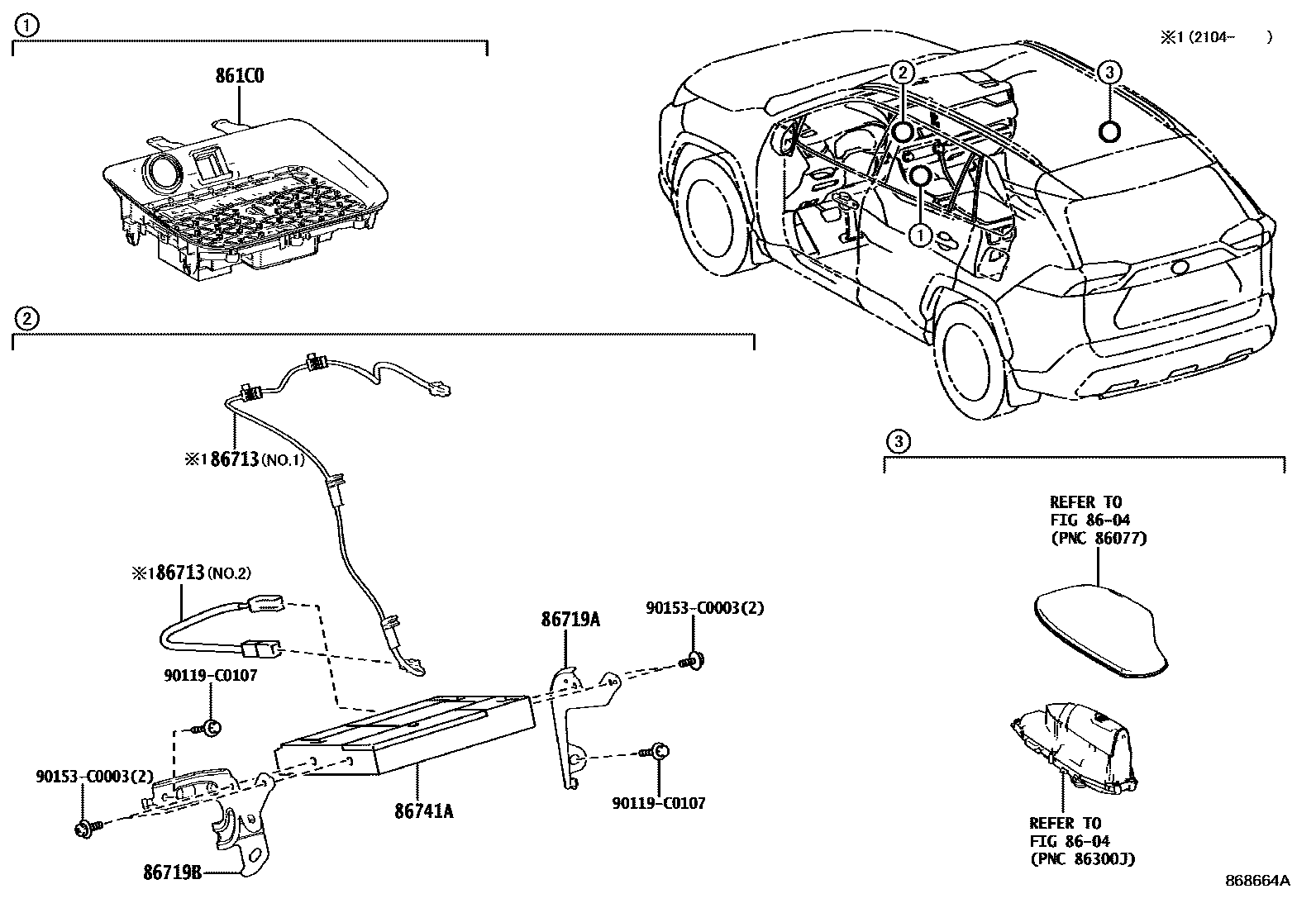

Toyota RAV4 车载电话和呼救装置 EPC diagram — 868664A
车载电话和呼救装置 — 868664A (202010 – 999999)

PNC and OE references

PNCPart nameOE numbers
86713Telephone ECU wiring harness86203-0R190 · 86713-0R020 · 86713-0R070 · 86713-0R100
86719APhone holder No. 186457-0R040 · 86719-0R020
86719BPhone holder No. 286457-0R030 · 86719-0R010
86741ATelecommunications transceiver86741-02051 · 86741-02100 · 86741-06100 · 86741-0R070 · 86741-0R100
