Toyota RAV4 倒车影像和摄像头 — Figure 8606

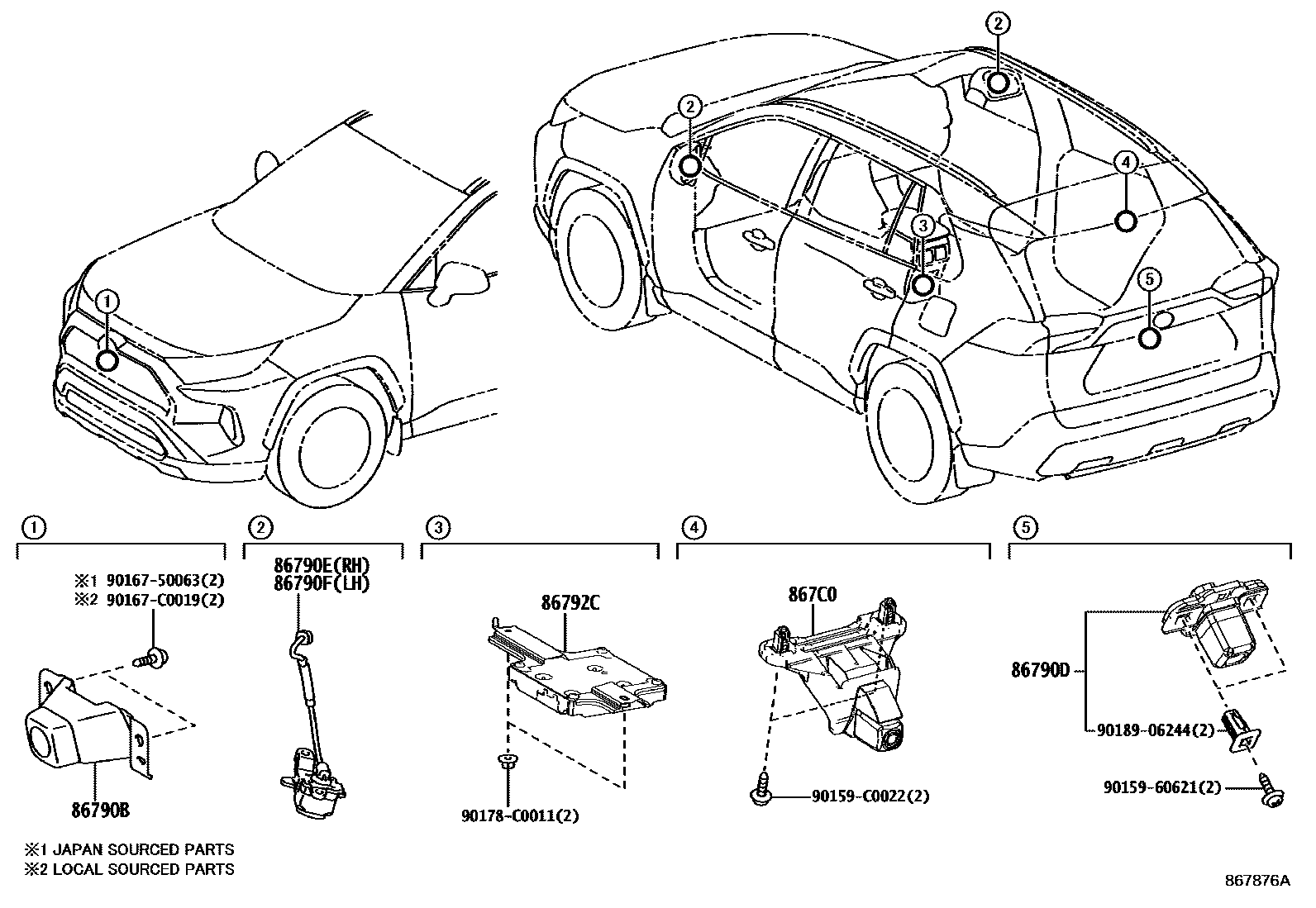

Toyota RAV4 EPC diagram 8606, 倒车影像和摄像头, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86790B | Front image camera assembly | 86790-0R180 · 86790-0R181 · 86790-0R520 · 86790-YK010 |
| 86790D | Rear reversing image camera assembly | 86790-0R130 · 86790-0R230 · 86790-0R480 |
| 86790E | Right image camera assembly | 86790-0E250 · 86790-0R110 · 86790-0R500 |
| 86790F | Left image camera assembly | 86790-0E240 · 86790-0R100 · 86790-0R490 |
| 86792C | Parking assist ECU | 86792-0R030 · 86792-0R031 · 86792-0R100 · 86792-0R130 · 86792-0R140 |
| 867C0 | Interior rearview mirror camera assembly | 867C0-0R010 · 867C0-42020 |
