Toyota RAV4 导航和前监视器显示屏 — Figure 8603

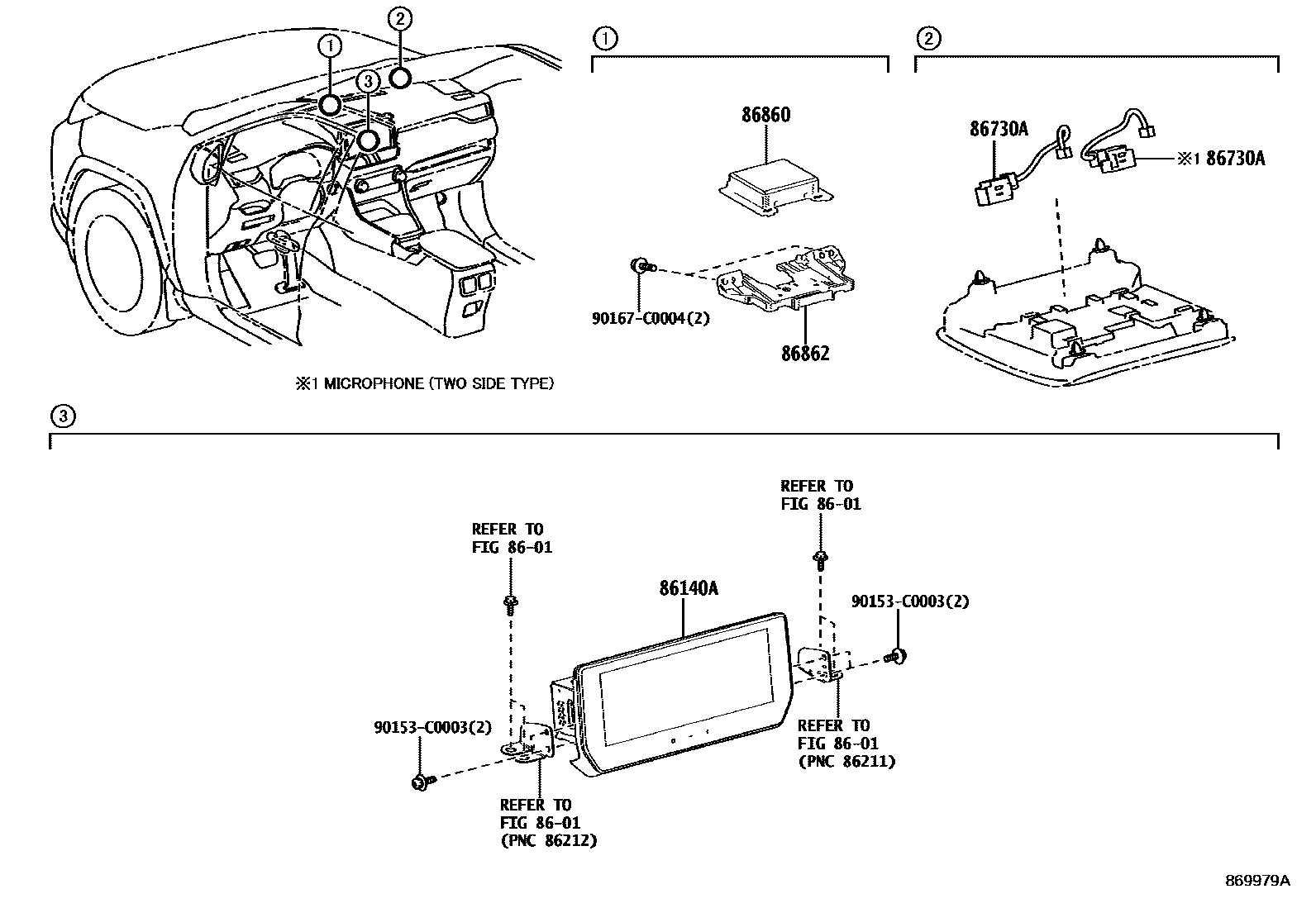

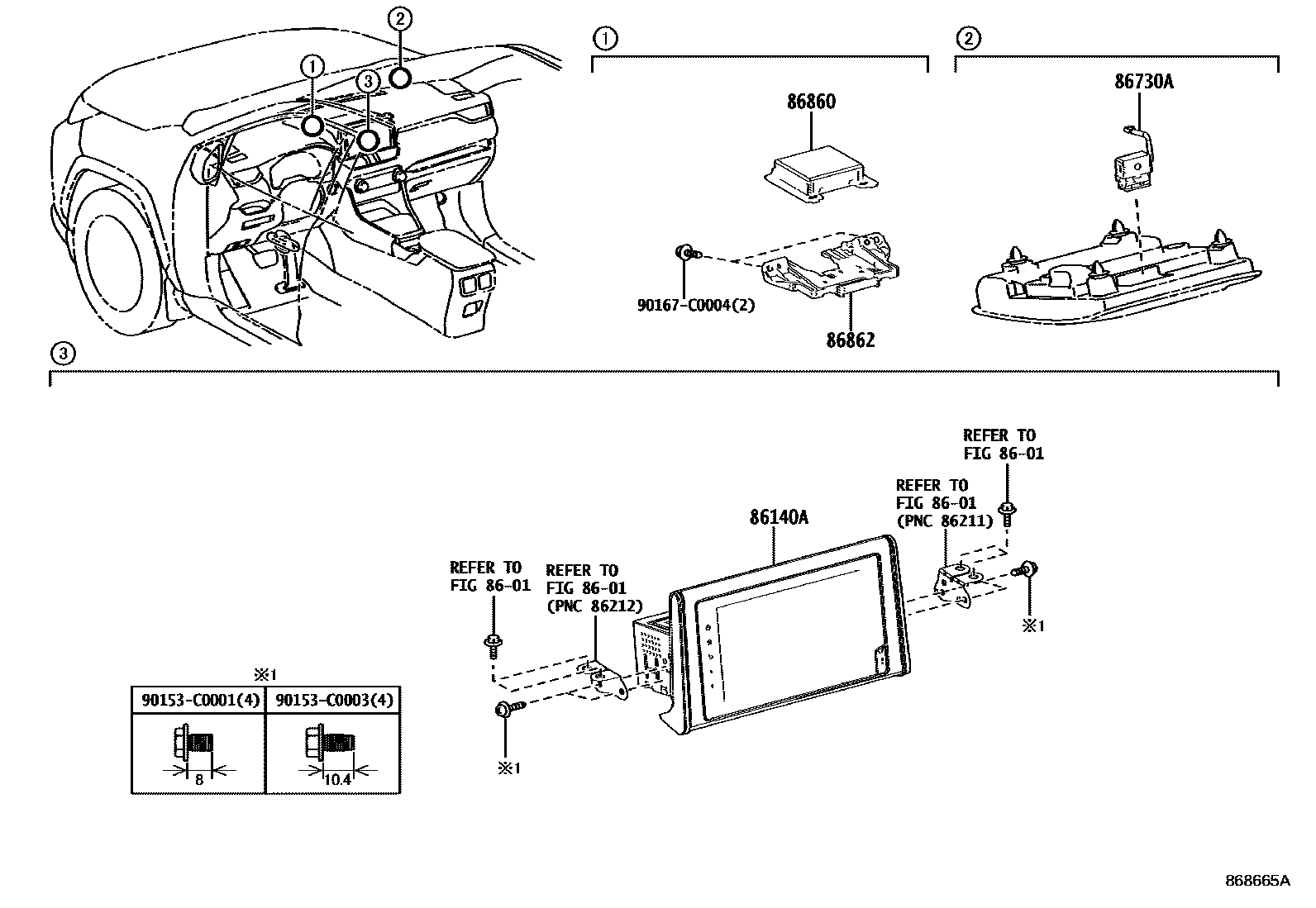

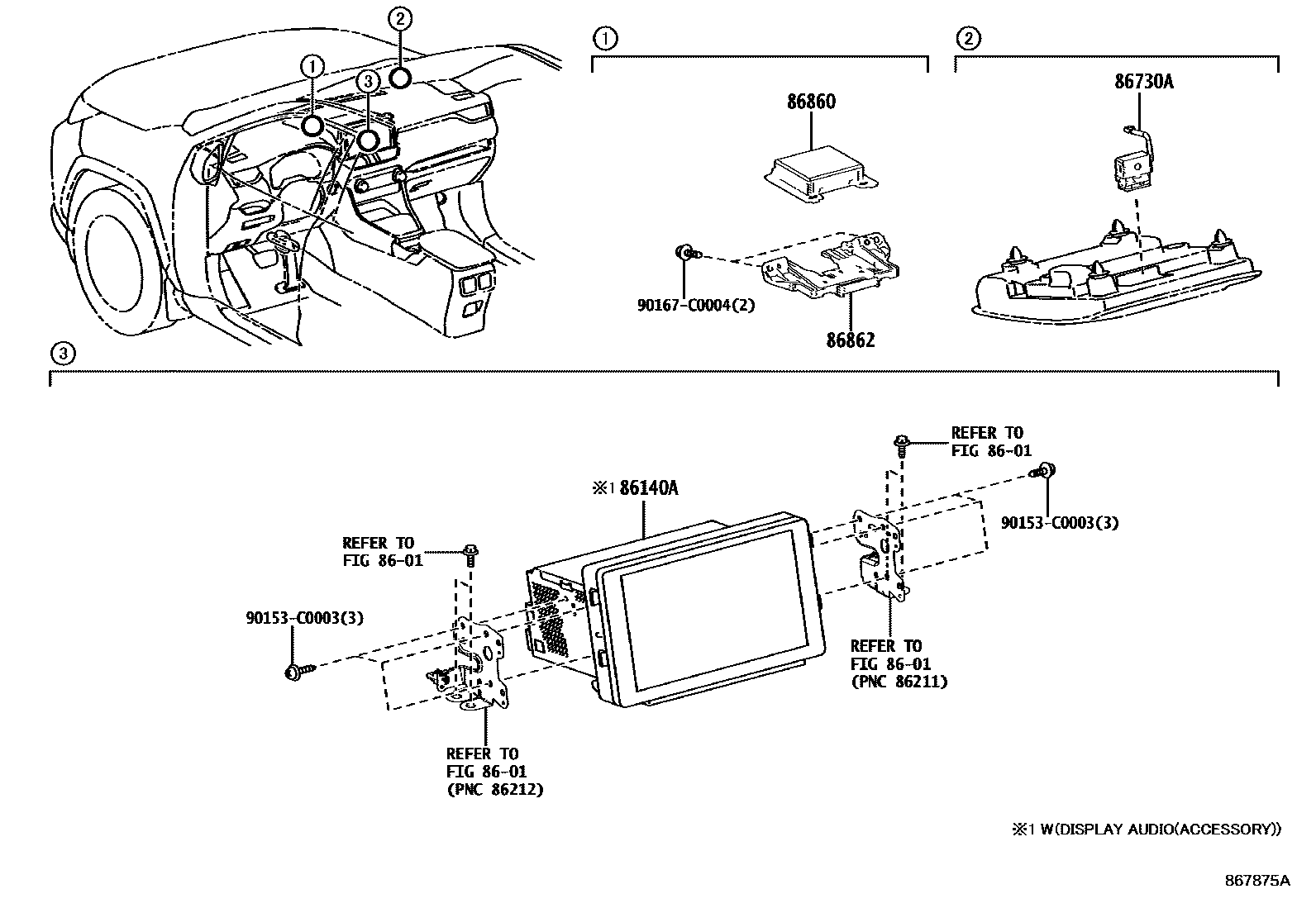

Toyota RAV4 EPC diagram 8603, 导航和前监视器显示屏, with 3 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86140A | Radio and display receiver assembly | 86100-0R120 · 86100-0R121 · 86100-0R122 · 86100-0R180 · 86100-0R181 · 86100-0R182 · 86100-0R192 · 86100-0R300 · 86140-0R510 · 86140-0R511 · 86140-0R550 · 86140-0R551 · 86140-0R552 · 86140-0R553 · 86140-0R554 · 86140-0R600 · 86140-0R601 · 86140-0R671 · 86140-YY120 |
| 86730A | Telephone amplifier assembly | 86730-06060 · 86730-0E080 · 86730-75010 |
| 86860 | Navigation antenna assembly | 86880-02050 · 86880-02100 |
| 86862 | Navigation antenna bracket | 86862-0E030 · 86862-42010 |
