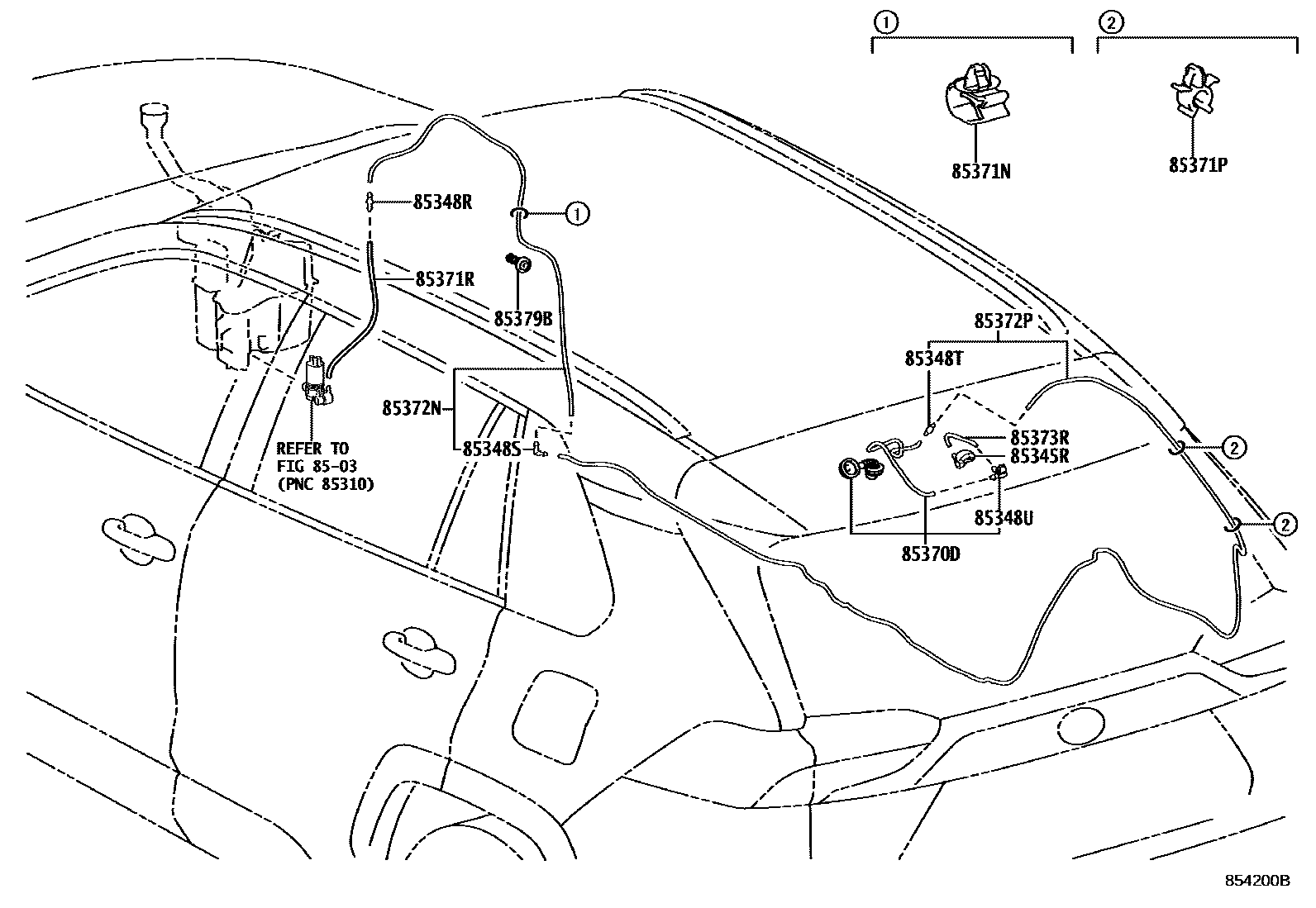

Toyota RAV4 后清洗器 — Figure 8504
Toyota RAV4 EPC diagram 8504, 后清洗器, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85345R | Rear washer nozzle | 85391-42030 |
| 85348R | No. 1 rear washer hose connector | 85375-05050 |
| 85348S | No. 1 rear cleaner elbow joint | 85376-0R260 |
| 85348T | No. 2 rear washer hose connector | 85375-05050 |
| 85348U | No. 3 rear washer hose connector | 85375-0R320 |
| 85370D | No. 1 rear washer hose assembly | 85370-0R320 |
| 85371N | Rear washer hose clamp | 82711-16790 |
| 85371P | No. 2 rear washer hose clamp | 90469-07011 · 90469-C0014 |
| 85372N | No. 1 rear washer hose (from connector to connector) | 90069-46099 |
| 85372P | No. 2 rear washer hose (from connector to connector) | 90069-46098 |
| 85373R | Rear washer hose (from connector to nozzle) | 90068-33362 |
| 85379B | Cleaner seal A | 85379-0R260 |
