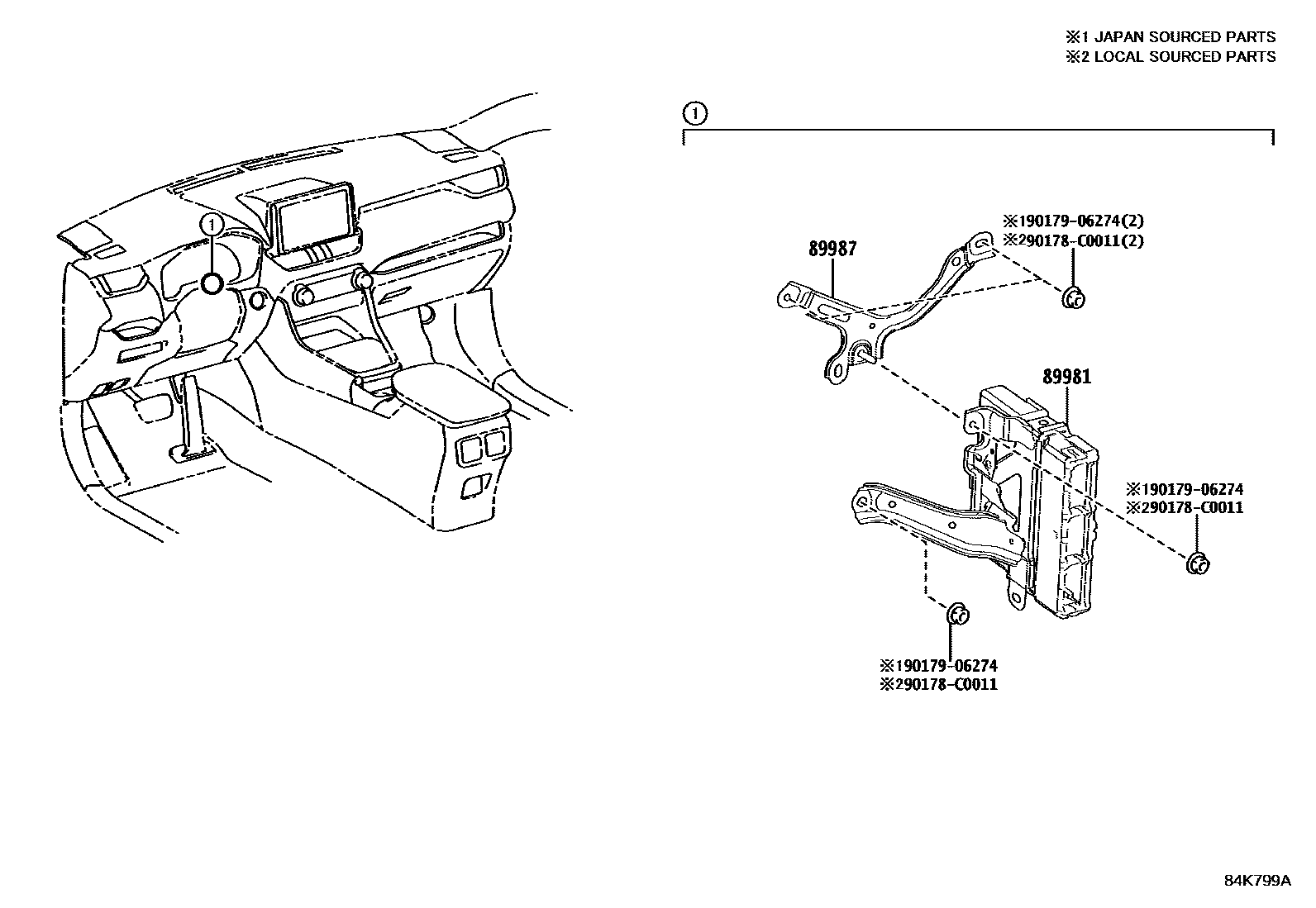

Toyota RAV4 HEV 控制ECU — Figure 8433
Toyota RAV4 EPC diagram 8433, HEV 控制ECU, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89981 | Hybrid vehicle control ECU | 89980-0R030 · 89980-0R040 · 89980-0R210 · 89980-0R220 · 89980-0R410 · 89980-0R420 · 89980-0R550 · 89980-0R560 |
| 89987 | No.1 ECU bracket | 89987-0R020 |
