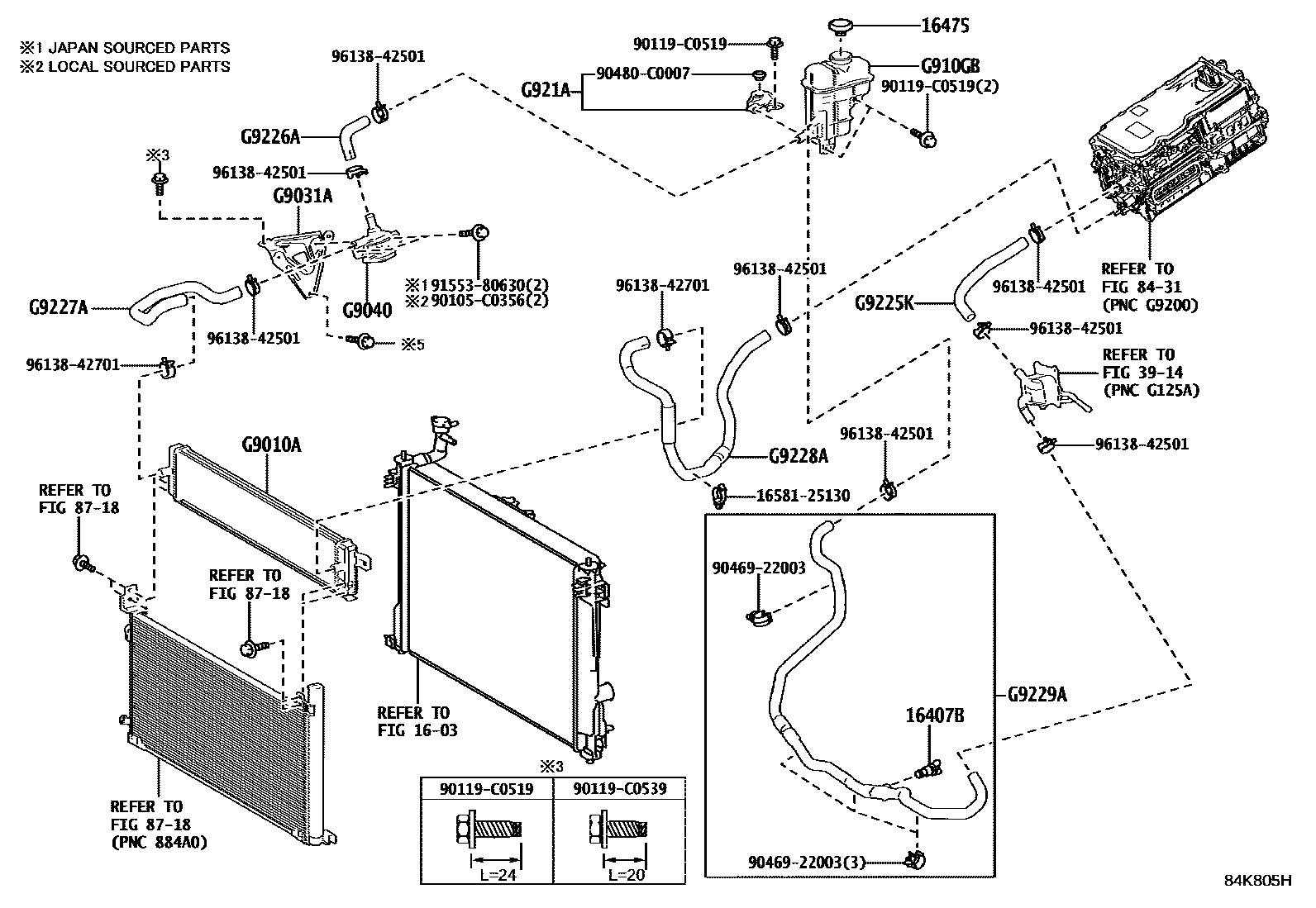

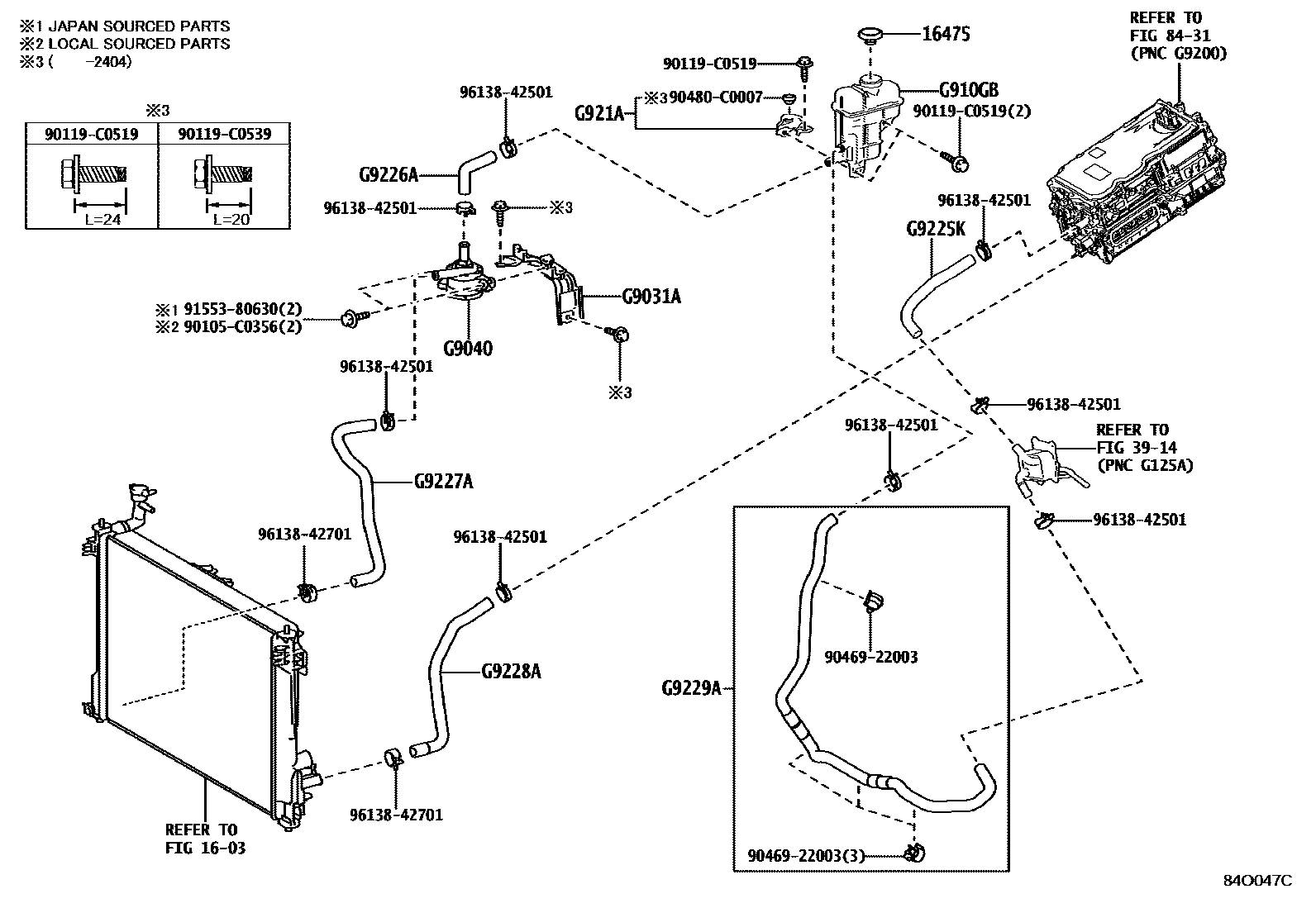

Toyota RAV4 逆变器冷却系统 — Figure 8432
Toyota RAV4 EPC diagram 8432, 逆变器冷却系统, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16407B | Radiator drain switch sub-assembly | 16407-64010 |
| 16475 | Reservoir tank cover | 16475-0T081 · 16475-28140 |
| G9010A | Radiator assembly | G9010-42030 |
| G9031A | Hybrid water pump bracket sub-assembly | G9141-0E070 · G9141-0R050 |
| G9040 | Inverter water pump assembly (with motor) | G9040-08010 · G9040-0R030 · G9040-0R080 · G9040-0R090 · G9040-42010 · G9040-42020 · G9040-48050 |
| G910GB | Inverter reservoir sub-assembly without cover | G910G-0R020 |
| G921A | No. 1 inverter tank bracket | G91H2-0R020 |
| G9225K | No. 1 inverter cooling hose | G9225-0R030 |
| G9226A | No. 2 inverter cooling hose | G9226-0R030 · G9226-0R050 |
| G9227A | No. 3 inverter cooling hose | G9227-0E040 · G9227-0R030 |
| G9228A | No. 4 inverter cooling hose | G9228-0E040 · G9228-0R030 |
| G9229A | No. 5 inverter cooling hose | G9229-0E040 · G9229-0R030 |
