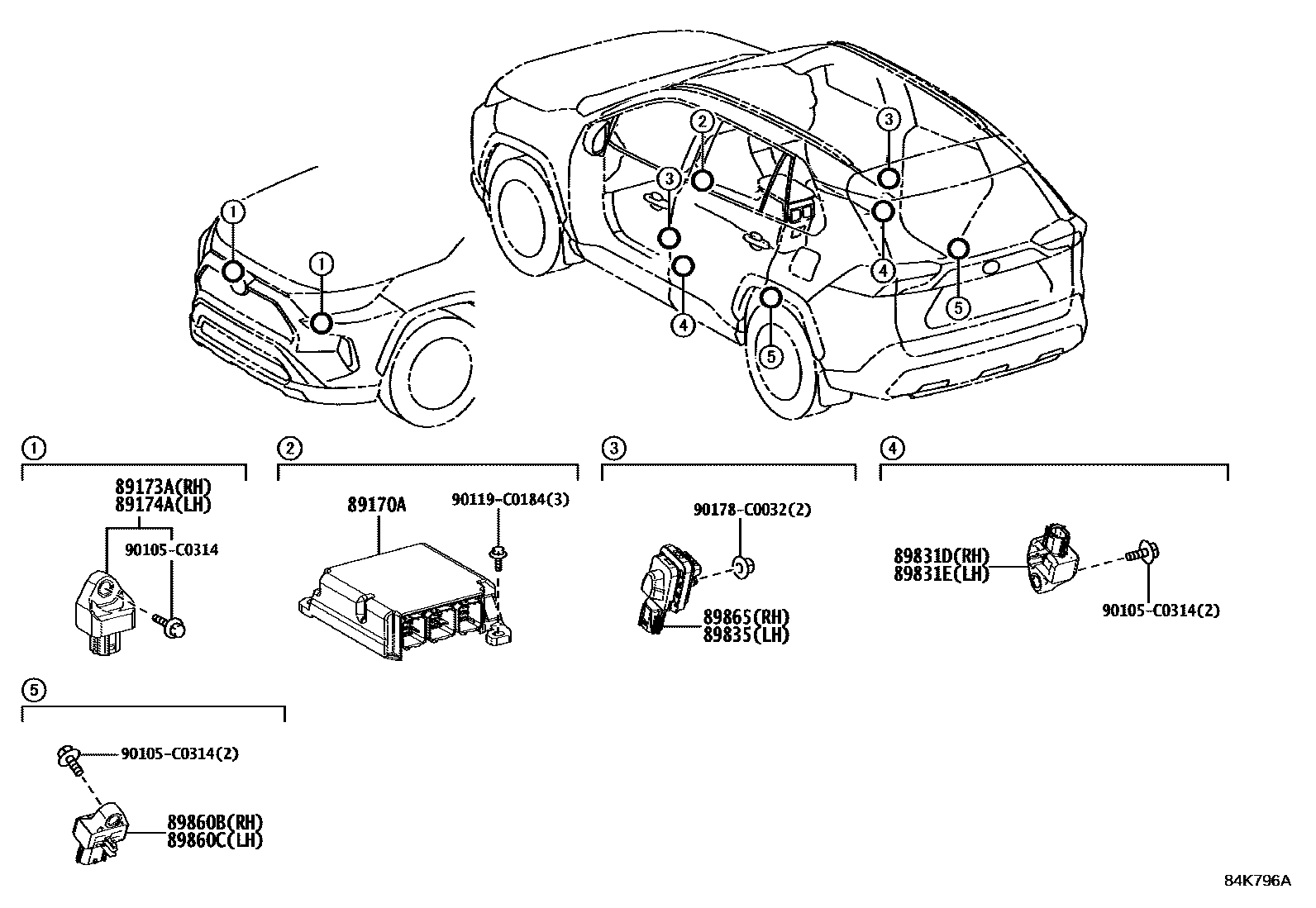

Toyota RAV4 空气囊 — Figure 8421
Toyota RAV4 EPC diagram 8421, 空气囊, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170A | Air bag ECU assembly | 89170-0R160 · 89170-0R170 · 89170-0R330 · 89170-0R340 · 89170-0R370 · 89170-0R380 · 89170-0R410 · 89170-0R420 · 89170-0R470 · 89170-0R480 |
| 89173A | Right front air bag sensor | 89173-09886 · 89173-09888 |
| 89174A | Left front air bag sensor | 89173-09886 · 89173-09888 |
| 89831D | Right floor side air bag sensor | 89831-0R150 |
| 89831E | Left floor side airbag sensor | 89831-0R150 |
| 89835 | Left door side air bag sensor | 8983A-02060 · 8983A-0R010 · 8983A-0R011 |
| 89860B | Right No. 2 side airbag sensor assembly | 89831-0R130 · 89831-0R160 |
| 89860C | Left No. 2 side airbag sensor assembly | 89831-0R130 · 89831-0R160 |
| 89865 | Right door side air bag sensor | 8983A-02060 · 8983A-0R010 · 8983A-0R011 |
