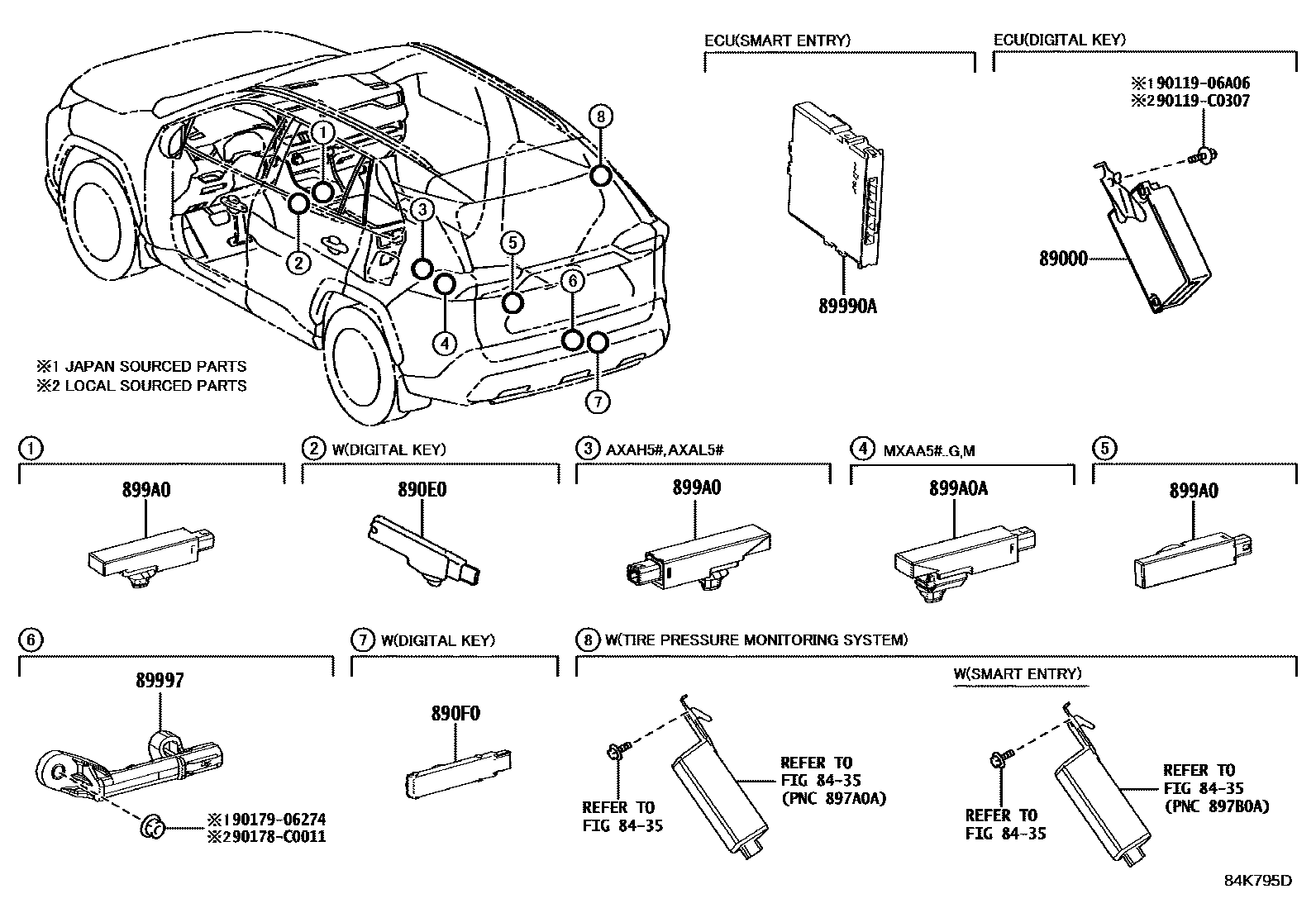

Toyota RAV4 遥控门锁 — Figure 8420
Toyota RAV4 EPC diagram 8420, 遥控门锁, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89000 | Digital key ECU assembly | 89000-0R050 |
| 890E0 | ENS RECEPTEUR, CLE NUMERIQUE BLE | 890E0-0R020 |
| 890F0 | BLE (Bluetooth Low Energy) luggage digital key receiver assembly | 890E0-02010 |
| 89990A | Smart key ECU assembly | 899H0-0R070 · 899H0-0R071 · 899H0-0R080 · 899H0-0R081 · 899H0-0R330 · 899H0-0R390 · 899H0-0R400 |
| 89997 | electronic key antenna | 89997-0E060 · 89997-0E061 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-0D070 · 899A0-0R160 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-0R030 · 899A0-0R070 |
