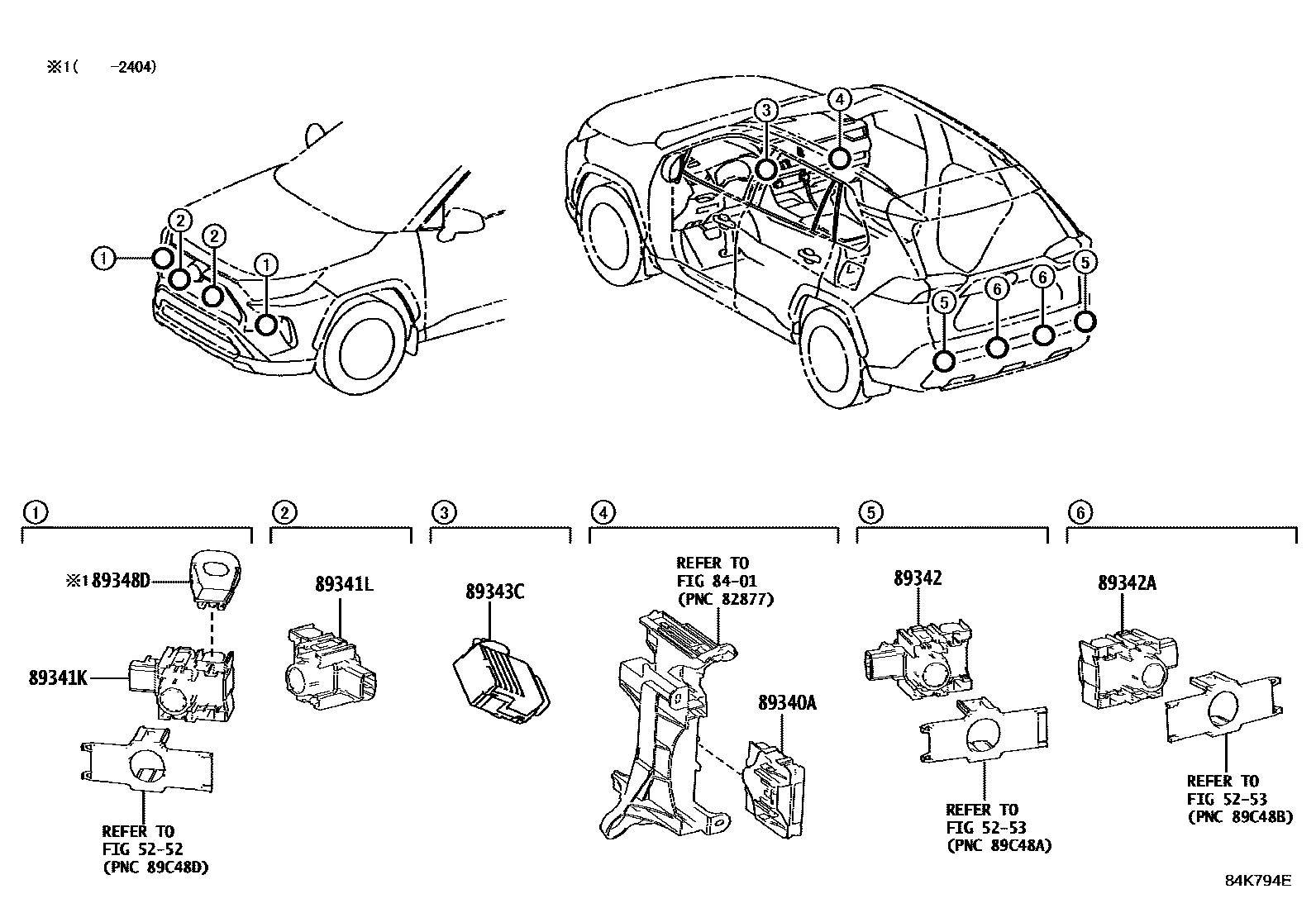

Toyota RAV4 测距雷达和倒车雷达 — Figure 8417
Toyota RAV4 EPC diagram 8417, 测距雷达和倒车雷达, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89340A | Distance warning ECU assembly | 89340-0R090 · 89340-0R170 · 89340-0R350 · 89340-0R370 |
| 89341L | Front center ultrasonic sensor | 89341-0R070 · 89341-0R150 |
| 89342 | Back corner ultrasonic sensor | 89341-0R070 · 89341-0R150 |
| 89342A | Rear center ultrasonic sensor | 89341-0R070 · 89341-0R150 |
| 89343C | No. 1 distance warning buzzer | 89343-02010 |
| 89348D | Ultrasonic sensor clip | 89348-35030 |
