Toyota RAV4 ABS 和 VSC — Figure 8414

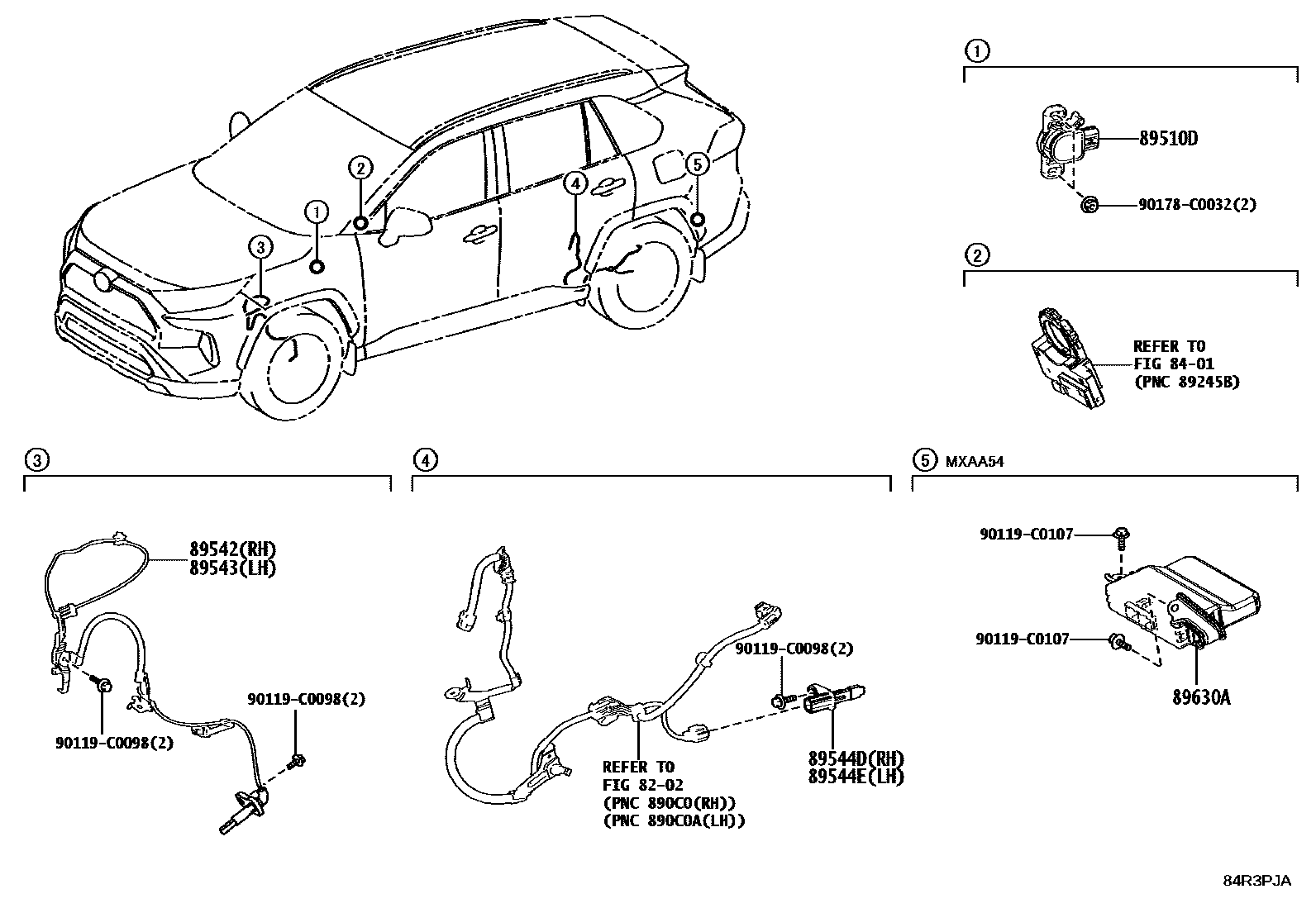

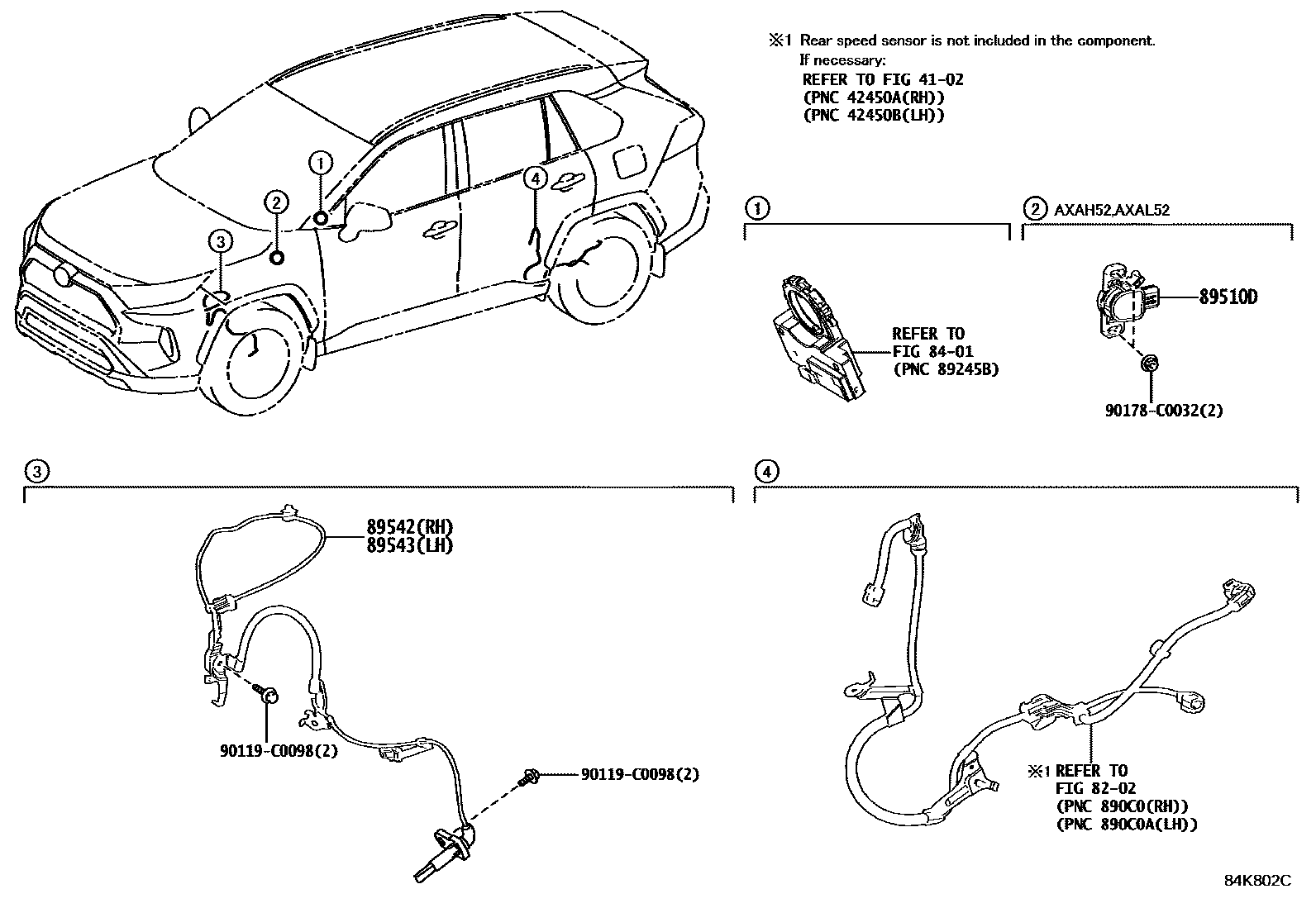

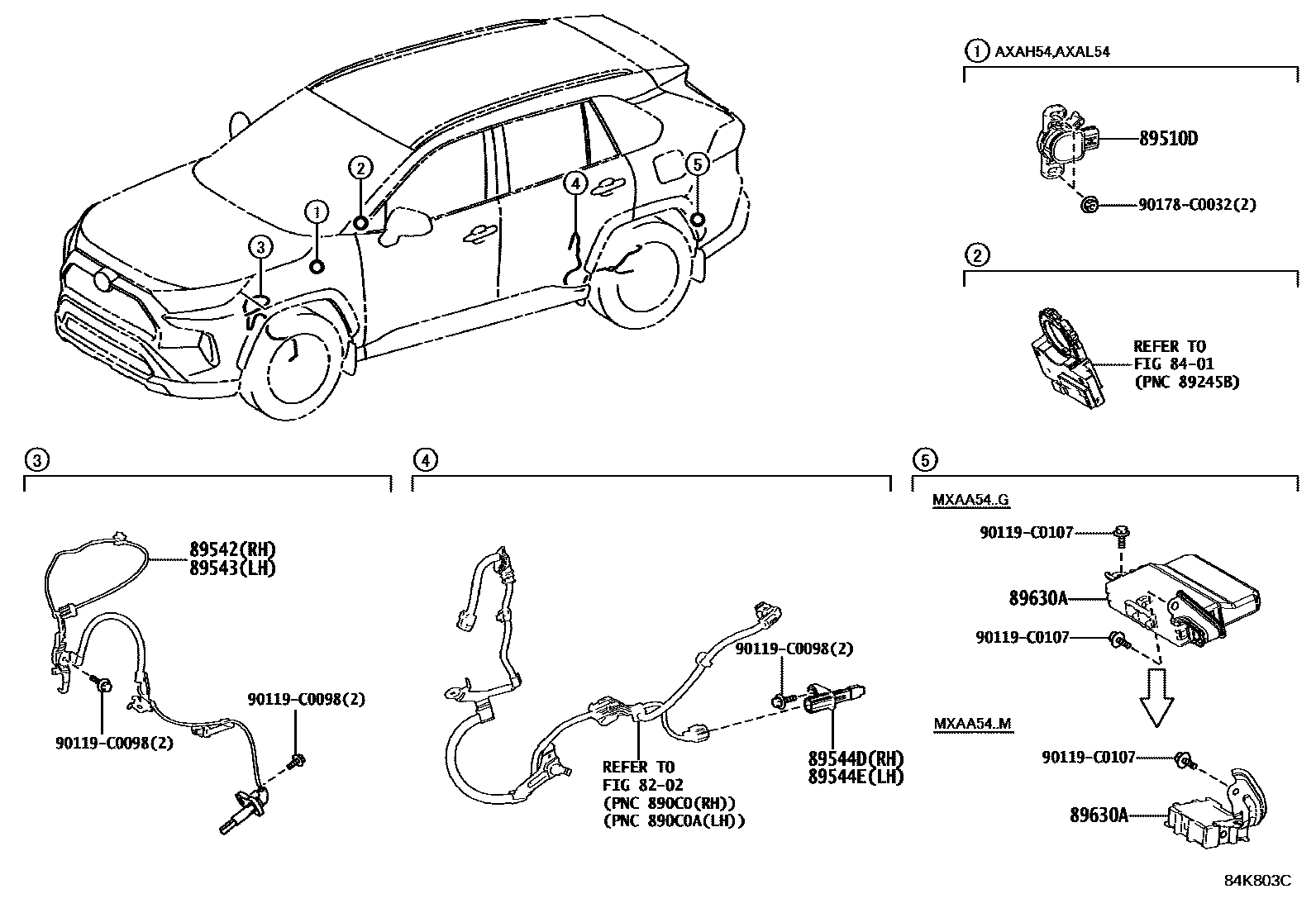

Toyota RAV4 EPC diagram 8414, ABS 和 VSC, with 3 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89510D | Brake pedal stroke sensor assembly | 89510-02020 · 89510-0R020 · 89510-0R040 · 89510-33030 |
| 89542 | Right front wheel speed sensor | 89542-0R050 |
| 89543 | Left front wheel speed sensor | 89543-0R050 |
| 89544D | Right rear anti-skid control sensor | 89544-0R030 |
| 89544E | Left rear anti-skid control sensor | 89544-0R030 |
| 89630A | Four-wheel drive ECU assembly | 89630-42120 · 89630-42150 · 89630-42161 · 89630-42170 · 89630-42171 · 89630-42180 · 89630-42190 · 89630-42200 |
