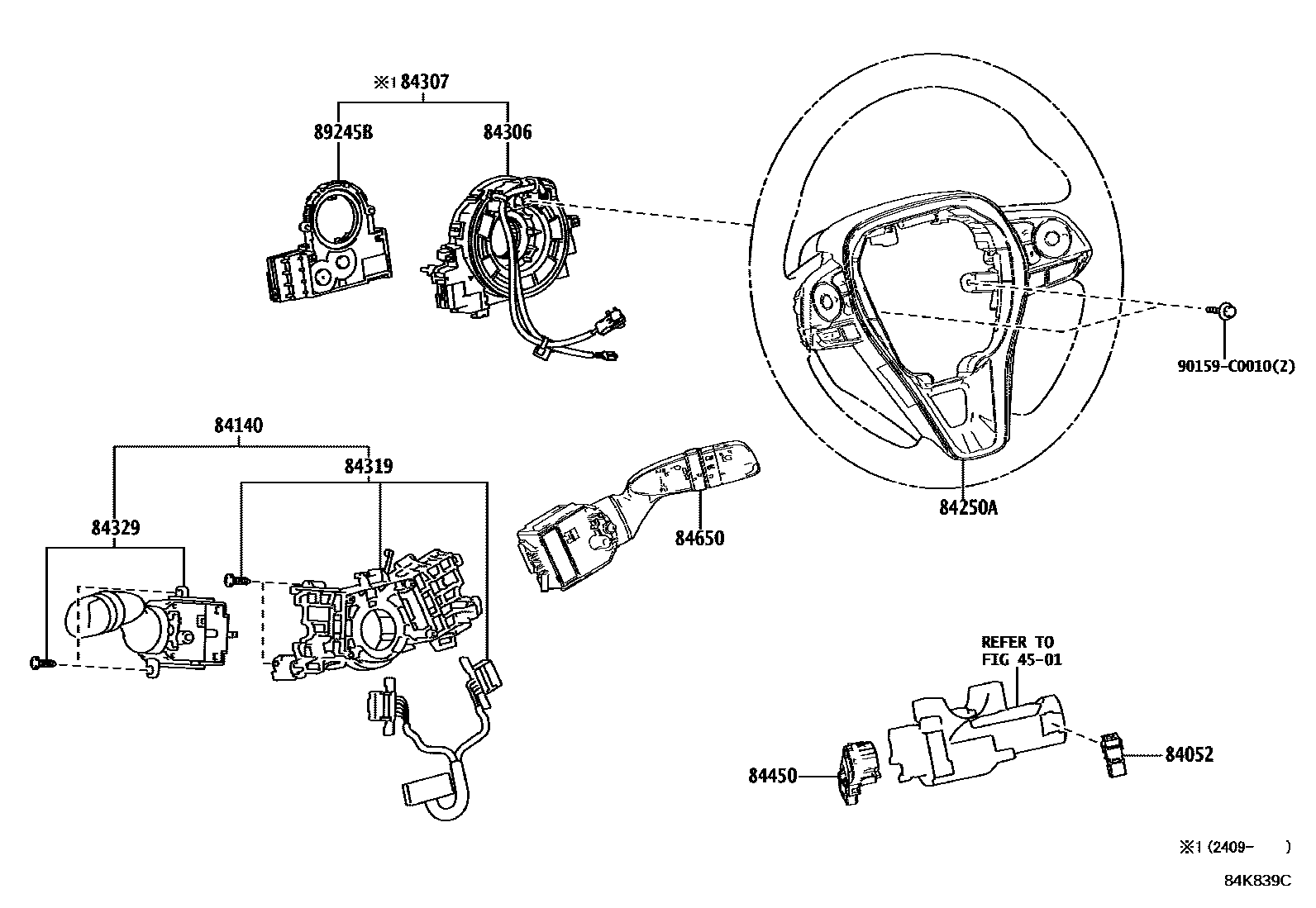

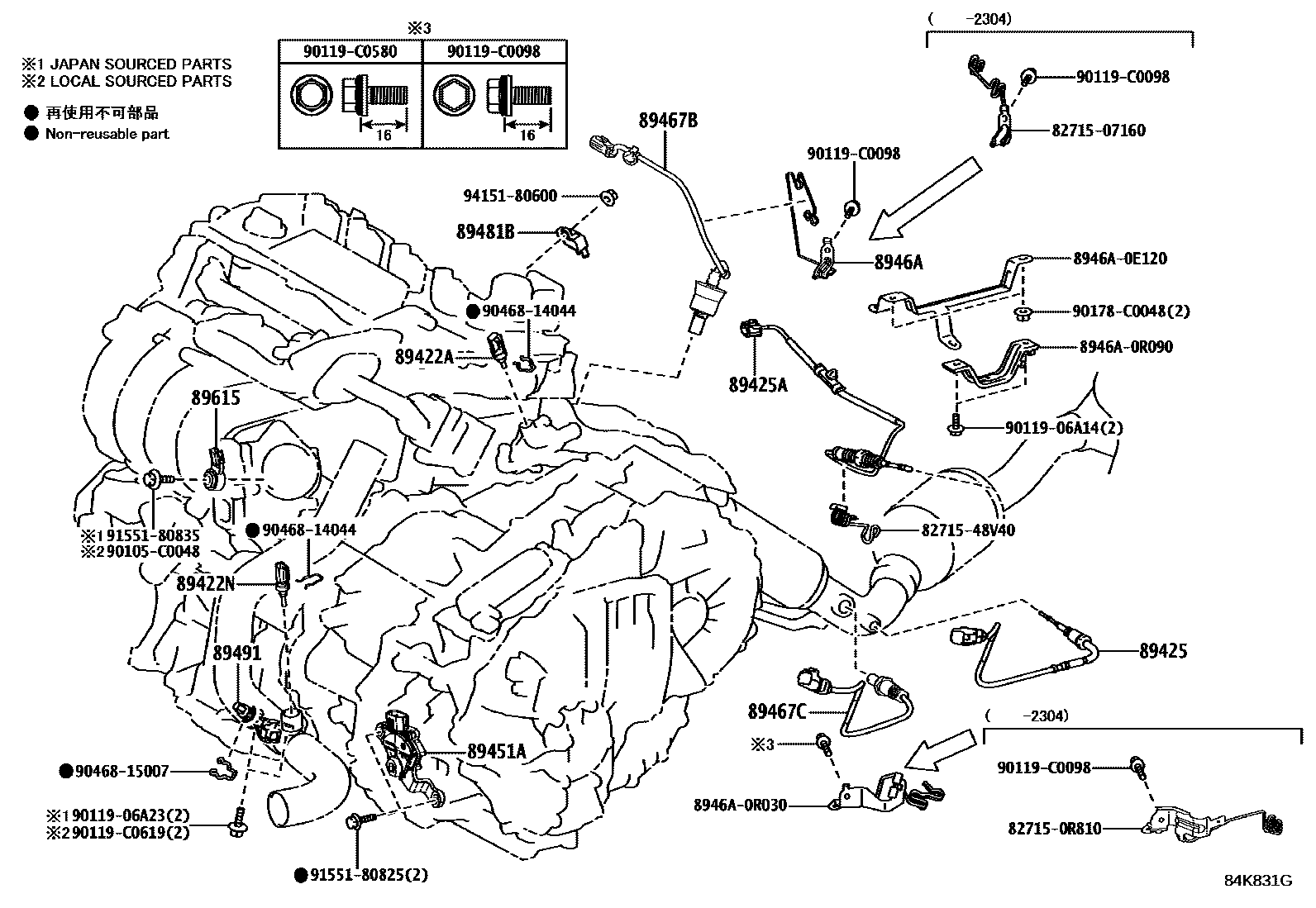

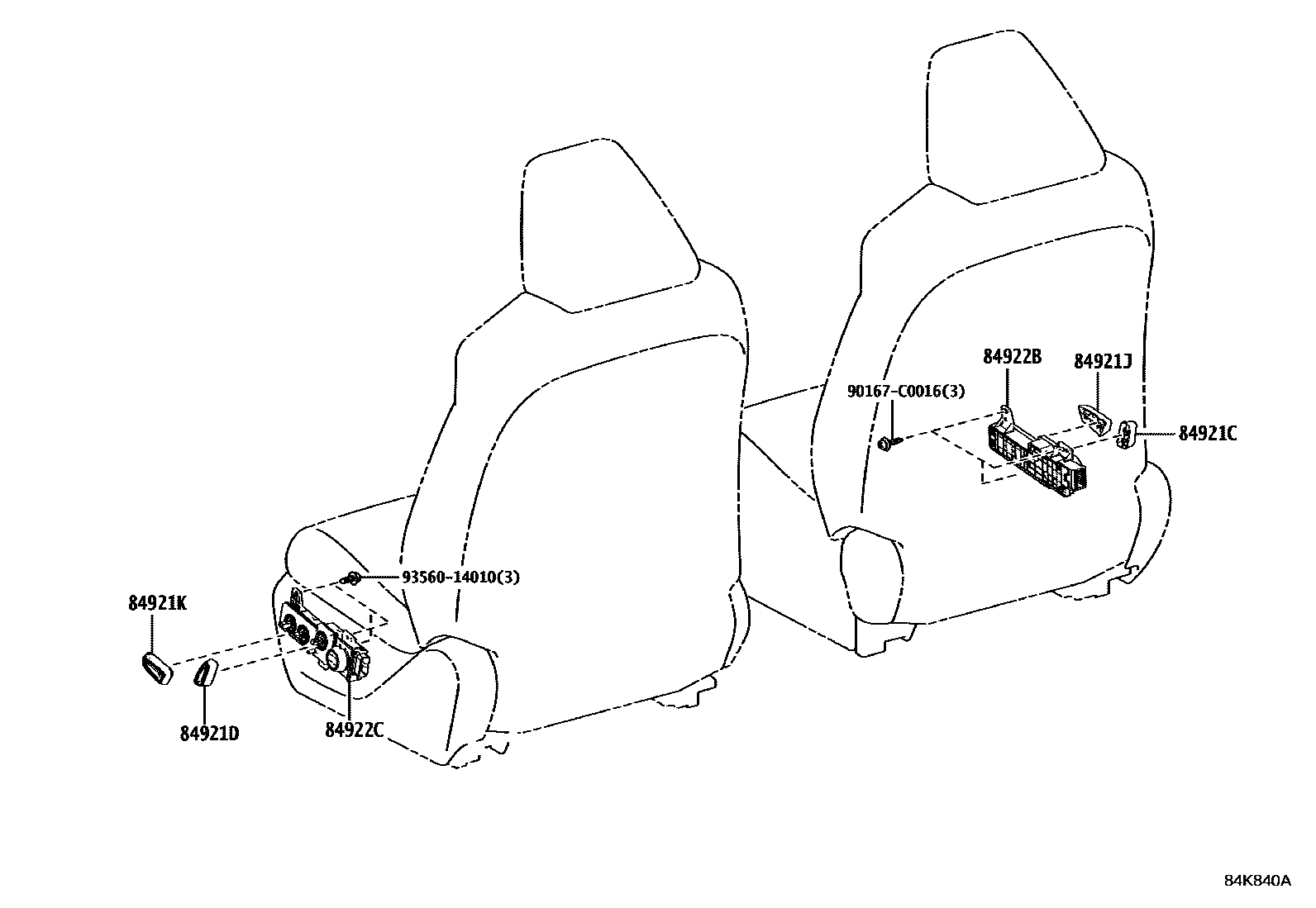

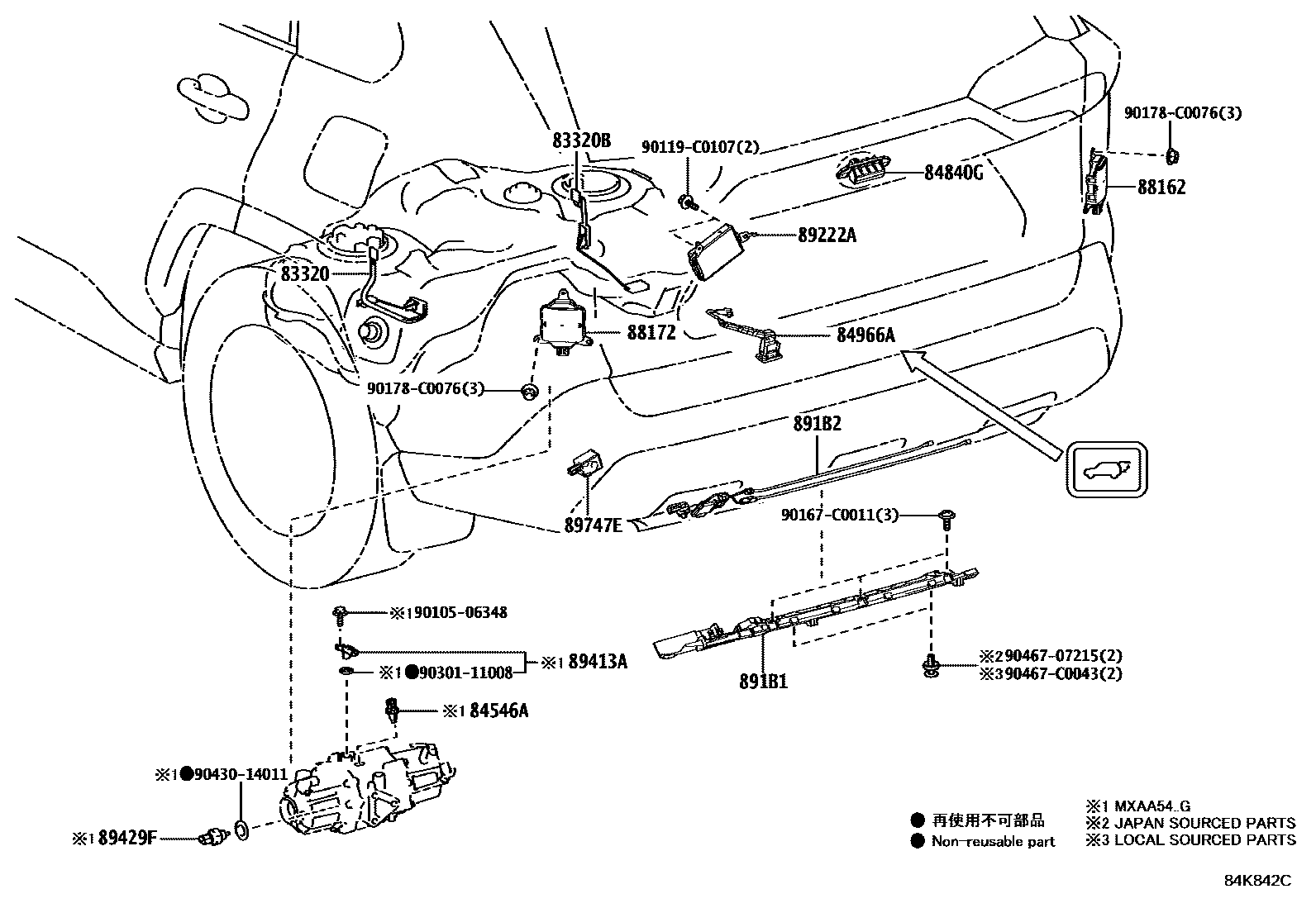

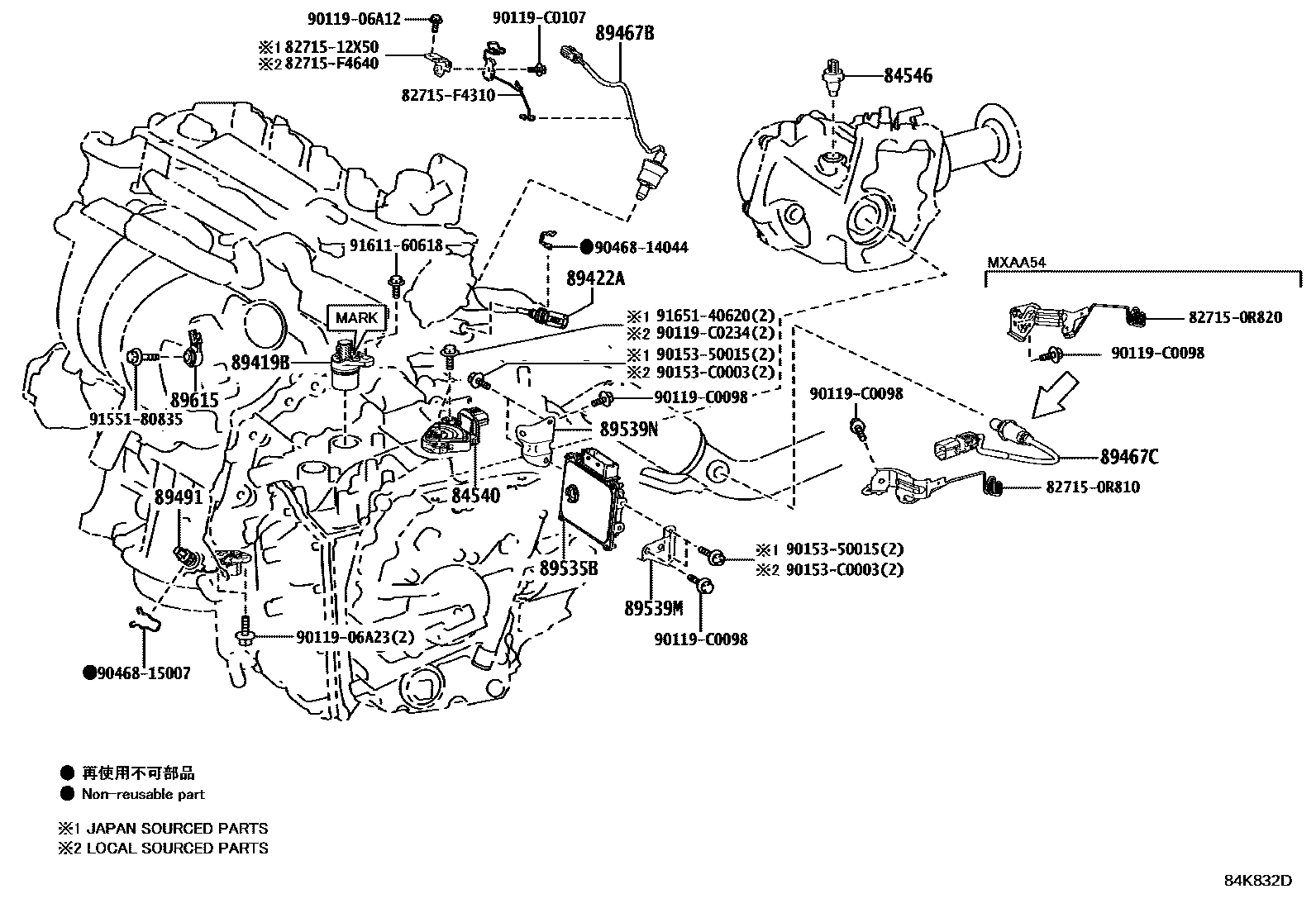

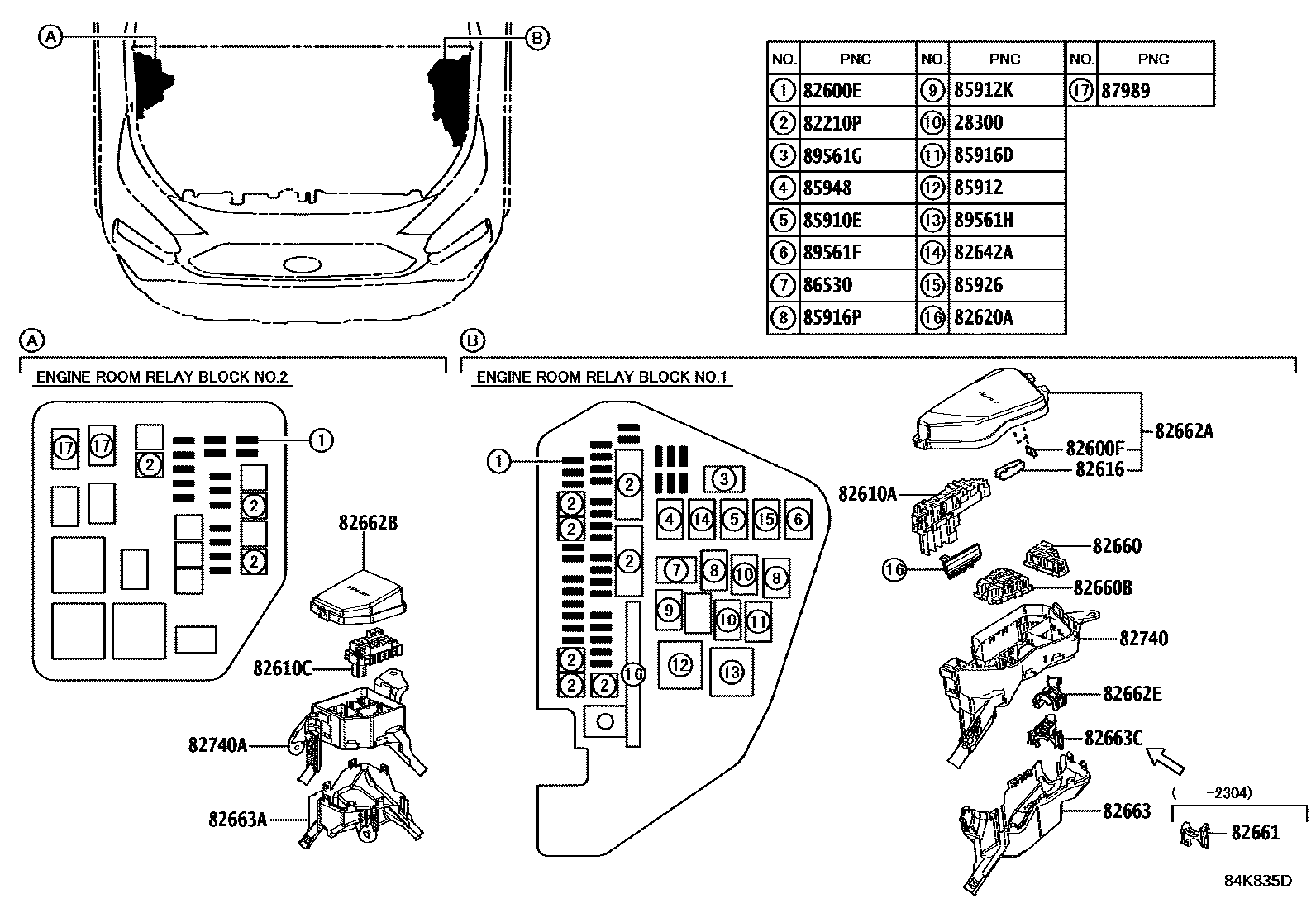

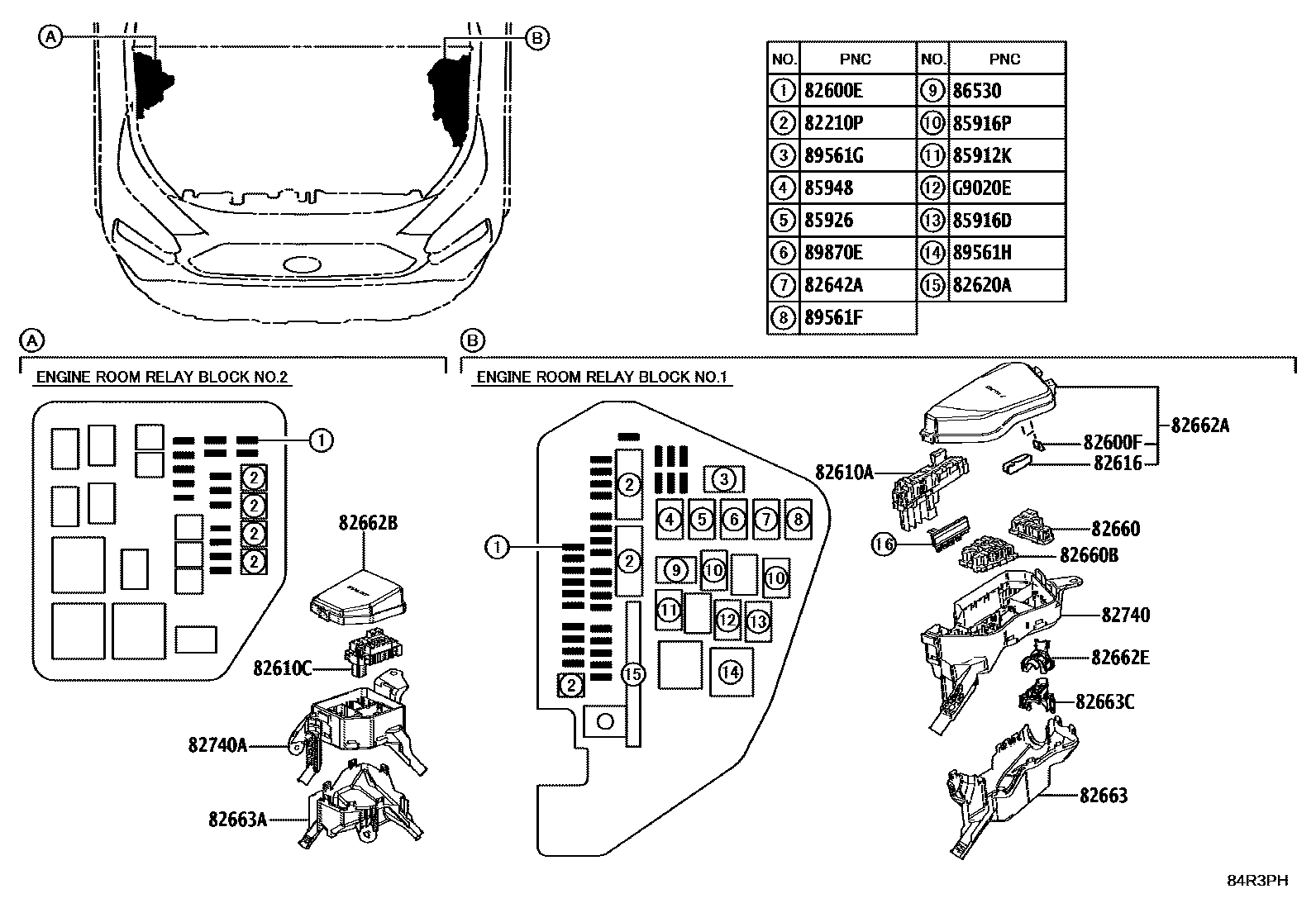

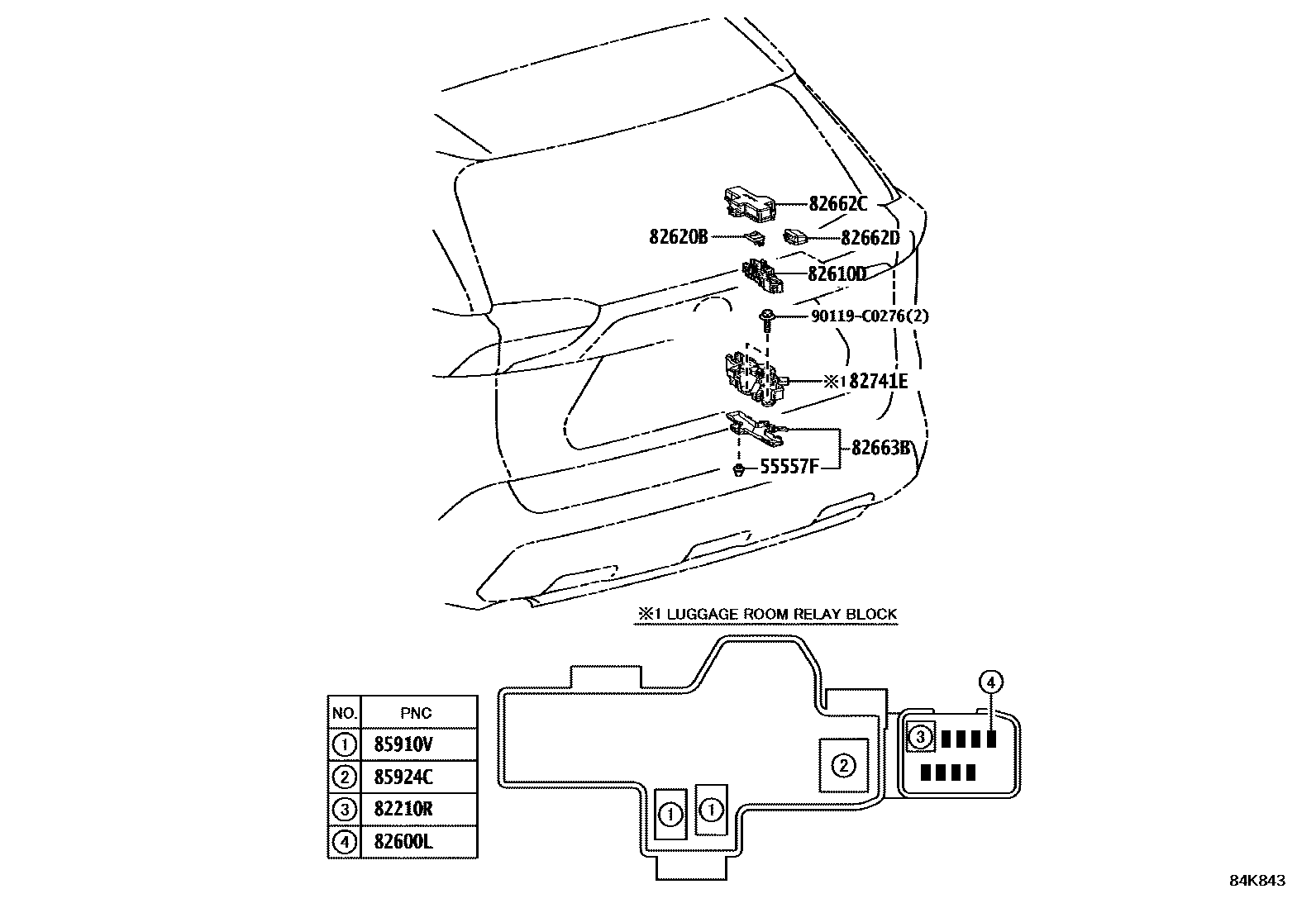

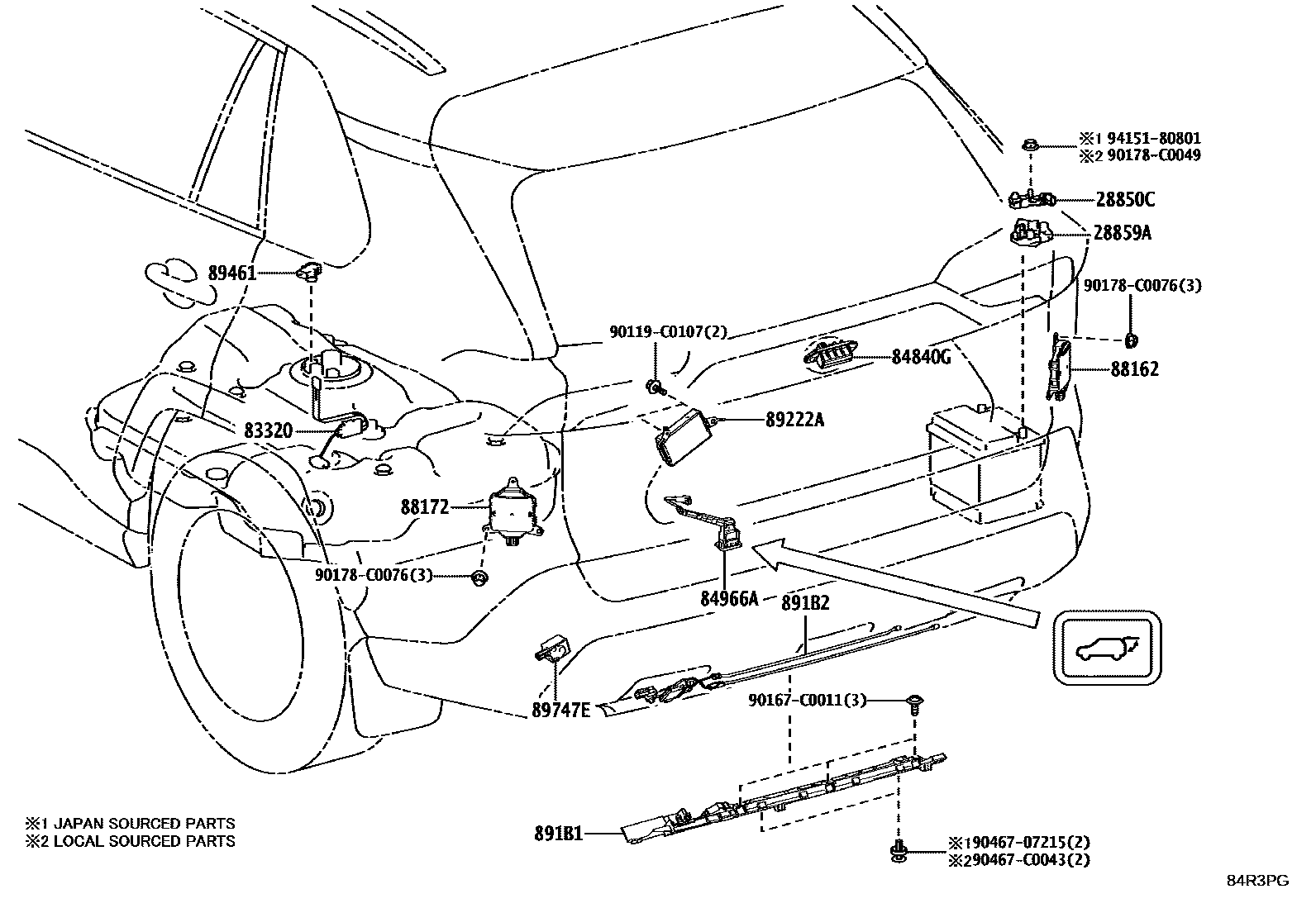

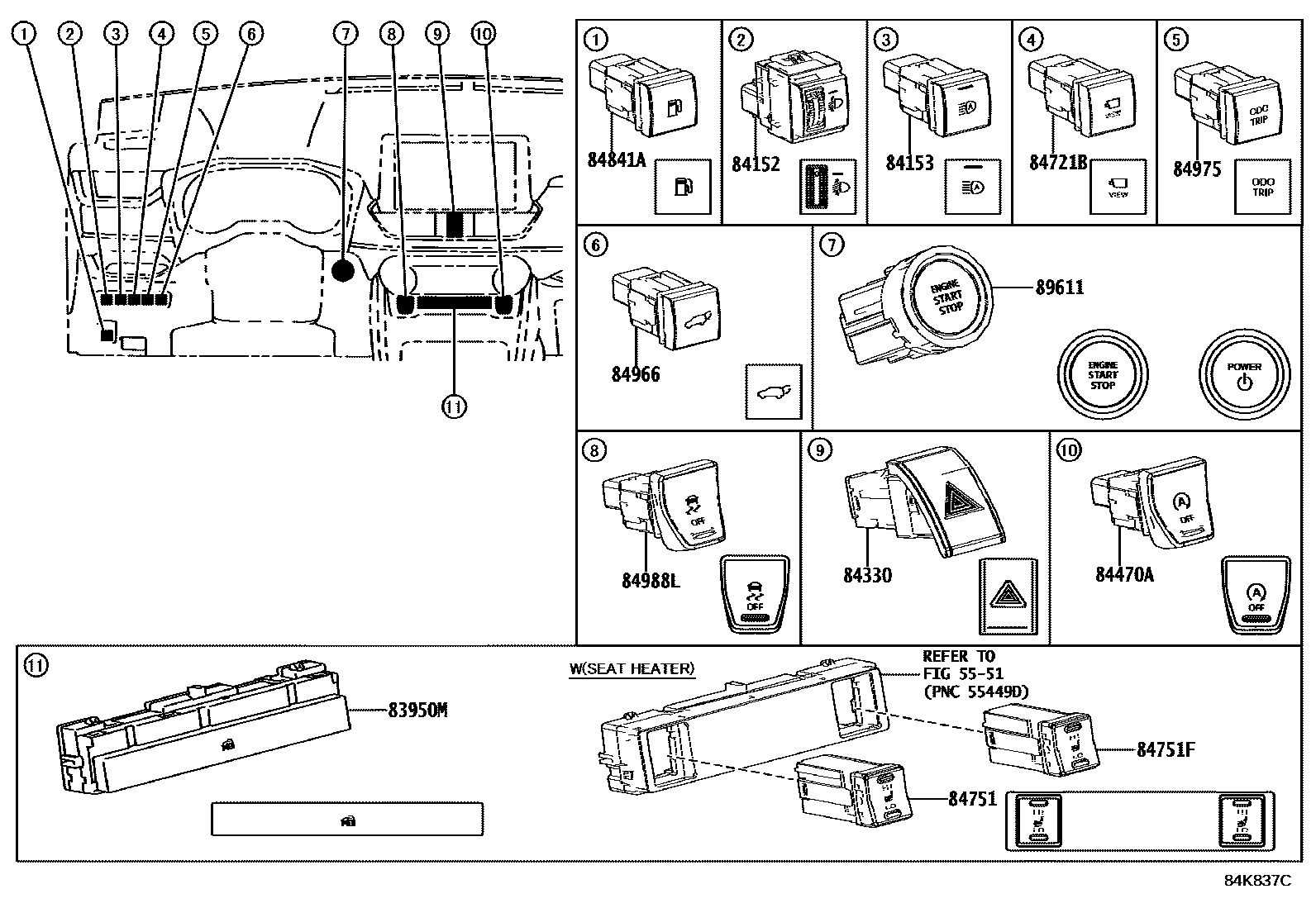

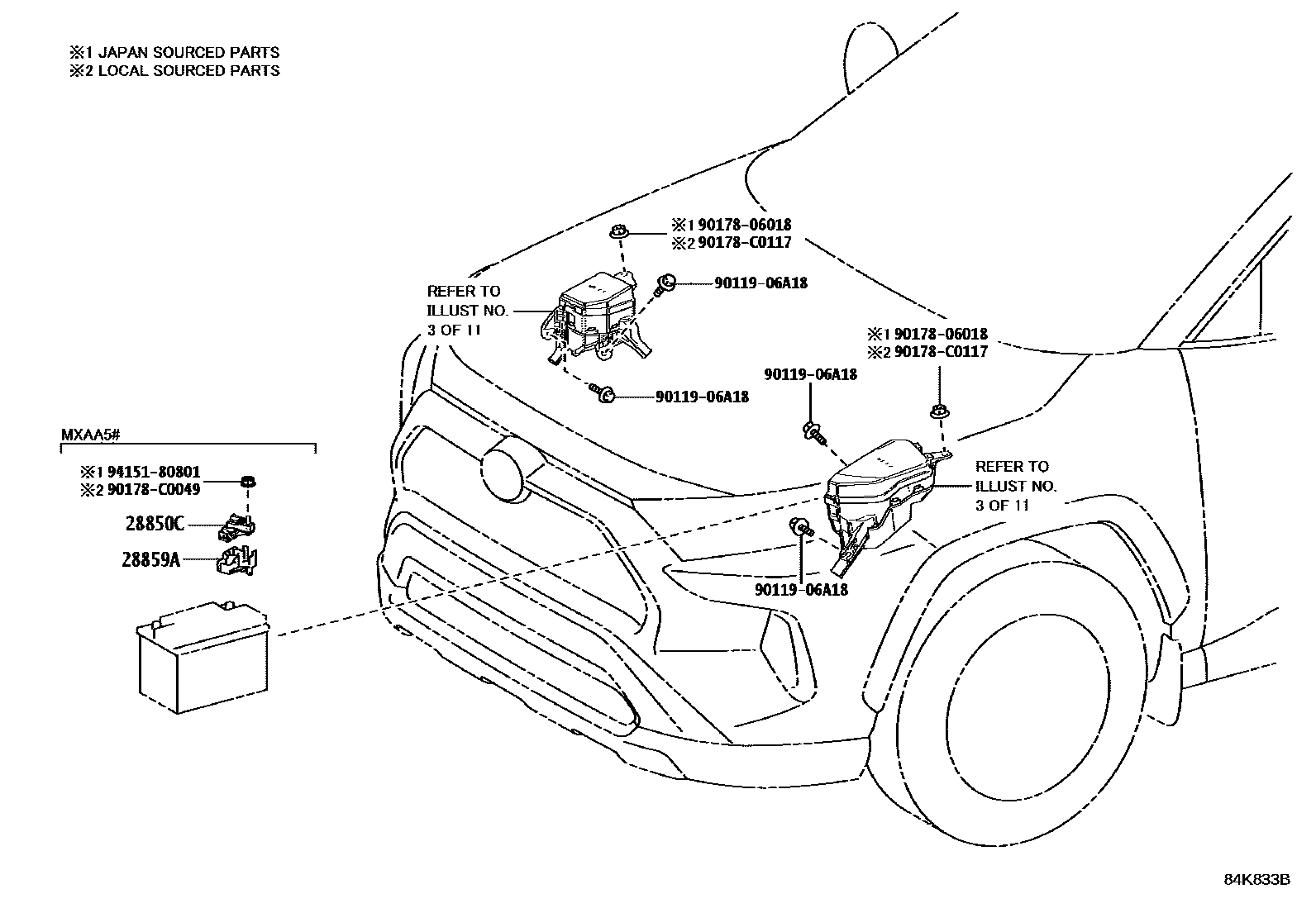

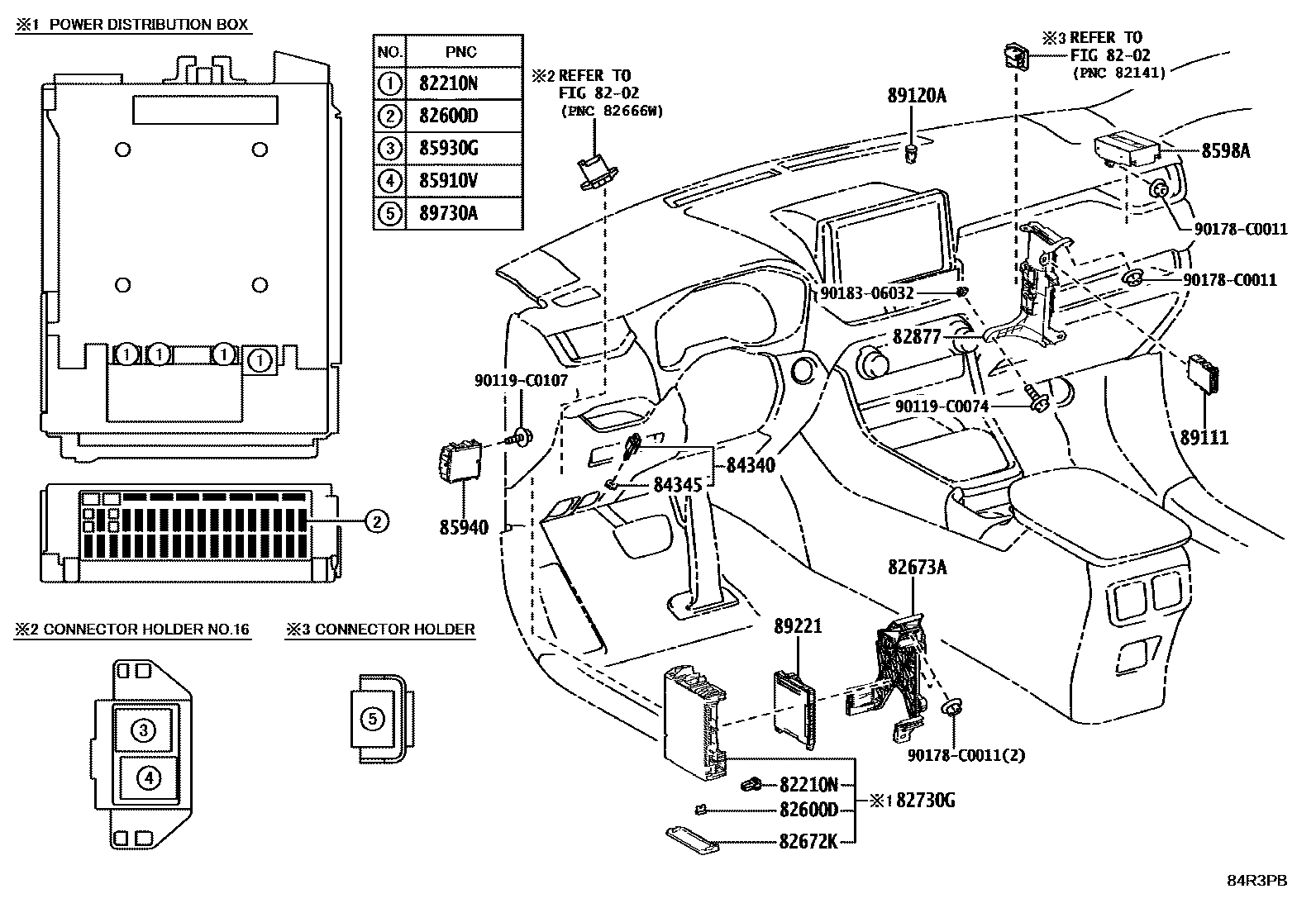

Toyota RAV4 开关和继电器和ECU — Figure 8401
Toyota RAV4 EPC diagram 8401, 开关和继电器和ECU, with 20 images and 137 PNC and OE references.

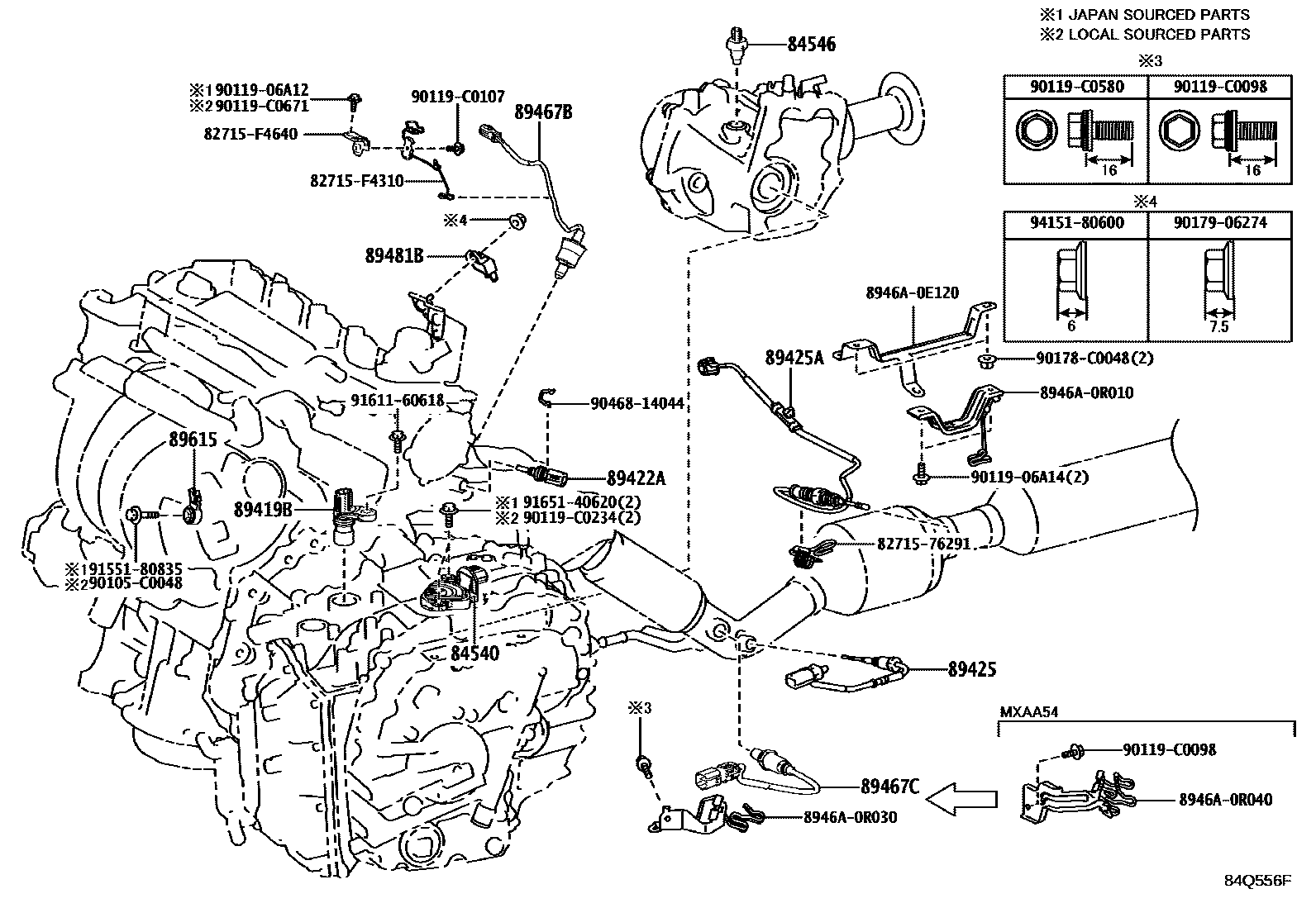

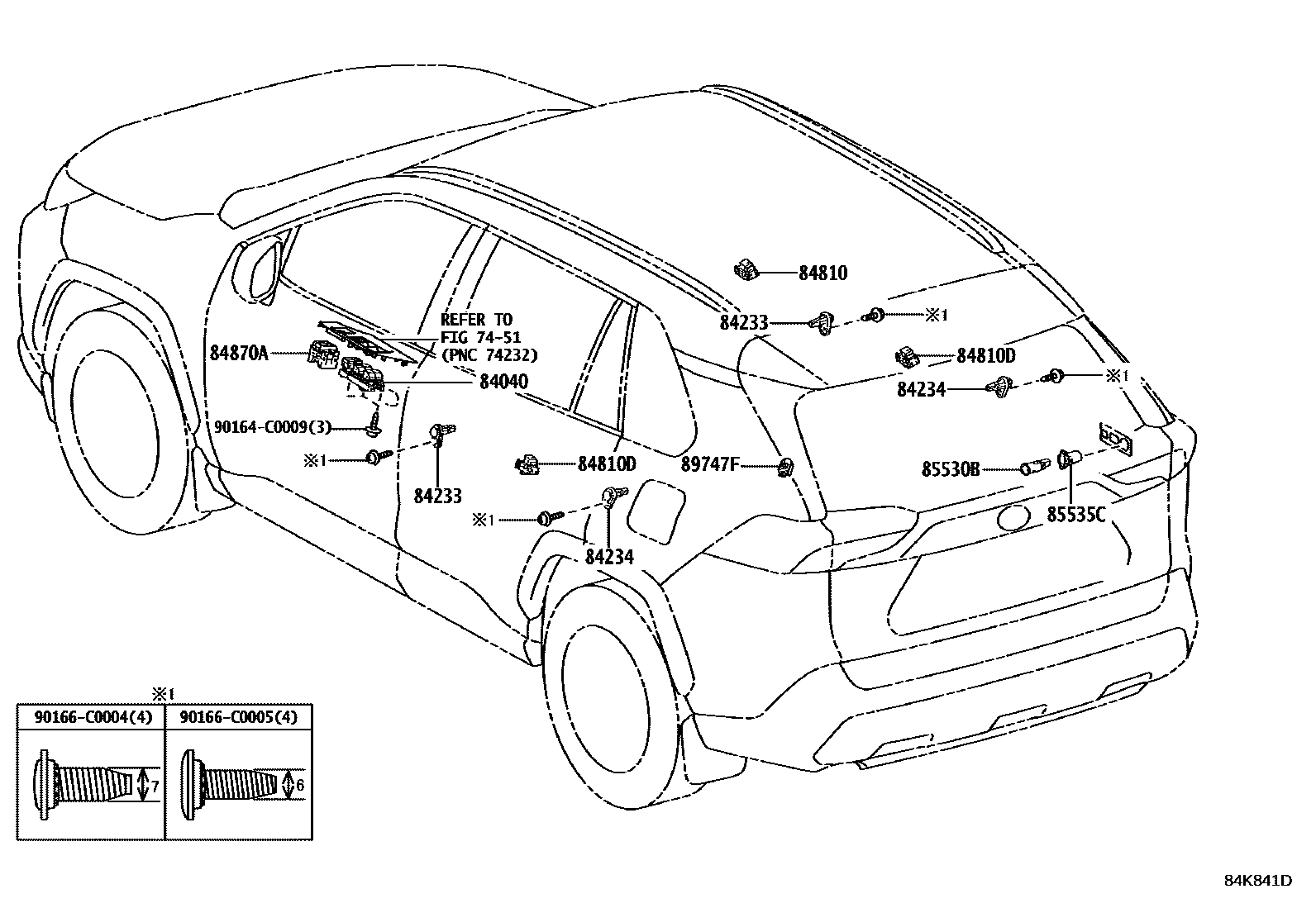

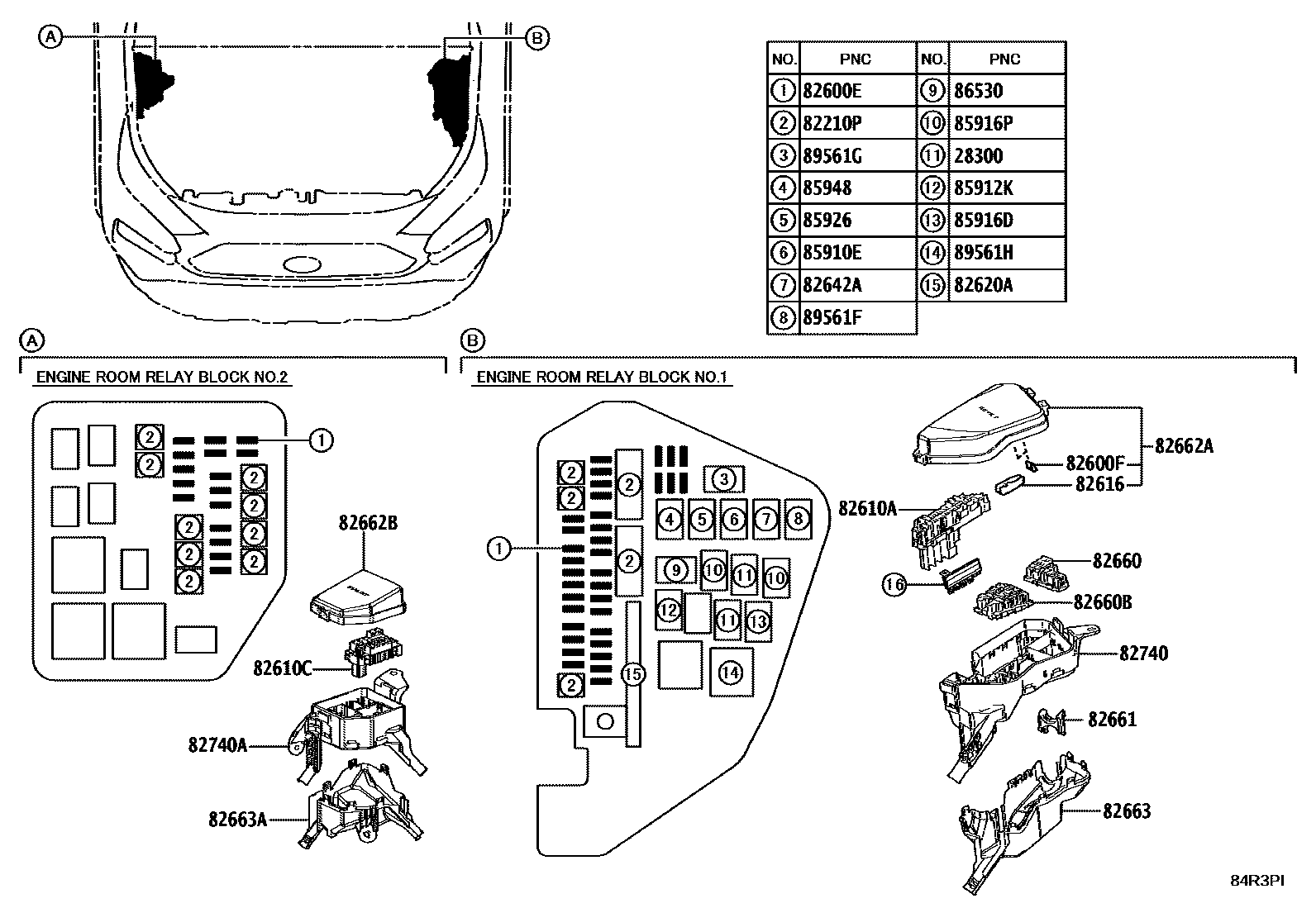

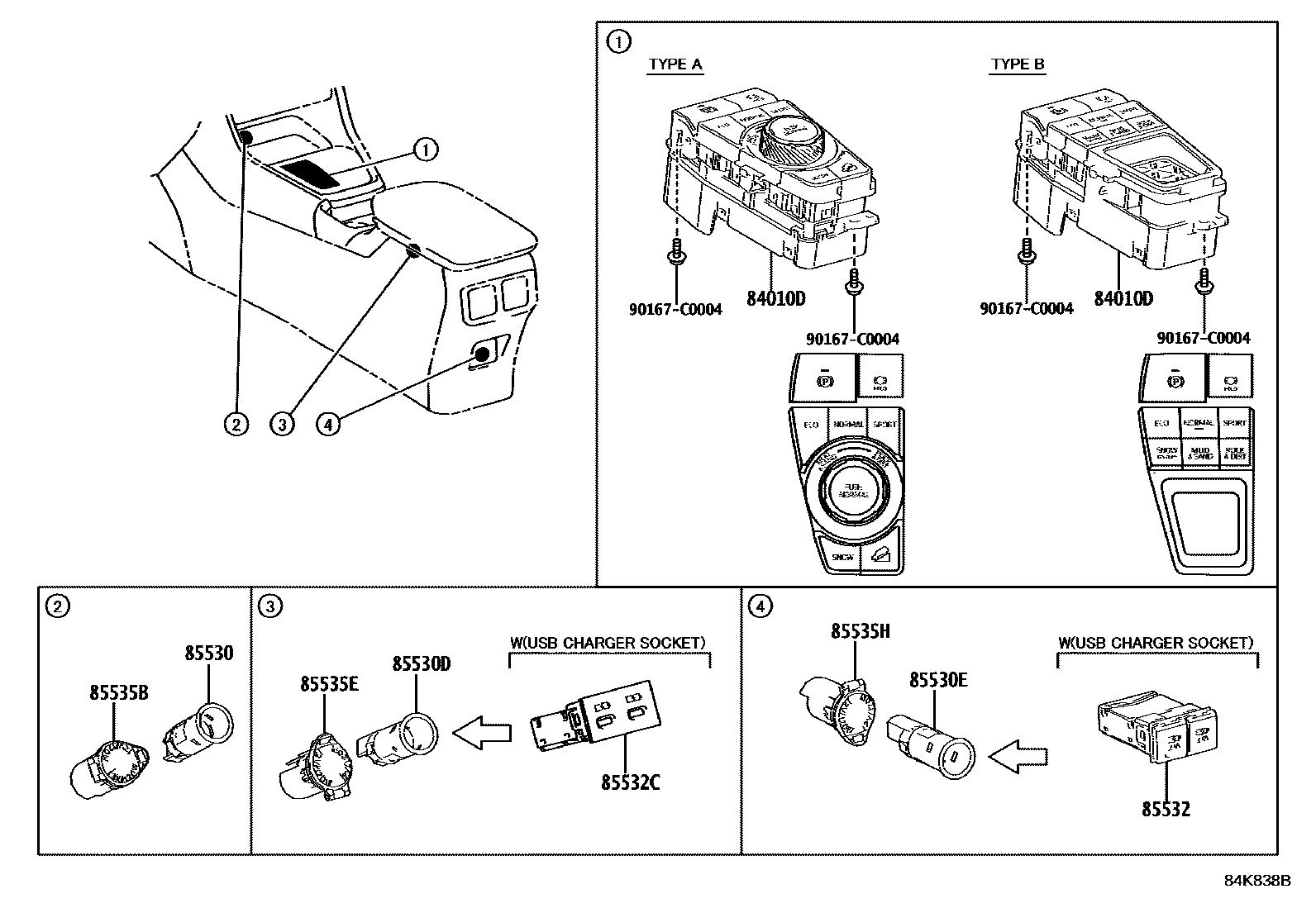

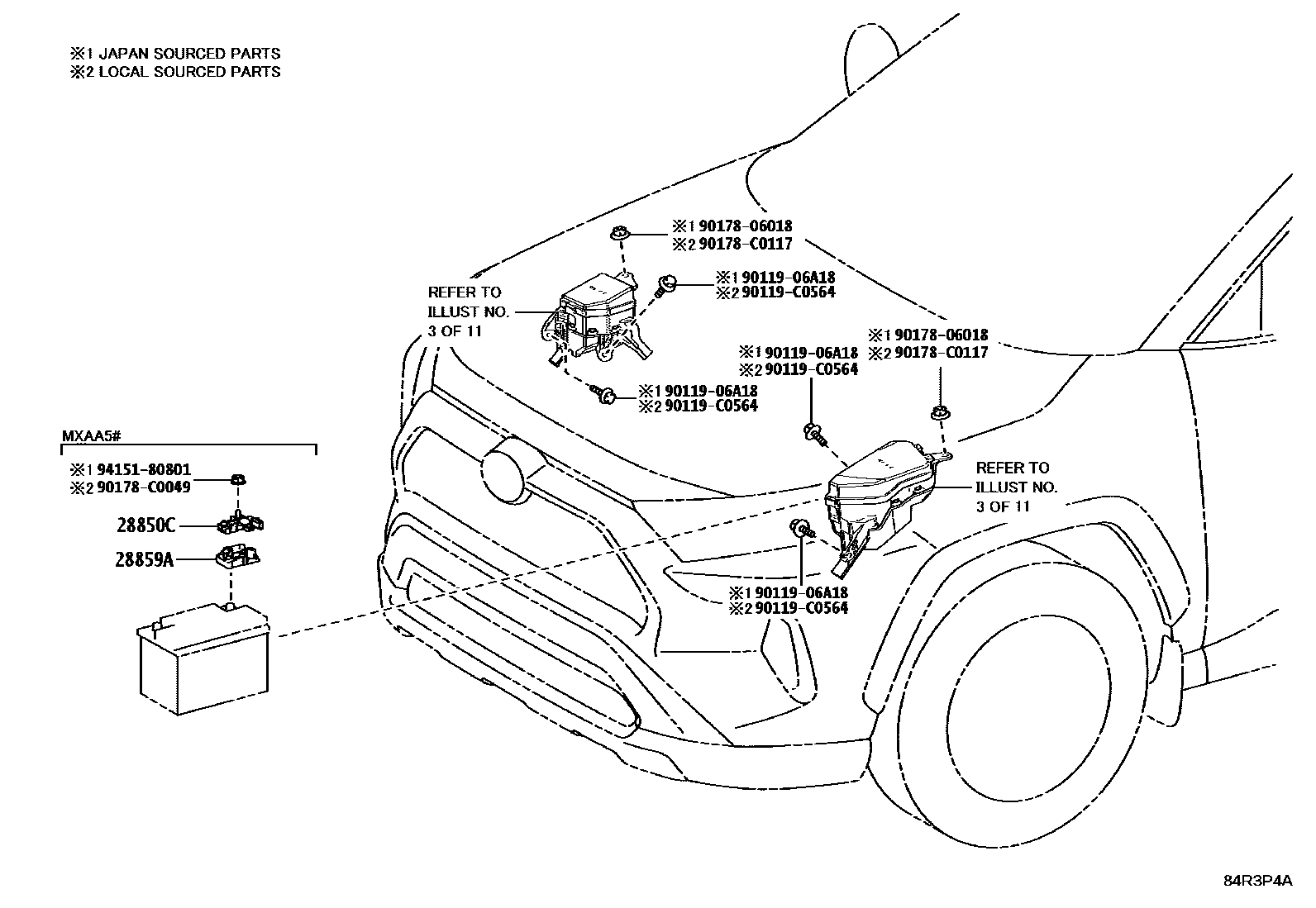

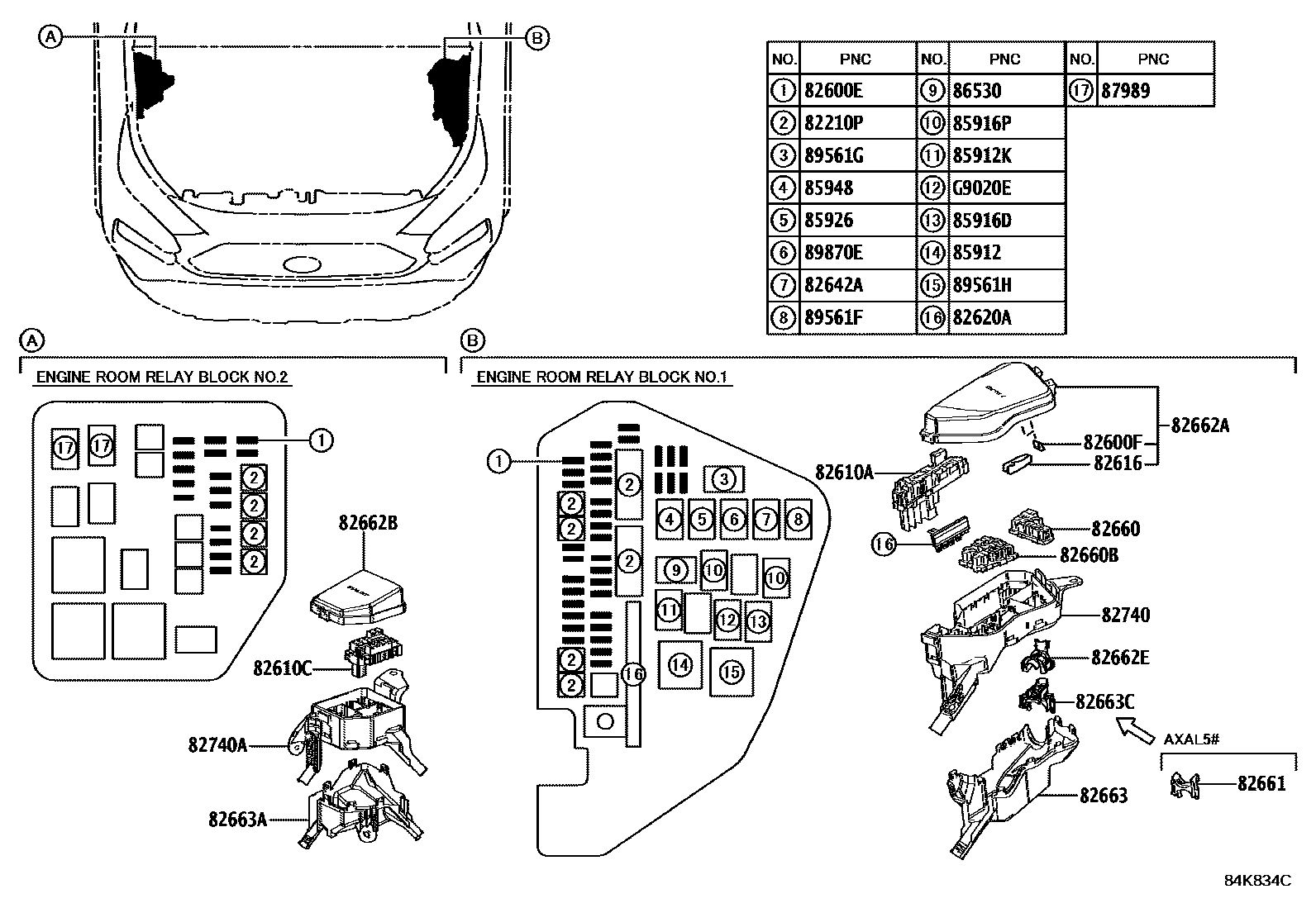

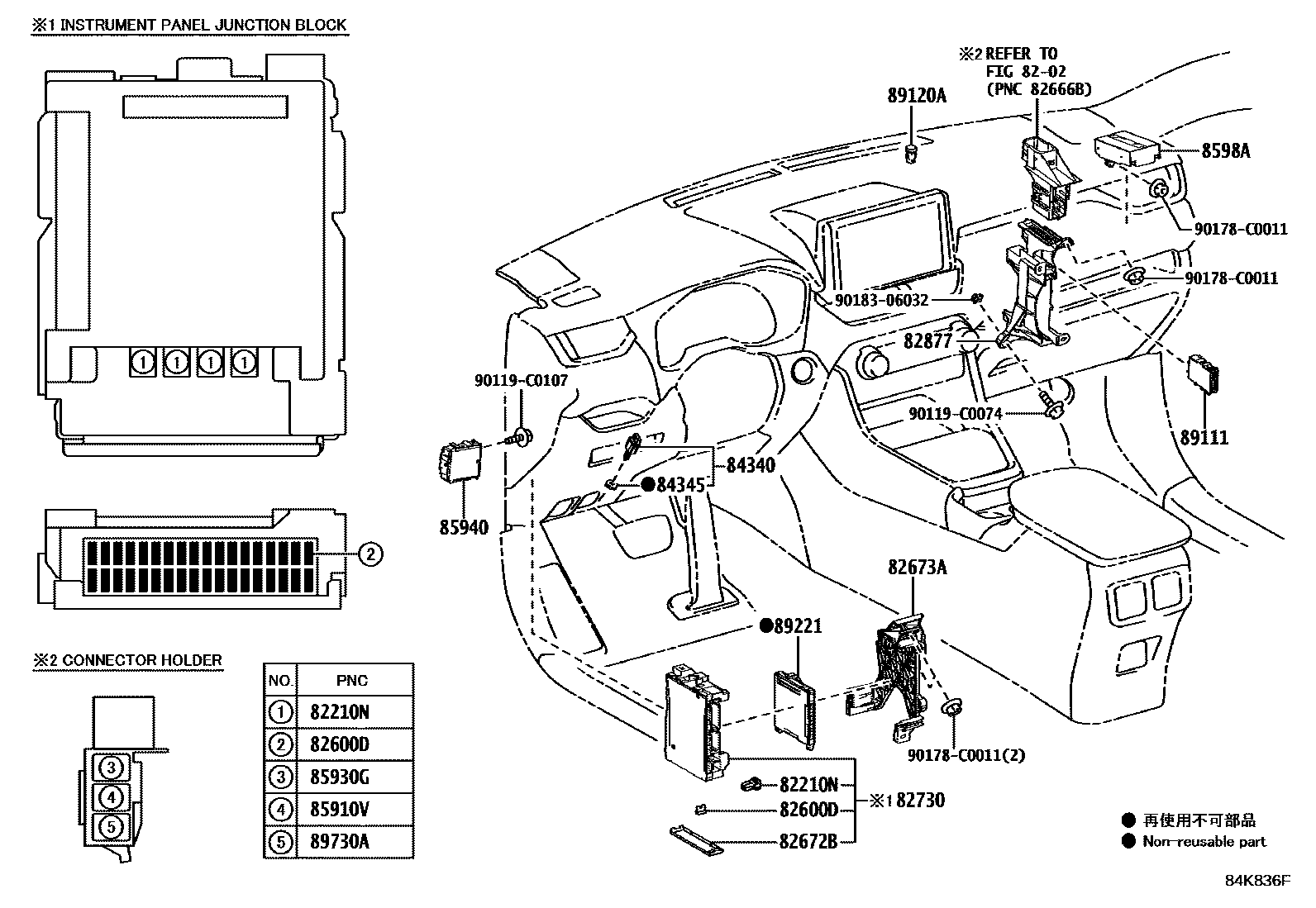

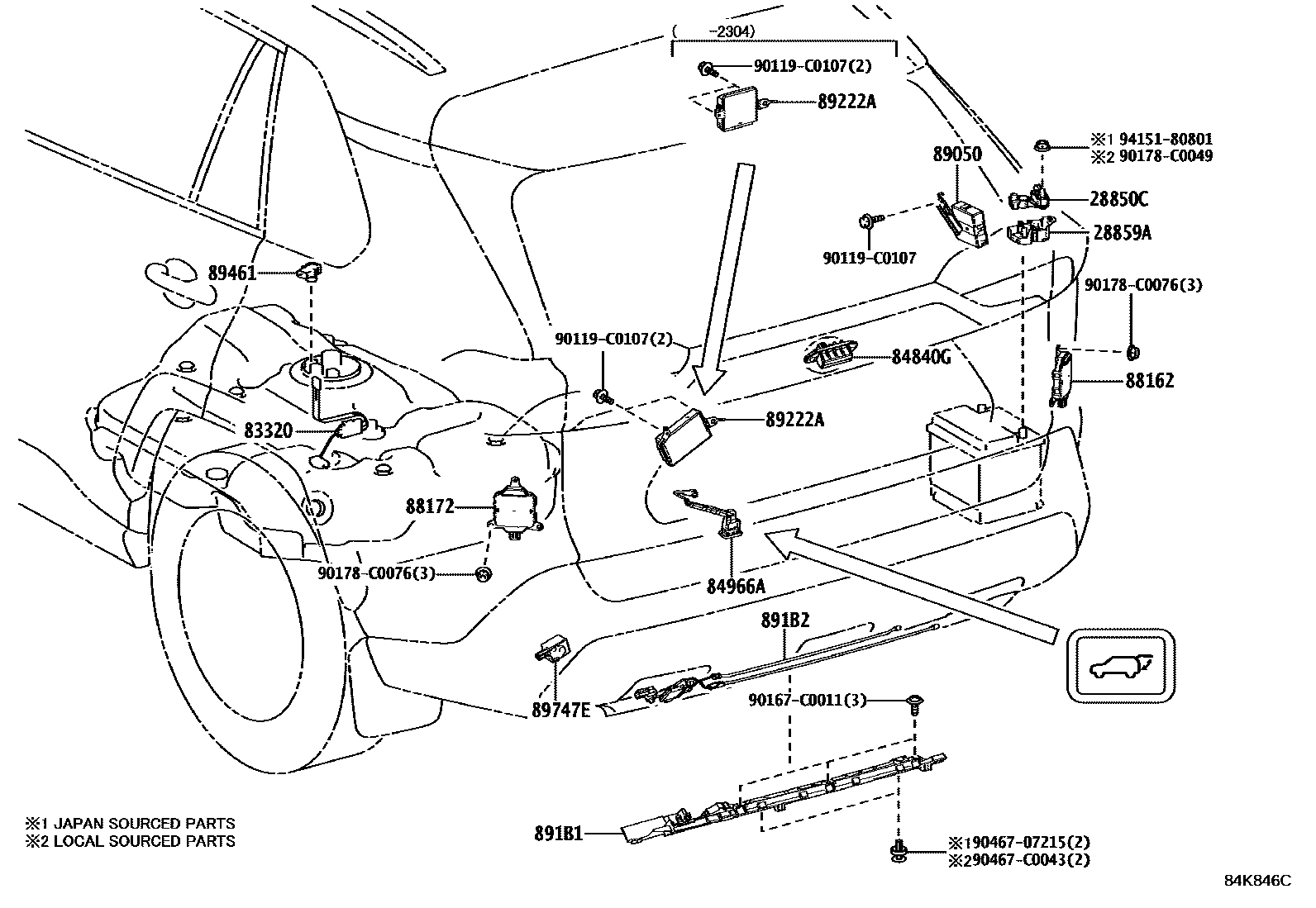

PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-21020 · 28300-F2010 |
| 28850C | Battery status sensor assembly | 28850-0Z020 · 28850-F0030 |
| 28859A | Battery current sensor mount | 28859-F0050 · 28859-F0090 · 28859-F0340 · 28859-F0350 |
| 55557F | Relay box cushion | 55557-53030 |
| 82210N | Instrument panel fuse | 90982-08294 · 90982-08295 · 90982-08296 · 90982-08298 · 90982-08306 · 90982-08311 · 90982-08312 |
| 82210P | Engine room fuse | 90982-08283 · 90982-08285 · 90982-08298 · 90982-08300 · 90982-08302 · 90982-08303 · 90982-08312 |
| 82210R | Luggage fuse | 90982-08284 · 90982-08294 · 90982-08311 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09025 |
| 82600F | Spare fuse | 90982-09023 · 90982-09025 |
| 82600L | luggage fuse | 90982-09020 · 90982-09021 · 90982-09022 |
| 82610A | Fuse box assembly | 82610-42080 · 82610-42120 · 82610-48040 · 82610-48050 |
| 82610C | Fuse box assembly | 82610-42090 |
| 82610D | Fuse box assembly | 82610-42100 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-33130 · 82620-33150 · 82620-48270 · 82620-48280 |
| 82620B | Fuse box assembly | 82620-42080 |
| 82642A | driving light relay | 90987-T2005 |
| 82660 | Engine room relay box assembly | 82660-42100 |
| 82660B | Relay assembly | 82660-42110 |
| 82661 | No. 1 relay box cover | 82661-42070 |
| 82662A | No. 1 relay box upper cover | 82662-0R290 · 82662-0R291 · 82662-0R292 · 82662-0R300 · 82662-0R301 · 82662-0R302 |
| 82662B | No. 2 relay box upper cover | 82662-0R310 · 82662-0R311 · 82662-0R320 · 82662-0R321 |
| 82662C | No. 3 relay box upper cover | 82662-42720 |
| 82662D | No. 4 relay box upper cover | 82662-42690 |
| 82662E | No. 7 relay box upper cover | 82662-42730 |
| 82663 | Relay box lower cover | 82663-0R100 · 82663-0R110 |
| 82663A | No. 2 relay box lower cover | 82663-0R120 |
| 82663B | No. 3 relay box lower cover | 82663-42200 |
| 82663C | No. 4 relay box lower cover | 82663-42220 |
| 82672B | Junction box cover | 82672-0R060 · 82672-0R061 · 82672-0R080 |
| 82672K | Electric power distribution box cover | 82672-0R140 |
| 82673A | Junction box bracket | 82673-0R100 · 82673-0R120 |
| 82730 | Instrument panel junction box assembly | 82730-0R230 · 82730-0R231 · 82730-0R240 |
| 82730G | Distribution box assembly | 82730-0R400 · 82730-0R410 |
| 82740 | Engine room relay box assembly | 82740-0R060 · 82740-0R070 |
| 82740A | Engine room No. 2 relay box assembly | 82740-0R080 |
| 82741E | Trunk No. 1 relay box | 82740-42070 |
| 82877 | Right ECU integrated box | 82877-07010 · 82877-0R020 |
| 83320 | Fuel gauge sensor assembly | 83320-0R060 · 83320-0R080 · 83320-0R081 |
| 83320B | Fuel gauge No. 2 sensor assembly | 83320-0R070 |
| 83950M | Warning light assembly | 83950-0R230 |
| 84010D | Integrated control and panel assembly | 84010-0R060 · 84010-0R070 · 84010-0R080 · 84010-0R090 · 84010-0R100 · 84010-0R110 · 84010-0R240 · 84010-0R250 · 84010-0R260 · 84010-0R270 · 84010-0R280 · 84010-0R290 |
| 84040 | Multi-channel network main switch assembly | 84040-0R010 · 84040-0R020 · 84040-0R140 · 84040-0R180 |
| 84052 | Unlock warning switch assembly | 84052-06010 |
| 84140 | Headlight dimmer switch assembly | 84140-07150 |
| 84152 | Headlight beam height adjustment switch | 84152-0R040 · 84152-0R110 |
| 84153 | Automatic high beam switch | 84153-0R020 · 84153-0R040 |
| 84233 | Door control light switch assembly (for front door) | 84231-0R010 |
| 84234 | Door control light switch assembly (for rear door) | 84231-0R010 |
| 84250A | Steering wheel decorative cover switch assembly | 84250-02E90 · 84250-0R270 · 84250-0R320 · 84250-0R420 |
| 84306 | Spiral cable sub-assembly | 84308-02170 · 84308-0E030 |
| 84307 | Spiral cable sub-assembly with sensor | 84307-02500 |
| 84319 | Steering wheel switch housing | 84319-07010 |
| 84329 | turn signal switch | 84329-07010 |
| 84330 | Hazard warning signal switch assembly | 84332-0R050 |
| 84340 | brake light switch assembly | 84340-09340 |
| 84345 | Brake light switch base adjuster | 84345-0R010 |
| 84450 | Ignition or starter switch assembly | 84450-06060 |
| 84470A | Economic operation cancel switch assembly | 84470-0R050 · 84470-0R100 |
| 84540 | Neutral start switch assembly | 84540-12240 · 89451-42010 |
| 84546 | 4-wheel drive No. 1 positioning switch | 84546-42010 |
| 84546A | 4-wheel drive No. 2 positioning switch | 84546-42010 |
| 84650 | Windshield wiper switch assembly | 84652-0R140 |
| 84721B | Panoramic display switch | 84721-0A050 · 84721-0R030 |
| 84751 | Seat heater switch | 84751-0R100 · 84751-0R200 |
| 84751F | Seat heater switch | 84751-0R110 · 84751-0R210 |
| 84810 | Electric window lift switch assembly | 84810-0R010 · 84810-0R020 · 84810-0R070 |
| 84810D | Rear electric window lift switch assembly | 84810-0R010 · 84810-0R020 · 84810-0R070 |
| 84840G | Back door opener switch assembly | 84840-F4050 · 84840-F4060 |
| 84841A | Fuel filler cap opener switch | 84841-0R010 · 84841-0R040 |
| 84870A | Exterior rearview mirror switch assembly | 84872-0R010 · 84872-0R030 · 84872-0R130 · 84872-0R160 |
| 84966 | Automatic back door control switch | 84966-0R030 · 84966-0R090 |
| 84966A | No. 1 automatic back door control switch | 84966-0R040 |
| 84975 | trip odometer switch | 84975-0R070 |
| 84988L | VSC off switch | 84988-0R060 · 84988-0R120 |
| 85530 | No. 1 power socket assembly | 85530-07020 · 85530-0N010 |
| 85530B | No. 1 rear power socket assembly | 85530-07020 · 85530-0N010 |
| 85530D | No. 2 power socket assembly | 85530-07020 · 85530-0N010 |
| 85530E | No. 3 power socket assembly | 85530-07020 · 85530-0N010 |
| 85532 | USB charging socket | 85532-06070 · 85532-07010 · 85532-0R120 · 85532-15010 |
| 85532C | USB charging socket No. 2 | 85532-0R110 |
| 85535B | No. 1 power outlet cover | 85535-07030 · 85535-0N010 · 85535-0R070 |
| 85535C | Rear power outlet cover | 85535-07030 · 85535-0N010 · 85535-0R070 |
| 85535E | No. 2 power outlet cover | 85535-07030 · 85535-0N010 · 85535-0R070 |
| 85535H | No. 3 power socket cover | 85535-07030 · 85535-0N010 · 85535-0R070 |
| 85910E | Injector relay | 90987-T2005 |
| 85910V | seat heater relay | 90987-T2005 |
| 85912 | defogger relay | 90987-T4002 |
| 85912K | VVT relay | 90987-02027 · 90987-T2005 |
| 85916D | fog light relay | 90987-T2005 |
| 85916P | headlight relay | 90987-T2005 |
| 85924C | IGCT relay | 90987-02031 |
| 85926 | Headlight dimmer relay | 90987-T2005 |
| 85930G | ACC relay | 90987-02027 · 90987-T2005 |
| 85940 | Windshield wiper relay assembly | 85940-0R010 |
| 85948 | windshield wiper relay | 90987-T2005 |
| 8598A | door control battery | 8598A-0R030 |
| 86530 | Speaker relay assembly | 90987-T2005 |
| 87989 | Rearview mirror control relay | 90987-T4001 |
| 88162 | Blind spot monitor right sensor | 88162-42061 · 88162-42091 |
| 88172 | Blind spot monitor left sensor | 88162-42061 · 88162-42091 |
| 89050 | Parking brake ECU assembly | 89050-42030 |
| 89111 | Network gateway ECU | 89111-02120 · 89111-02121 · 89111-02130 · 89111-02131 · 89111-0E240 · 89111-0R160 · 89111-0R370 · 89111-0R371 · 89111-F4061 |
| 89120A | Automatic light control sensor | 89121-0E040 |
| 891B1 | starter door control bracket | 891B1-0R090 |
| 891B2 | starter door control sensor | 891B2-0R100 |
| 89221 | Multi-channel network body ECU | 89220-0R200 · 89220-0R860 · 89220-0R880 · 89220-0R890 · 89220-0RA00 · 89220-0RA01 · 89220-0RM00 · 89220-0RM01 · 89220-0RM10 · 89220-0RM11 · 89221-0R590 · 89221-0R600 |
| 89222A | Multi-channel network door ECU | 89222-0R090 · 89222-0R140 · 89222-0R200 |
| 89245B | steering sensor | 8924B-02060 · 8924B-07010 |
| 89413A | Transmission speed sensor | 89413-12010 |
| 89419B | gear shift sensor | 89419-0E010 · 89419-0R010 · 89419-12011 · 89419-K2010 |
| 89422A | water temperature sensor | 89422-33040 |
| 89422N | No. 2 water temperature sensor | 89422-33040 |
| 89425 | Exhaust gas temperature sensor | 89425-0E030 |
| 89425A | No. 2 exhaust gas temperature sensor | 89425-0E040 · 89425-0R010 |
| 89429F | temperature sensor | 89429-53010 |
| 89451A | shift lever position sensor | 89451-10010 |
| 89461 | steam pressure sensor | 89461-48020 |
| 89467B | air fuel ratio sensor | 89467-0R110 · 89467-0R160 · 89467-0R190 · 89467-F4010 |
| 89467C | No. 2 air-fuel ratio sensor | 89467-0R120 · 89467-0R170 |
| 8946A | Exhaust sensor clip bracket | 8946A-0E030 |
| 89481B | Differential pressure sensor | 89481-0E010 · 89481-48010 · 89481-K0010 |
| 89491 | Engine oil level sensor | 89491-06010 · 89491-06011 · 89491-33051 · 89491-33052 |
| 89535B | Transmission control ECU | 89535-0R010 · 89535-0R020 · 89535-42050 · 89535-42170 |
| 89539M | No. 1 transmission control ECU bracket | 89539-0R010 · 89539-42080 |
| 89539N | No. 2 transmission control ECU bracket | 89539-0R020 · 89539-42090 |
| 89561F | Electronic fuel injection No. 1 main relay | 90987-02027 · 90987-T2005 |
| 89561G | Electronic fuel injection No. 2 main relay | 90987-02027 · 90987-T2005 |
| 89561H | Electronic fuel injection No. 3 main relay | 90987-02025 · 90987-T2004 |
| 89611 | One-button start switch | 89611-02152 · 89611-0E220 · 89611-0R012 · 89611-0R060 · 89611-0R080 · 89611-0R090 |
| 89615 | knock control sensor | 89615-0E010 · 89615-20090 |
| 89730A | Relay (for safety warnings) | 90987-02027 · 90987-T2005 |
| 89747E | Electric back door warning buzzer | 89747-30040 |
| 89747F | Blind spot monitor buzzer | 89747-52010 |
| 89870E | Electronic drive unit relay | 90987-02027 · 90987-T2005 |
| G9020E | Hybrid water pump relay | 90987-02027 · 90987-T2005 |
