Toyota RAV4 仪表 — Figure 8301

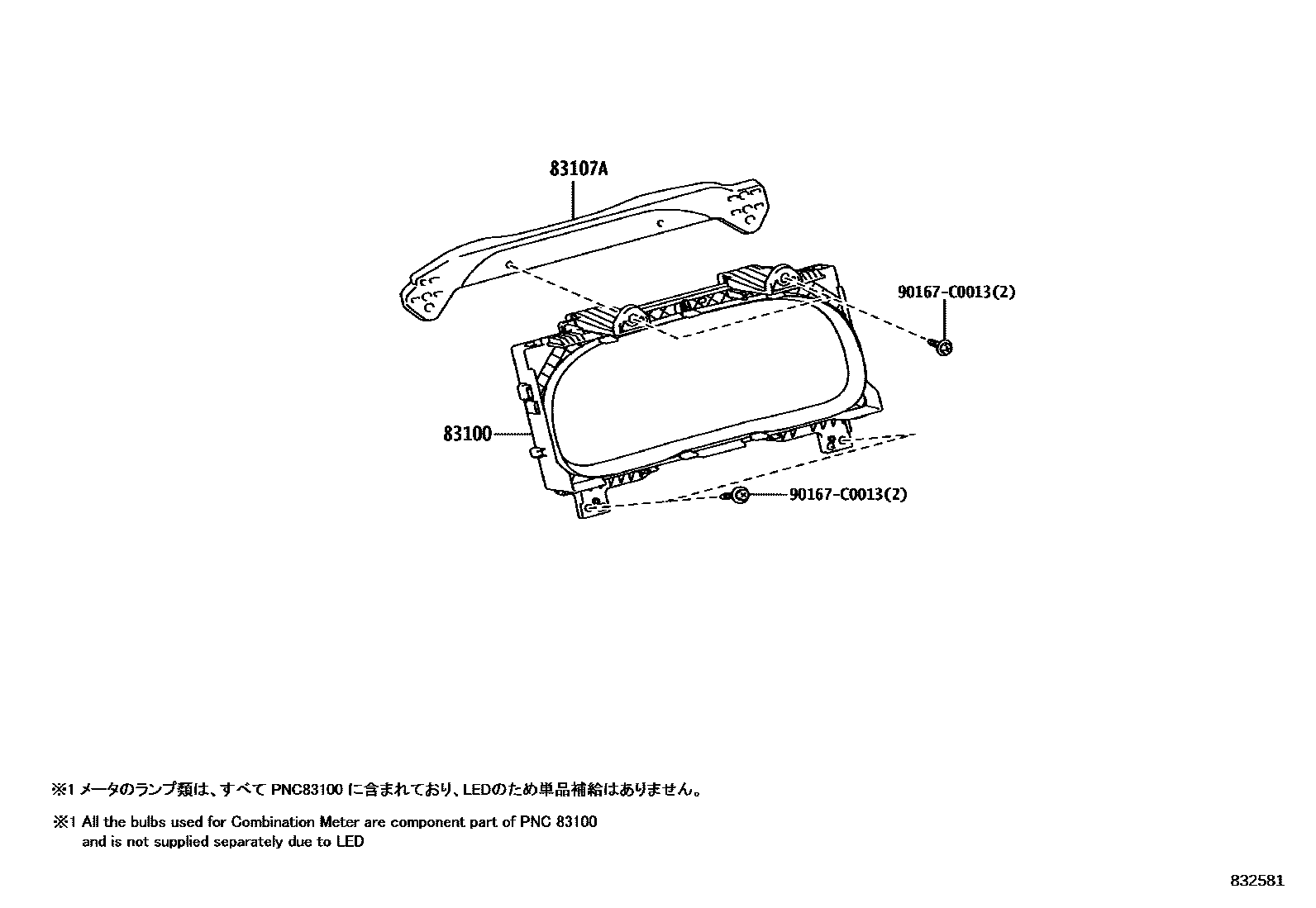

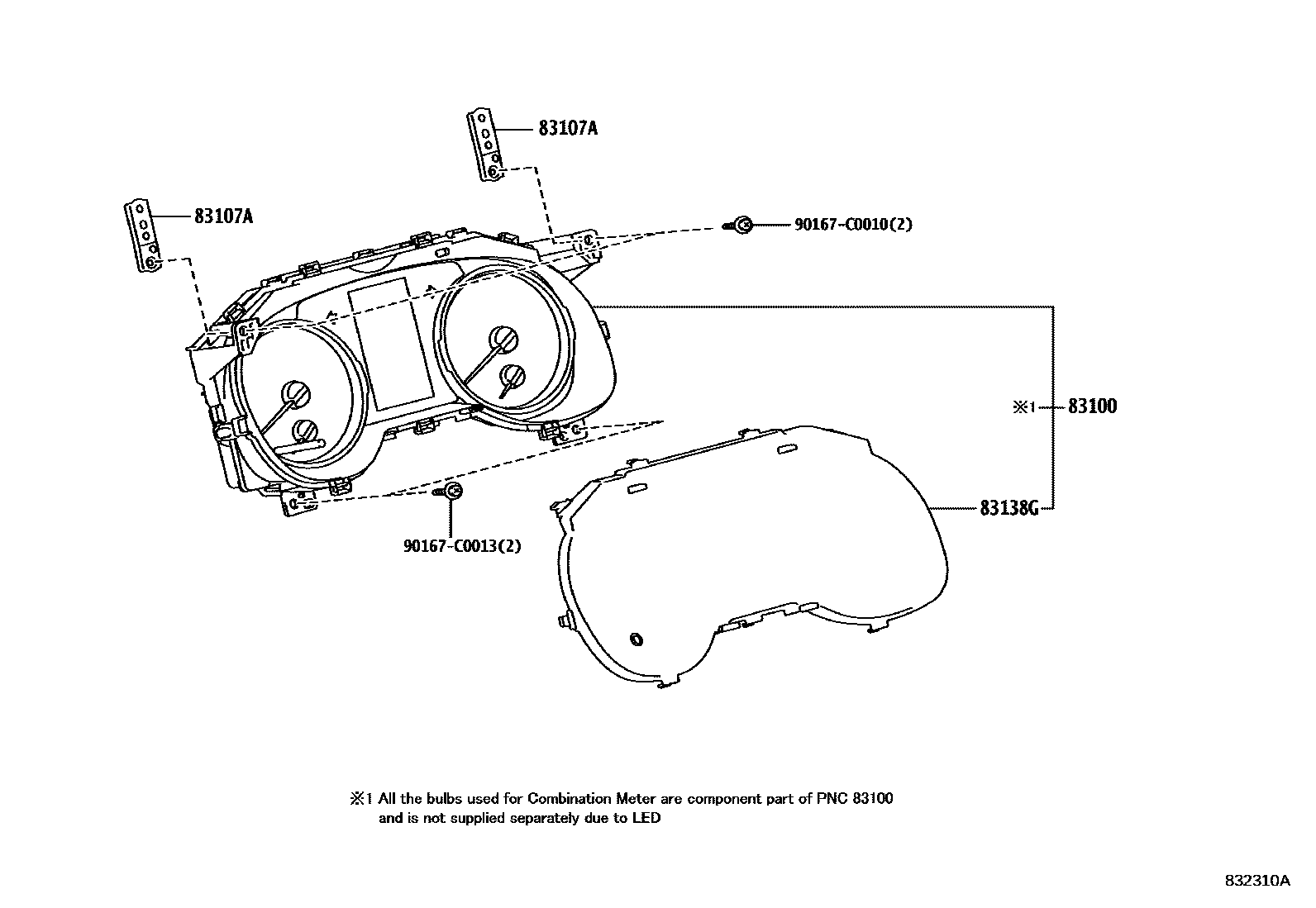

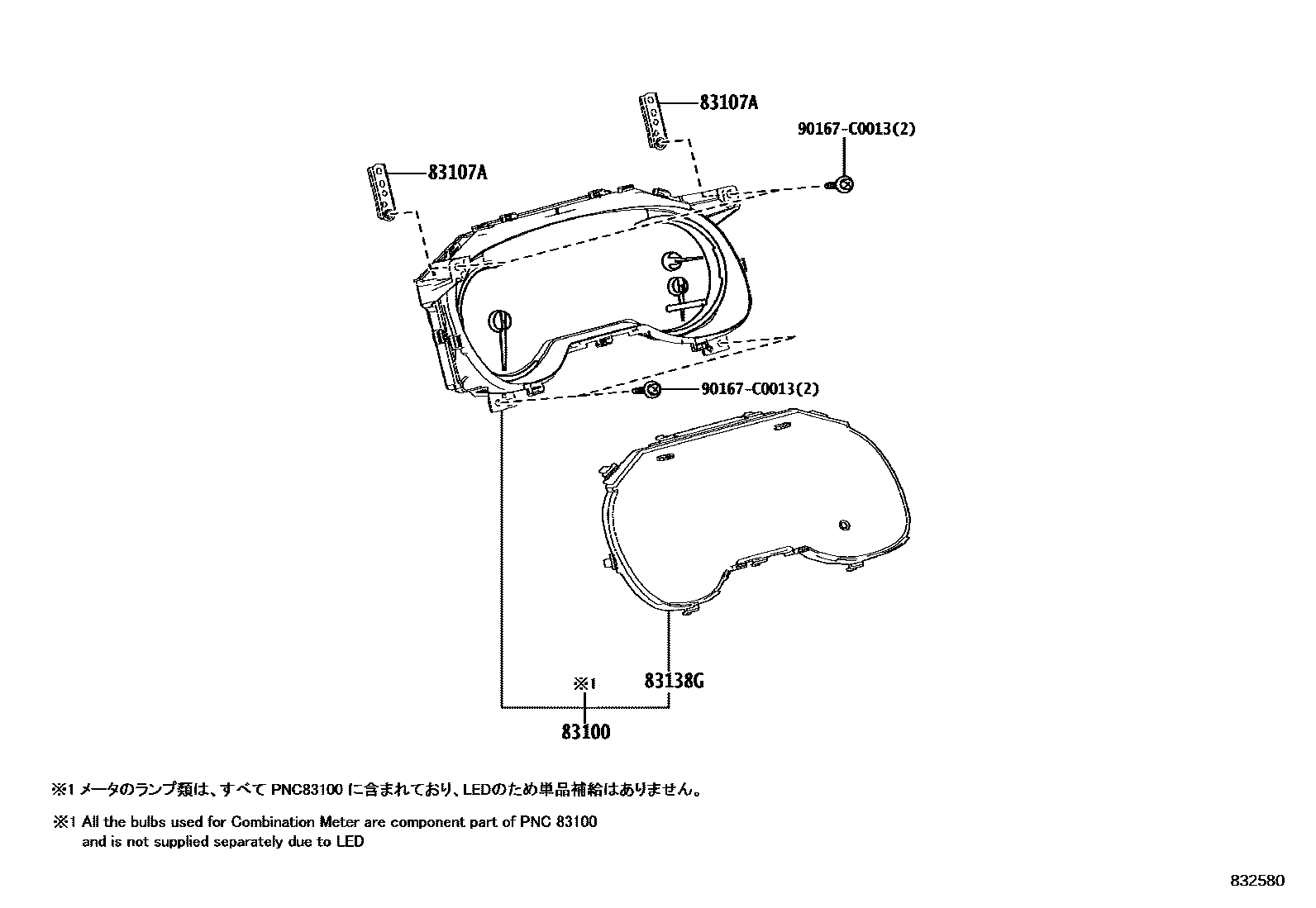

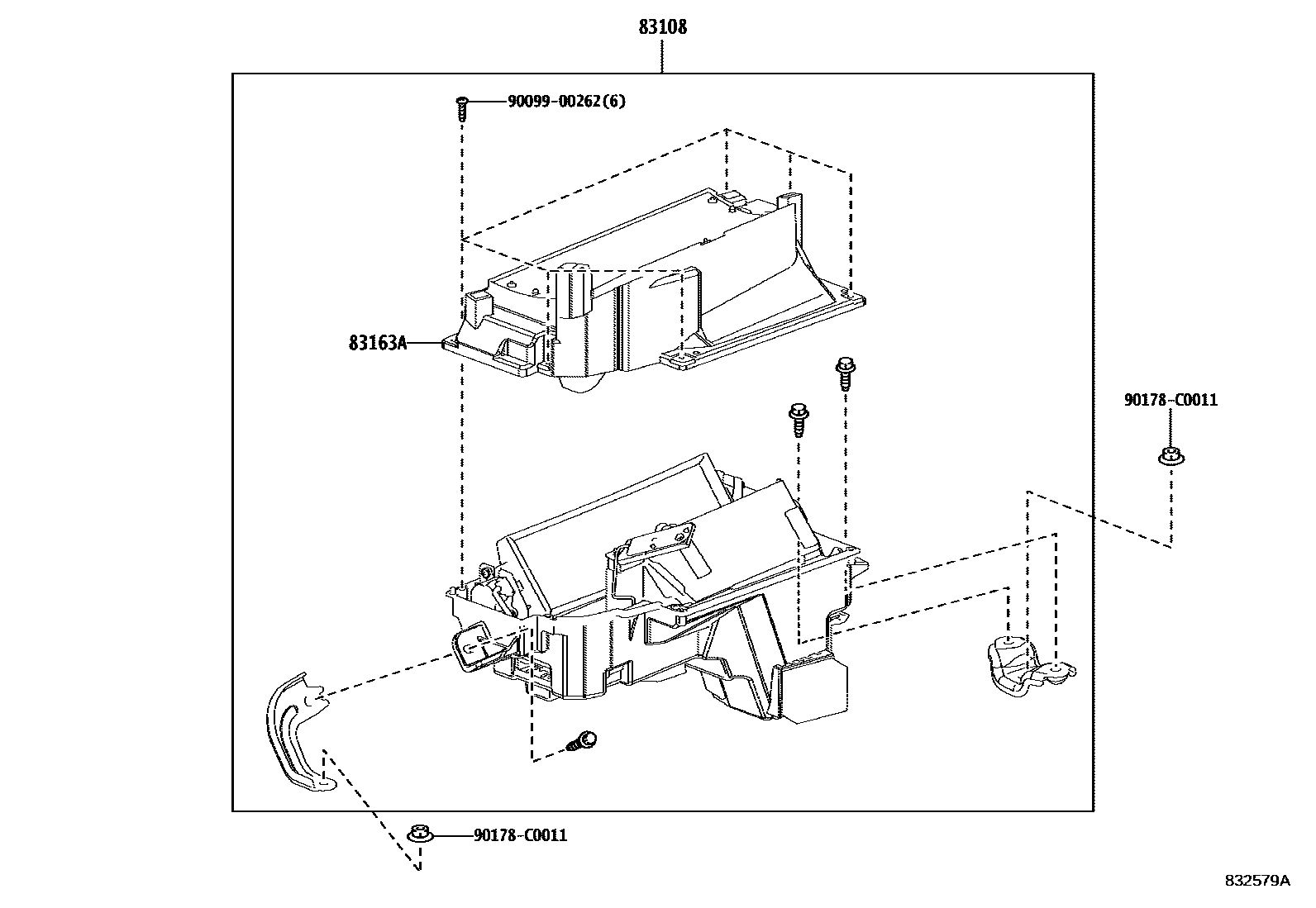

Toyota RAV4 EPC diagram 8301, 仪表, with 4 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100 | Combined instrument assembly | 83800-0R560 · 83800-0R570 · 83800-0R590 · 83800-0RB60 · 83800-0RB70 · 83800-0RB80 · 83800-0RD40 · 83800-0RD41 · 83800-0RD50 · 83800-0RD51 · 83800-0RD70 · 83800-0RD71 · 83800-0RD72 · 83800-0RD73 · 83800-0RD80 · 83800-0RD81 · 83800-0RD82 · 83800-0RD83 · 83800-0RJ60 · 83800-0RJ70 · 83800-0RJ80 · 83800-0RJ81 · 83800-0RJ90 · 83800-0RJ91 |
| 83107A | No. 1 instrument bracket sub-assembly | 83107-0R020 · 83107-0R030 |
| 83108 | Instrument rearview mirror sub-assembly | 83108-0R050 · 83108-0R051 · 83108-0R052 · 83108-0R090 |
| 83138G | Instrument cluster glass | 83852-0R560 · 83852-0R570 |
| 83163A | Combined instrument mirror panel | 83163-0R070 |
