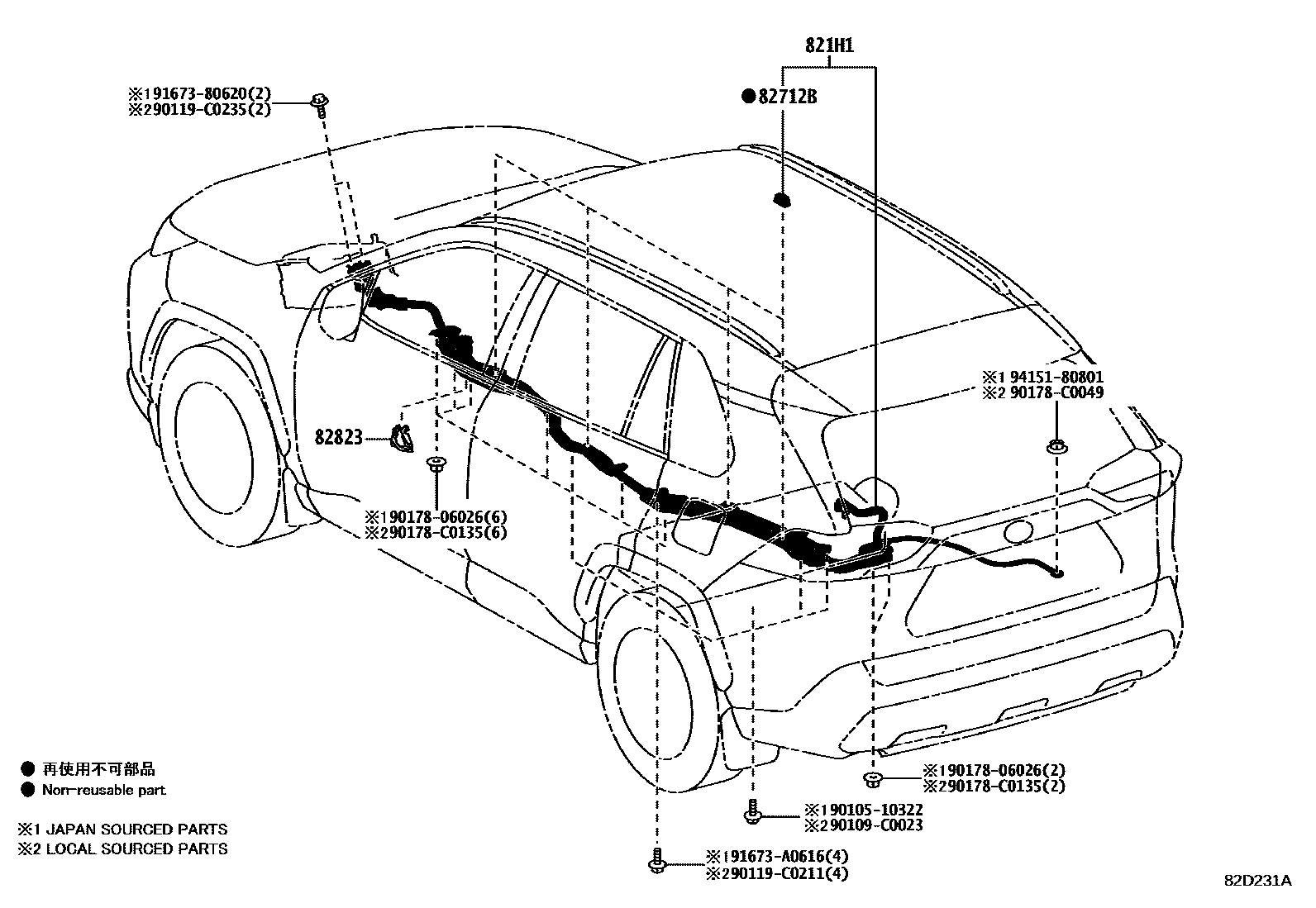

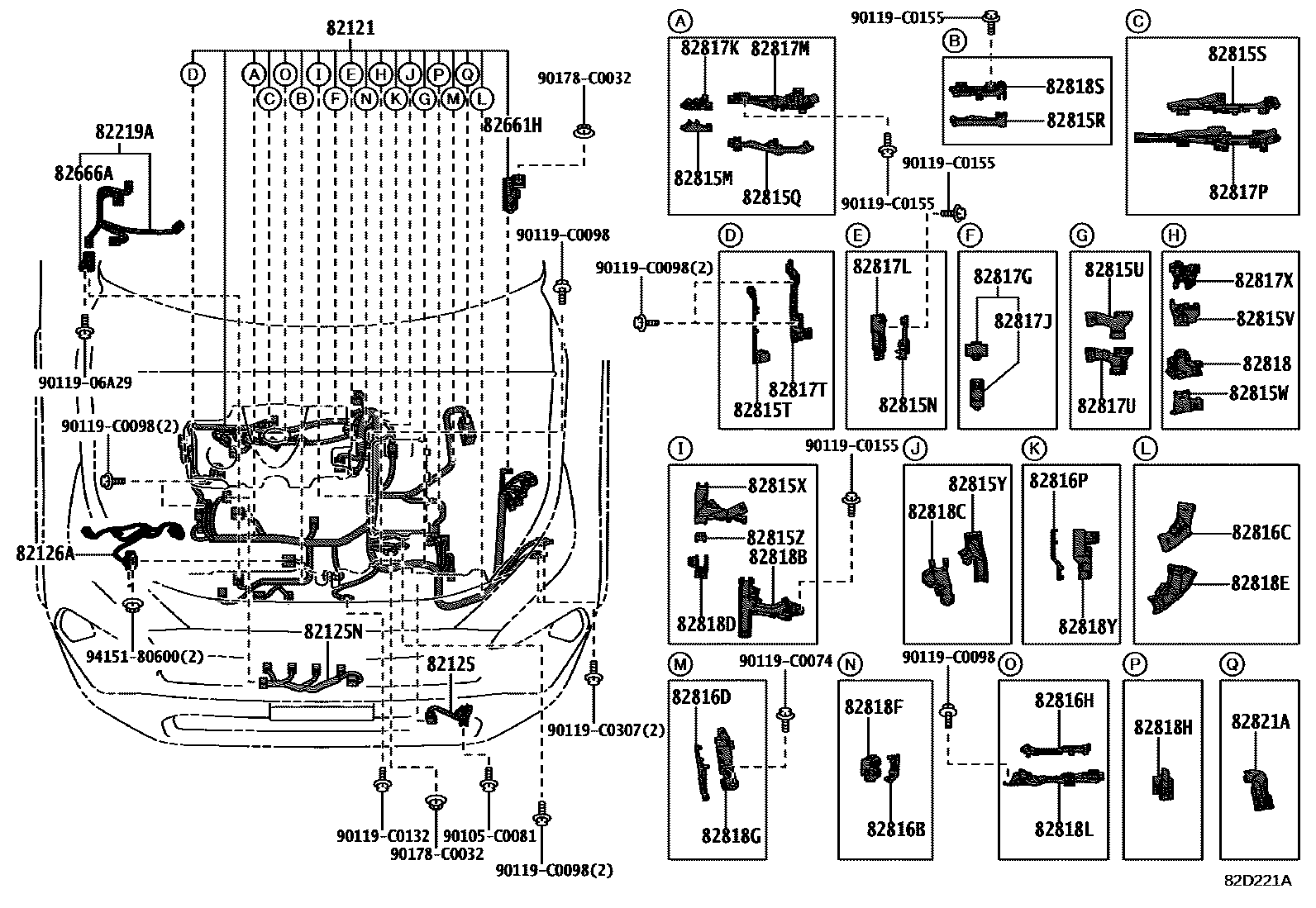

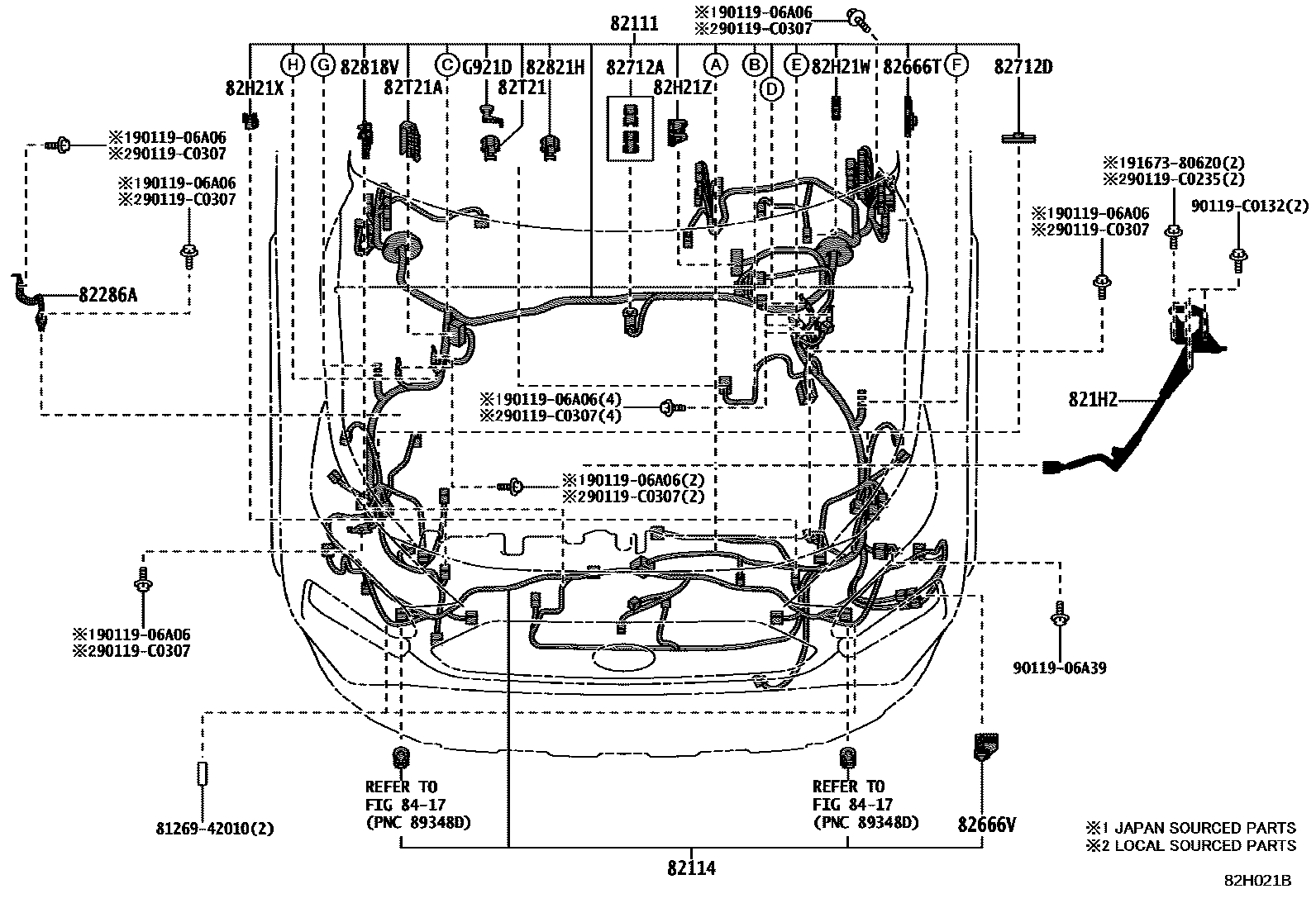

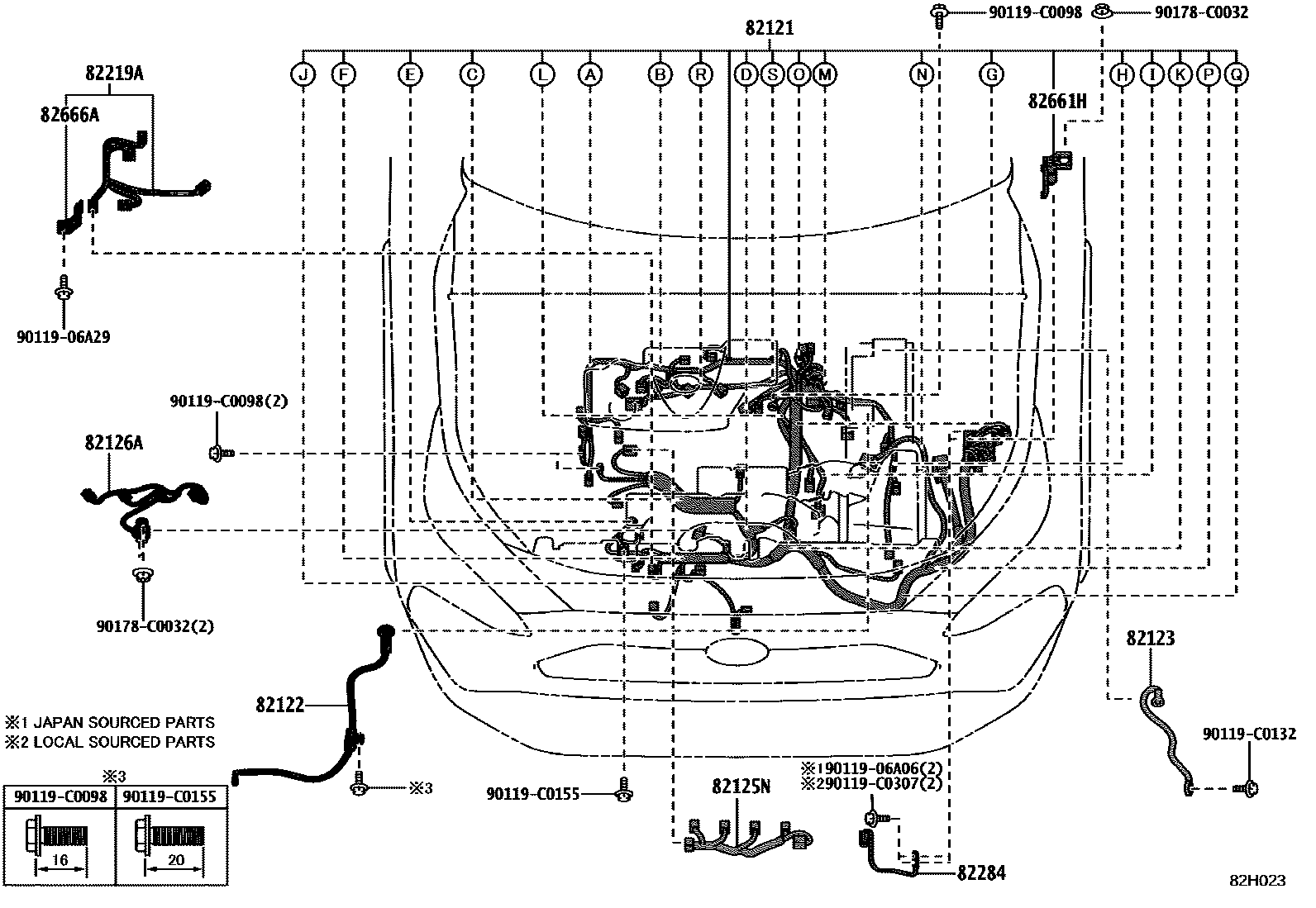

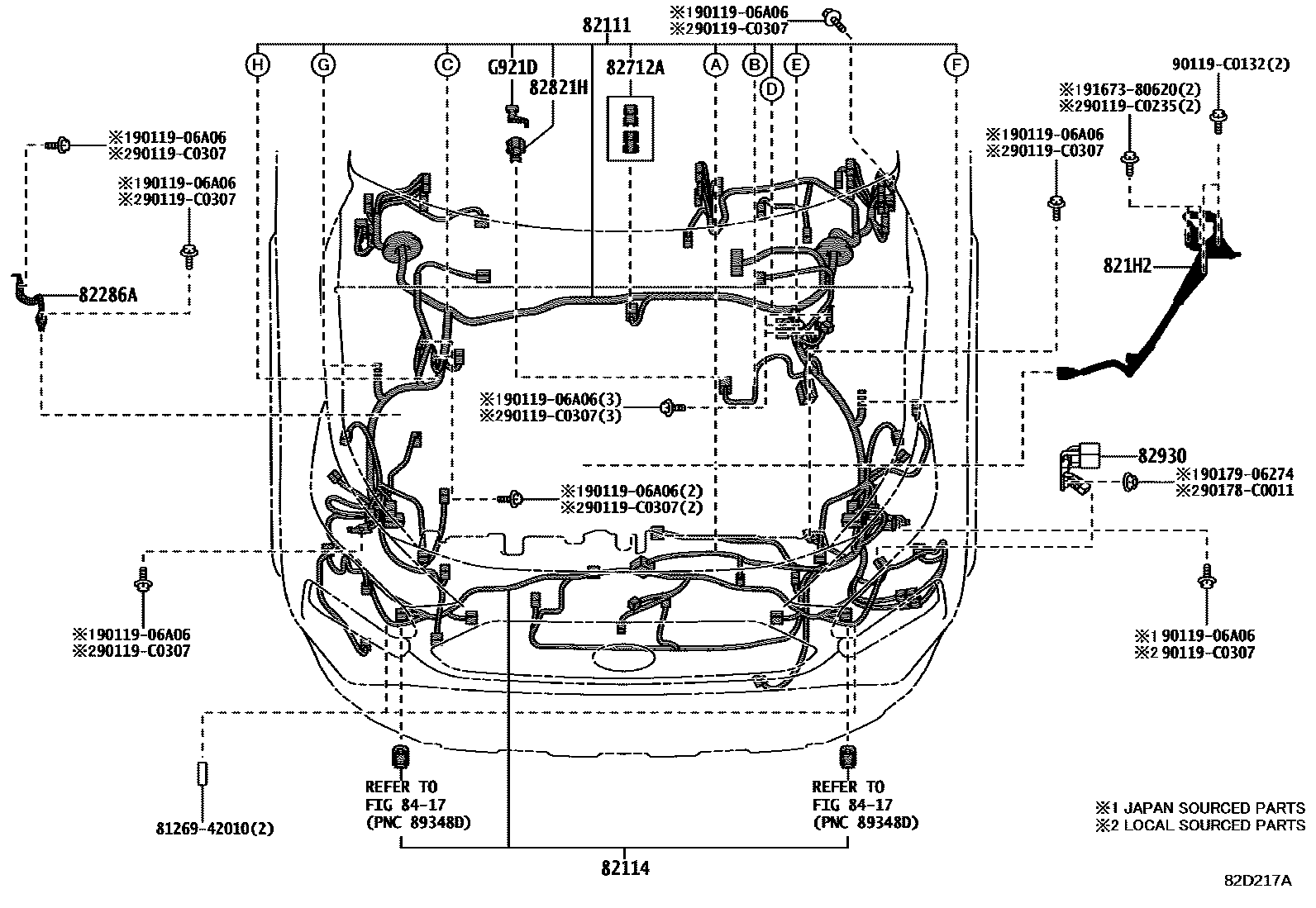

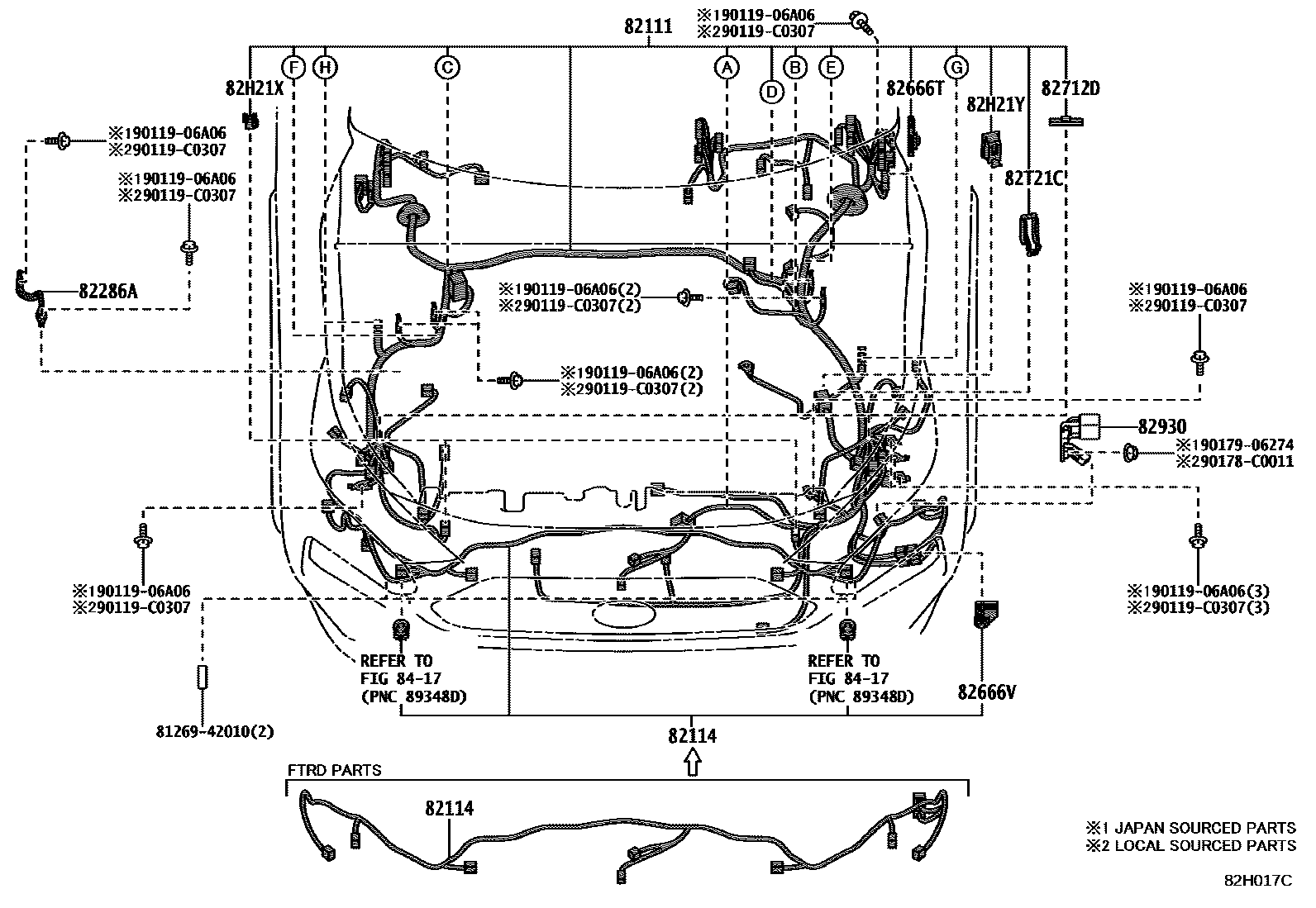

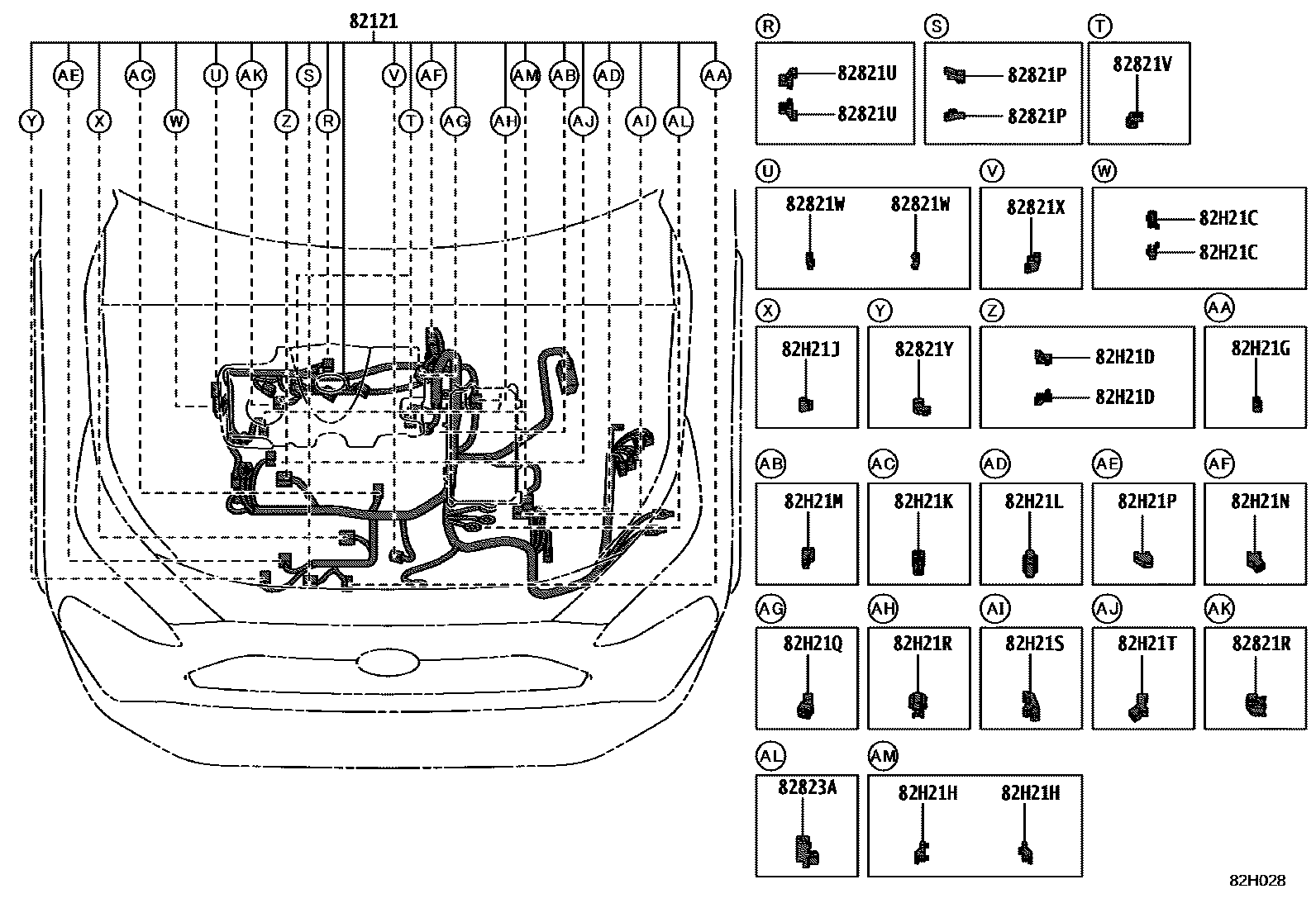

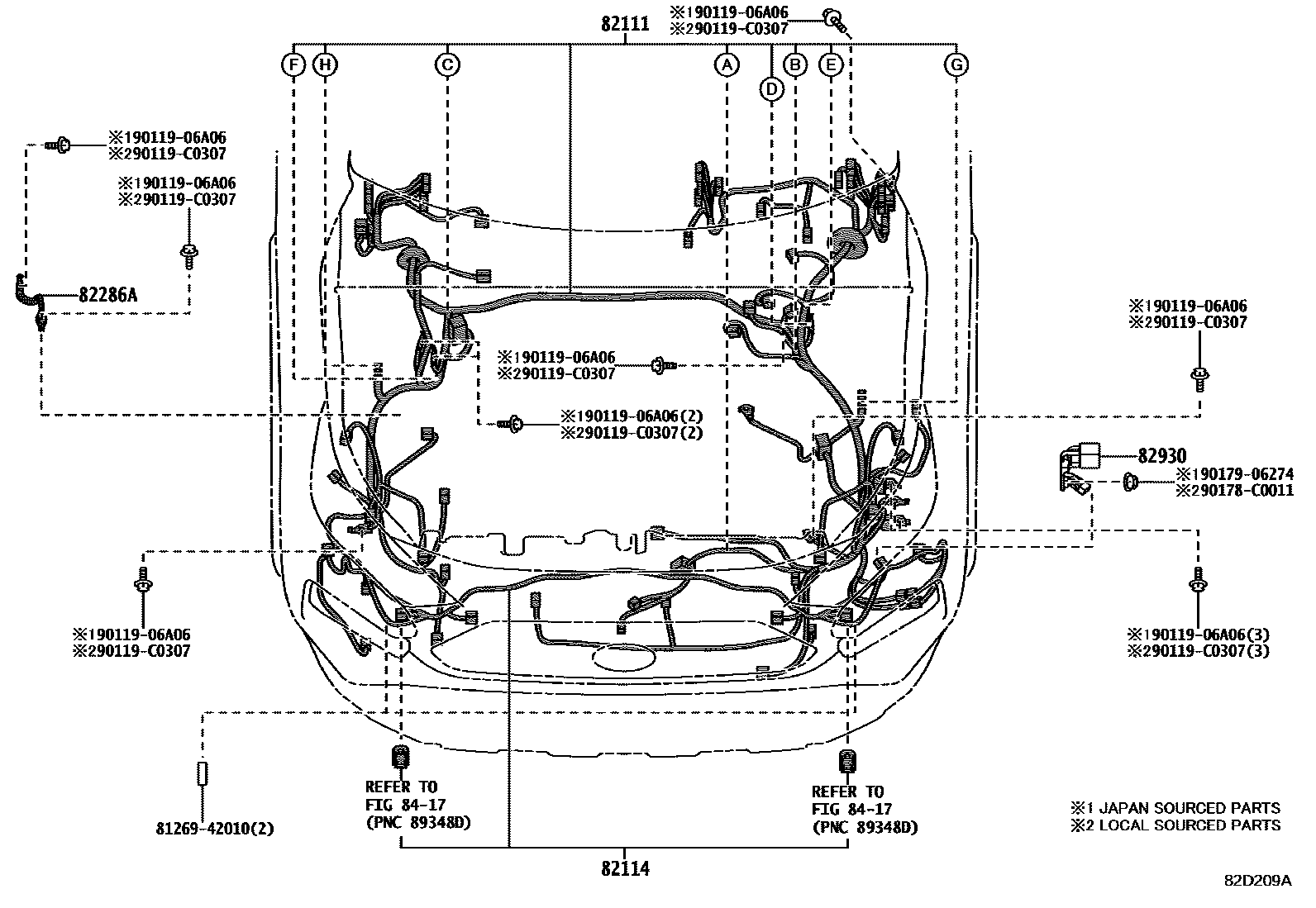

Toyota RAV4 线束和卡夹 — Figure 8202

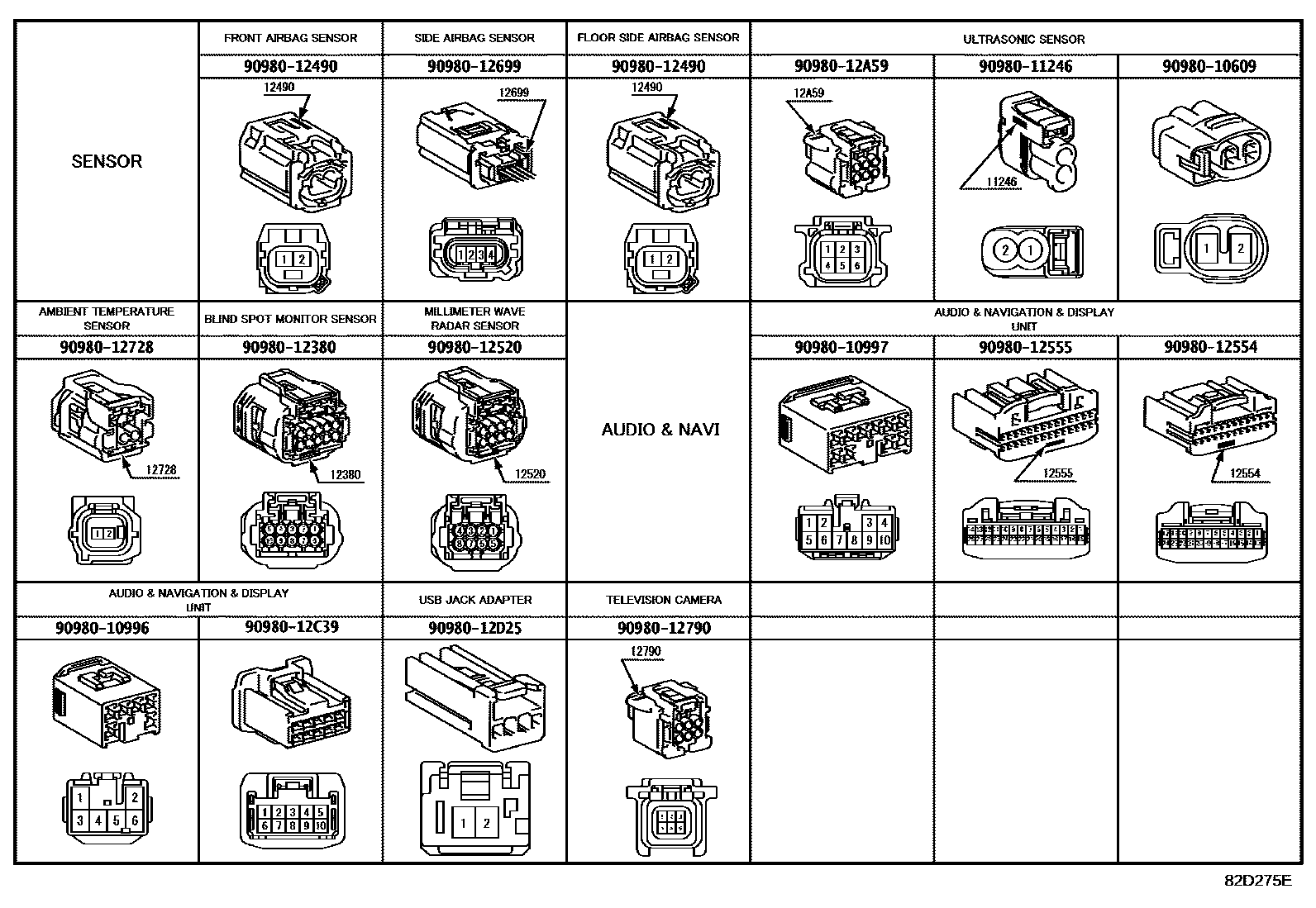

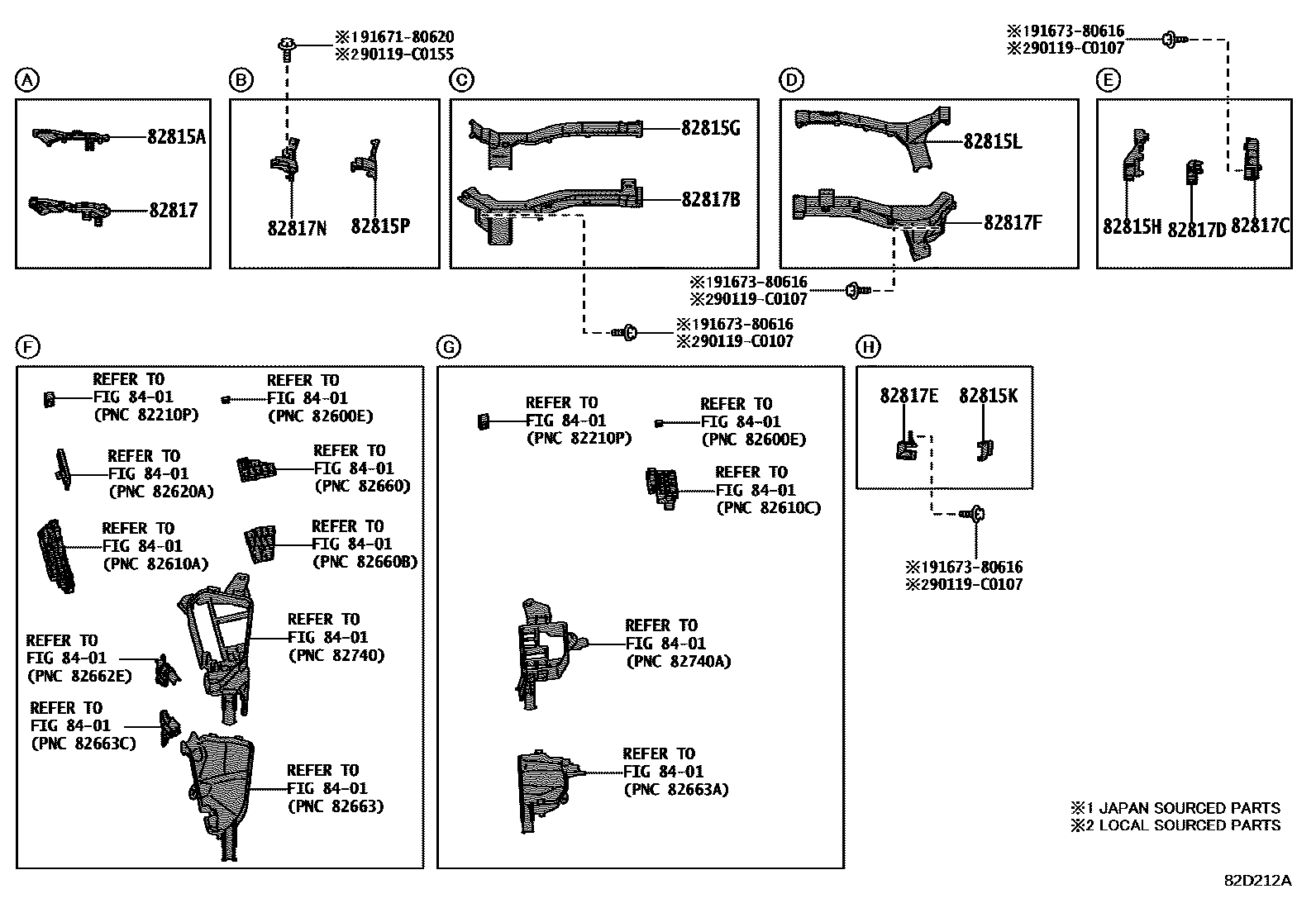

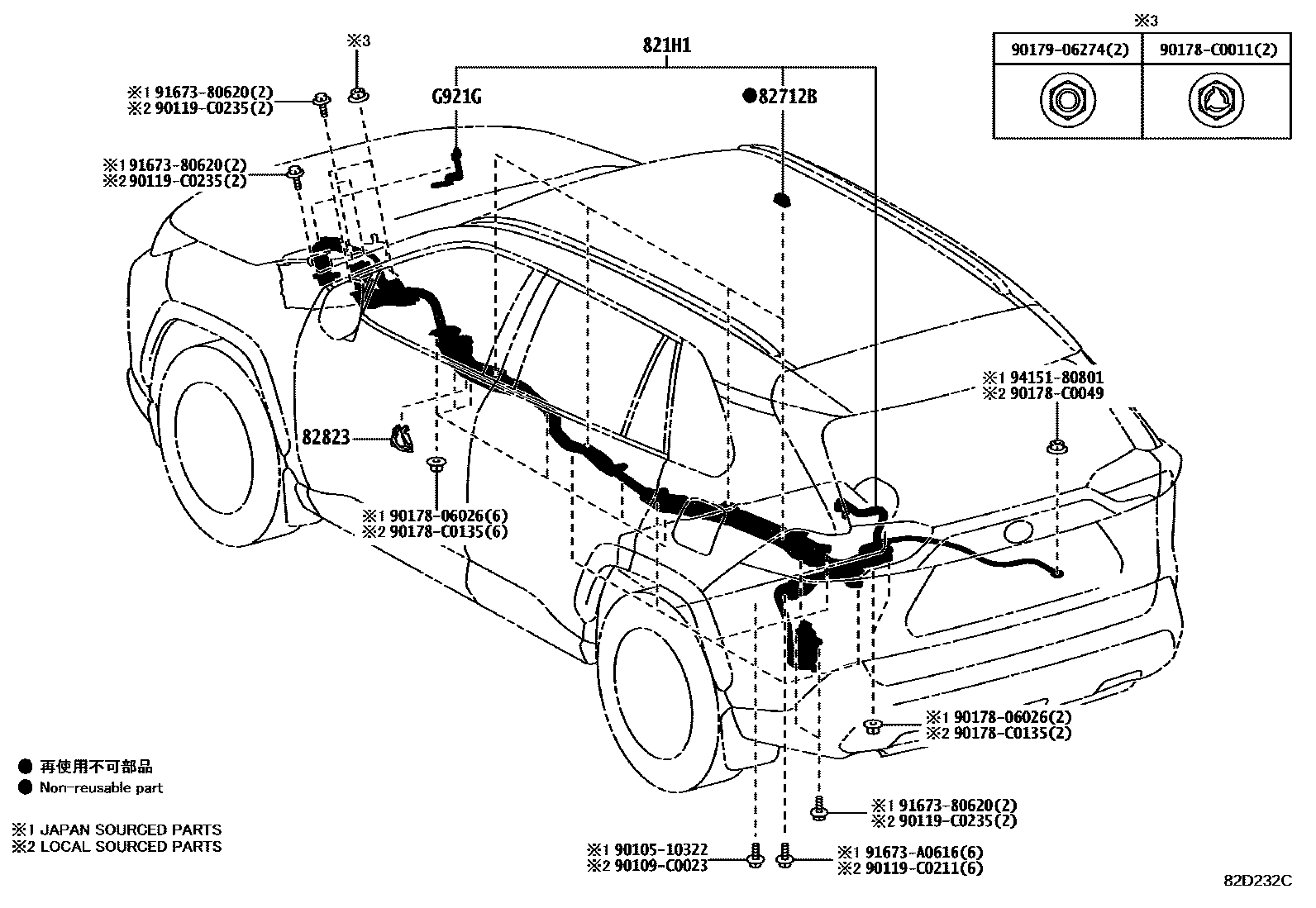

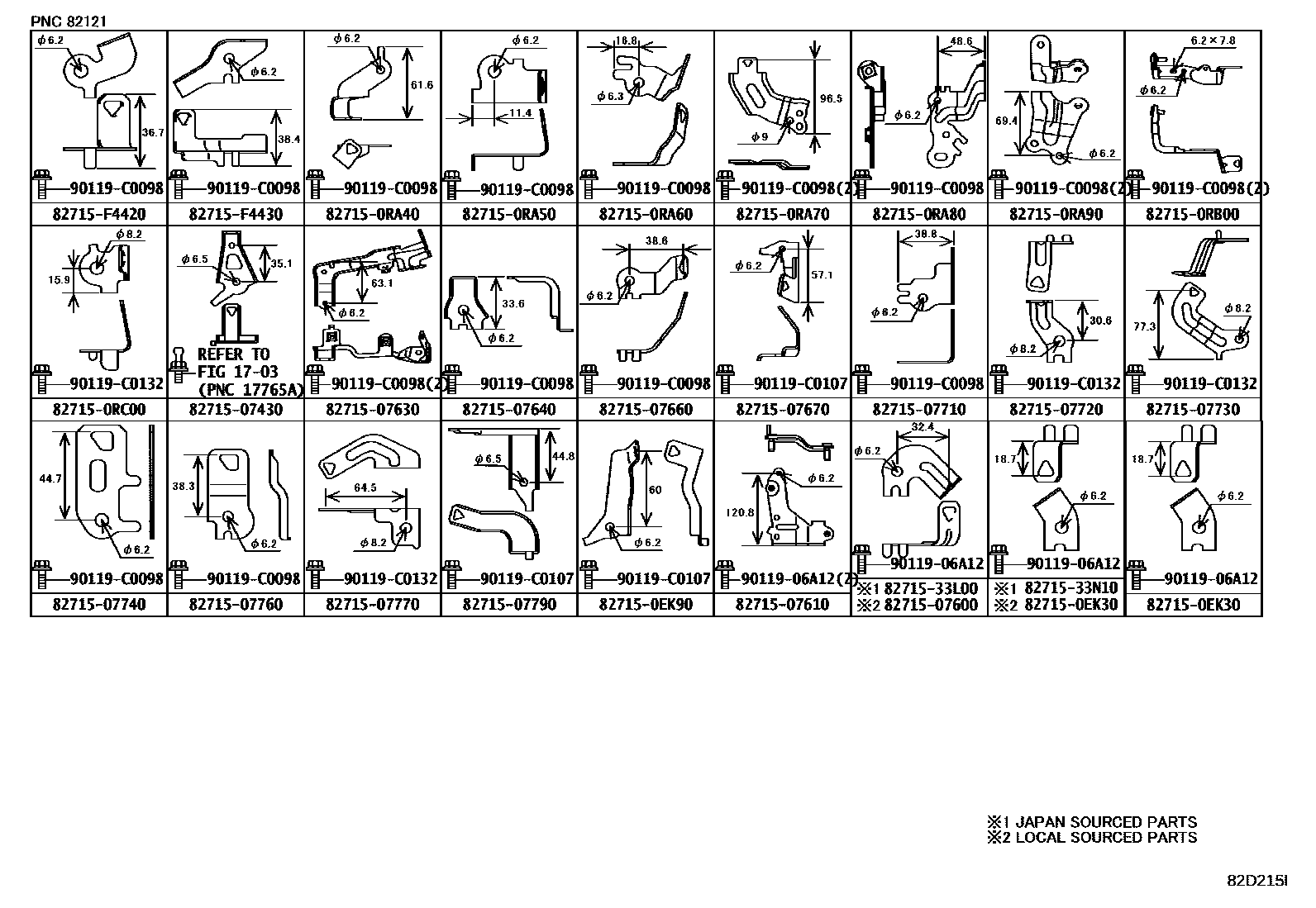

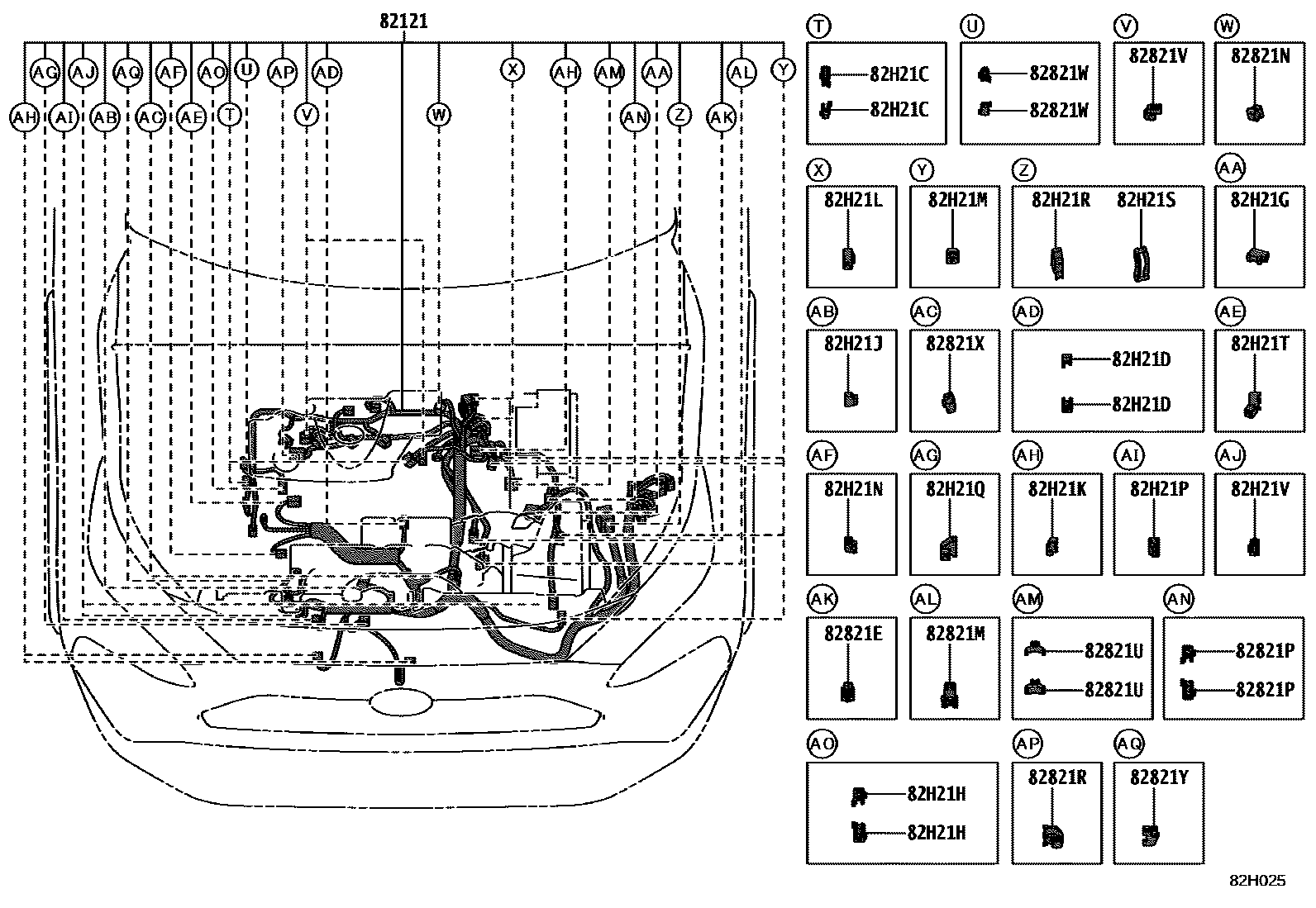

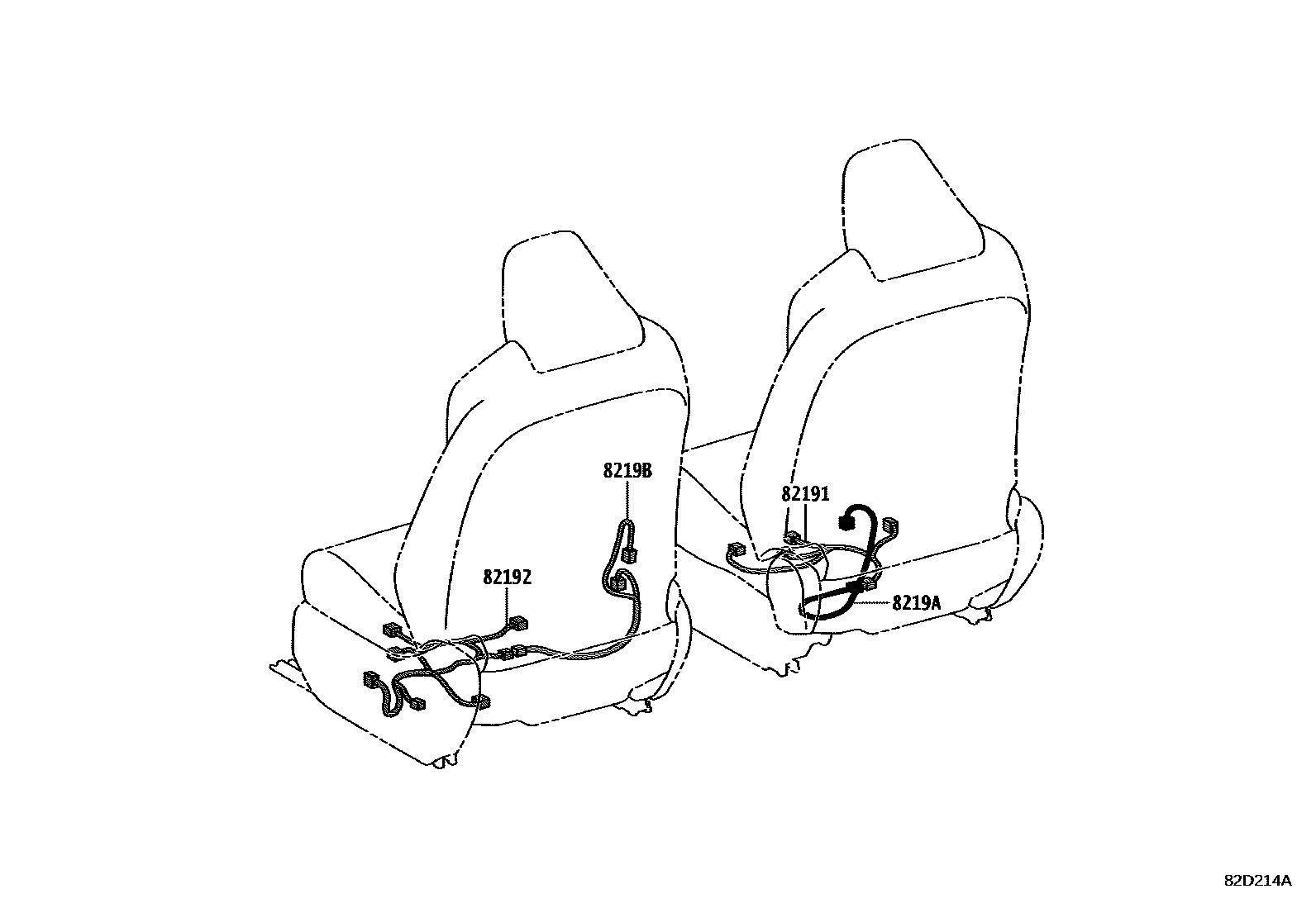

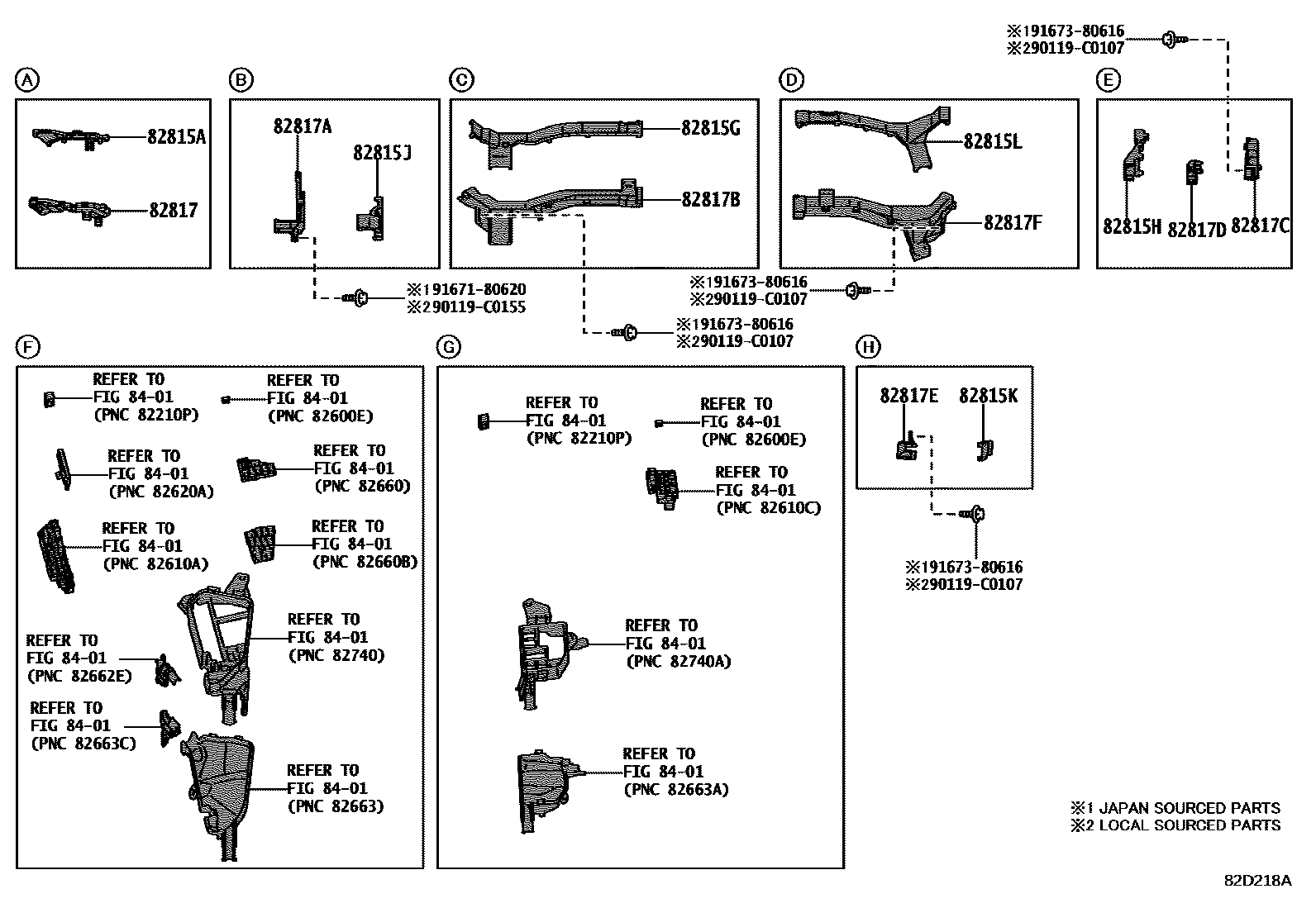

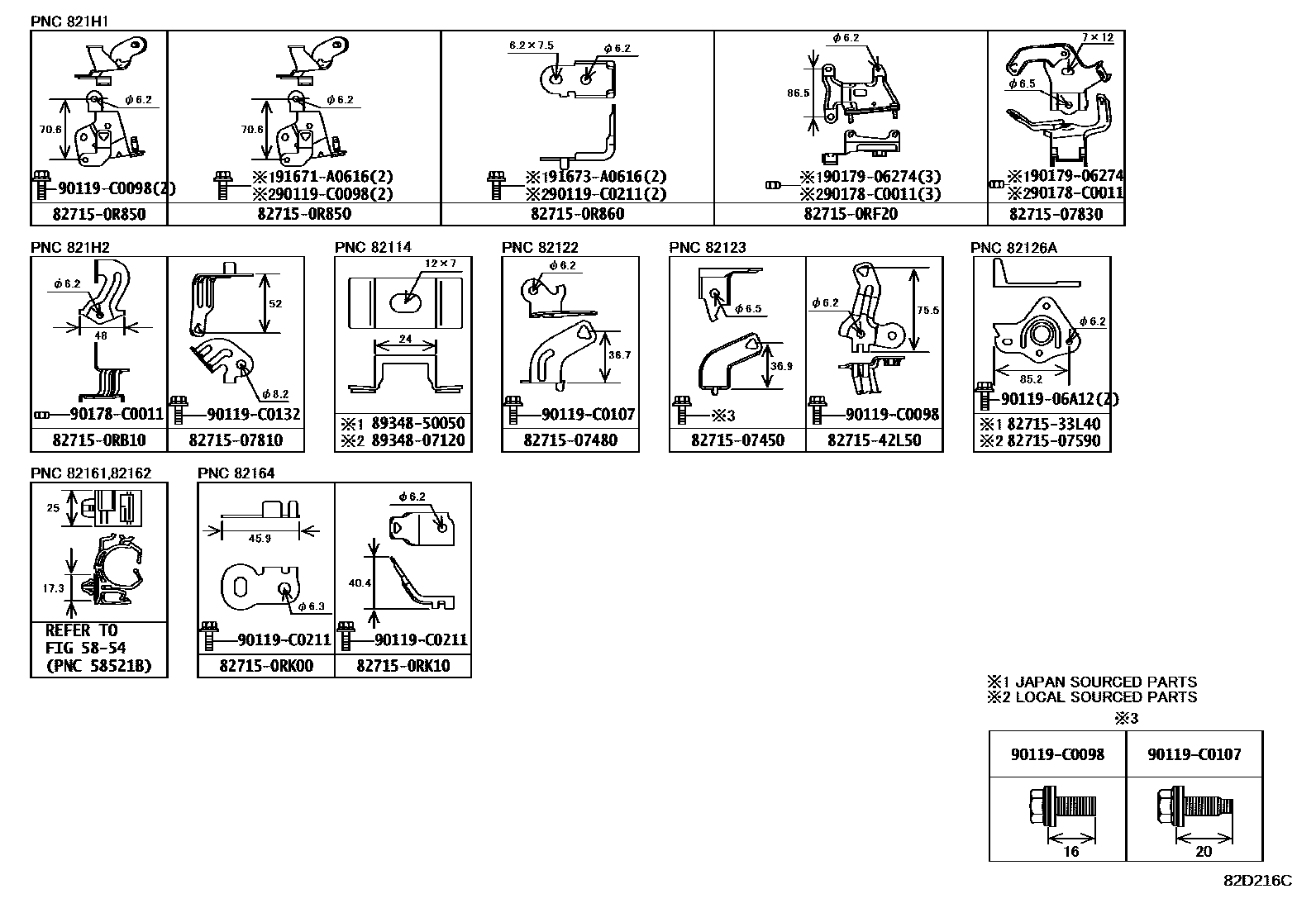

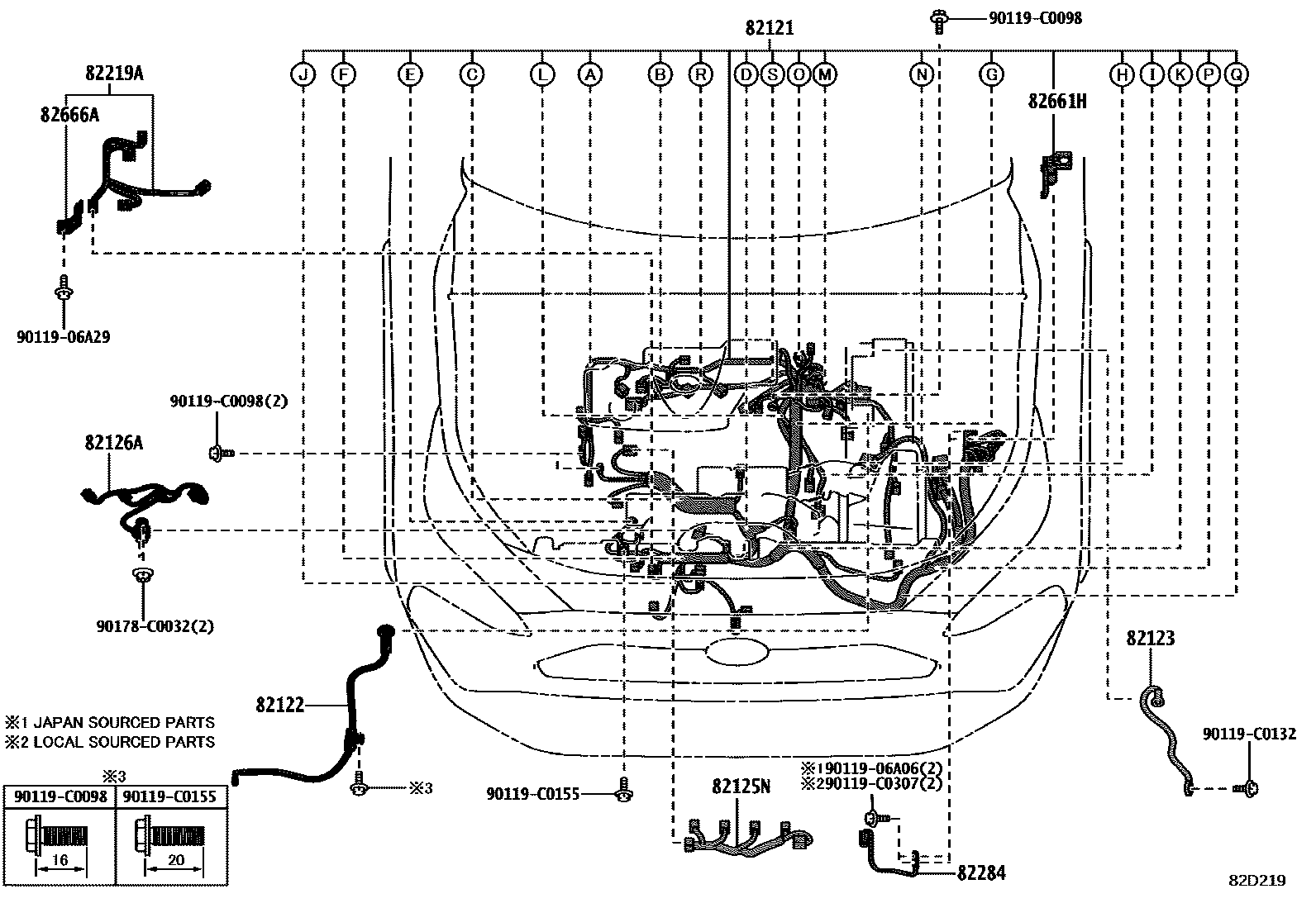

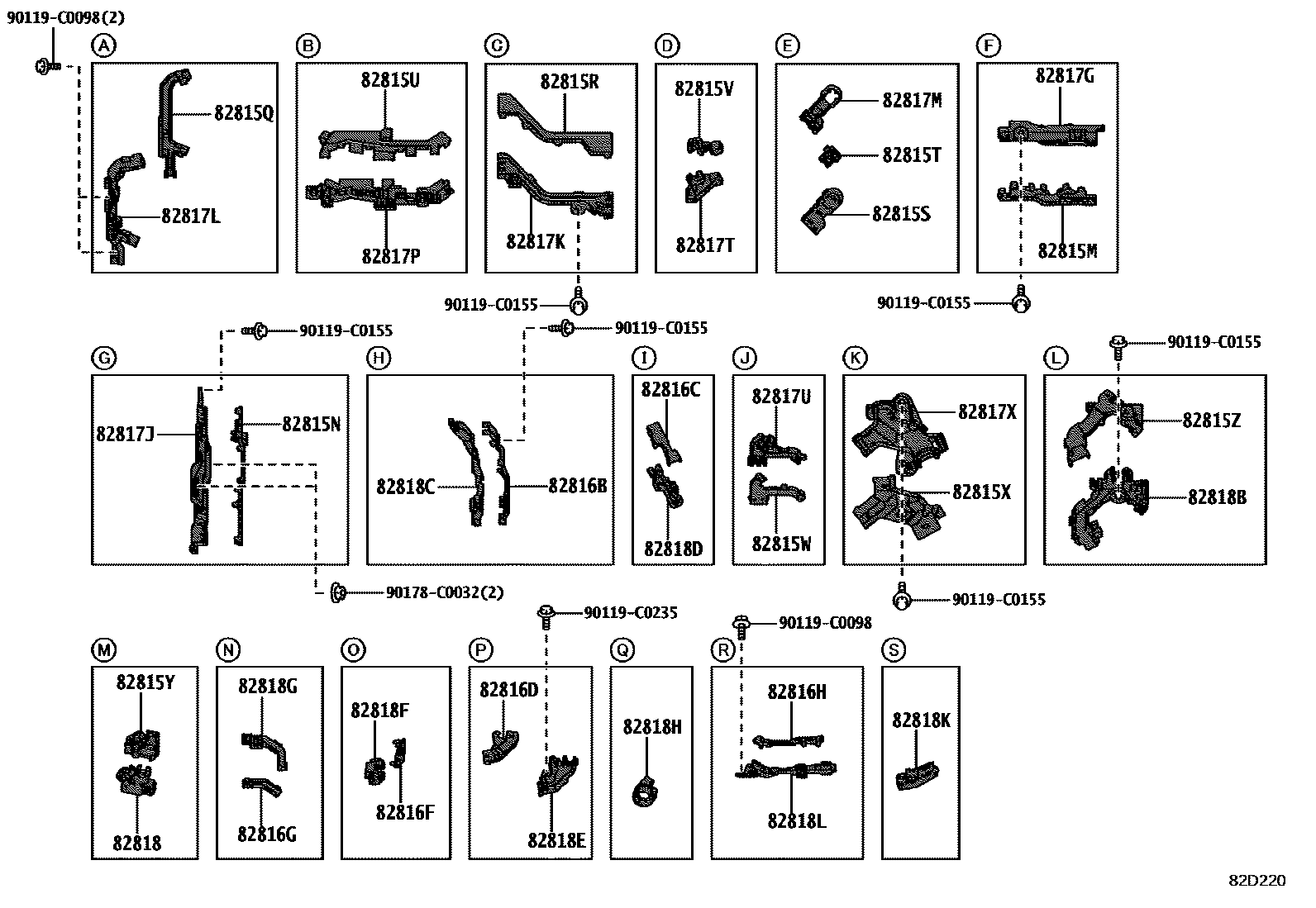

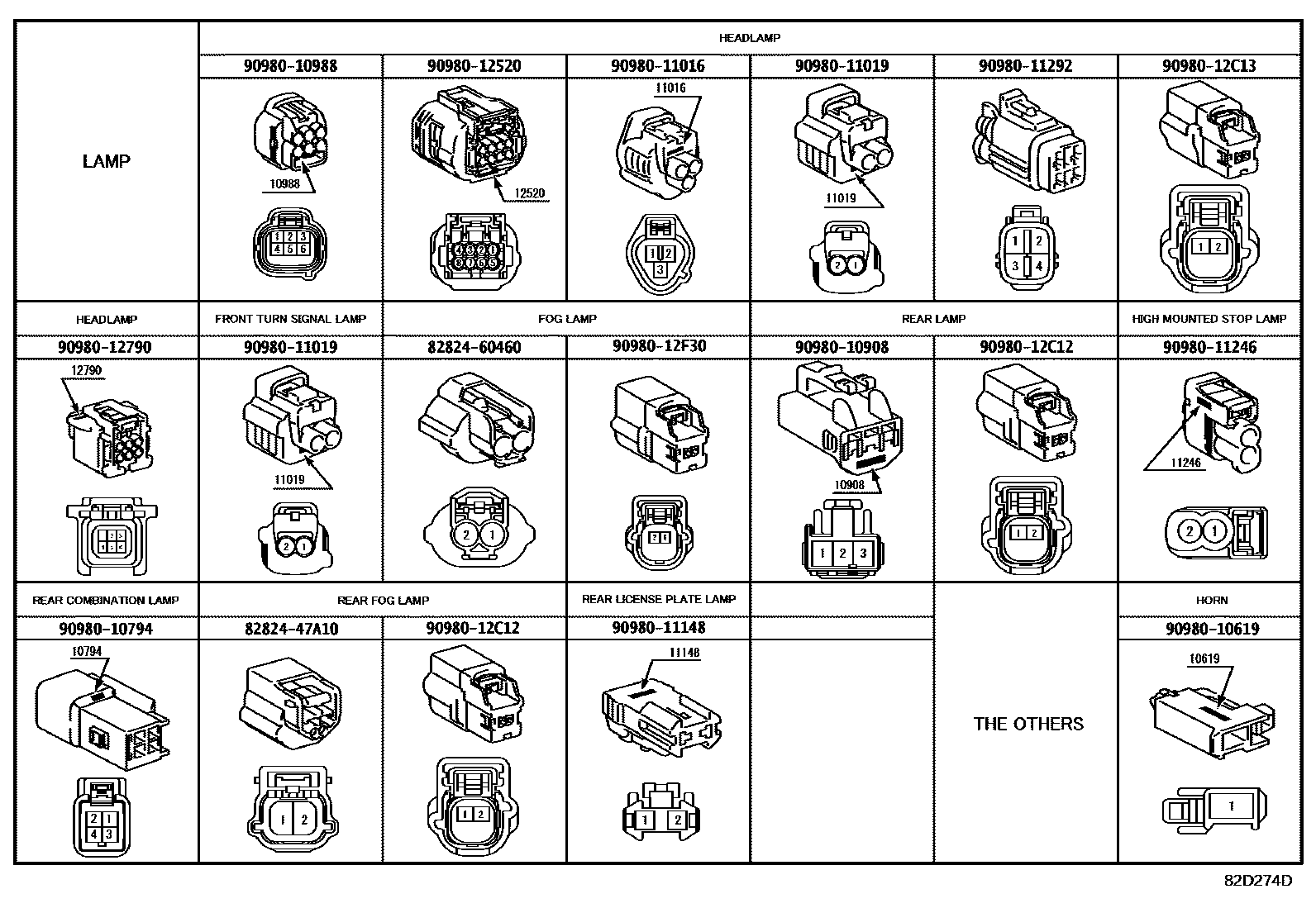

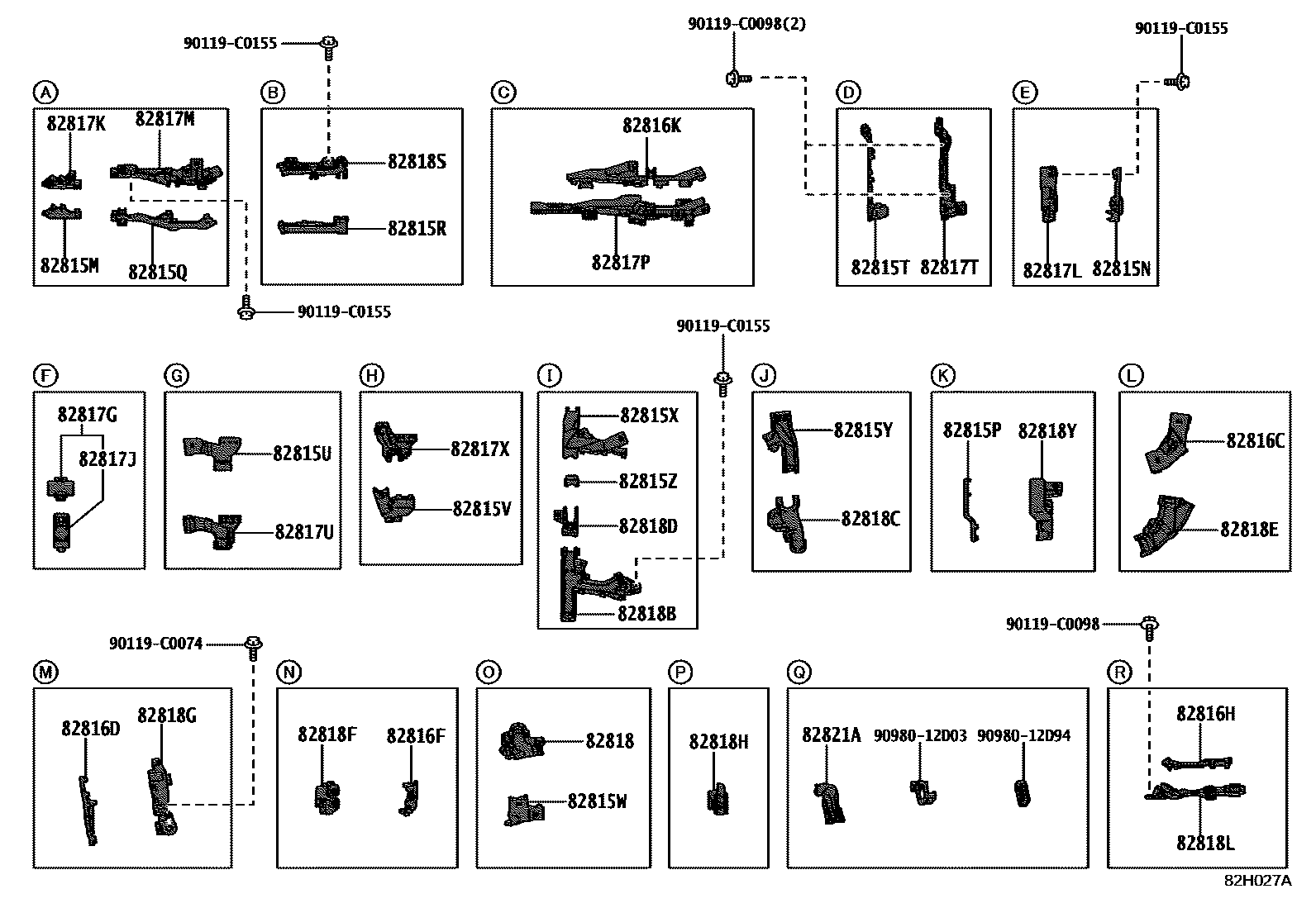

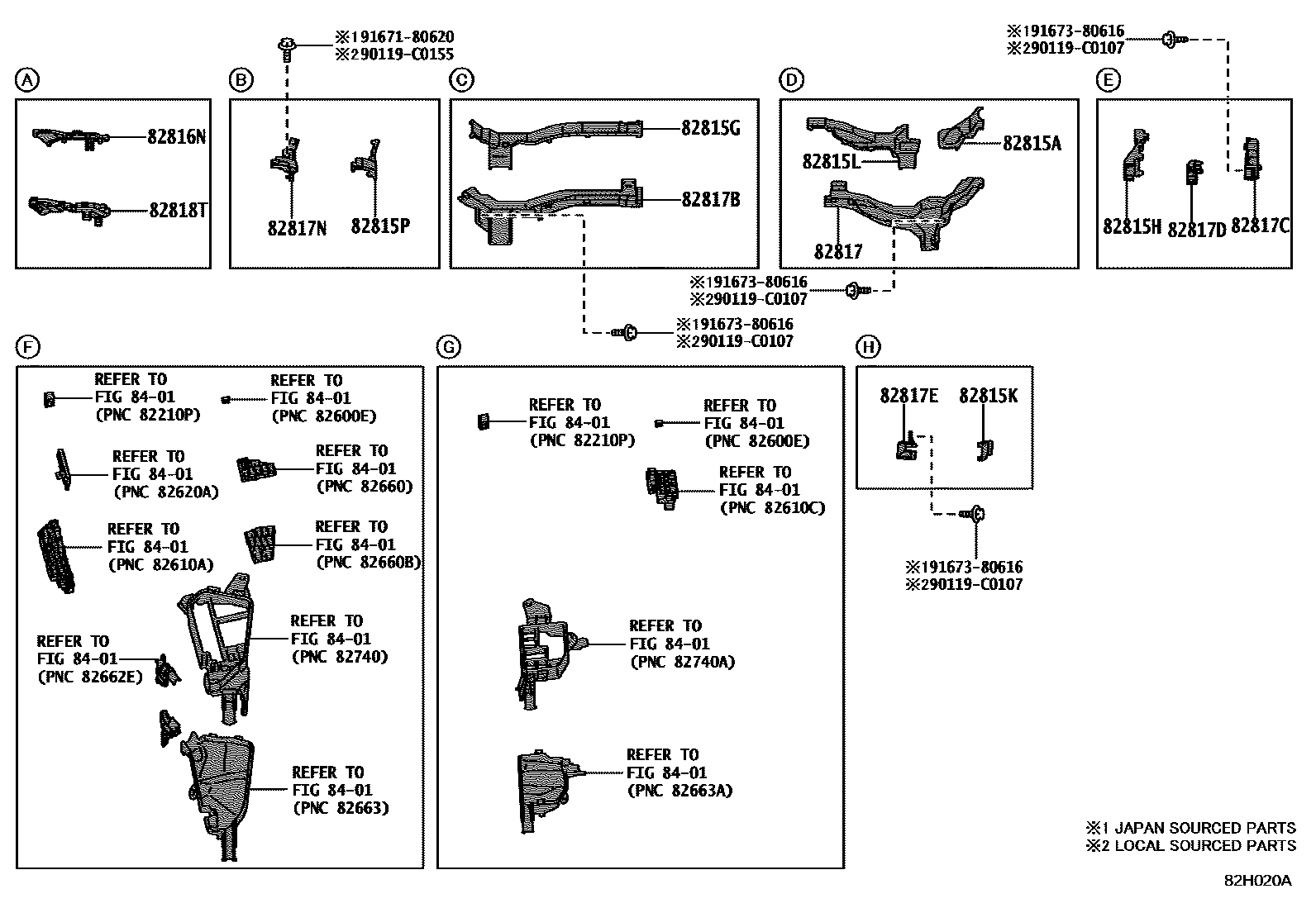

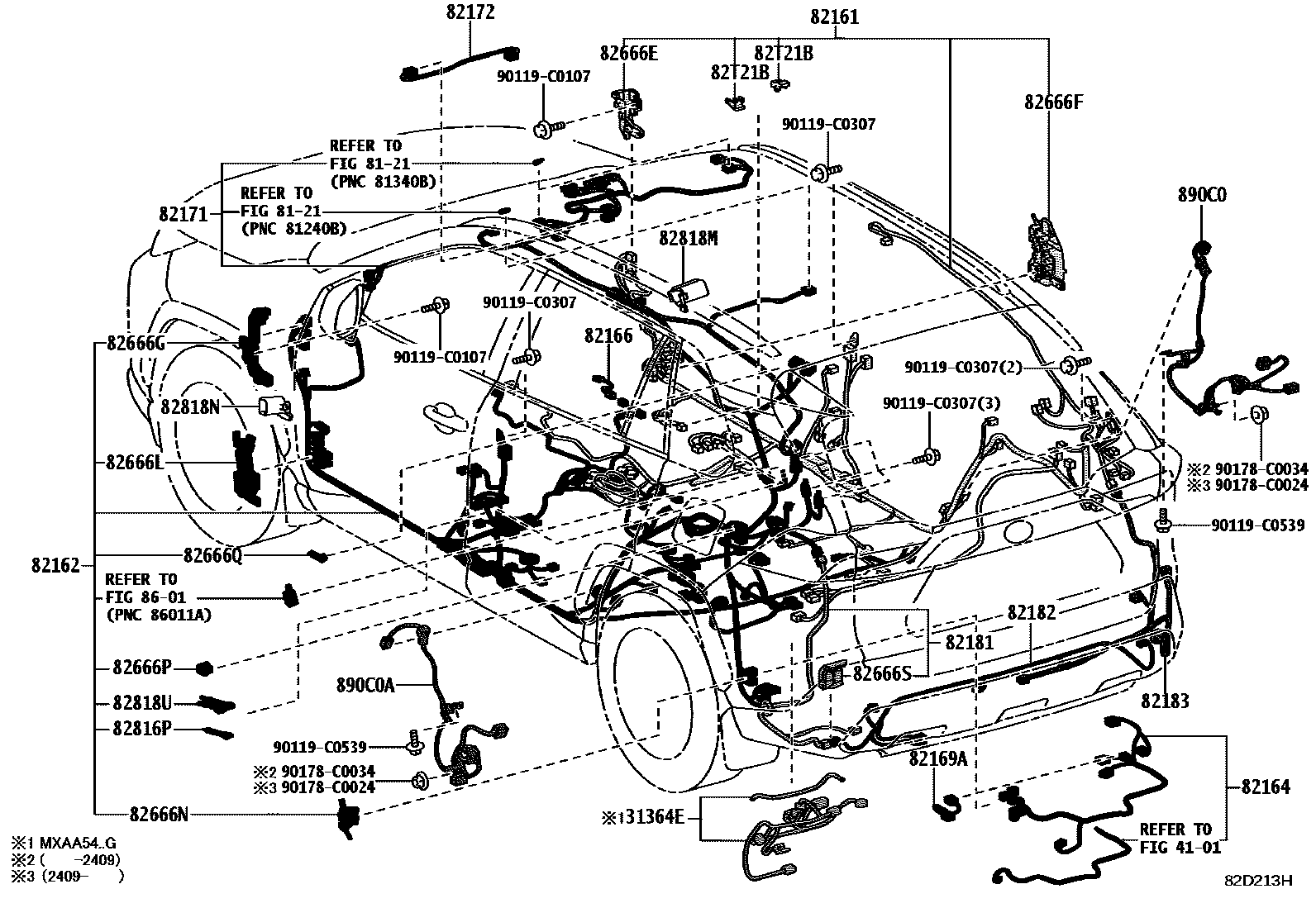

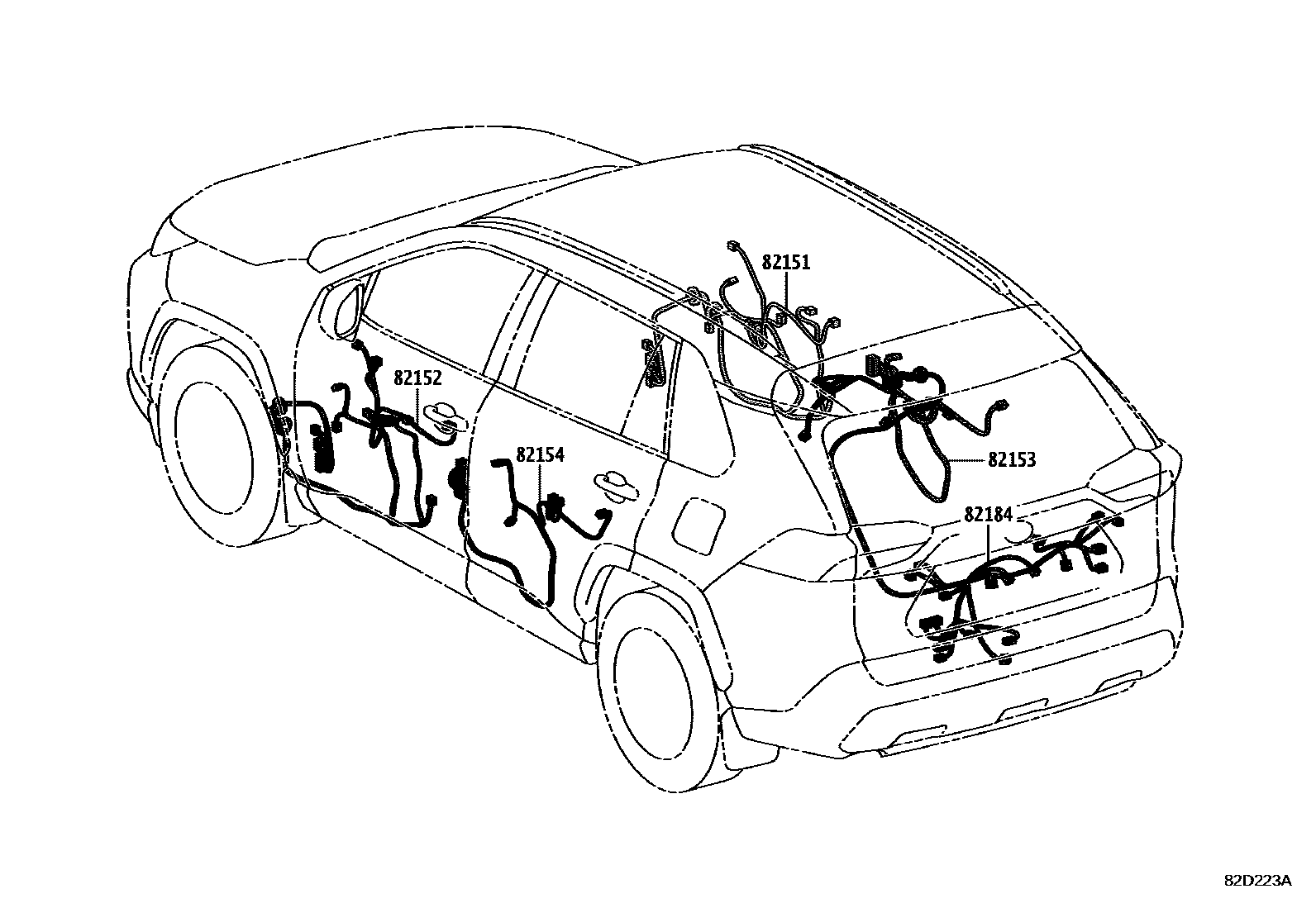

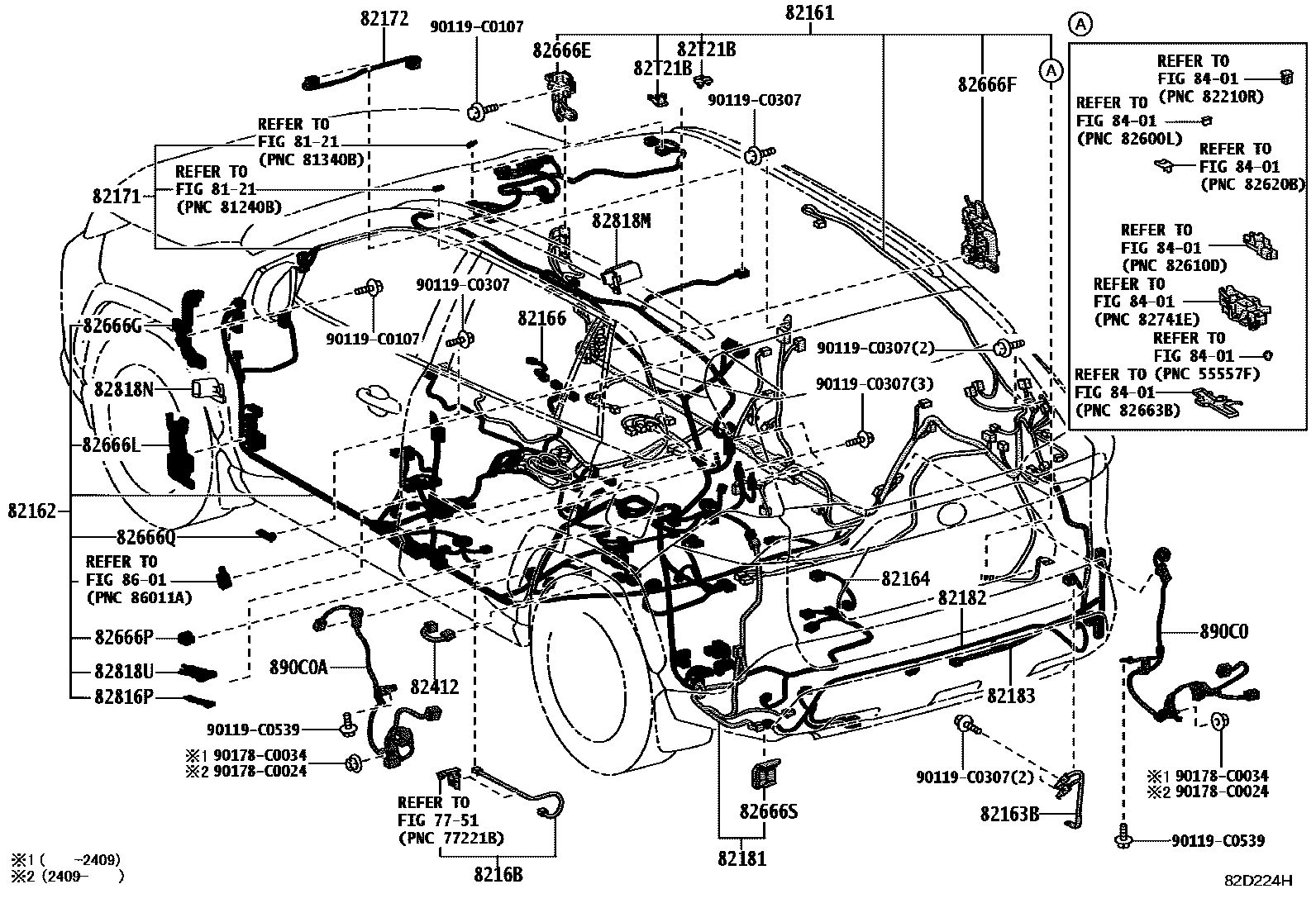

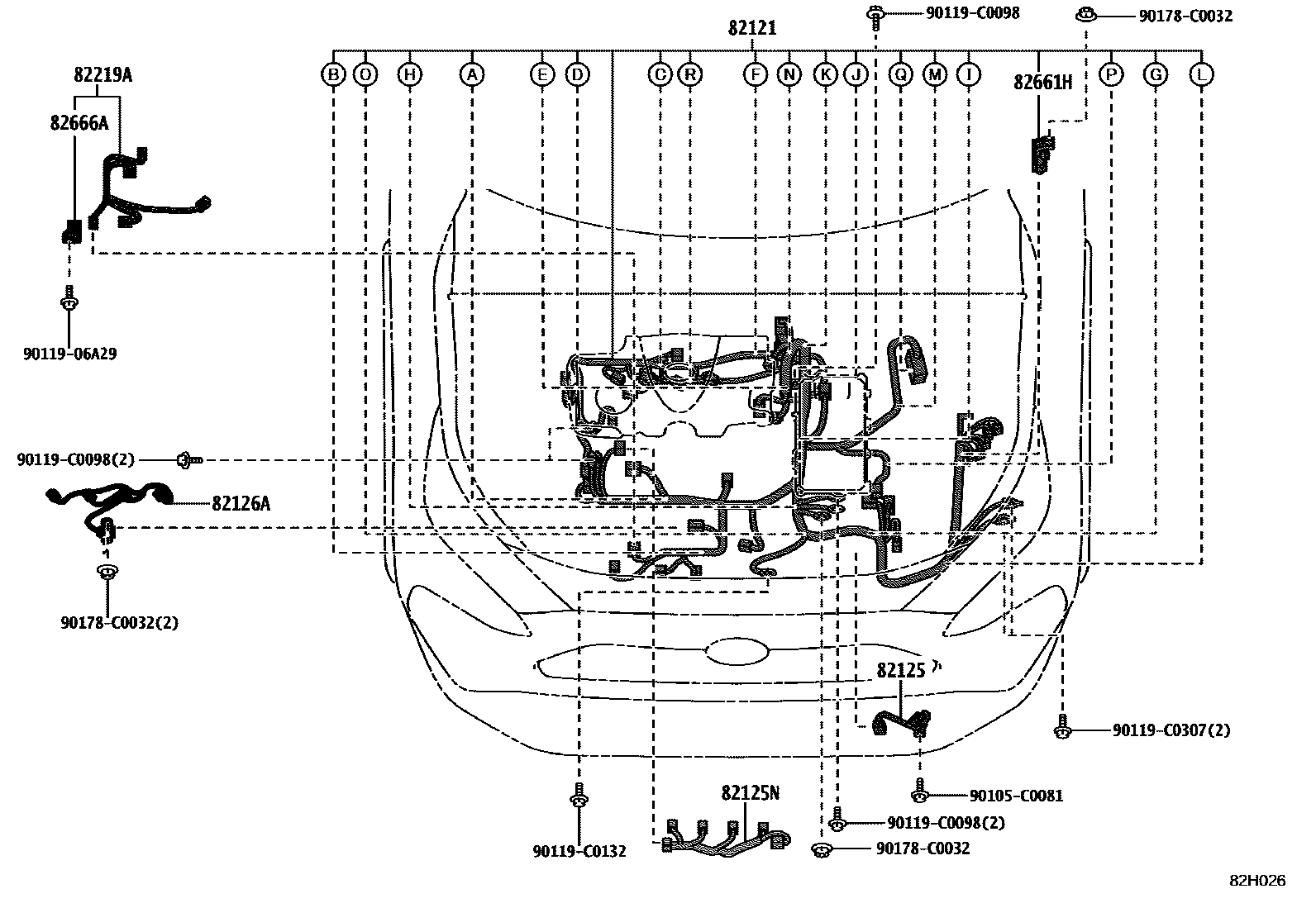

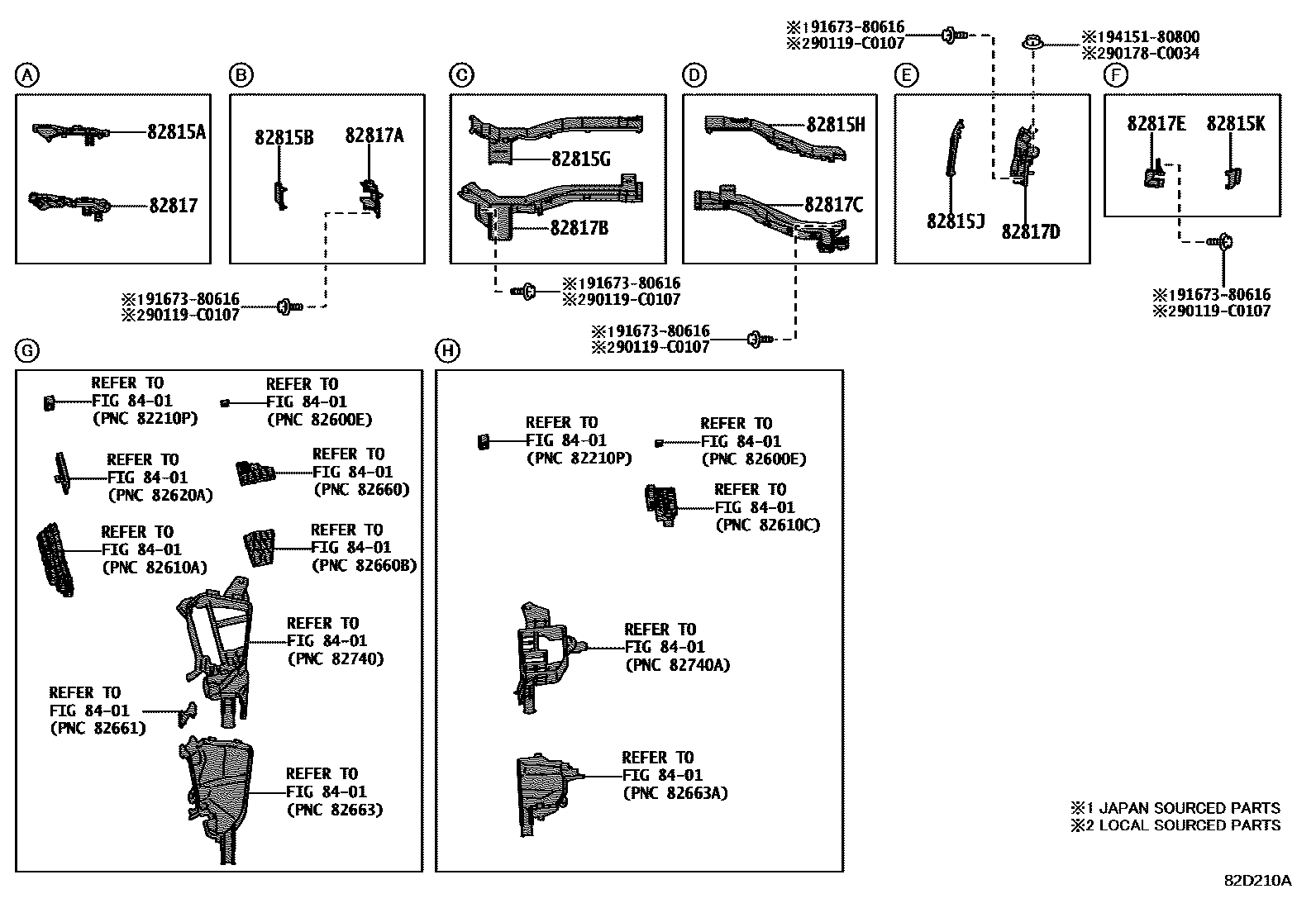

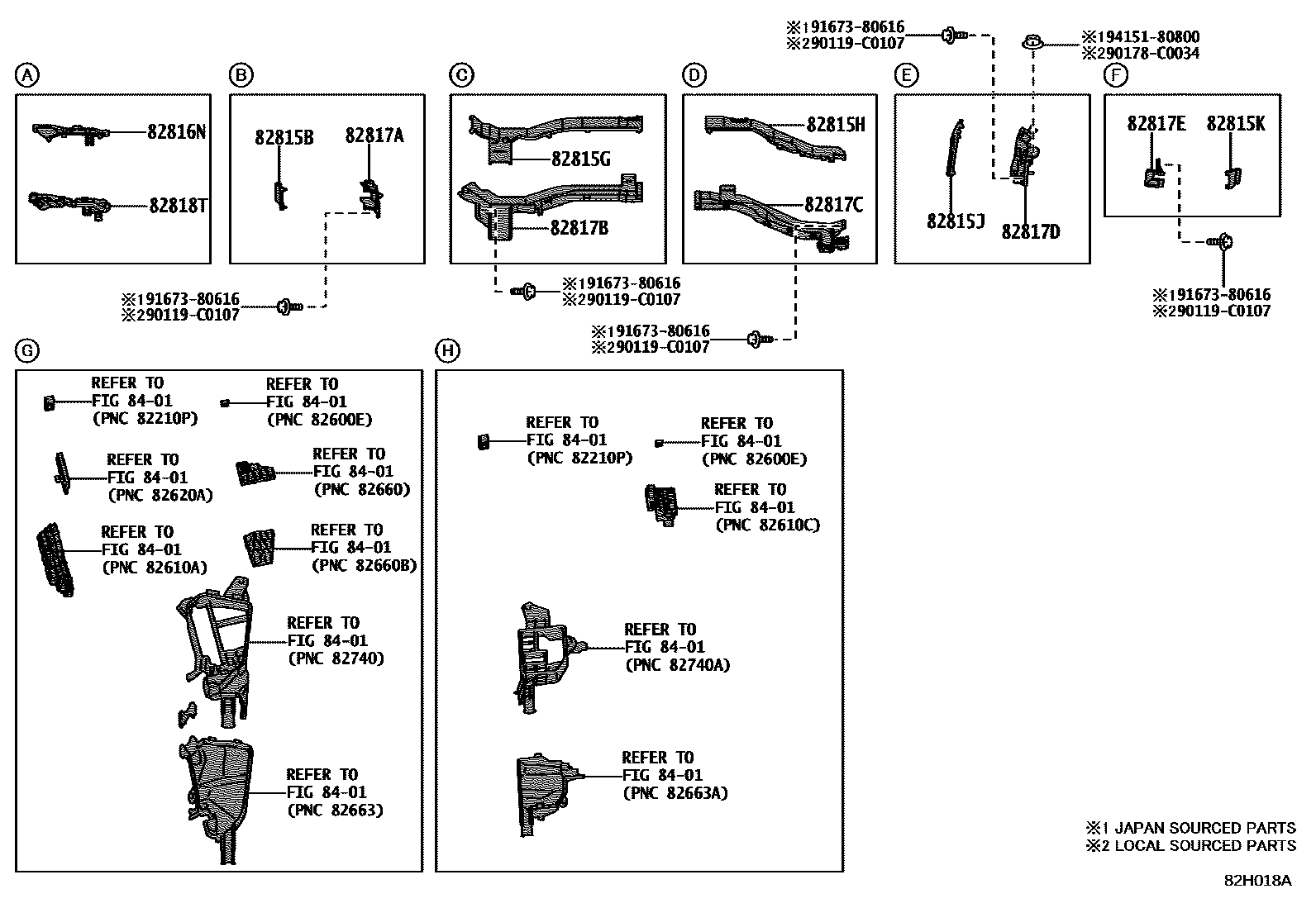

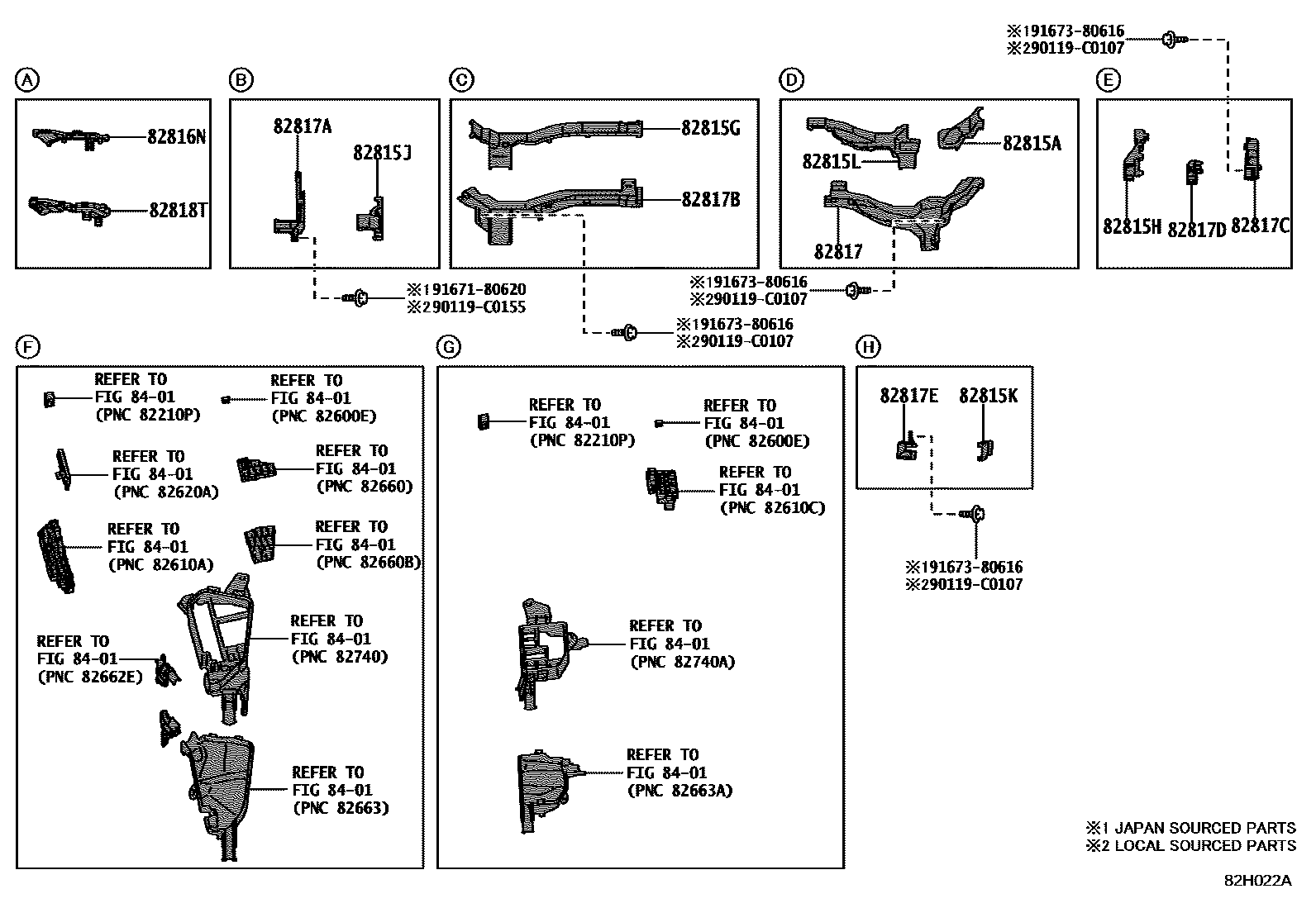

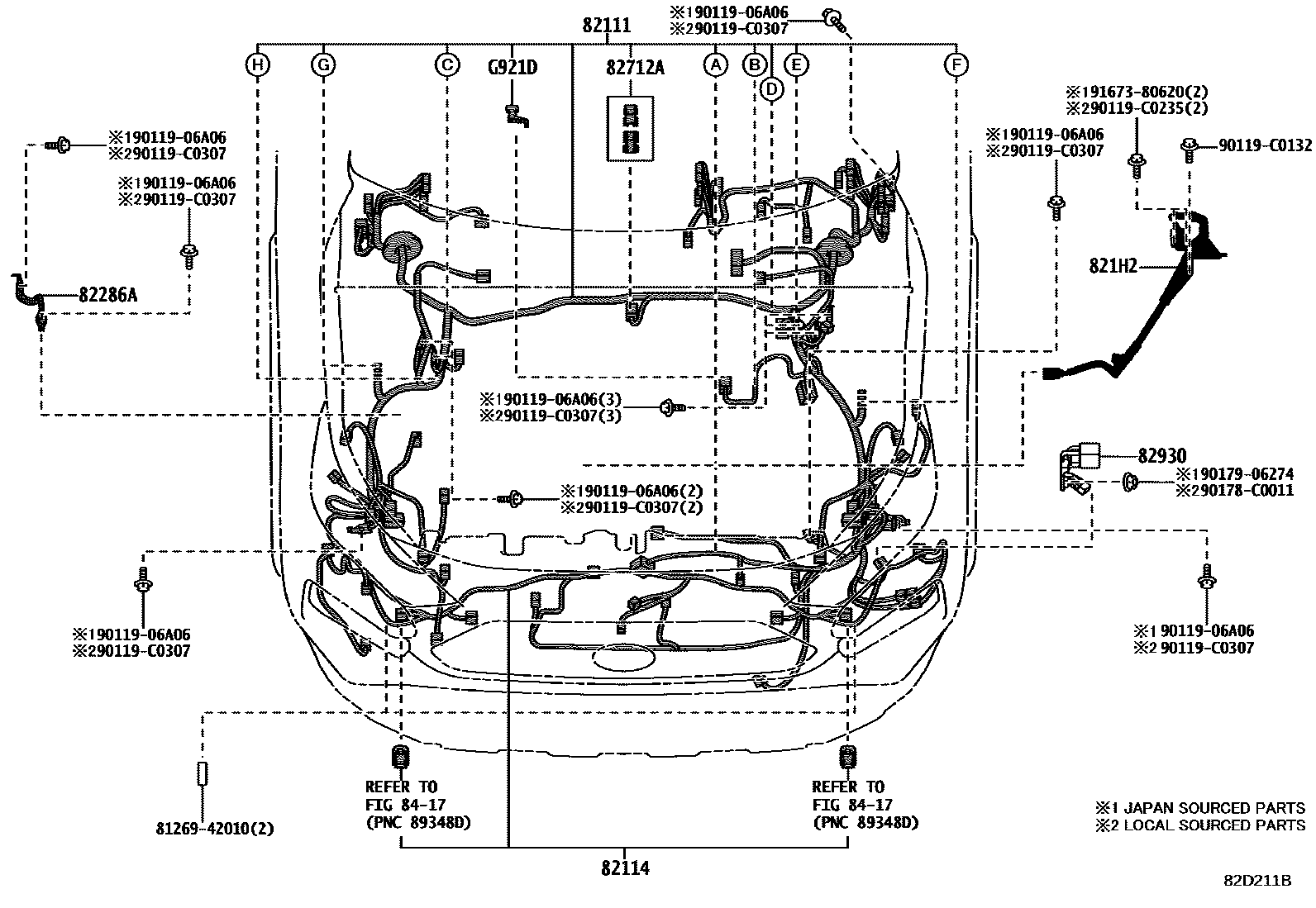

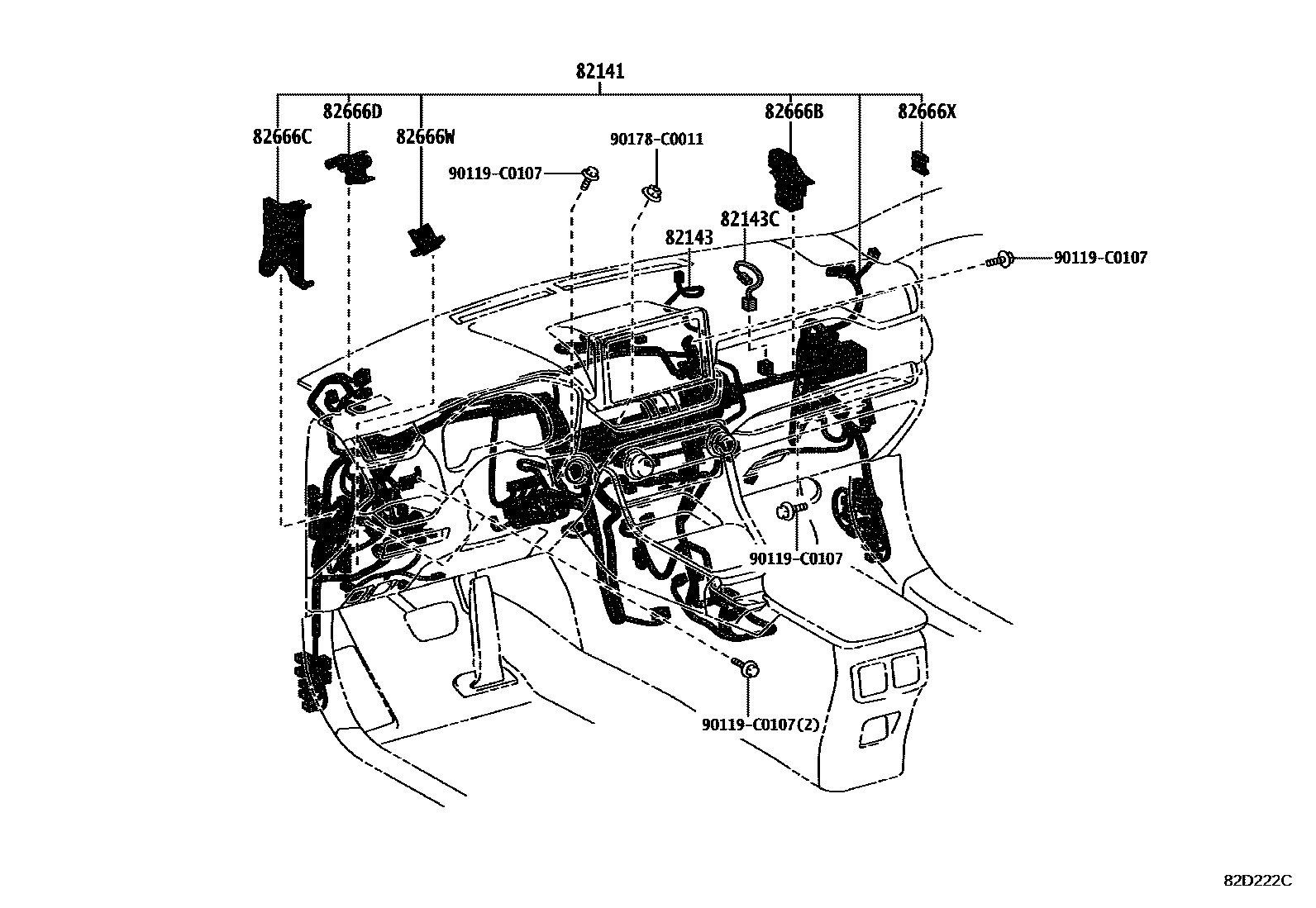

Toyota RAV4 EPC diagram 8202, 线束和卡夹, with 32 images and 164 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31364E | Clutch control solenoid valve wiring harness | 31364-42020 |
| 82111 | Engine room main wiring harness | 82111-0R620 · 82111-0R621 · 82111-0R622 · 82111-0R623 · 82111-0R640 · 82111-0R641 · 82111-0R642 · 82111-0R650 · 82111-0R651 · 82111-0R652 · 82111-0R653 · 82111-0R660 · 82111-0R661 · 82111-0R662 · 82111-0R663 · 82111-0R770 · 82111-0R771 · 82111-0R772 · 82111-0R780 · 82111-0R781 · 82111-0R782 · 82111-0R783 · 82111-0R784 · 82111-0RA10 · 82111-0RA11 · 82111-0RA12 · 82111-0RA13 · 82111-0RA20 · 82111-0RA21 · 82111-0RA22 · 82111-0RA23 · 82111-0RA30 · 82111-0RA31 · 82111-0RA32 · 82111-0RA33 · 82111-0RA40 · 82111-0RA41 · 82111-0RA42 · 82111-0RA43 · 82111-0RK80 · 82111-0RL30 · 82111-0RL41 · 82111-0RL50 · 82111-0RM10 · 82111-0RM20 · 82111-0RM30 · 82111-0RM40 · 82111-0RM50 · 82111-0RM60 · 82111-0RM70 · 82111-0RM80 |
| 82114 | Engine room wiring harness No. 4 | 82114-0R140 · 82114-0R141 · 82114-0R142 · 82114-0R150 · 82114-0R151 · 82114-0R152 · 82114-0R170 · 82114-0R171 · 82114-0R172 · 82114-0R210 · 82114-0R260 · 82114-0R590 · 82114-YK010 · 82114-YK011 · 82114-YK020 · 82114-YK021 |
| 82121 | Engine wiring harness | 82121-0R310 · 82121-0R311 · 82121-0R312 · 82121-0R330 · 82121-0R331 · 82121-0R332 · 82121-0R350 · 82121-0R351 · 82121-0R352 · 82121-0R370 · 82121-0R371 · 82121-0R372 · 82121-0R380 · 82121-0R381 · 82121-0R382 |
| 82122 | Engine No. 2 wiring harness | 82122-0E120 · 82122-0R100 |
| 82123 | Engine No. 3 wiring harness | 82123-0R090 · 82123-0R091 |
| 82125 | Transmission wiring harness | 82125-33270 |
| 82125N | Engine No. 5 wiring harness | 82125-07020 · 82125-0E070 · 82125-33180 · 82125-33220 |
| 82126A | No. 6 engine wiring harness | 82126-07030 · 82126-0E040 · 82126-33050 |
| 82141 | Dashboard wiring harness | 82141-0RG10 · 82141-0RG11 · 82141-0RG12 · 82141-0RG13 · 82141-0RG14 · 82141-0RG20 · 82141-0RG21 · 82141-0RG22 · 82141-0RG23 · 82141-0RG24 · 82141-0RG40 · 82141-0RG41 · 82141-0RG42 · 82141-0RG43 · 82141-0RG44 · 82141-0RG60 · 82141-0RG61 · 82141-0RG62 · 82141-0RG63 · 82141-0RJ50 · 82141-0RJ51 · 82141-0RJ52 · 82141-0RJ53 · 82141-0RJ60 · 82141-0RJ61 · 82141-0RJ62 · 82141-0RJ63 · 82141-0RJ64 · 82141-0RQ81 · 82141-0RS00 · 82141-0RS10 · 82141-0RS20 · 82141-0RS30 · 82141-0RW81 · 82141-0RW91 · 82141-0RX01 · 82141-0RX11 · 82141-0RX21 · 82141-0RX31 · 82141-0RX41 · 82141-0RZ40 |
| 82143 | Instrument panel wiring harness No. 3 | 82143-0R080 · 82143-0R081 |
| 82143C | Instrument panel wiring harness No. 3 | 82140-0R081 |
| 82151 | Right front door wiring harness | 82151-0R340 · 82151-0R341 · 82151-0R342 · 82151-0R343 · 82151-0R360 · 82151-0R361 · 82151-0R362 · 82151-0R363 · 82151-0R364 · 82151-0R550 · 82151-0R670 · 82151-0R680 · 82151-0R690 · 82151-0R880 · 82151-0R890 |
| 82152 | Left front door wiring harness | 82152-0R390 · 82152-0R391 · 82152-0R410 · 82152-0R411 · 82152-0R412 · 82152-0R413 · 82152-0R590 · 82152-0R740 · 82152-0R750 · 82152-0R760 · 82152-0RA70 · 82152-0RA80 |
| 82153 | Rear door wiring harness No. 1 | 82153-0R160 · 82153-0R161 |
| 82154 | Rear door wiring harness No. 2 | 82154-0R140 · 82154-0R141 |
| 82161 | floor wiring harness | 82161-0R610 · 82161-0R611 · 82161-0R612 · 82161-0R620 · 82161-0R630 · 82161-0R690 · 82161-0R691 · 82161-0R692 · 82161-0R700 · 82161-0R701 · 82161-0R702 · 82161-0R703 · 82161-0RA00 · 82161-0RA01 · 82161-0RA10 · 82161-0RA11 · 82161-0RA12 · 82161-0RG10 · 82161-0RG20 · 82161-0RG30 · 82161-0RN30 · 82161-0RN40 · 82161-0RN50 · 82161-0RN60 · 82161-0RN70 |
| 82162 | Floor wiring harness No. 2 | 82162-0R590 · 82162-0R591 · 82162-0R592 · 82162-0R593 · 82162-0R620 · 82162-0R621 · 82162-0R622 · 82162-0R820 · 82162-0R821 · 82162-0R822 · 82162-0R823 · 82162-0R824 · 82162-0R840 · 82162-0R841 · 82162-0R842 · 82162-0R843 · 82162-0R860 · 82162-0R861 · 82162-0R862 · 82162-0R863 · 82162-0R864 · 82162-0R880 · 82162-0R881 · 82162-0R882 · 82162-0R883 · 82162-0R884 · 82162-0RA00 · 82162-0RA01 · 82162-0RA02 · 82162-0RA03 · 82162-0RA04 · 82162-0RL70 · 82162-0RL80 · 82162-0RL90 · 82162-0RM00 · 82162-0RM10 · 82162-0RM20 · 82162-0RM30 · 82162-0RR50 · 82162-0RR80 |
| 82163B | No. 5 floor wiring harness | 82165-0R040 · 82165-0R041 · 82165-0R042 |
| 82164 | Frame wiring harness set | 82164-0R160 · 82164-0R170 · 82164-0R180 · 82164-0R181 |
| 82166 | Armrest box wiring harness | 82166-0R020 |
| 82169A | No. 6 floor wiring harness | 82169-0R080 |
| 8216B | No. 8 floor wiring harness | 8216B-0R040 |
| 82171 | Roof No. 1 wiring harness | 82171-0R650 · 82171-0R651 · 82171-0R660 · 82171-0R670 · 82171-0R671 · 82171-0R690 · 82171-0R691 · 82171-0R780 · 82171-0R781 · 82171-0R790 · 82171-0R880 · 82171-0R881 · 82171-0R890 · 82171-0R891 · 82171-0R892 · 82171-0R893 · 82171-0RE10 · 82171-0RE90 · 82171-0RF00 · 82171-0RF01 · 82171-0RF02 · 82171-0RF10 · 82171-0RF30 · 82171-0RF50 · 82171-0RG00 · 82171-0RG10 · 82171-0RK10 · 82171-0RK11 · 82171-0RK20 · 82171-0RK21 · 82171-0RK30 · 82171-0RK31 · 82171-0RK40 · 82171-0RK41 · 82171-0RK50 · 82171-0RK51 · 82171-0RK60 · 82171-0RK61 |
| 82172 | Roof No. 2 wiring harness | 82172-0R020 |
| 82181 | Luggage No. 1 wiring harness | 82181-0R270 · 82181-0R271 · 82181-0R272 · 82181-0R273 · 82181-0R274 · 82181-0R280 · 82181-0R281 · 82181-0R282 · 82181-0R380 · 82181-0R381 · 82181-0R390 · 82181-0R391 · 82181-0R660 |
| 82182 | Luggage No. 2 wiring harness | 82182-0R170 · 82182-0R171 · 82182-0R172 · 82182-0R180 · 82182-0R181 · 82182-0R182 · 82182-0R183 · 82182-0R260 · 82182-0R261 |
| 82183 | Luggage No. 3 wiring harness | 82183-0R200 · 82183-0R201 · 82183-0R202 · 82183-0R230 · 82183-0R231 · 82183-0R232 · 82183-0R420 · 82183-0R421 · 82183-0R430 · 82183-0R431 |
| 82184 | Rear door No. 1 wiring harness | 82184-0R580 · 82184-0R581 · 82184-0R582 · 82184-0R590 · 82184-0R591 · 82184-0R630 · 82184-0R631 · 82184-0R632 · 82184-0R633 · 82184-0R634 · 82184-0R720 · 82184-0R721 · 82184-0R722 · 82184-0RA60 · 82184-0RA61 |
| 82191 | Front right seat wiring harness | 82191-0R160 · 82191-0R200 |
| 82192 | Front left seat wiring harness | 82192-0R240 |
| 8219A | Wire harness No. 2, right side of front seat | 8219A-0E220 |
| 8219B | Wire harness No. 2, left side of front seat | 8219B-0R100 |
| 821H1 | Underfloor wiring harness | 821H1-0R020 · 821H1-0R030 · 821H1-0R031 · 821H1-0R032 · 821H1-0R033 |
| 821H2 | HV air conditioner wiring harness | 821H2-07030 · 821H2-0R030 |
| 82219A | sensor harness | 82219-07040 · 82219-07041 · 82219-0E080 · 82219-33140 · 82219-33141 |
| 82284 | Ground wire | 82284-0R050 |
| 82286A | Line 2 | 82286-0R100 |
| 82412 | Fuel gauge wiring harness | 82412-42180 |
| 82661H | Relay box cover | 82661-42060 |
| 82666A | Connector holder No. 2 | 82666-12490 · 82666-33720 |
| 82666B | No. 3 connector holder | 82666-0R220 · 82666-42500 |
| 82666C | No. 4 connector holder | 82666-0R230 · 82666-42690 |
| 82666D | No. 5 connector holder | 82666-0R240 · 82666-42490 |
| 82666E | No. 6 connector holder | 82666-0R360 |
| 82666F | No. 7 connector holder | 82666-0R370 |
| 82666G | No. 8 connector holder | 82666-0R380 |
| 82666L | No. 9 connector holder | 82666-0R390 |
| 82666N | No. 10 connector holder | 82666-0R400 |
| 82666P | No. 11 Connector Block | 82666-26080 |
| 82666Q | No. 12 connector holder | 82666-60310 |
| 82666S | No. 13 connector holder | 82666-0R410 |
| 82666T | No. 14 connector socket | 82666-42710 · 82666-60310 |
| 82666V | No. 15 connector holder | 82666-42720 |
| 82666W | No. 16 connector socket | 82666-42640 |
| 82666X | No. 17 connector holder | 82666-35250 |
| 82712A | Wire harness bracket | 82712-42060 |
| 82712B | Wire harness bracket | 82712-33170 |
| 82712D | Wire harness bracket | 82712-44060 |
| 82815A | Wiring harness protector cover | 82815-0EF30 · 82815-42180 |
| 82815B | Wiring harness protector cover | 82815-42190 |
| 82815G | No. 5 wire harness protector cover | 82815-0R480 |
| 82815H | No. 6 wire harness protector cover | 82815-0R490 · 82815-42630 |
| 82815J | No. 7 wire harness protector cover | 82815-42170 · 82815-42240 |
| 82815K | No. 8 wire harness protector cover | 82815-42570 |
| 82815L | No. 9 wire harness protector cover | 82815-0EF40 · 82815-42C40 |
| 82815M | No. 10 wire harness protector cover | 82815-0R110 · 82815-0R130 |
| 82815N | No. 11 wire harness protector cover | 82815-0R120 · 82815-0R180 |
| 82815P | No. 12 wire harness protector cover | 82815-0R680 · 82815-42640 |
| 82815Q | No. 13 wire harness protector cover | 82815-0R290 · 82815-12B00 |
| 82815R | No. 14 wire harness protector cover | 82815-0R330 · 82815-12D80 |
| 82815S | No. 15 wire harness protector cover | 82815-33G90 · 82815-33J10 |
| 82815T | No. 16 wire harness protector cover | 82815-33J00 · 82815-33L00 |
| 82815U | No. 17 wire harness protector cover | 82815-0EC00 · 82815-0R300 · 82815-F4550 |
| 82815V | No. 1 wire harness protector cover | 82815-0R310 · 82815-F4570 |
| 82815W | No. 2 wire harness protector cover | 82815-0R160 · 82815-0R320 |
| 82815X | No. 3 wire harness protector cover | 82815-0E090 · 82815-0R170 · 82815-0R660 · 82815-42500 · 82815-42510 |
| 82815Y | No. 4 wire harness protector cover | 82815-0R210 · 82815-0R650 · 82815-42520 |
| 82815Z | No. 18 wire harness protector cover | 82815-0E140 · 82815-0R670 · 82815-42780 · 82815-42C70 · 82815-42C80 · 82815-42C90 |
| 82816B | No. 1 wire harness protector cover | 82815-06100 · 82815-0R200 · 82815-F4510 |
| 82816C | No. 2 wire harness protector cover | 82815-0EC10 · 82815-0R340 · 82815-F4520 |
| 82816D | No. 3 wire harness protector cover | 82815-0R190 · 82815-0R640 · 82815-42530 |
| 82816F | No. 4 wire harness protector cover | 82815-0EG60 · 82815-0R200 |
| 82816G | No. 5 wire harness protector cover | 82815-33N00 |
| 82816H | No. 6 wire harness protector cover | 82815-42680 · 82815-42690 |
| 82816K | No. 8 wire harness protector cover | 82815-0EG50 |
| 82816N | No. 11 wire harness protector cover | 82815-42J80 |
| 82816P | No. 12 wire harness protector cover | 82815-0R560 · 82815-0R680 · 82815-42560 |
| 82817 | No. 1 wire harness protection device | 82817-0EN00 · 82817-42B60 |
| 82817A | No. 2 wire harness protection device | 82817-42B50 · 82817-42B70 |
| 82817B | No. 3 wire harness protection device | 82817-0RB70 |
| 82817C | No. 4 wire harness protection device | 82817-0RB80 · 82817-42G30 |
| 82817D | No. 5 wire harness protection device | 82817-42C20 · 82817-42N40 |
| 82817E | No. 6 wire harness protection device | 82817-42F90 |
| 82817F | No. 7 wire harness protection device | 82817-42P20 |
| 82817G | No. 8 wire harness protection device | 82817-0R580 · 82817-0R610 |
| 82817J | No. 9 wire harness protection device | 82817-0R650 · 82817-0R690 |
| 82817K | No. 10 wire harness protection device | 82817-0R590 · 82817-12R80 |
| 82817L | No. 11 wire harness protection device | 82817-0R600 · 82817-12V00 |
| 82817M | No. 12 wire harness protection device | 82817-0R790 · 82817-33S70 |
| 82817N | No. 13 wire harness protection device | 82817-42G40 |
| 82817P | No. 14 wire harness protection device | 82817-0EQ30 · 82817-33S50 · 82817-F4770 |
| 82817T | No. 15 wire harness protection device | 82817-33S60 · 82817-F4790 |
| 82817U | No. 16 wire harness protection device | 82817-0EG50 · 82817-0R630 · 82817-0R800 |
| 82817X | No. 17 wire harness protection device | 82817-0R640 · 82817-0R810 |
| 82818 | No. 2 wire harness protection device | 82817-0R680 · 82817-0R820 |
| 82818B | No. 3 wire harness protection device | 82817-0E580 · 82817-0RE00 · 82817-42F20 · 82817-42F30 · 82817-42J50 |
| 82818C | No. 4 wire harness protection device | 82817-06240 · 82817-0RD90 · 82817-42F40 · 82817-F4730 |
| 82818D | No. 5 wire harness protection device | 82817-0E590 · 82817-0RE10 · 82817-42P50 · 82817-42P60 · 82817-F4740 |
| 82818E | No. 6 wire harness protection device | 82817-0EG60 · 82817-0R660 · 82817-0R840 |
| 82818F | No. 7 wire harness protection device | 82817-0EQ40 · 82817-0R670 |
| 82818G | No. 8 wire harness protection device | 82817-0RD80 · 82817-3T250 · 82817-42F50 |
| 82818H | No. 9 wire harness protection device | 82817-0RD70 · 82817-42J70 · 82817-42N60 |
| 82818K | No. 11 wire harness protection device | 82817-42G60 |
| 82818L | No. 12 wire harness protection device | 82817-42G70 · 82817-42G80 |
| 82818M | No. 13 wire harness protection device | 82817-0RB50 |
| 82818N | No. 14 wire harness protection device | 82817-0RB40 |
| 82818S | No. 15 wire harness protection device | 82817-0R830 |
| 82818T | No. 16 wire harness protection device | 82817-42L70 |
| 82818U | No. 17 wire harness protection device | 82817-0RD10 |
| 82818V | No. 18 wire harness protection device | 82817-42A90 |
| 82818Y | No. 21 wire harness protection device | 82817-0RE20 · 82817-42F80 |
| 82821A | Connector cover | 82821-42190 |
| 82821E | Connector cover | 82821-12750 |
| 82821H | Connector cover | 82821-42210 |
| 82821M | Connector cover | 82821-12B40 |
| 82821N | Connector cover | 82821-20510 |
| 82821P | Connector cover | 82821-30600 |
| 82821R | Connector cover | 82821-33460 |
| 82821U | Connector cover | 82821-33490 · 82821-33720 |
| 82821V | Connector cover | 82821-33590 |
| 82821W | Connector cover | 82821-33610 |
| 82821X | Connector cover | 82821-33620 |
| 82821Y | Connector cover | 82821-33630 · 82821-33760 |
| 82823 | No. 1 terminal cover | 82823-0R040 |
| 82823A | Terminal cover No. 2 | 82823-33060 |
| 82930 | No. 1 condenser wire harness assembly | 82930-42020 |
| 82H21C | Connector cover | 82821-33650 |
| 82H21D | Connector cover | 82821-33660 · 82821-33780 |
| 82H21G | Connector cover | 82821-33690 · 82821-33790 |
| 82H21H | Connector cover | 82821-33700 |
| 82H21J | Connector cover | 82821-33750 |
| 82H21K | Connector cover | 82821-33770 · 82821-33840 |
| 82H21L | Connector cover | 82821-33800 · 82821-33850 |
| 82H21M | Connector cover | 82821-33810 |
| 82H21N | Connector cover | 82821-33830 · 82821-33A50 |
| 82H21P | Connector cover | 82821-33860 |
| 82H21Q | Connector cover | 82821-33A00 · 82821-33A10 · 82821-33A60 |
| 82H21R | Connector cover | 82821-33B00 · 82821-47690 |
| 82H21S | Connector cover | 82821-42360 · 82821-50500 |
| 82H21T | Connector cover | 82821-50510 |
| 82H21V | CACHE, CONNECTEUR | 82821-78050 |
| 82H21W | CACHE, CONNECTEUR | 82821-33620 · 82821-48420 |
| 82H21X | CACHE, CONNECTEUR | 82821-30650 |
| 82H21Y | CACHE, CONNECTEUR | 82821-33B10 |
| 82H21Z | CACHE, CONNECTEUR | 82821-47190 |
| 82T21 | CACHE, CONNECTEUR | 82821-47680 |
| 82T21A | CACHE, CONNECTEUR | 82821-48270 |
| 82T21B | CACHE, CONNECTEUR | 82821-30600 |
| 82T21C | CACHE, CONNECTEUR | 82821-33B20 |
| 890C0 | Parking brake cable assembly No. 1 | 890C0-0R030 · 890C0-0R070 |
| 890C0A | Parking brake No. 2 cable assembly | 890C0-0R040 · 890C0-0R080 |
| G921D | Inverter Connector Cover Protector | G921D-42010 · G921D-47020 |
| G921G | Inverter protection device | G921G-42010 |
