Toyota RAV4 蓄电池和蓄电池电缆 — Figure 8201

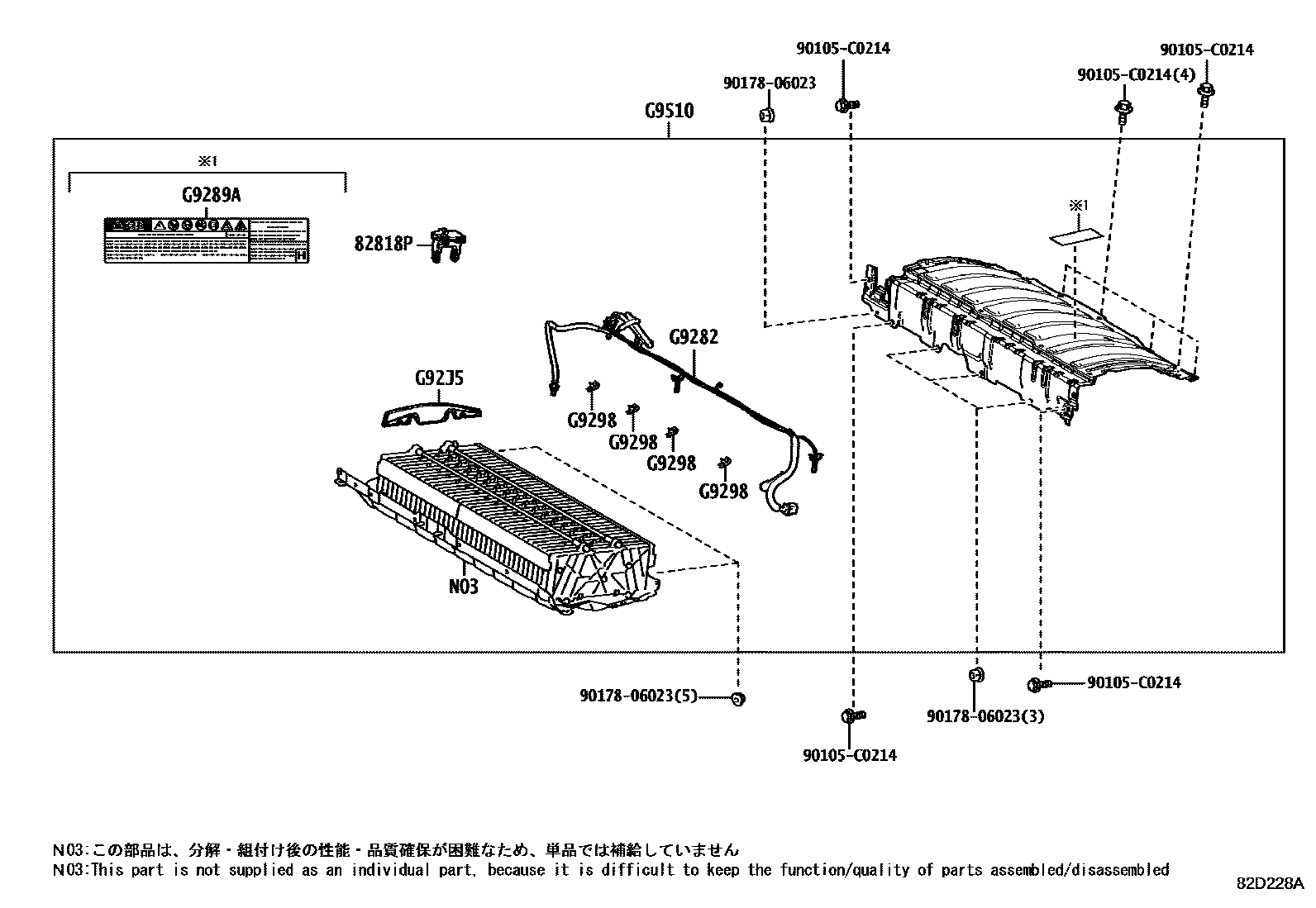

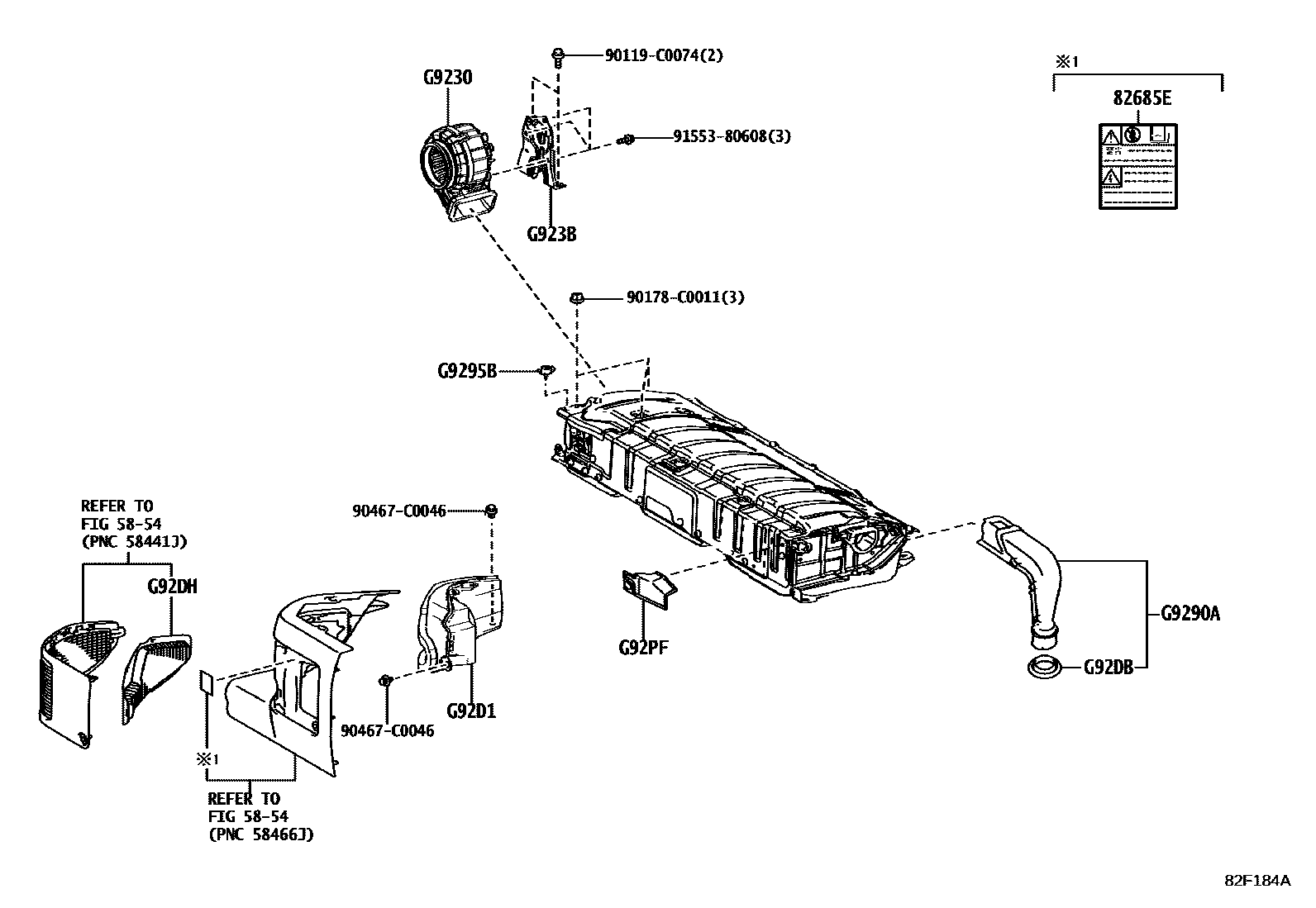

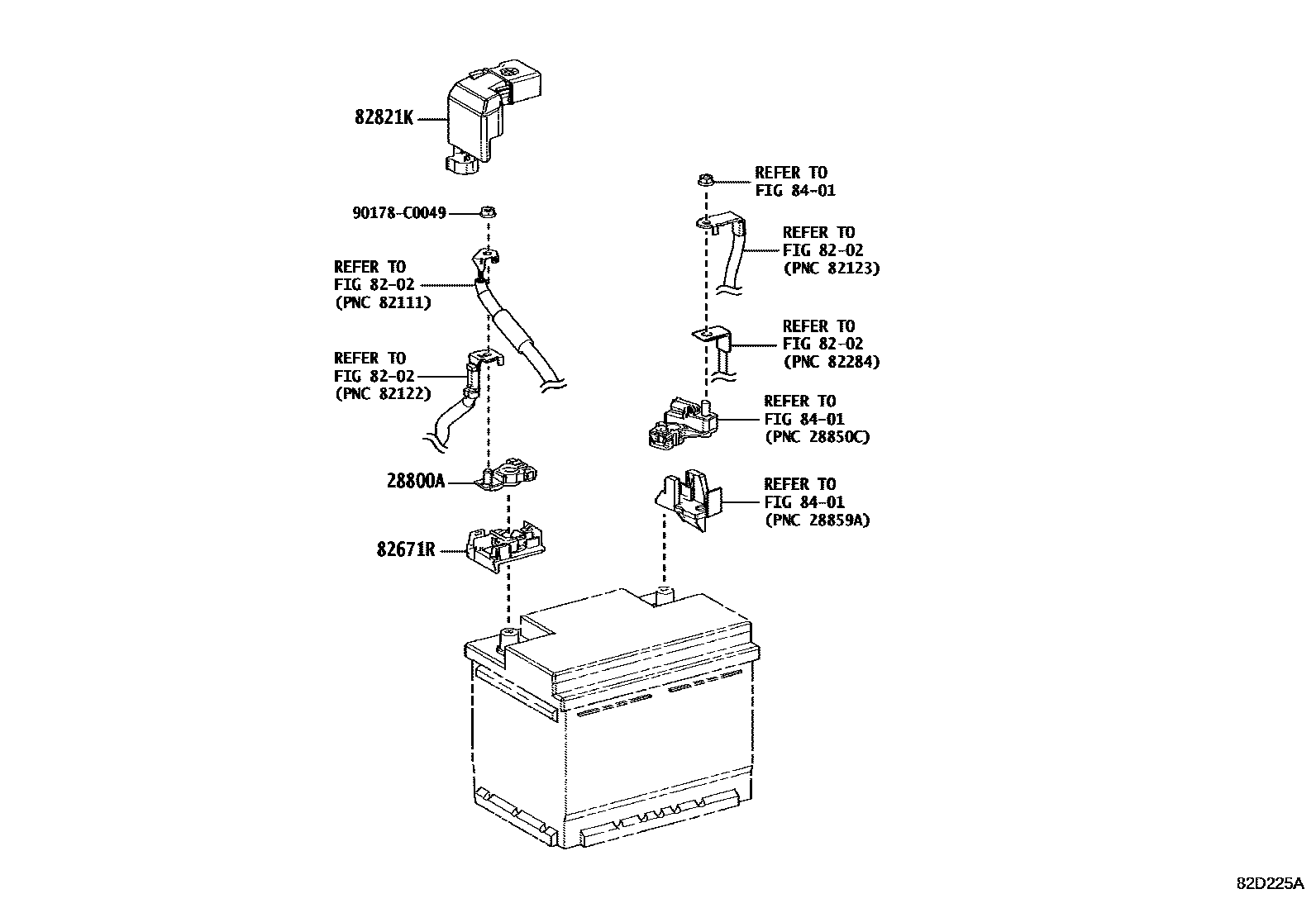

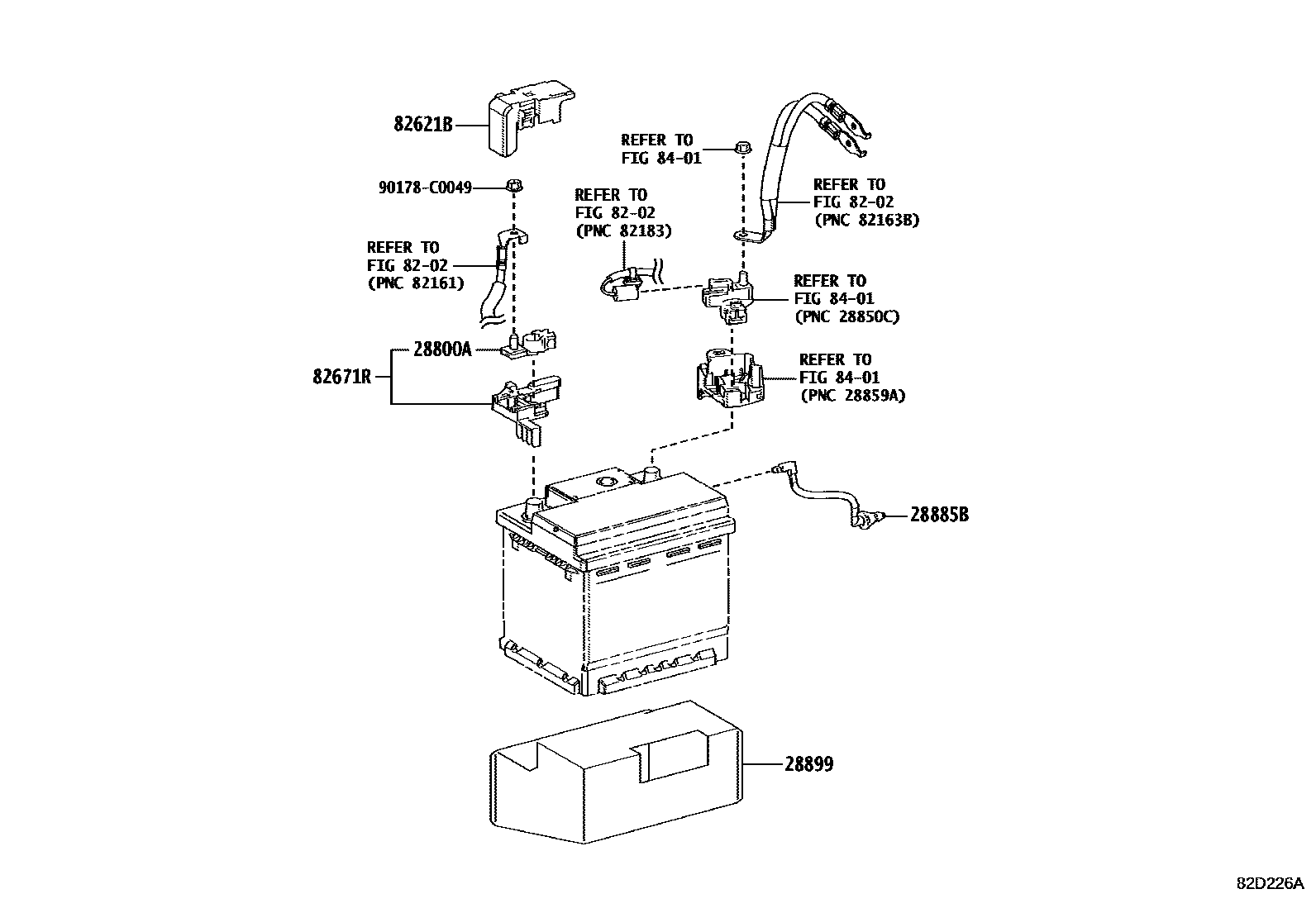

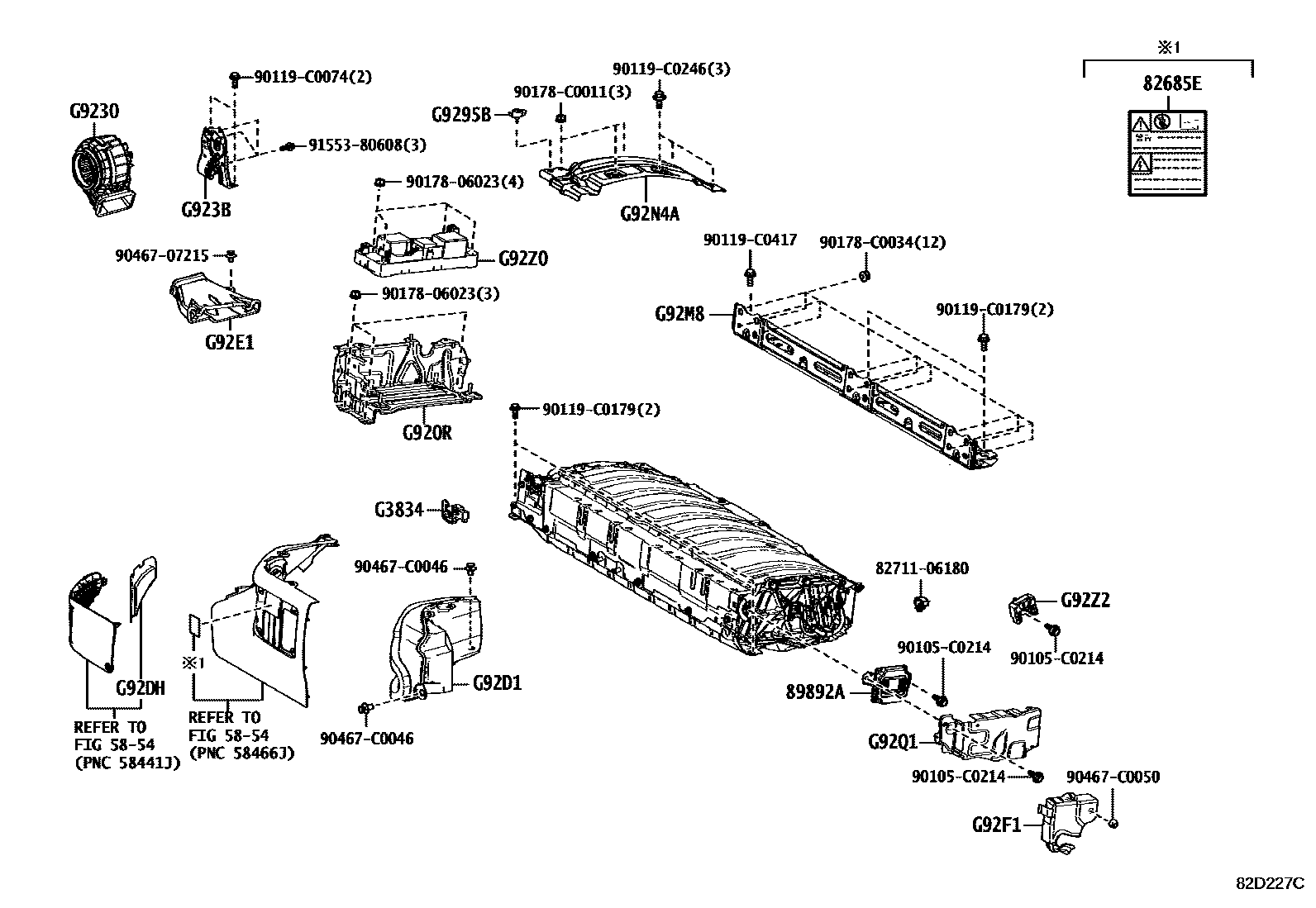

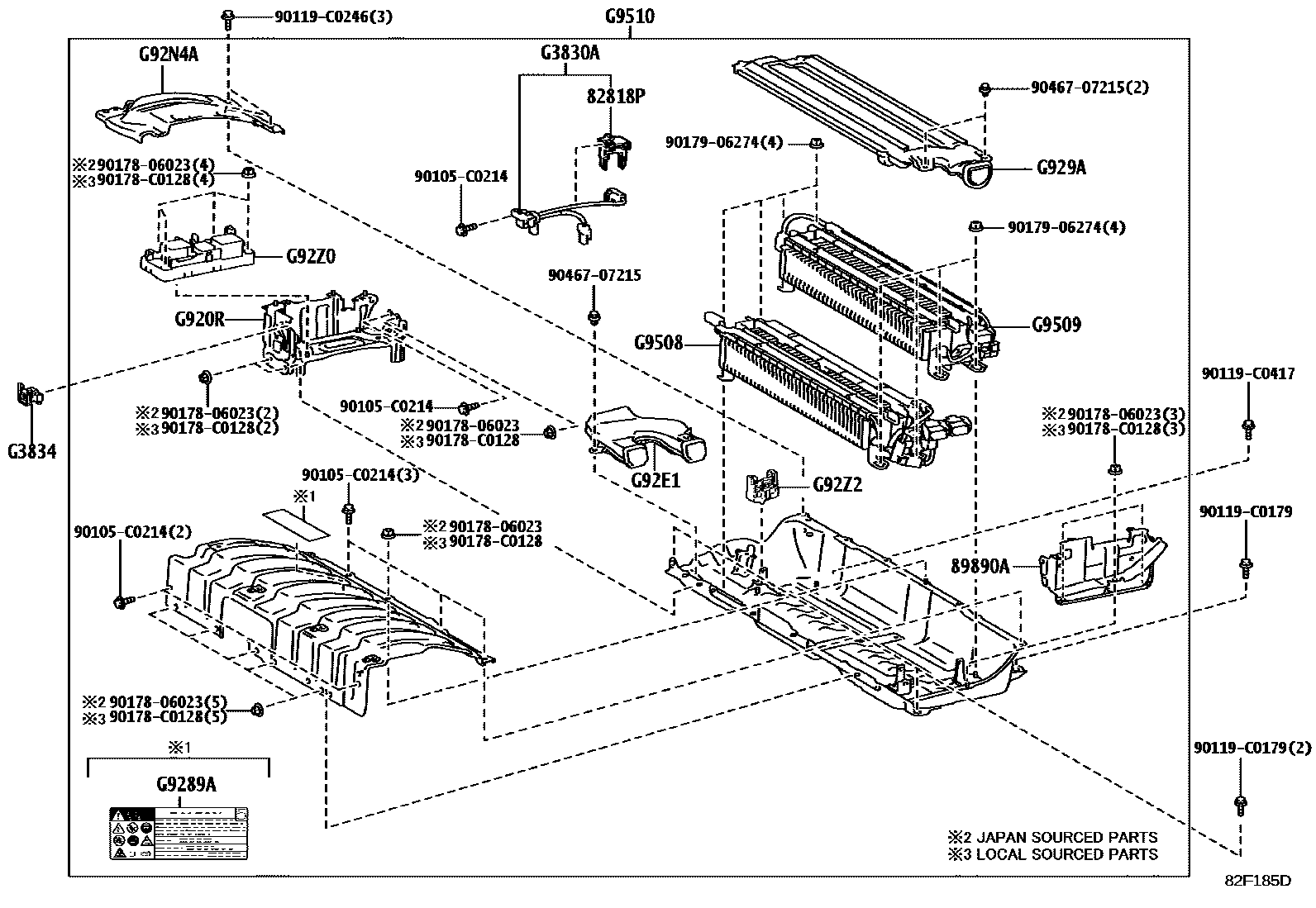

Toyota RAV4 EPC diagram 8201, 蓄电池和蓄电池电缆, with 6 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800A | battery positive terminal | 90982-05058 · 90982-05072 |
| 28885B | battery hose | 28885-F0050 |
| 28899 | Battery insulation cover | 28899-F2100 |
| 82621B | Fuse cover | 82621-42020 |
| 82671R | battery terminal block | 82670-42010 · 82671-33100 |
| 82685E | Maintenance plug warning nameplate | 82685-02030 · 82685-02031 |
| 82818P | Harness protection device | 82817-47Q60 · G92SK-K0020 |
| 82821K | Connector cover | 82821-33440 |
| 89890A | Battery ECU assembly | 89890-42130 · 89890-42190 |
| 89892A | battery voltage sensor | 89892-33040 |
| G3830A | Electric vehicle battery plug assembly | G3830-47120 |
| G3834 | Service plug handle | G3834-02010 |
| G920R | No. 2 HV battery shielding sub-assembly | G920R-0E010 · G920R-33030 |
| G9230 | Battery cooling blower assembly | G9230-06010 · G9230-06040 · G9230-33050 |
| G923B | Battery cooling blower bracket | G923B-0R020 |
| G9282 | HV battery thermistor | G9282-06010 |
| G9289A | battery warning label | G9288-02010 · G9569-0E010 |
| G9290A | HV battery hose assembly | G9290-0E010 |
| G9295B | Battery cover lock | G9295-02010 |
| G9298 | HV battery clip | G928E-47010 |
| G929A | HV battery hose No. 1 | G929A-0E010 |
| G92D1 | No. 1 HV battery air inlet | G92D1-0R020 |
| G92DB | No. 1 HV battery seal | G92DB-0E010 |
| G92DH | No. 1 HV battery air intake filter | G92DH-42010 |
| G92E1 | No. 1 HV battery cover air inlet | G92E1-0E030 · G92E1-33020 |
| G92F1 | No. 1 HV battery exhaust duct | G92F1-07010 |
| G92J5 | No. 1 HV battery seal | G92J5-02020 |
| G92M8 | HV battery No. 2 upper bracket bracket | G92M8-0R020 |
| G92N4A | No. 1 cover on the right side of the HV battery | G92N4-0E020 · G92N4-33040 |
| G92PF | No. 4 HV battery protective cover | G92PF-33010 |
| G92Q1 | HV battery No. 1 shielding plate | G92Q1-33050 |
| G92Z0 | HV battery junction box assembly | G92Z0-02010 · G92Z0-47110 |
| G92Z2 | HV battery terminal box | G92Z2-47070 |
| G9508 | No. 1 HV power supply battery assembly | G9029-0E010 |
| G9509 | No. 2 HV power supply battery assembly | G9028-0E010 |
| G9510 | HV power supply battery assembly | G9510-06010 · G9510-0R010 · G9510-0R040 |
