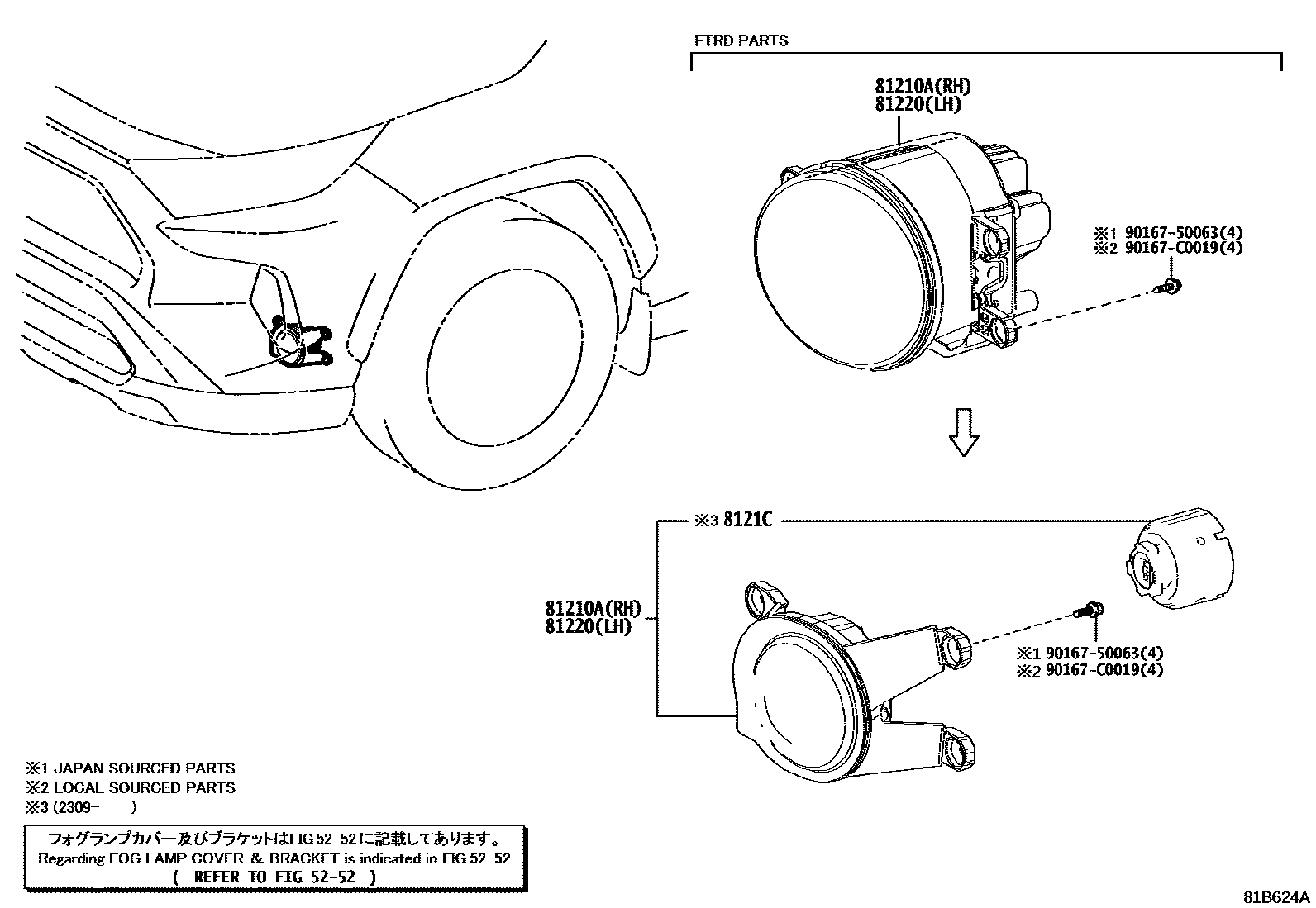

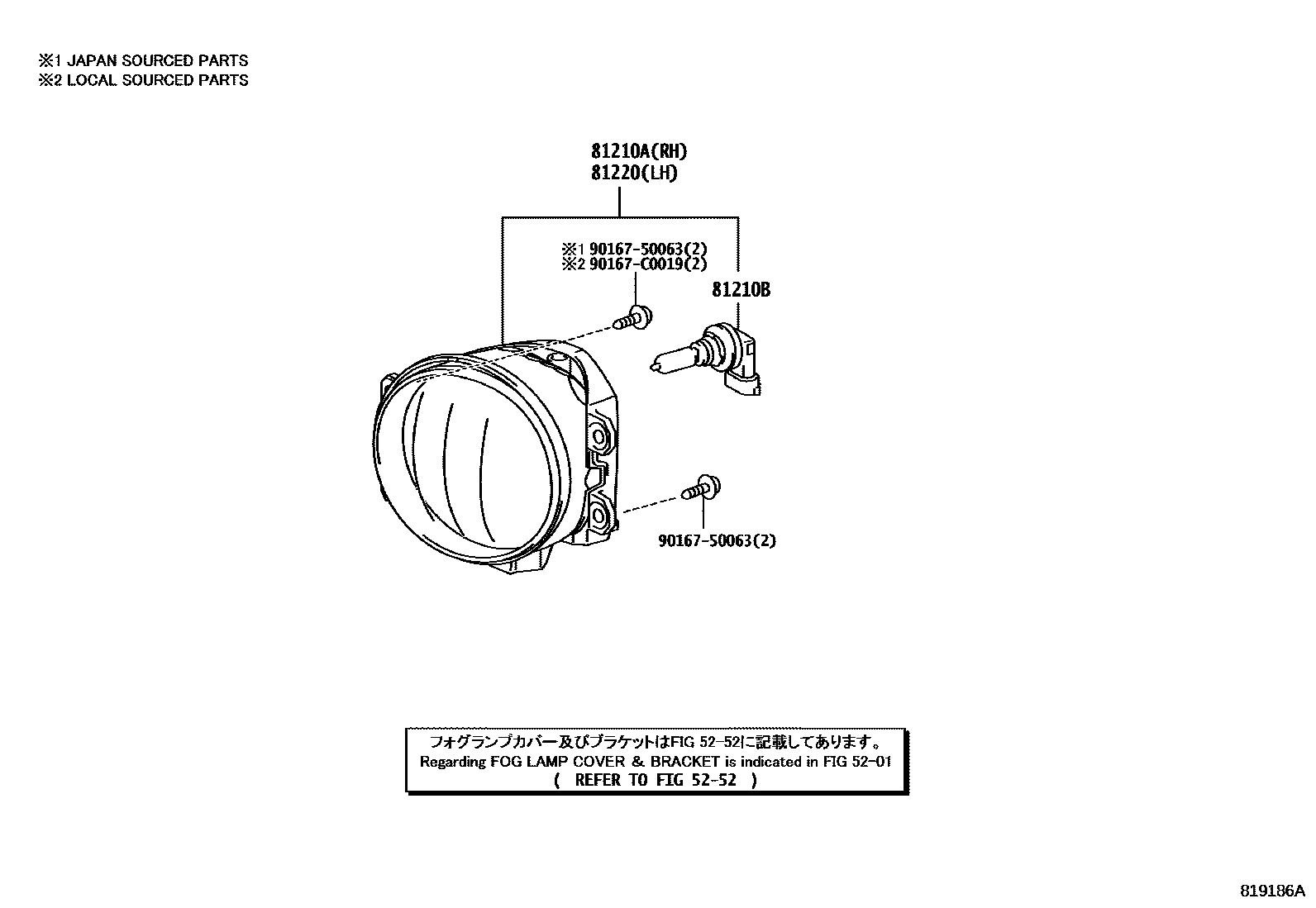

Toyota RAV4 Fog Lamp — Figure 8102
Toyota RAV4 EPC diagram 8102, Fog Lamp, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81210A | Right fog light assembly | 81210-02201 · 81210-06090 · 81210-0D100 · 81210-0R060 |
| 81210B | fog light bulb | 90981-CD003 |
| 8121C | LED fog lights | 81965-0R010 |
| 81220 | Left fog light assembly | 81220-02101 · 81220-06090 · 81220-0D100 · 81220-0R050 |
