Toyota RAV4 Headlamp — Figure 8101

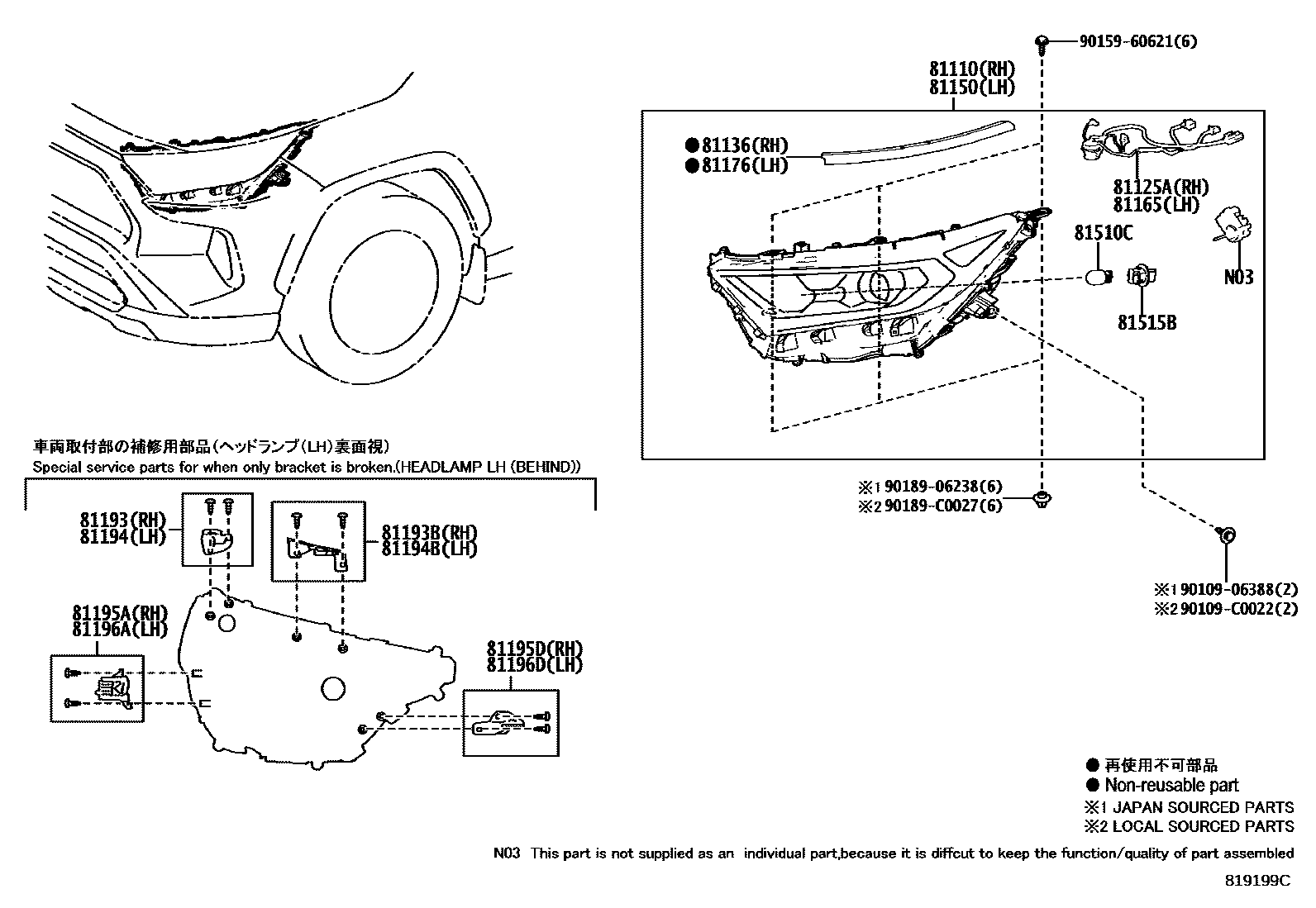

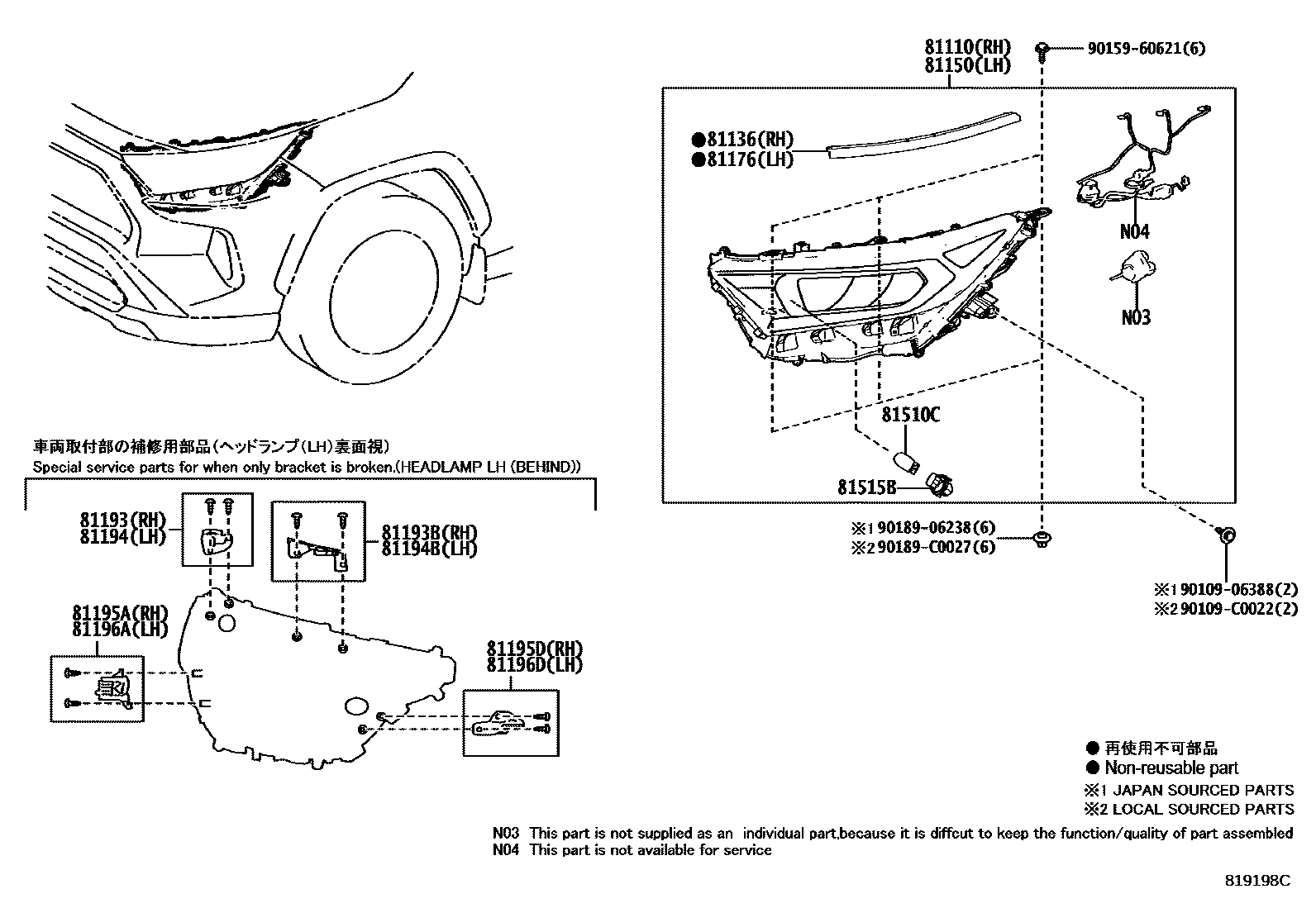

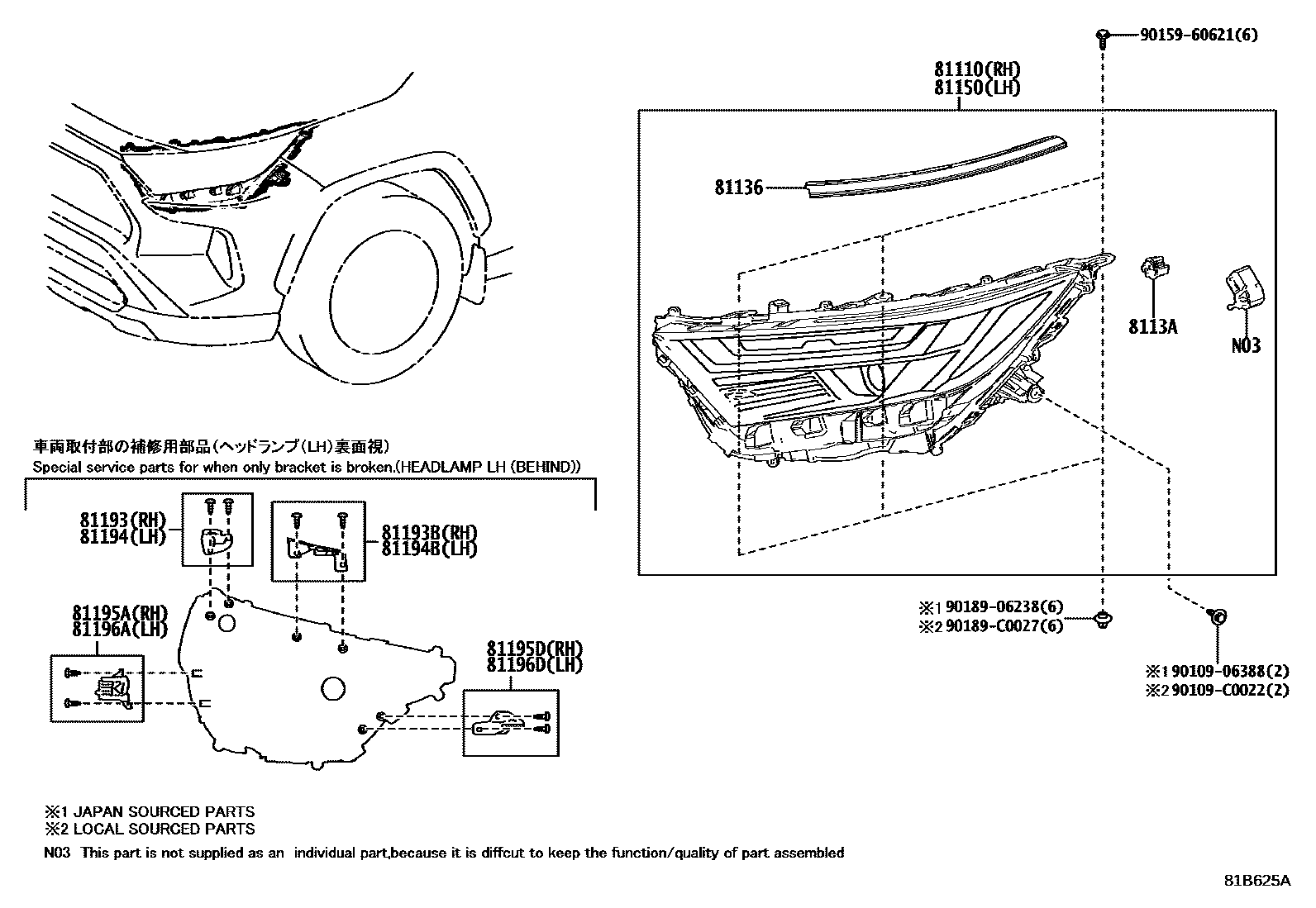

Toyota RAV4 EPC diagram 8101, Headlamp, with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-0R190 · 81110-0R191 · 81110-0R192 · 81110-0R193 · 81110-0R200 · 81110-0R201 · 81110-0R202 · 81110-0R203 · 81110-0R370 |
| 81125A | Right headlight wire | 81125-0R200 |
| 81136 | Right No. 1 headlight protective cover | 81117-0R190 |
| 8113A | Headlight turn signal LED | 81965-42010 |
| 81150 | Left headlight assembly | 81150-0R190 · 81150-0R191 · 81150-0R192 · 81150-0R193 · 81150-0R200 · 81150-0R201 · 81150-0R202 · 81150-0R203 · 81150-0R204 · 81150-0R370 |
| 81165 | Left headlight wire | 81125-0R200 |
| 81176 | Left No. 1 headlight protective cover | 81157-0R190 |
| 81193 | Right headlight upper protective ring | 81193-42050 |
| 81193B | No. 2 headlight upper protection ring on the right | 81193-42060 |
| 81194 | Left headlight upper protective ring | 81194-42050 |
| 81194B | No. 2 headlight upper protective ring on the left | 81194-42060 |
| 81195A | Right headlight lower protection ring | 81195-42050 |
| 81195D | Right No. 2 headlight lower protection ring | 81195-42060 |
| 81196A | Left headlight lower protection ring | 81196-42050 |
| 81196D | No. 2 left headlight lower protection ring | 81196-42060 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15011 |
| 81515B | Front turn signal lamp holder | 90075-60028 |
