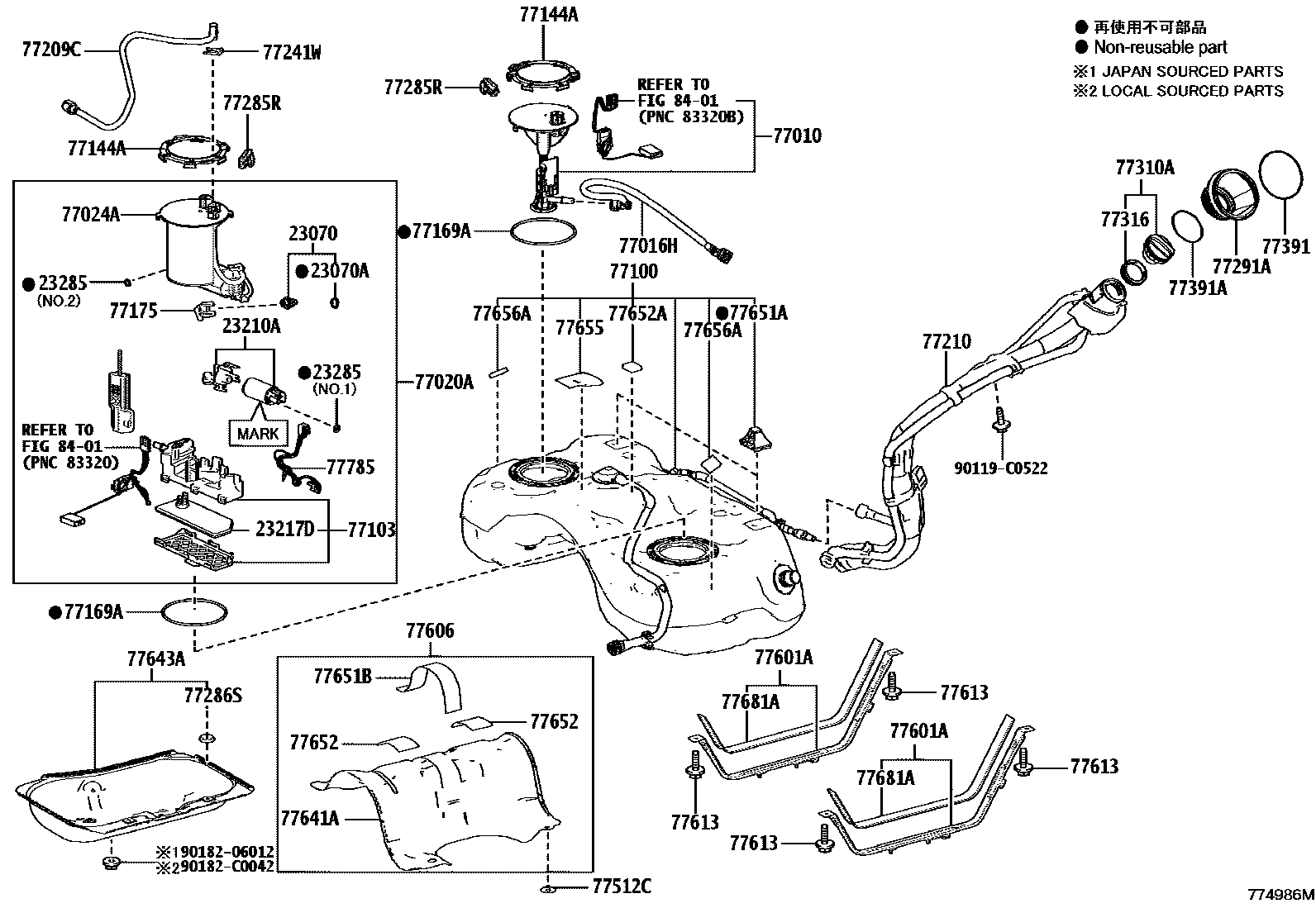

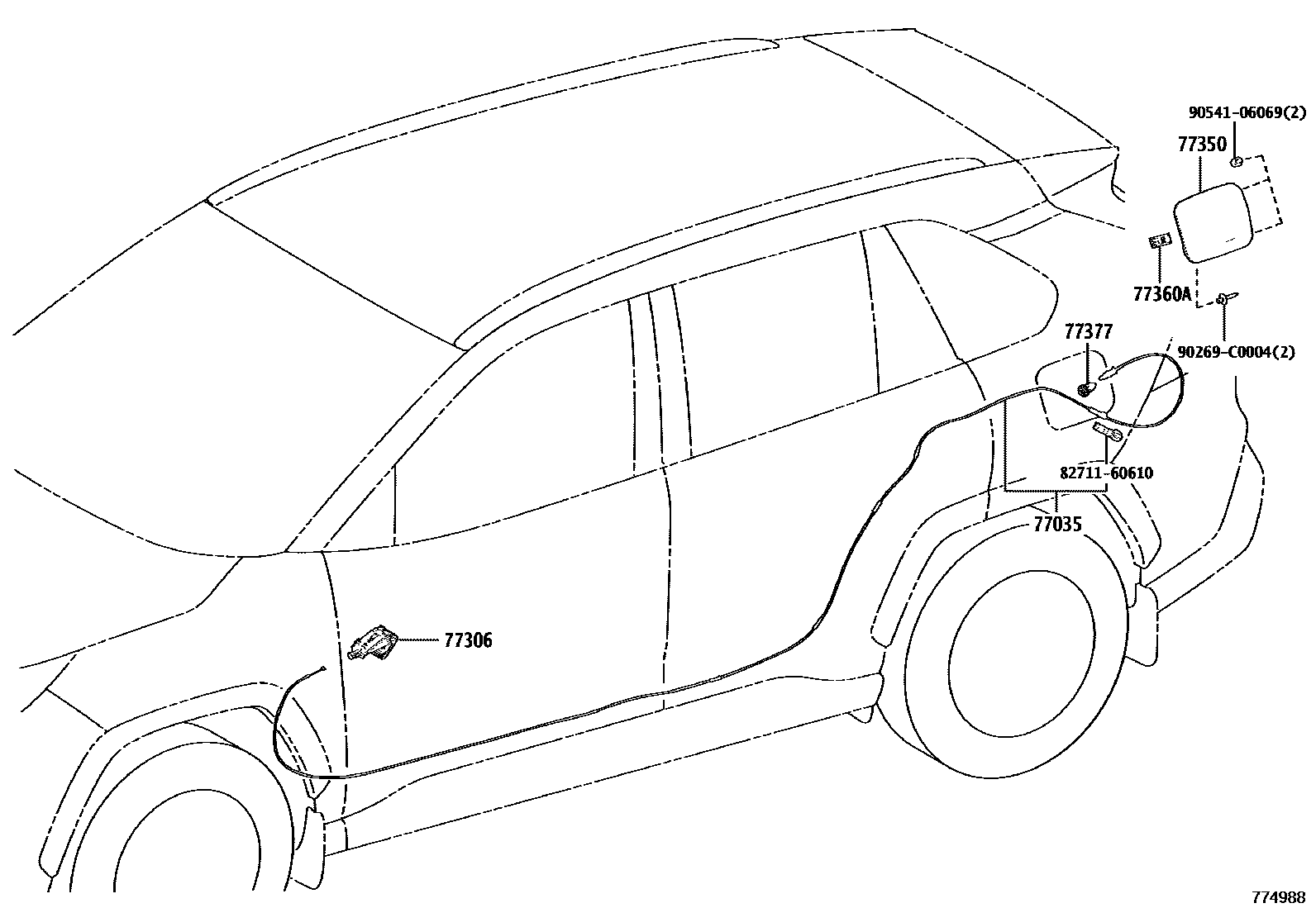

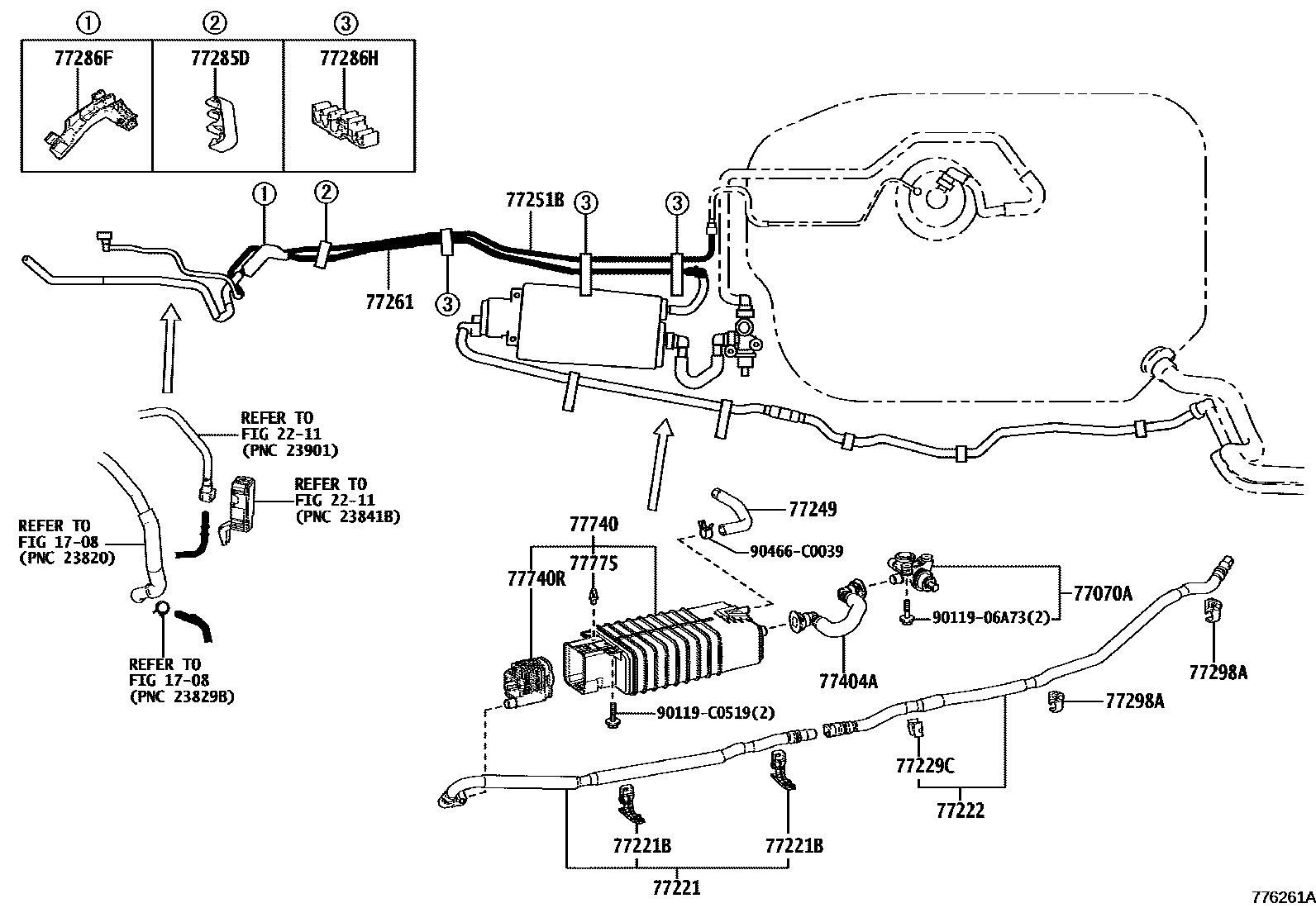

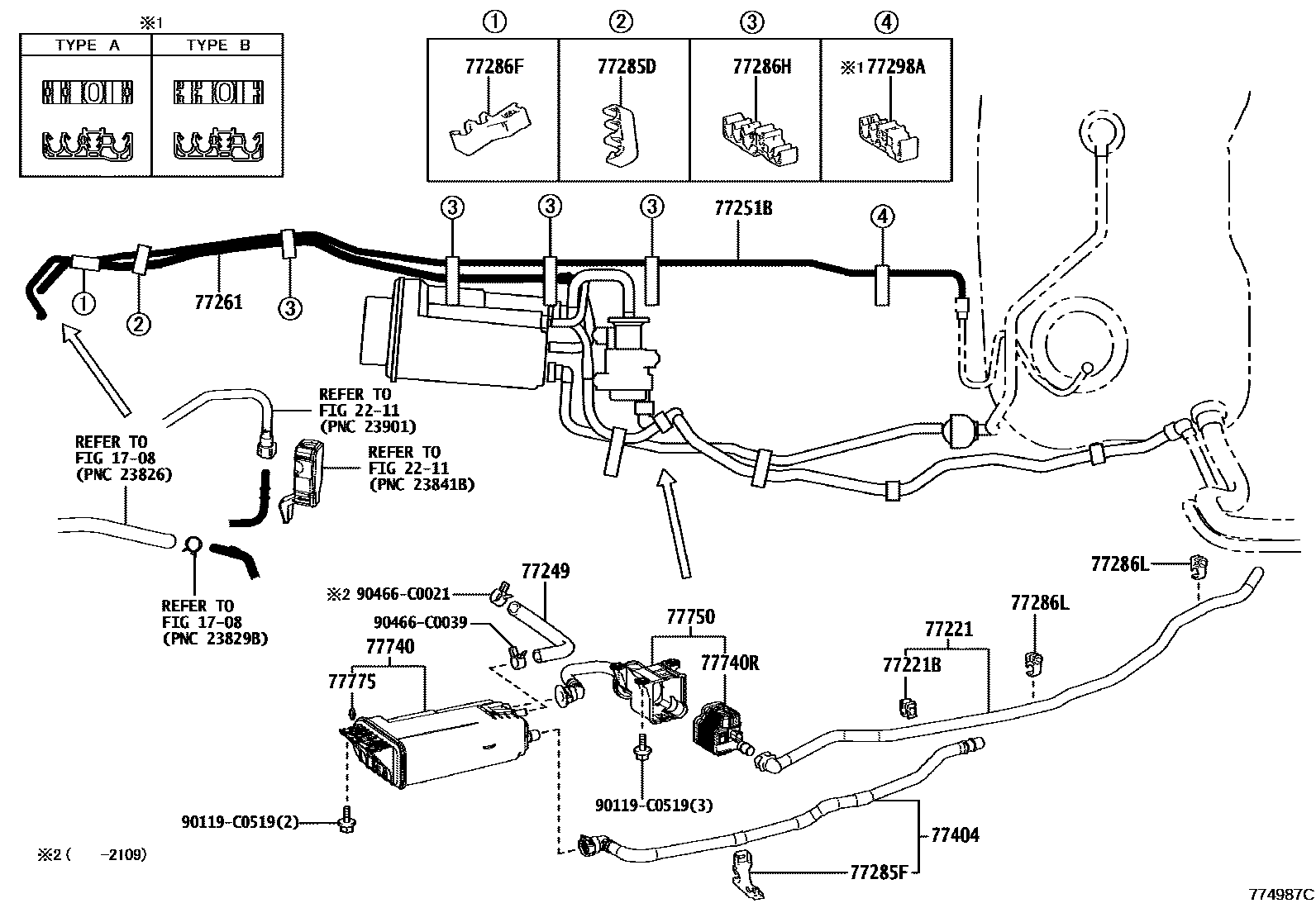

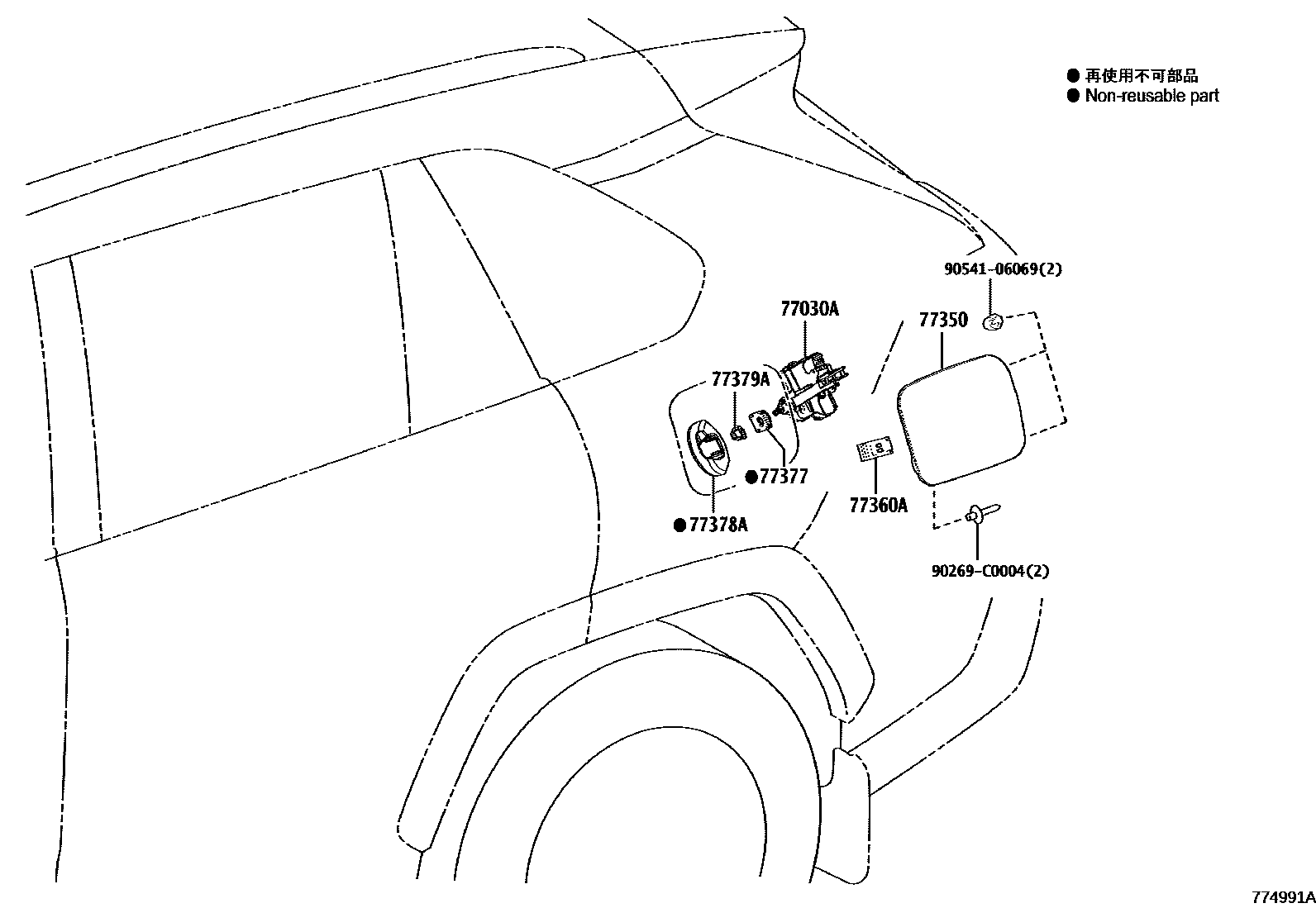

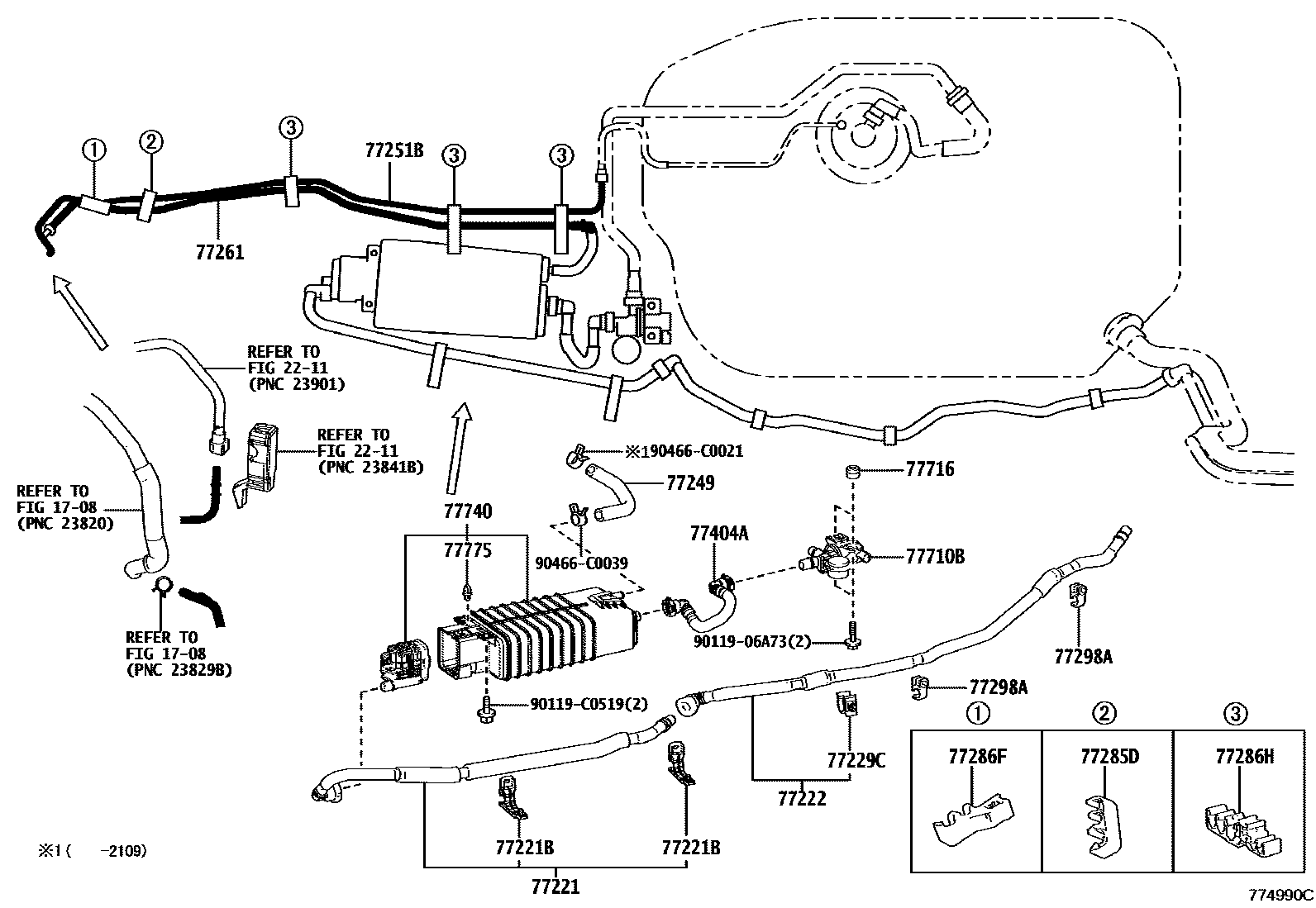

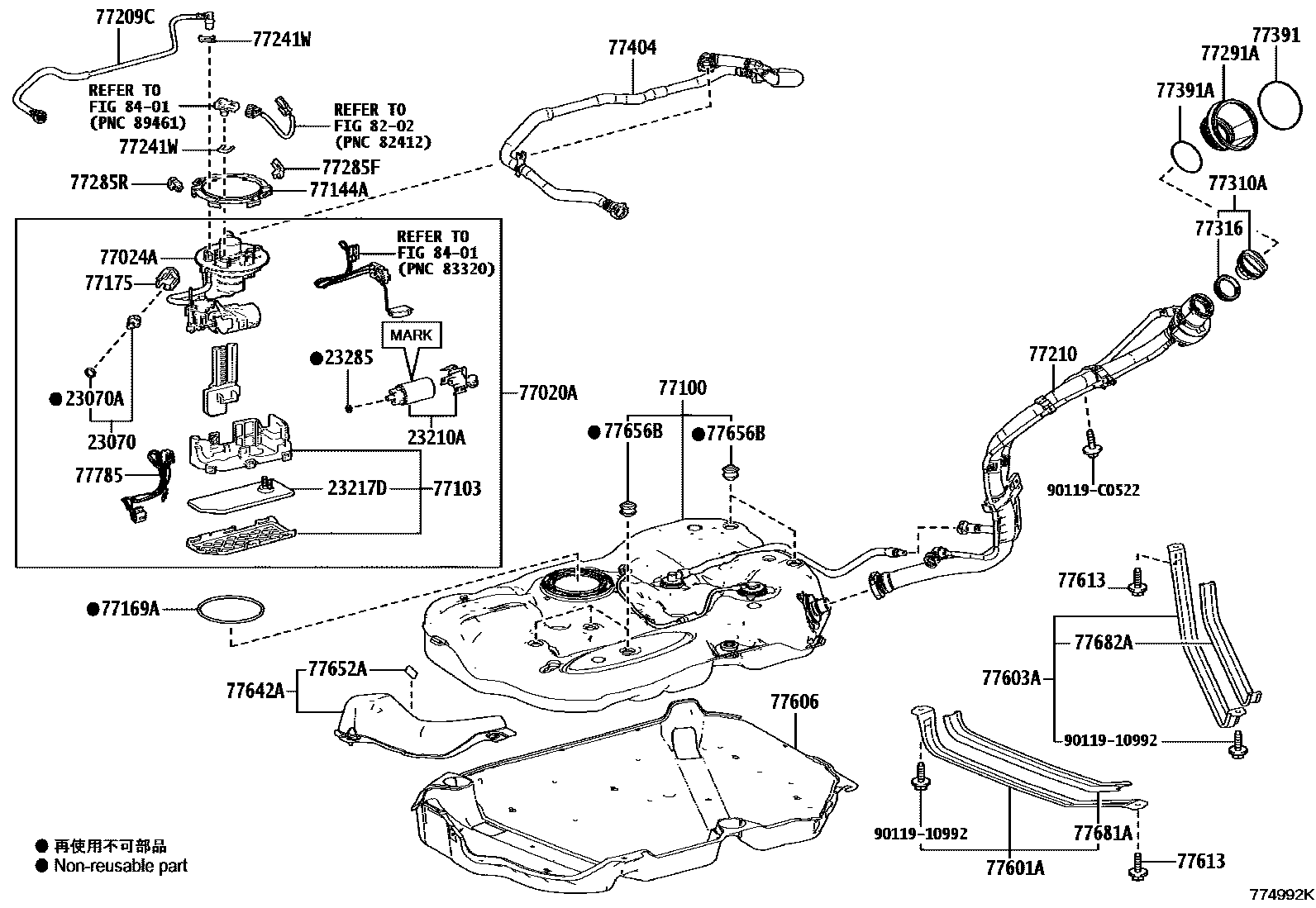

Toyota RAV4 燃油箱和燃油管 — Figure 7751
Toyota RAV4 EPC diagram 7751, 燃油箱和燃油管, with 7 images and 71 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23070 | Main fuel valve assembly | 23070-24010 · 23070-F0030 |
| 23070A | No. 1 O-ring (for main fuel valve) | 90301-15024 |
| 23210A | Water pump assembly with motor and bracket | 23210-F0010 · 23210-F2010 |
| 23217D | fuel pump filter | 23217-24020 |
| 23285 | O-ring | 90301-C0073 · 90301-C0082 |
| 77010 | Fuel tank vent pipe assembly | 77010-0R020 |
| 77016H | Fuel return ventilation pipe sub-assembly | 77016-0R030 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-0R070 · 77020-0R090 · 77020-0R091 |
| 77024A | Fuel absorber sub-assembly | 77024-0R060 · 77024-0R080 |
| 77030A | Fuel filler cap lock assembly with motor | 77030-02100 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-0R070 · 77035-0R140 |
| 77070A | Closed fuel tank valve assembly | 77070-0R010 · 77070-48011 |
| 77100 | fuel tank assembly | 77001-0R120 · 77001-0R140 |
| 77103 | Auxiliary fuel tank sub-assembly | 77103-0A010 · 77103-0R070 |
| 77144A | Fuel pump instrument fixture | 77144-F4020 |
| 77169A | Fuel suction pipe fixed gasket | 77169-0R050 · 77169-47030 |
| 77175 | No. 2 oil suction pipe bracket | 77175-F4020 |
| 77209C | Fuel tank main pipe sub-assembly | 77209-0R080 · 77209-0R100 |
| 77210 | Fuel tank filler pipe assembly | 77210-0E270 · 77210-0E280 · 77210-0R080 · 77210-0R100 |
| 77221 | No. 1 fuel evaporation vent pipe | 77227-0R060 · 77227-0R070 |
| 77221B | Snorkel clamp | 77285-42190 · 77285-42200 |
| 77222 | No. 2 fuel evaporation vent pipe | 77227-0R110 |
| 77229C | Snorkel clamp | 77197-42010 |
| 77241W | Pipe joint clip | 77241-02020 · 77241-33011 |
| 77249 | fuel drain hose | 77249-0R070 · 77249-0R080 |
| 77251B | main fuel pipe | 77251-0R120 · 77251-0R130 |
| 77261 | Fuel evaporation exhaust pipe sub-assembly | 77261-0R110 |
| 77285D | No. 1 fuel pipe clamp | 77285-0R130 |
| 77285F | No. 1 fuel pipe clamp | 77285-42200 · 77285-42240 |
| 77285R | No. 1 fuel pipe clamp | 77285-0R310 · 77285-30350 |
| 77286F | No. 2 fuel pipe clamp | 77285-0R120 |
| 77286H | No. 3 fuel pipe clamp | 77285-0R110 |
| 77286L | No. 5 fuel pipe clamp | 77285-0R140 |
| 77286S | Fuel tank protective shell cushion | 77286-12110 · 77286-F4040 |
| 77291A | Fuel tank filler pipe cover | 77291-0R060 |
| 77298A | No. 4 fuel pipe clamp | 77285-0R140 · 77298-07020 · 77298-33120 |
| 77310A | Fuel tank cap assembly | 77300-06110 · 77300-0R010 · 77300-11010 |
| 77316 | fuel tank cap gasket | 77316-0F020 · 77316-75020 |
| 77350 | Fuel filler cap assembly | 77350-0R060 · 77350-0R070 |
| 77360A | Fuel filler cap spring assembly | 77360-35040 |
| 77377 | Fuel filler cap lock retainer | 77377-02100 · 77377-02190 |
| 77378A | Fuel filler cap lock cover | 77378-0R020 |
| 77379A | Fuel filler cap opening lever spacer | 77379-0R010 |
| 77391 | fuel inlet ring | 77391-0R050 |
| 77391A | fuel inlet ring | 77391-0R030 |
| 77404 | Fuel tank vent hose sub-assembly | 77404-0E140 · 77404-0R100 · 77404-0R180 |
| 77404A | Fuel tank vent hose sub-assembly | 77404-0E130 · 77404-0R130 |
| 77512C | fuel tank bracket | 77512-07010 · 77512-35140 |
| 77601A | No. 1 fuel tank strap sub-assembly | 77601-0R060 · 77601-0R070 |
| 77603A | No. 2 fuel tank strap sub-assembly | 77602-0R050 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-0R040 · 77606-0R120 · 77606-42050 |
| 77613 | Fuel tank strap fixing bolts | 90119-10A05 |
| 77641A | No. 1 fuel tank protective shell | 77641-0R100 |
| 77642A | No. 2 fuel tank protective shell | 77642-0R040 · 77642-42070 |
| 77643A | No. 3 fuel tank protective shell | 77606-0R060 |
| 77651A | No. 1 fuel tank liner | 77651-07010 |
| 77651B | fuel tank liner | 77651-35060 |
| 77652 | No. 1 fuel tank liner | 77652-12100 |
| 77652A | No. 2 fuel tank liner | 77652-07020 · 77652-42040 |
| 77655 | No. 3 fuel tank liner | 77652-12100 |
| 77656A | No. 4 fuel tank liner | 77652-47010 |
| 77656B | No. 6 fuel tank liner | 77656-07010 |
| 77681A | Fuel tank strap seat | 77681-0R110 · 77682-0R040 |
| 77682A | No. 2 fuel tank strap seat | 77682-0R050 |
| 77710B | Fuel tank solenoid valve main valve assembly | 77710-47020 |
| 77716 | Fuel solenoid valve main bracket | 77716-42010 |
| 77740 | Carbon canister assembly | 77740-07030 · 77740-07031 · 77740-F4020 |
| 77740R | Leak detection pump sub-assembly | 90910-CF002 |
| 77750 | Carbon canister assembly | 77730-0R020 |
| 77775 | Carbon canister outlet duct | 77775-33010 |
| 77785 | fuel pump wiring harness | 77785-06190 · 77785-42060 |
