Toyota RAV4 徽标和铭牌 — Figure 7551

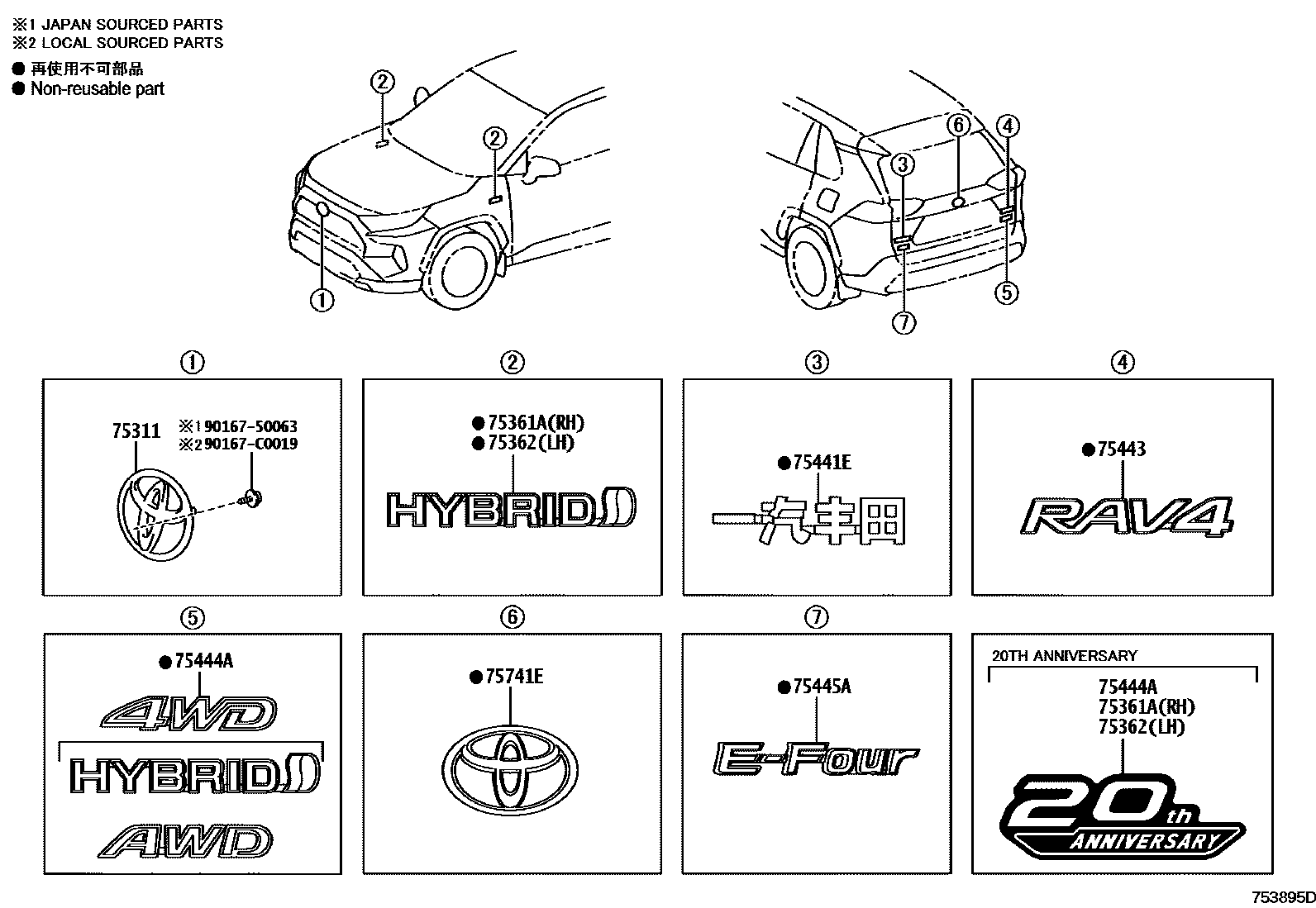

Toyota RAV4 EPC diagram 7551, 徽标和铭牌, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 90975-02160 · 90975-02161 · 90975-C2022 · 90975-C2023 · 90975-C2026 · 90975-C2027 |
| 75361A | Front fender No. 1 nameplate | 75361-0R020 · 75444-YY270 |
| 75362 | Front fender No. 2 nameplate | 75362-0R020 · 75444-YY260 |
| 75441E | Back door No. 1 nameplate | 75441-0R060 · 75441-0R100 · 75441-0R101 |
| 75443 | No. 3 nameplate on back door | 75431-0R110 |
| 75444A | No. 4 nameplate on back door | 75444-0R120 · 75444-0R180 · 75444-YY280 · 75445-0R020 |
| 75445A | No. 5 nameplate on back door | 75444-0R130 |
| 75741E | logo | 75403-0R030 · 90975-C2017 |
