Toyota RAV4 battery holder — Figure 7454

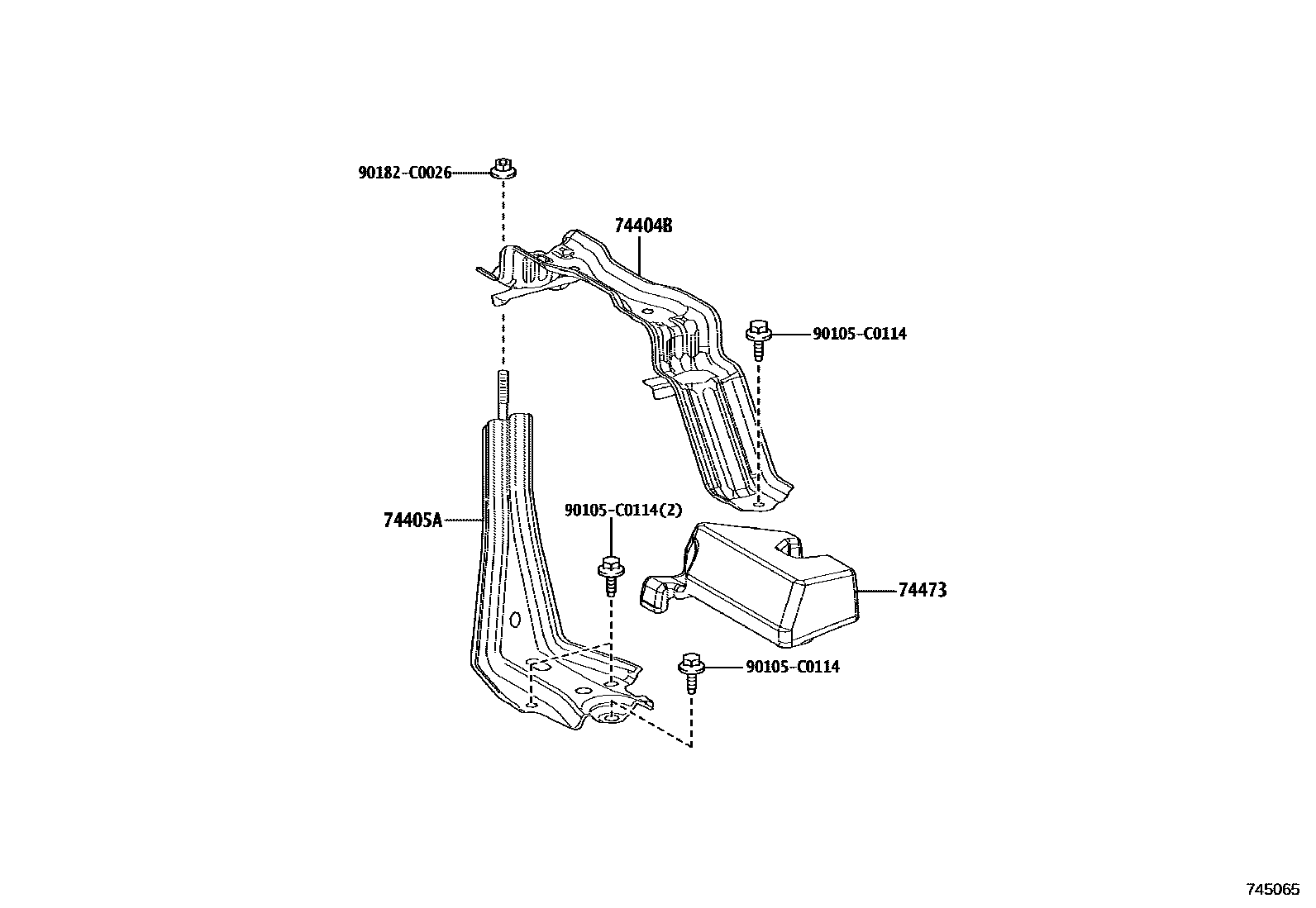

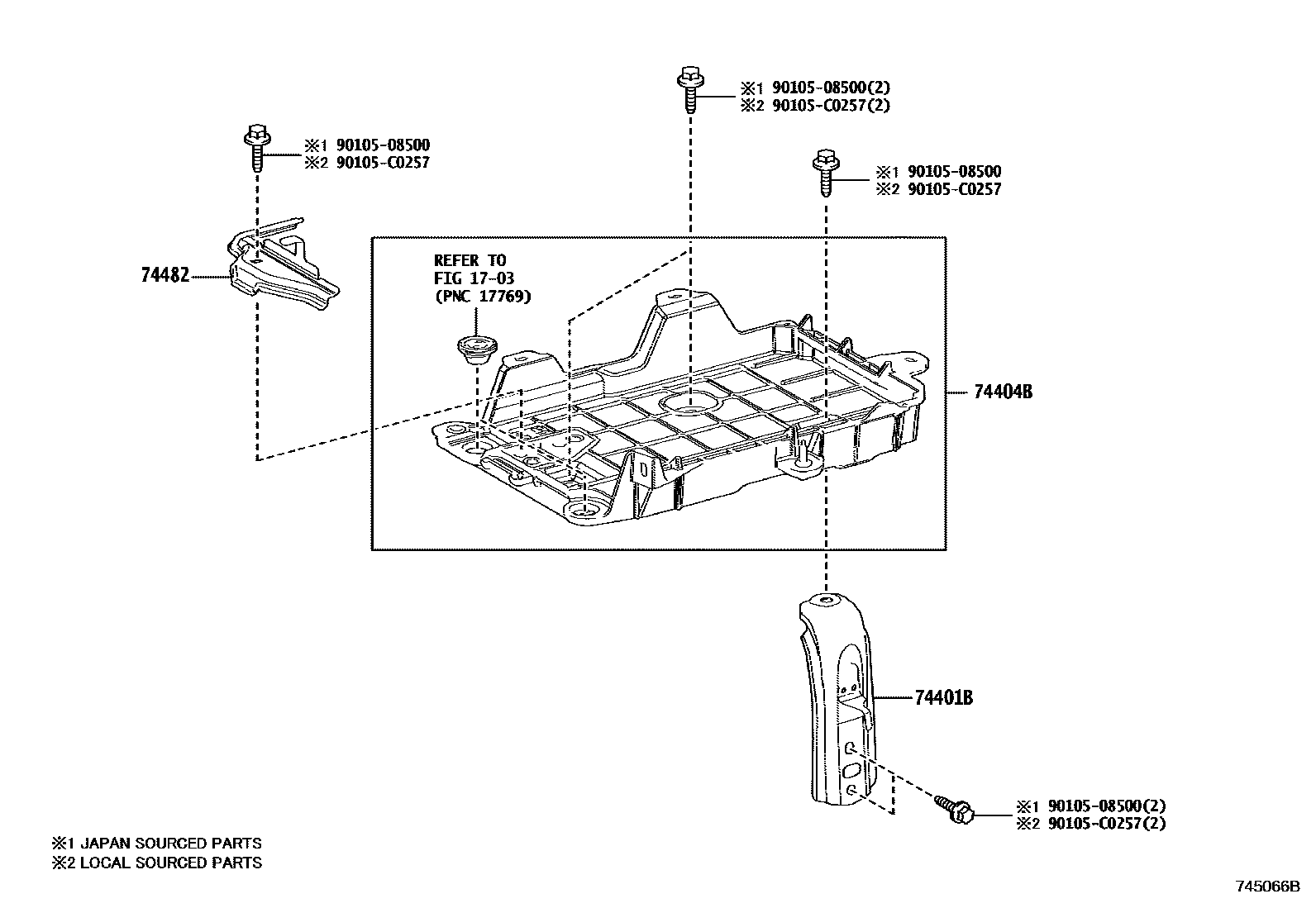

Toyota RAV4 EPC diagram 7454, battery holder, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74401B | Battery bracket bracket sub-assembly | 74401-07010 |
| 74404B | Battery clip sub-assembly | 74404-07030 · 74440-0R020 |
| 74405A | Battery upper right bracket sub-assembly | 74405-0R020 |
| 74473 | Battery separator | 74473-0R010 |
| 74482 | No. 2 battery clip | 74482-07010 |
