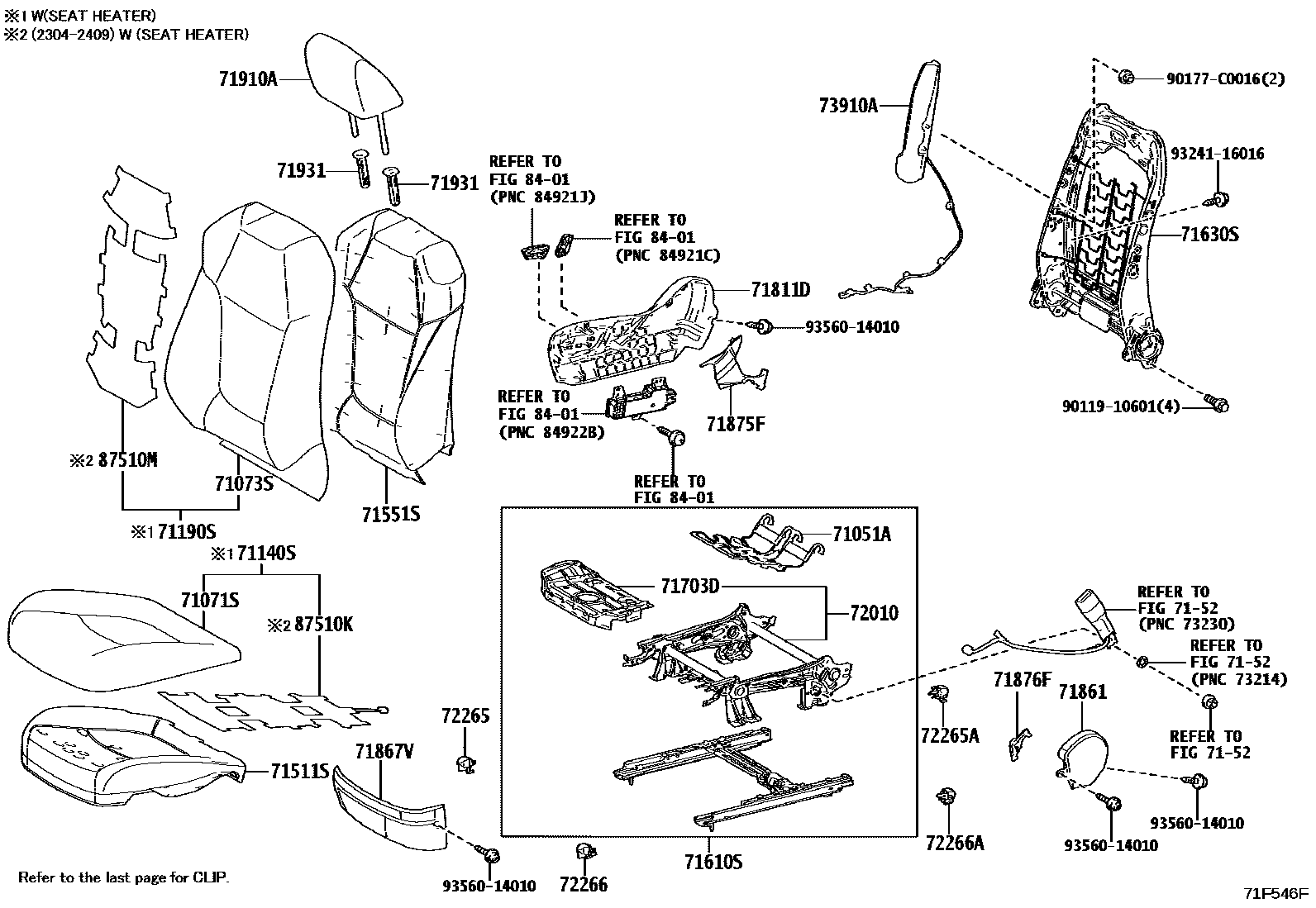

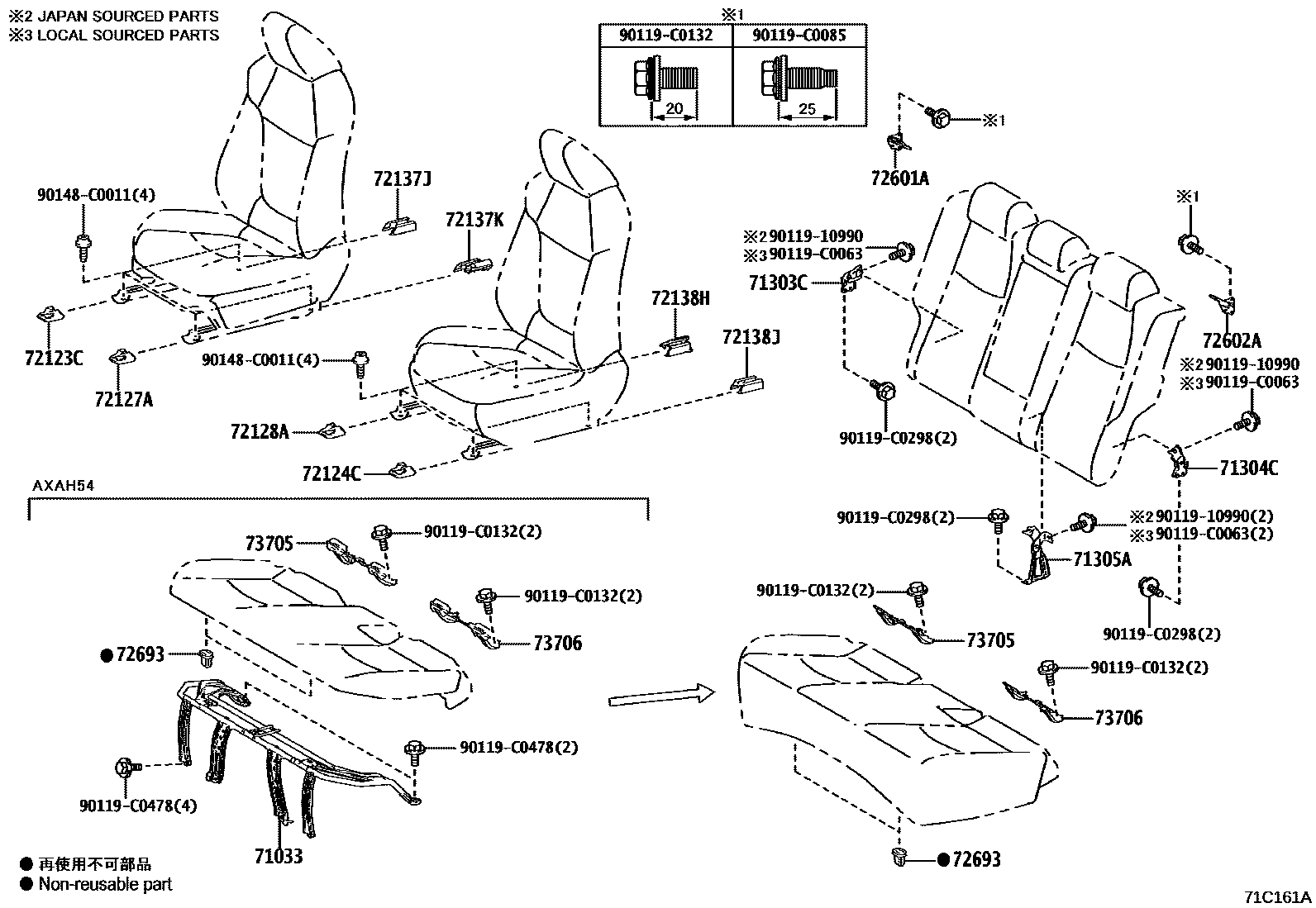

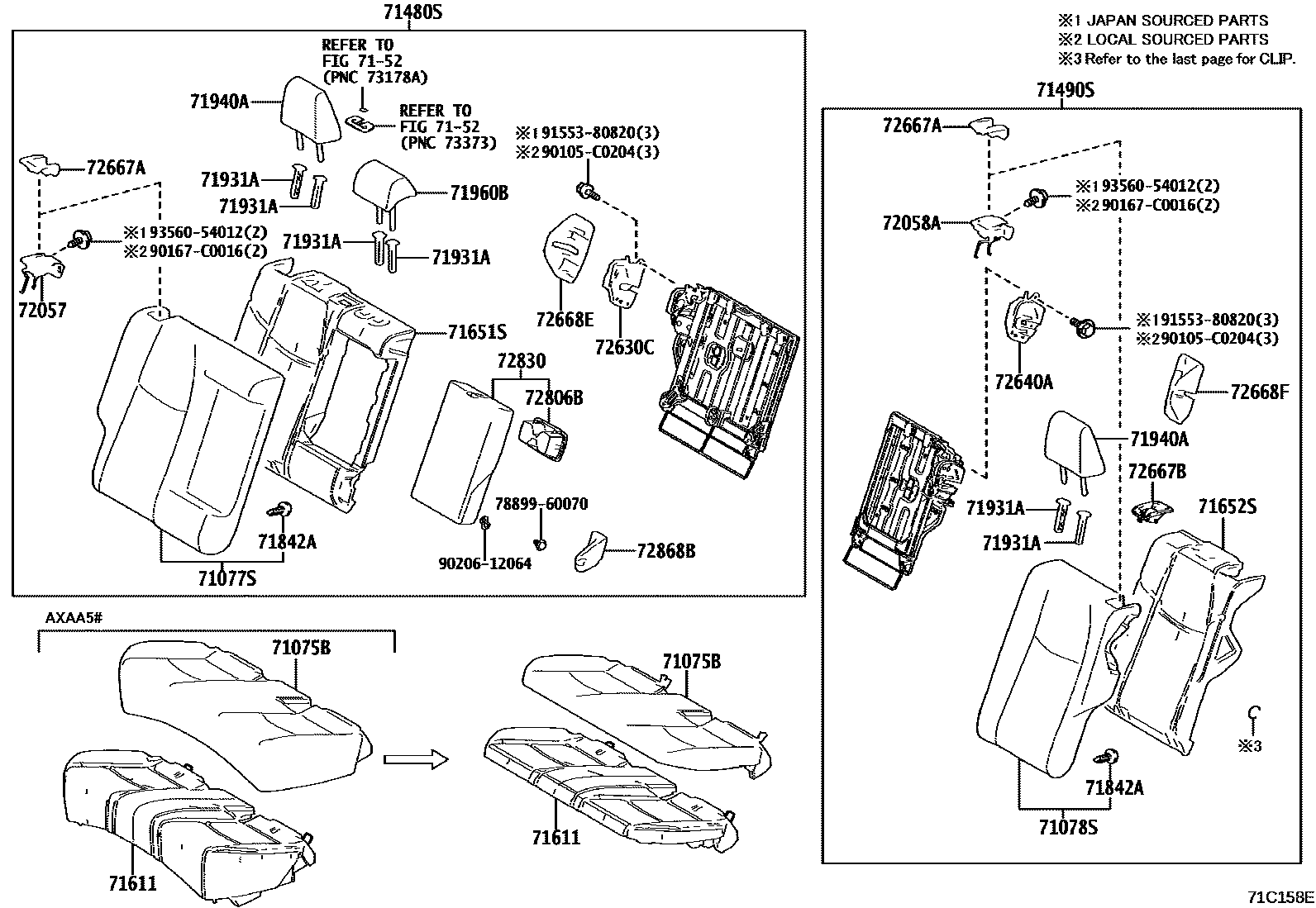

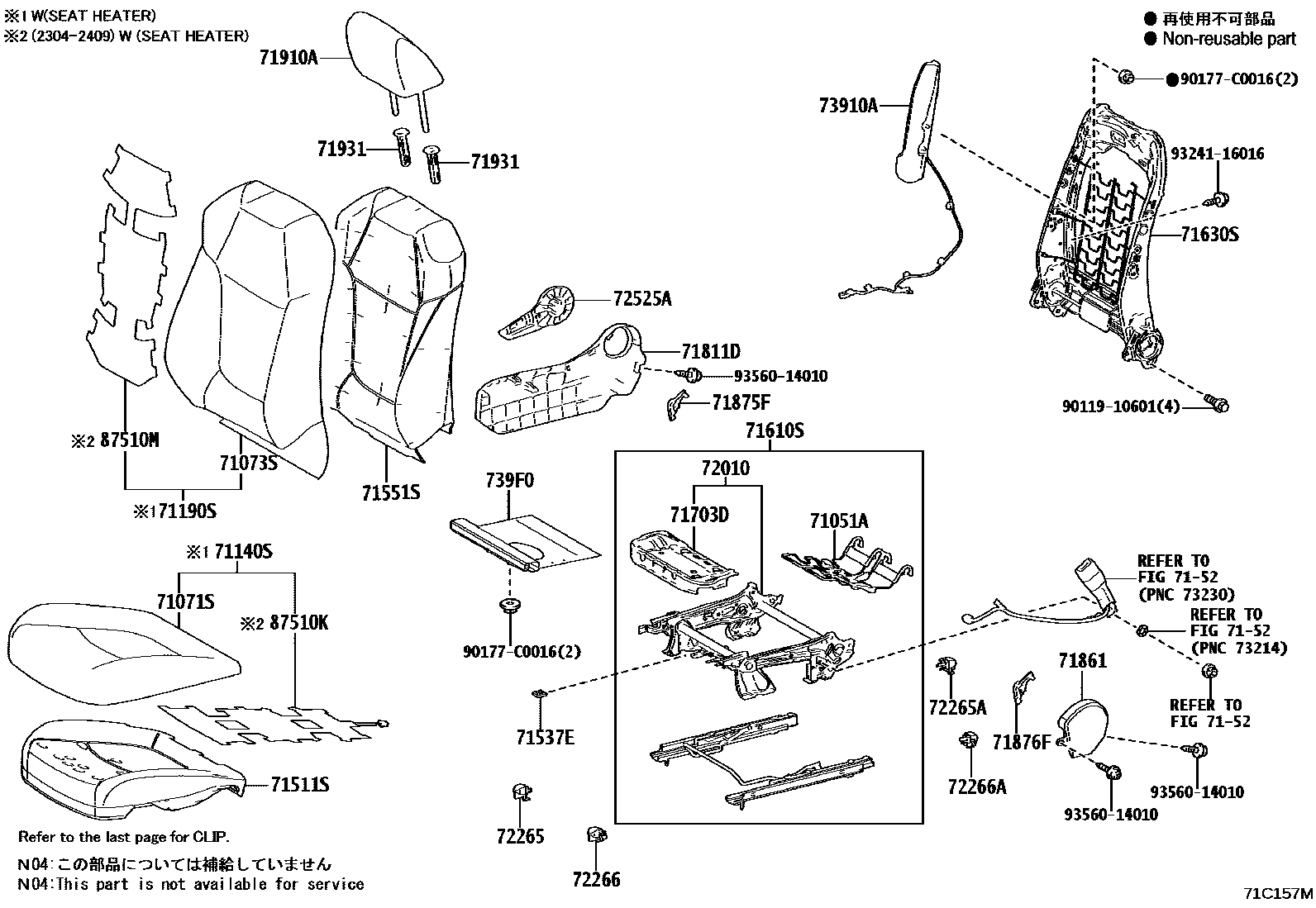

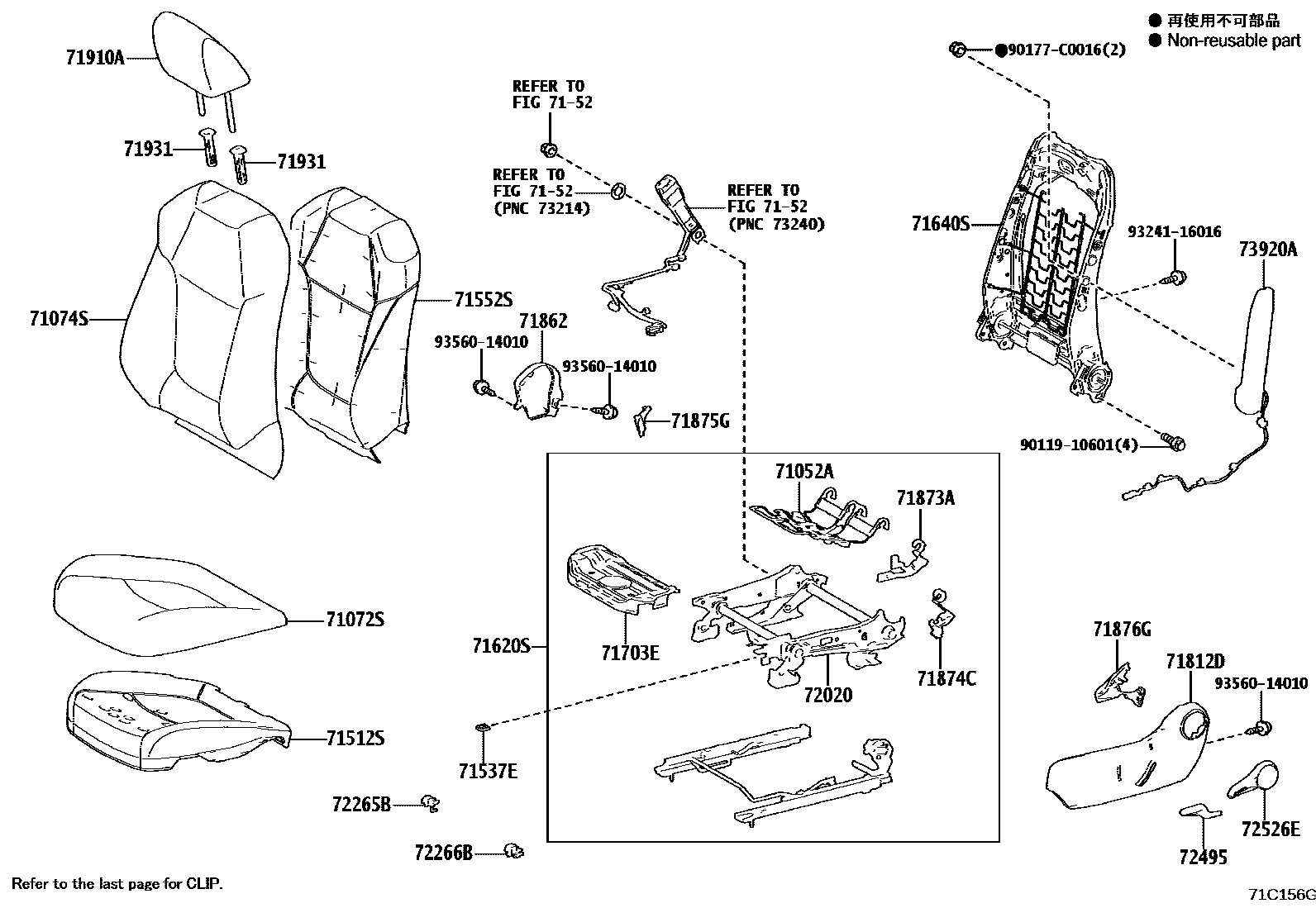

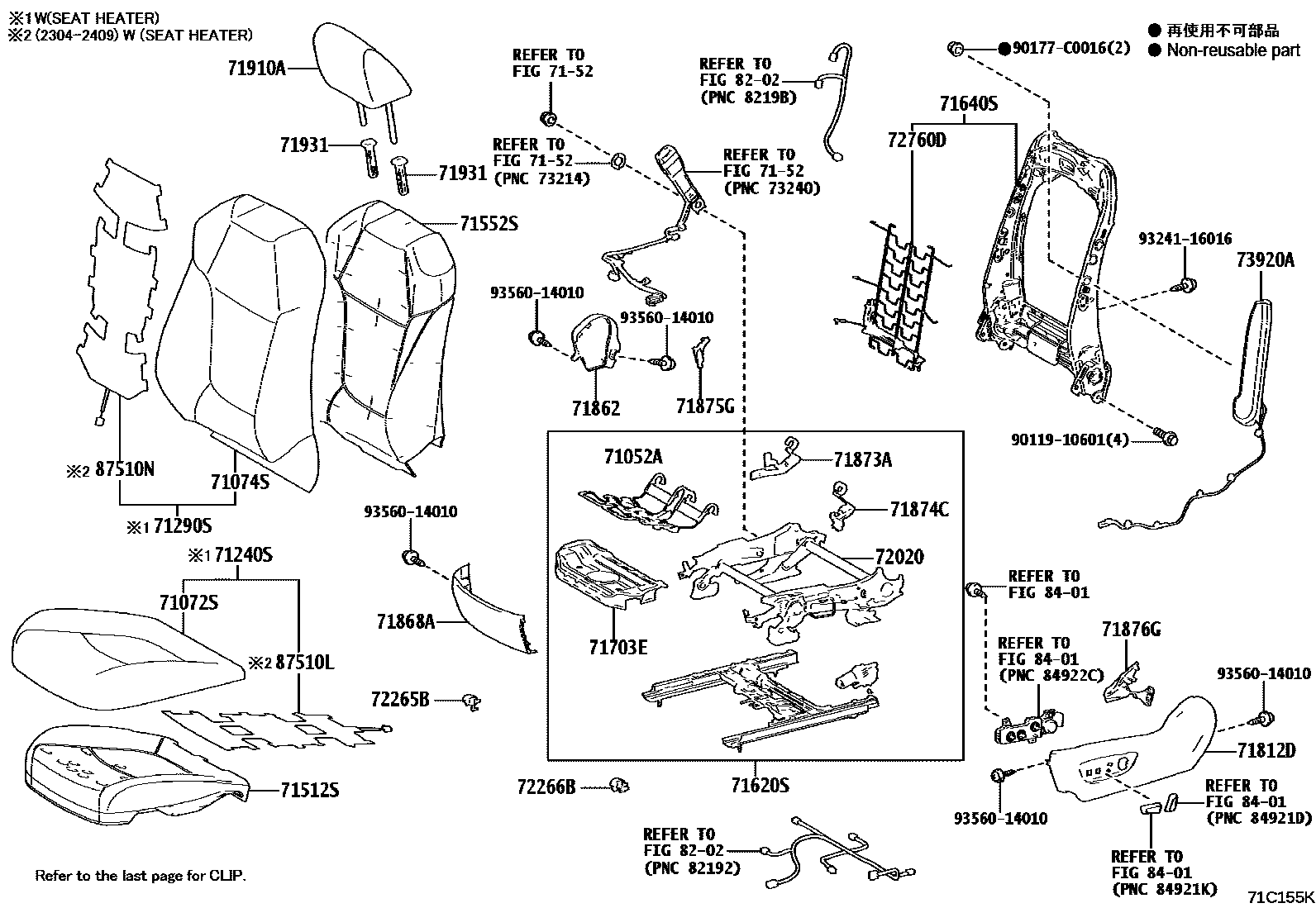

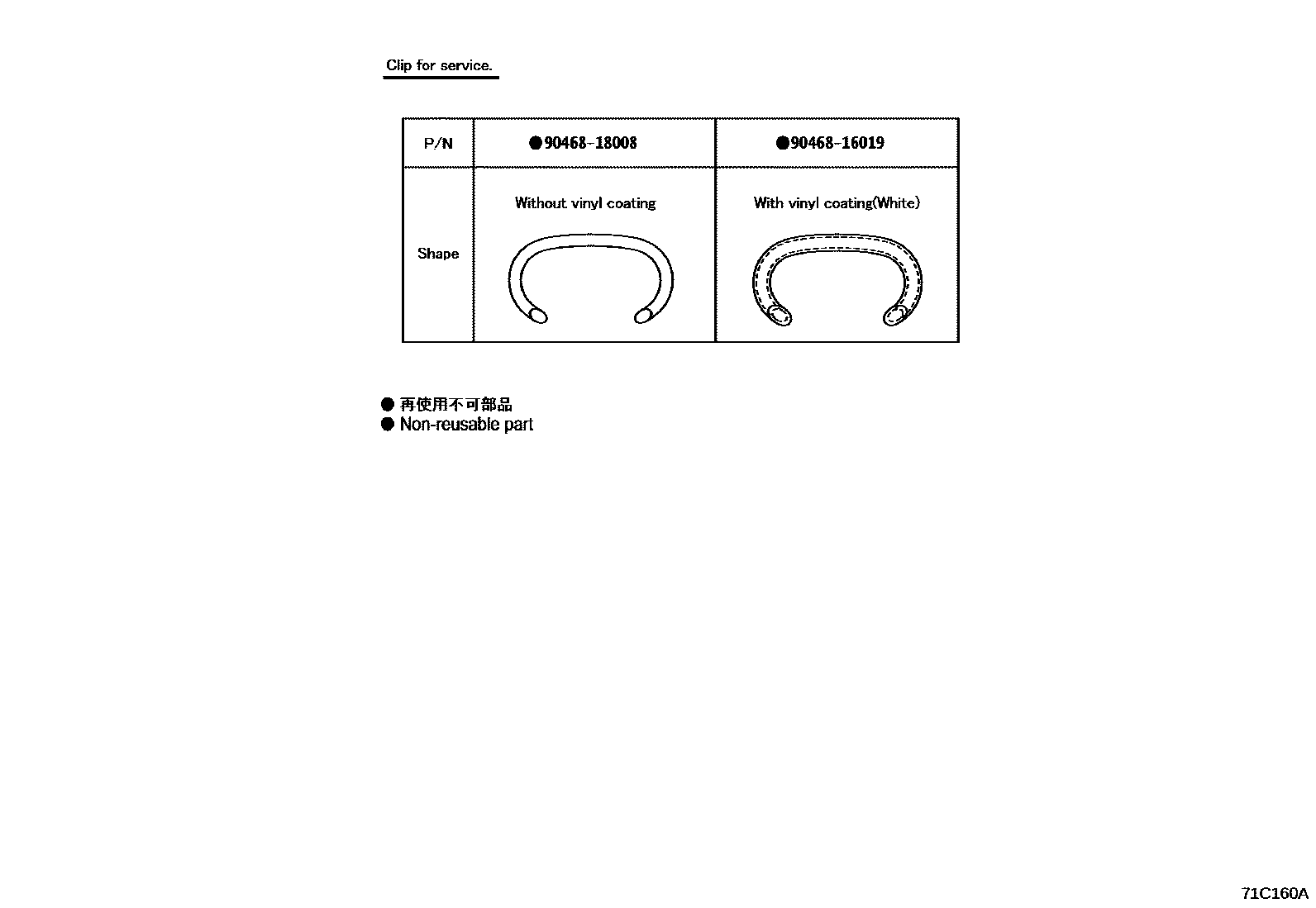

Toyota RAV4 座椅和座椅滑轨 — Figure 7151
Toyota RAV4 EPC diagram 7151, 座椅和座椅滑轨, with 7 images and 66 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71033 | Rear seat cushion and leg sub-assembly | 71033-0R020 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-0R060 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-0R060 |
| 71071S | Front right seat cushion cover (for split seats) | 71071-YK111 · 71071-YK900 |
| 71072S | Front left seat cushion cover (for split seats) | 71072-YK110 · 71072-YK900 |
| 71073S | Front right seat back cover (for split seats) | 71073-YK110 · 71073-YK900 |
| 71074S | Front left seat back cover (for split seats) | 71074-YK110 · 71074-YK900 |
| 71075B | Rear seat cushion cover (for bench seat) | 71075-YK120 |
| 71077S | Right rear seat back cover (for split seats) | 71077-YK140 |
| 71078S | Rear left seat back cover (for split seats) | 71078-YK070 |
| 71140S | Front right seat cushion cover | 71071-YK901 |
| 71190S | Front seat back right side cover | 71073-0R901 · 71073-YK900 · 71073-YK901 |
| 71240S | Front left seat cushion cover | 71072-YK900 |
| 71290S | Front left seat back cover | 71074-0R901 · 71074-YK900 · 71074-YK901 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-0R030 |
| 71304C | Rear left seat back hinge sub-assembly | 71304-0R030 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-0R020 |
| 71480S | Rear right seat back assembly (for split seats) | 71480-YK140 |
| 71490S | Rear left seat back assembly (for split seats) | 71490-YK070 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-0R090 · 71501-0R150 · 71501-0R210 |
| 71512S | Front left seat cushion cushion (for split seats) | 71512-0R190 · 71512-0R200 |
| 71537E | Front seat No. 1 seat cushion protective cover | 71537-0R030 |
| 71551S | Front right seat back cushion (for split seats) | 71551-0R180 |
| 71552S | Front left seat back cushion (for split seats) | 71552-0R230 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-0E500 · 71610-0R110 · 71610-0R150 |
| 71611 | Rear seat cushion cushion | 71611-0R080 · 71611-0R090 · 71611-0R240 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-0R210 · 71620-0R220 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-0E260 · 71630-0R090 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-0R230 · 71640-0R240 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-0R090 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-0R080 |
| 71703D | Right front seat cushion panel sub-assembly | 71703-0E040 · 71703-0R020 |
| 71703E | Left front seat cushion panel sub-assembly | 71703-0R010 |
| 71873A | Front seat cushion lower guard | 71873-0R040 |
| 71874C | Front seat cushion lower guard | 71874-0R060 |
| 72010 | Front right seat adjuster assembly | 72010-0E300 · 72010-0R090 · 72010-0R120 |
| 72020 | Front left seat adjuster assembly | 72020-0R150 · 72020-0R160 |
| 72123C | Front right seat outer slide rail bracket cover | 72123-0R060 |
| 72124C | Front left seat outer slide rail bracket cover | 72123-0R060 |
| 72127A | Front right seat inner slide rail bracket cover | 72127-0R050 |
| 72128A | Front left seat inner slide rail bracket cover | 72127-0R050 |
| 72137J | Front right seat outer slide rail rear cover | 72137-0R040 |
| 72137K | Front right seat inner slide rail rear cover | 72157-0R040 |
| 72138H | Front left seat inner slide rail rear cover | 72158-0R040 |
| 72138J | Front left seat outer slide rail rear cover | 72138-0R030 |
| 72265 | Right seat rail upper rail cover | 72266-0R010 · 72266-0R020 |
| 72265A | Right seat rail upper rail cover | 72265-0R030 · 72265-0R040 |
| 72265B | Right seat rail upper rail cover | 72265-0R030 · 72265-0R040 · 72266-0R010 · 72266-0R020 |
| 72266 | Left seat rail upper rail cover | 72265-0R030 · 72265-0R040 |
| 72266A | Left seat rail upper rail cover | 72266-0R010 · 72266-0R020 |
| 72266B | Left seat rail upper rail cover | 72265-0R030 · 72265-0R040 · 72266-0R010 · 72266-0R020 |
| 72601A | Right rear seat back lock sub-assembly | 72601-0R020 |
| 72602A | Rear left seat back lock sub-assembly | 72602-0R020 |
| 72630C | Rear right seat back lock assembly | 72630-0R020 · 72630-0R021 · 72630-42010 |
| 72640A | Rear left seat back lock assembly | 72640-0R020 · 72640-0R021 · 72640-42010 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72760D | Left lumbar support adjuster assembly | 72760-0R060 |
| 73705 | Child restraint seat anchor right side bracket sub-assembly | 73705-0R030 · 73705-0R070 |
| 73706 | Child restraint seat anchor left bracket sub-assembly | 73706-0R010 · 73706-0R030 |
| 73910A | Front right seat airbag assembly | 73910-0R070 |
| 73920A | Front left seat airbag assembly | 73920-0R070 |
| 739F0 | Front right seat cushion air bag assembly | 739F0-0R030 |
| 87510K | Front right seat cushion heater assembly | 87510-0R210 · 87510-0R300 |
| 87510L | Front left seat cushion heater assembly | 87510-0R210 |
| 87510M | Front right seat back heater assembly | 87530-0R090 |
| 87510N | Front left seat back heater assembly | 87530-0R090 |
