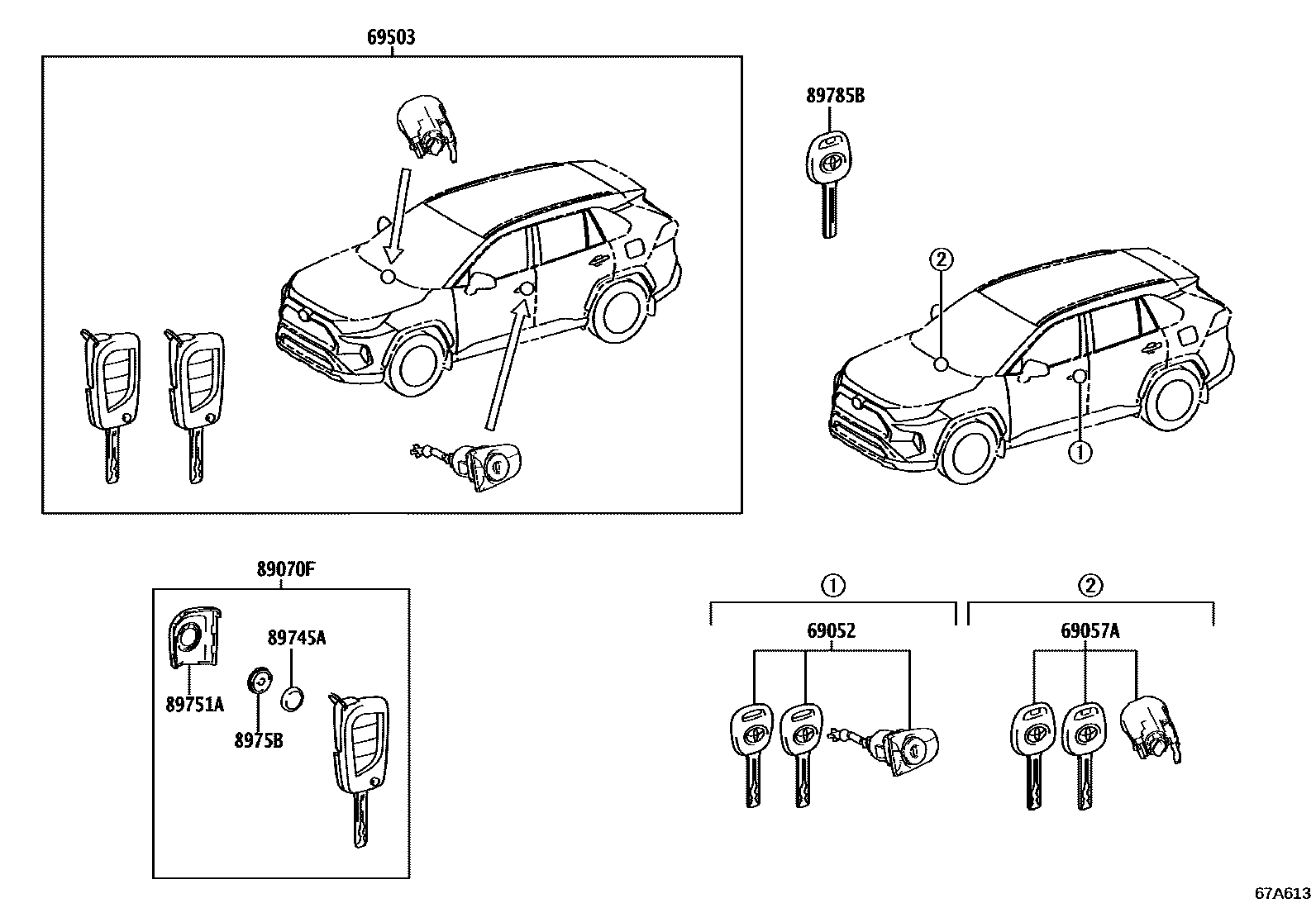

Toyota RAV4 锁芯组件 — Figure 6765
Toyota RAV4 EPC diagram 6765, 锁芯组件, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69052 | Left door lock cylinder and key assembly | 69052-0R130 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-06350 |
| 69503 | Door lock cylinder components | 69005-0R180 · 69005-0R230 · 89704-0R200 |
| 69503B | internal tooth key | 69515-0R130 · 69515-F4060 |
| 89070F | Remote key assembly (internal tooth key) | 89070-0R330 |
| 89072B | Remote key shell assembly (for smart key) | 89072-0R240 · 89072-0R260 · 89072-0R270 · 89072-0R420 · 89072-0R430 · 89072-0R560 · 89072-0R570 |
| 89745A | Transmitter battery | 89745-06010 |
| 89745C | Transmitter battery | 89745-50020 · 89745-K0010 |
| 89751A | Transmitter housing cover | 89751-06130 |
| 8975B | Remote control battery case cover | 8975B-33050 |
| 89785B | transceiver key master transmitter | 89785-06060 |
| 89904B | Electronic key transmitter sub-assembly | 8990H-0R050 · 8990H-0R060 · 8990H-0R070 · 8990H-0R240 · 8990H-0R250 · 8990H-0R400 · 8990H-0R401 · 8990H-0R410 · 8990H-0R411 |
