Toyota RAV4 背门锁和合页 — Figure 6762

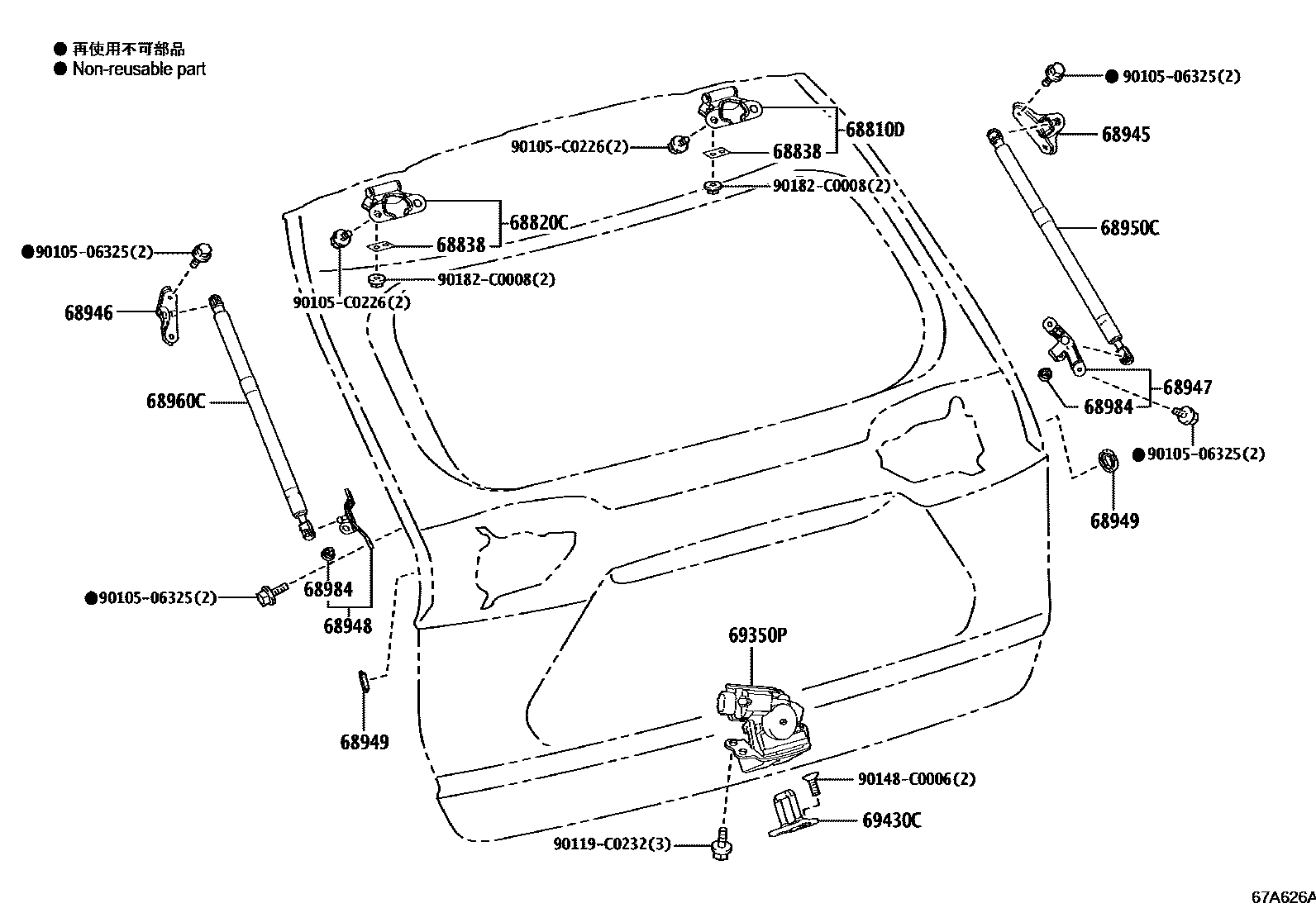

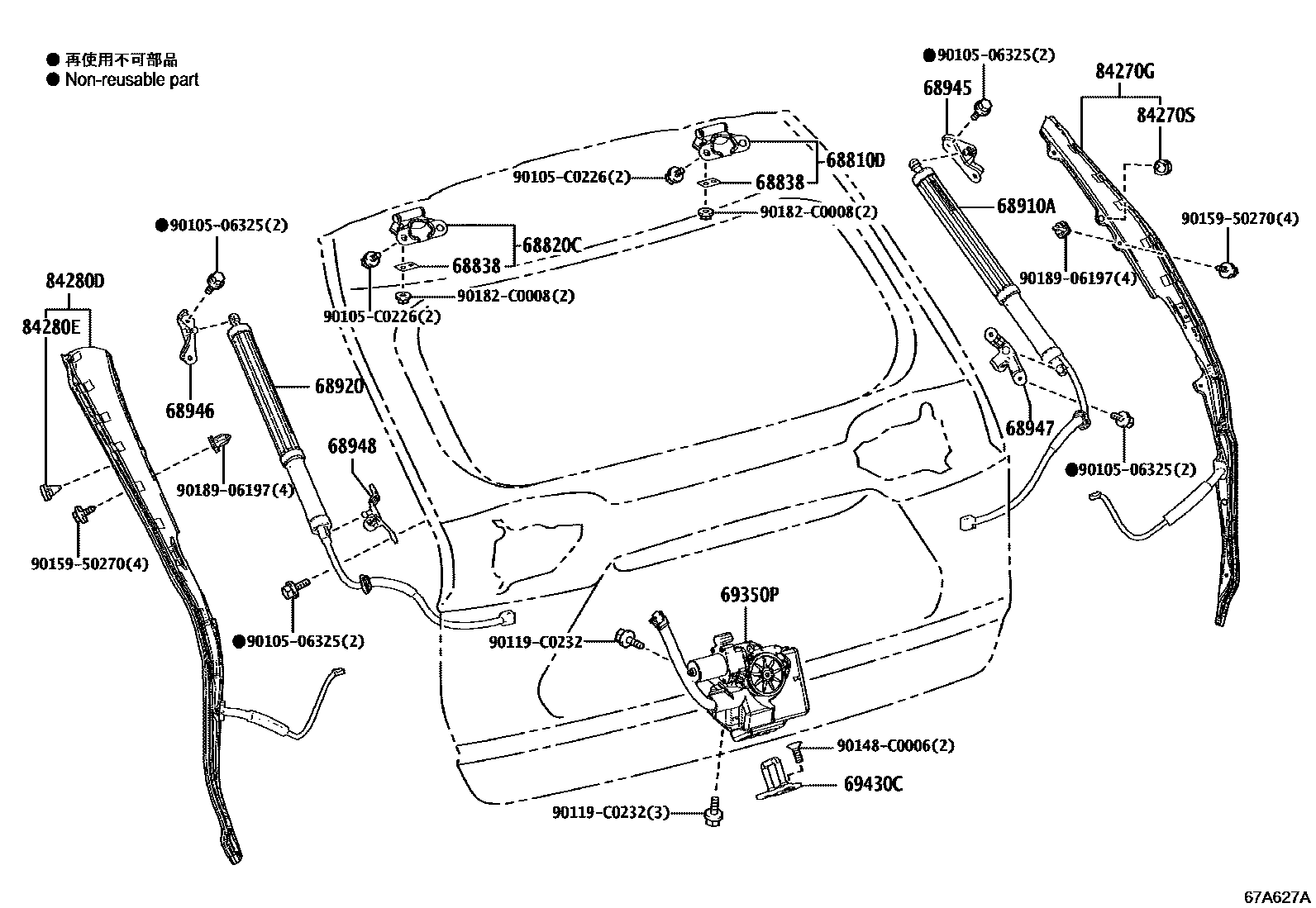

Toyota RAV4 EPC diagram 6762, 背门锁和合页, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68810D | Back door right hinge assembly | 68810-0R100 · 68810-0R110 · 68810-0R120 · 68810-0R121 |
| 68820C | Back door left hinge assembly | 68810-0R100 · 68810-0R110 · 68810-0R120 · 68810-0R121 |
| 68838 | Back door hinge No. 1 gasket | 68838-F4070 · 68838-F4080 · 68838-F4090 |
| 68910A | Right rear door electric unit assembly assembly | 68910-0R060 · 68910-0R150 |
| 68920 | Left rear door electric unit assembly assembly | 68920-0R060 · 68920-0R140 |
| 68945 | Back door right damping stay upper bracket | 68945-0R070 · 68945-0R080 |
| 68946 | Rear door left damping strut upper bracket | 68946-0R070 · 68946-0R080 |
| 68947 | Back door right damping strut lower bracket | 68947-0R060 |
| 68948 | Rear door left damping strut lower bracket | 68948-0R060 |
| 68949 | Rear door support rod bracket seal | 68949-0R020 |
| 68950C | Back door right support rod assembly | 68950-0R080 · 68950-0R081 |
| 68960C | Rear door left bracket assembly | 68960-0R080 · 68960-0R081 |
| 68984 | Back door support rod stop | 68984-0R050 |
| 69350P | Back door with door control light switch lock assembly | 69350-0R060 · 69350-0R070 · 69350-0R120 · 69350-0R121 |
| 69430C | Back door lock assembly | 69430-0R020 |
| 84270G | Electric back door right side sensor assembly | 84270-0R040 |
| 84270S | Catch (sensor on the right side of the electric back door) | 61617-42080 |
| 84280D | Electric back door left sensor assembly | 84280-0R040 |
| 84280E | Catch (electric back door left sensor) | 61617-42080 |
