Toyota RAV4 前门锁和车门把手 — Figure 6753

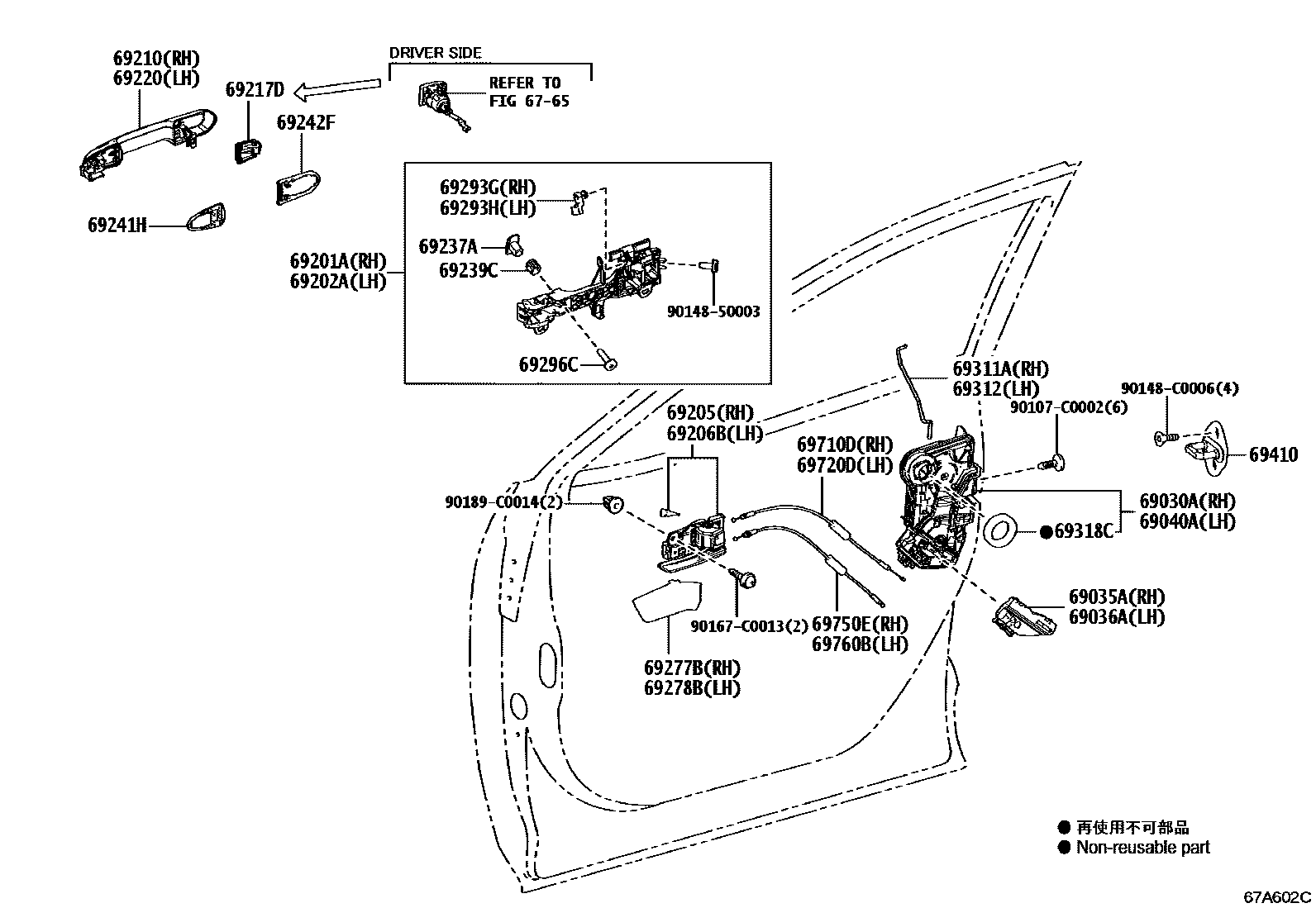

Toyota RAV4 EPC diagram 6753, 前门锁和车门把手, with 1 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69030A | Right front door lock assembly with motor | 69030-02620 |
| 69035A | Right front door lock cover sub-assembly | 69035-02060 |
| 69036A | Left front door lock cover sub-assembly | 69036-02060 |
| 69040A | Left front door door lock assembly with motor | 69040-02590 |
| 69201A | Right front door outer handle frame sub-assembly | 69201-0R080 · 69201-0R090 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-0R060 · 69202-0R070 |
| 69217D | Front door outer handle cover | 69217-0R180 · 69217-0R190 |
| 69237A | Front door handle nut | 69237-0R020 · 69237-F4030 |
| 69239C | Front door handle bushing | 69239-07020 · 69239-0R020 |
| 69241H | Front door exterior handle pad | 69241-0R040 |
| 69242F | Front door rear outer handle pad | 69242-0R040 |
| 69277B | Right front door inner handle frame | 69277-0R030 |
| 69278B | Left front door inner handle frame | 69278-0R030 |
| 69293G | Right front door outer handle buckle | 69293-02090 · 69293-0R030 |
| 69293H | Left front door outer handle buckle | 69293-07010 · 69293-0R040 |
| 69296C | Car door inner handle screws | 69296-0R010 · 69296-0R020 · 90148-C0013 |
| 69311A | Right front door lock opening lever | 69311-0R060 |
| 69312 | Left front door lock opening lever | 69312-0R060 |
| 69318C | door lock harness seal | 69318-51010 |
| 69410 | Front door lock plate assembly | 69410-0D020 |
| 69710D | Right front door lock remote control cable (for opening lever) | 69710-0R070 |
| 69720D | Left front door lock remote control cable (for opening lever) | 69710-0R070 |
| 69750E | Right front door inner locking cable (for locking/unlocking handle) | 69750-0R070 |
| 69760B | Left front door inner locking cable (for locking/unlocking handle) | 69750-0R070 |
