Toyota RAV4 前门板和前门玻璃 — Figure 6751

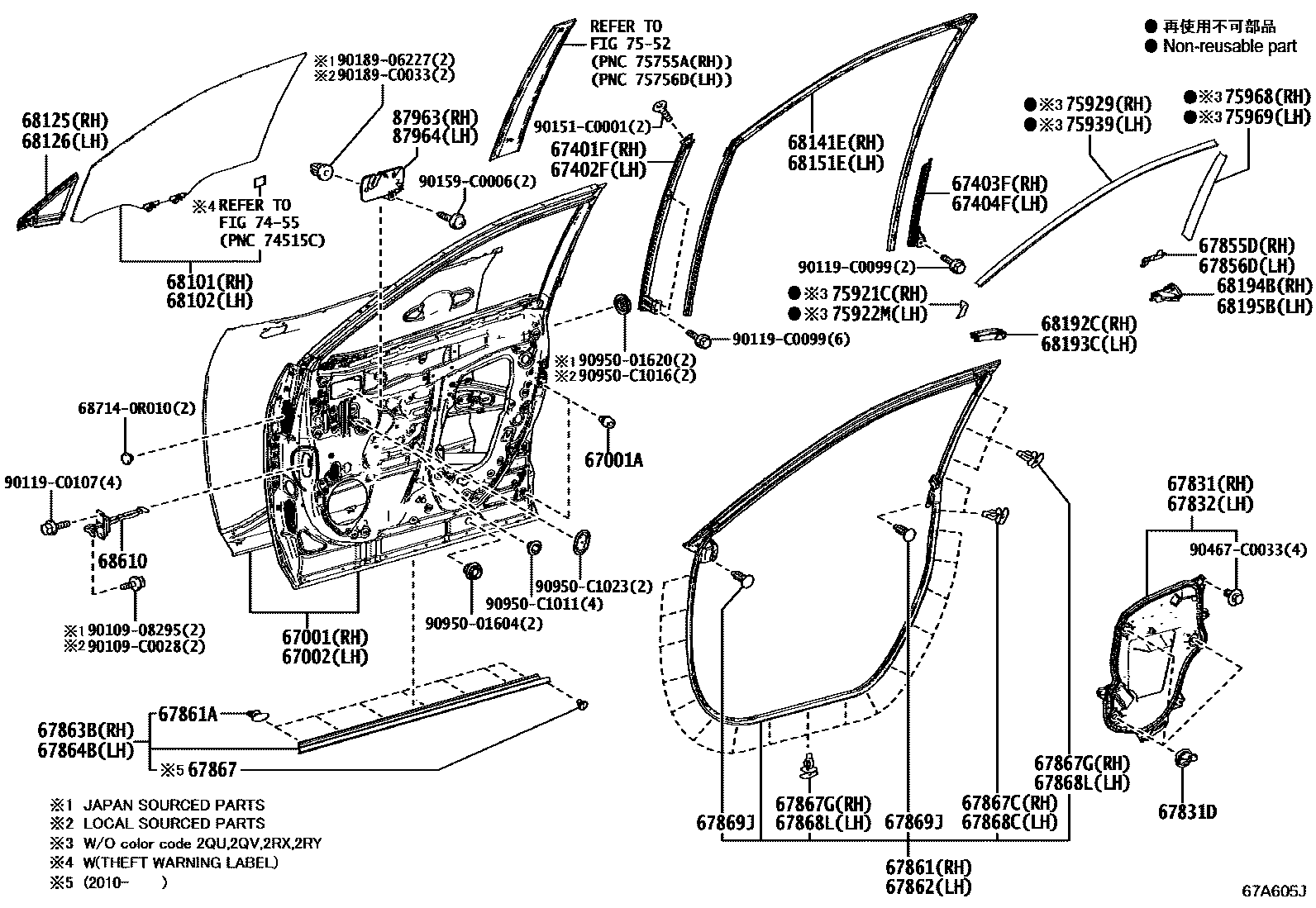

Toyota RAV4 EPC diagram 6751, 前门板和前门玻璃, with 2 images and 49 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-0R100 |
| 67001A | Front door panel cushion | 90541-09137 |
| 67002 | Left front door panel sub-assembly | 67002-0R120 |
| 67401F | Right front door front lower door frame sub-assembly | 67401-0R020 |
| 67402F | Left front door front lower door frame sub-assembly | 67402-0R020 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-0R060 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-0R060 |
| 67601 | Right front door decorative panel sub-assembly | 67610-YK070 |
| 67601B | Catch (for front door trim panel) | 90467-C0033 |
| 67602 | Left front door decorative panel sub-assembly | 67620-YK070 |
| 67663D | Right door frame decorative strip | 67663-0R040 |
| 67664C | Left door frame decorative strip | 67664-0R040 |
| 67831 | Right front door access hole cover | 67831-0R070 |
| 67831D | Catch (for front door access hole cover) | 67869-F4020 |
| 67832 | Left front door access hole cover | 67832-0R070 |
| 67855D | Right front door panel protector | 67855-0R020 |
| 67856D | Left front door panel protector | 67856-0R020 |
| 67861 | Right front door seal | 67861-0R060 |
| 67861A | Fixing piece (for front door sealing strip) | 67867-12150 |
| 67862 | Left front door seal | 67862-0R060 |
| 67863B | Right front door seal No. 2 | 67863-0R050 · 67863-0R051 |
| 67864B | Left front door seal No. 2 | 67864-0R040 · 67864-0R041 |
| 67867 | Car door seal strip clip | 67869-26050 |
| 67867C | Right front door seal strip fixing | 67867-0D070 · 67867-12150 |
| 67867G | Right door sealing strip fixing | 67867-12150 |
| 67868C | Left front door seal strip fixing | 67867-0D070 · 67867-12150 |
| 67868L | Left door seal strip fixing | 67867-12150 · 67868-0D040 |
| 67869J | Front door seal strip clip | 67869-26050 |
| 68101 | Right front door glass sub-assembly | 68101-0R070 · 68101-0R110 · 68101-0R120 · 68101-0R130 · 68101-0R170 · 68101-0R190 · 68101-0R191 |
| 68102 | Left front door glass sub-assembly | 68102-0R070 · 68102-0R110 · 68102-0R120 · 68102-0R130 · 68102-0R170 · 68102-0R190 · 68102-0R191 |
| 68125 | Right front door fixed window glass | 68125-0R020 · 68125-0R080 |
| 68126 | Left front door fixed window glass | 68126-0R020 · 68126-0R080 |
| 68141E | Right front door glass lift channel | 68141-0R070 · 68141-0R071 |
| 68151E | Left front door glass lift channel | 68151-0R070 · 68151-0R071 |
| 68171B | Right front door glass inner sealing strip | 68171-0R060 · 68171-42070 |
| 68172A | Left front door glass inner sealing strip | 68172-0R060 · 68172-42070 |
| 68192C | Right front door beltline front seal | 68192-0R020 |
| 68193C | Left front door beltline front seal | 68193-0R020 |
| 68194B | Right front door beltline rear seal | 68194-0R020 |
| 68195B | Left front door beltline rear seal | 68195-0R020 |
| 68610 | Front door opening limiter assembly | 68610-0R070 · 68610-0R071 |
| 75921C | No. 1 right side light-shielding film | 75921-0R060 |
| 75922M | No. 1 left shading film | 75922-0R060 |
| 75929 | Light-blocking film on the inside of the right front door | 75985-0R020 |
| 75939 | Light-blocking film on the inside of the left front door | 75986-0R020 |
| 75968 | Right front door inner rear light-shielding film | 75965-0R020 |
| 75969 | Left front door inner rear light-shielding film | 75966-0R020 |
| 87963 | Right exterior rearview mirror mounting hole cover | 87963-0R020 |
| 87964 | Left exterior rearview mirror mounting hole cover | 87964-0R020 |
