Toyota RAV4 侧梁 — Figure 6151

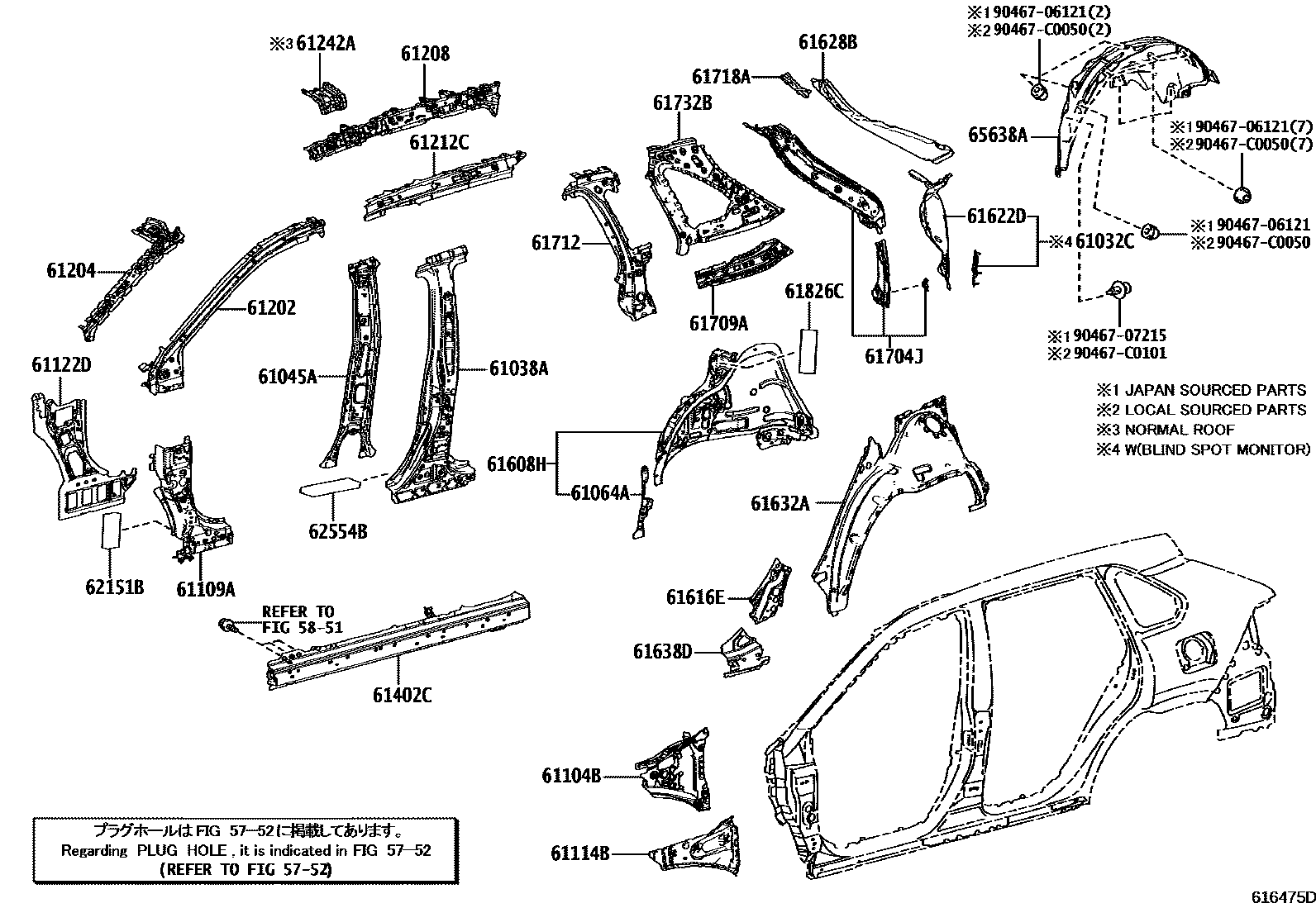

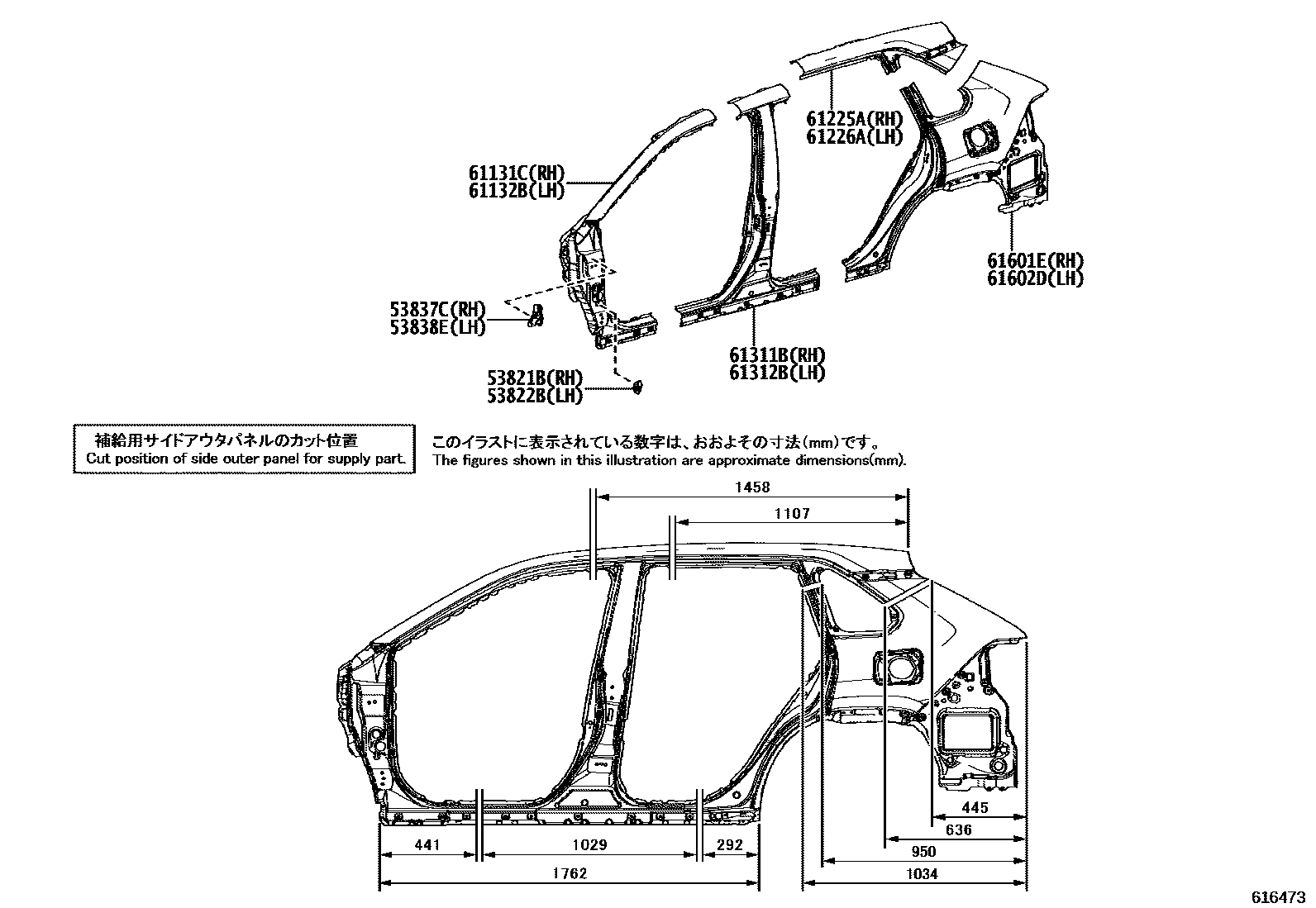

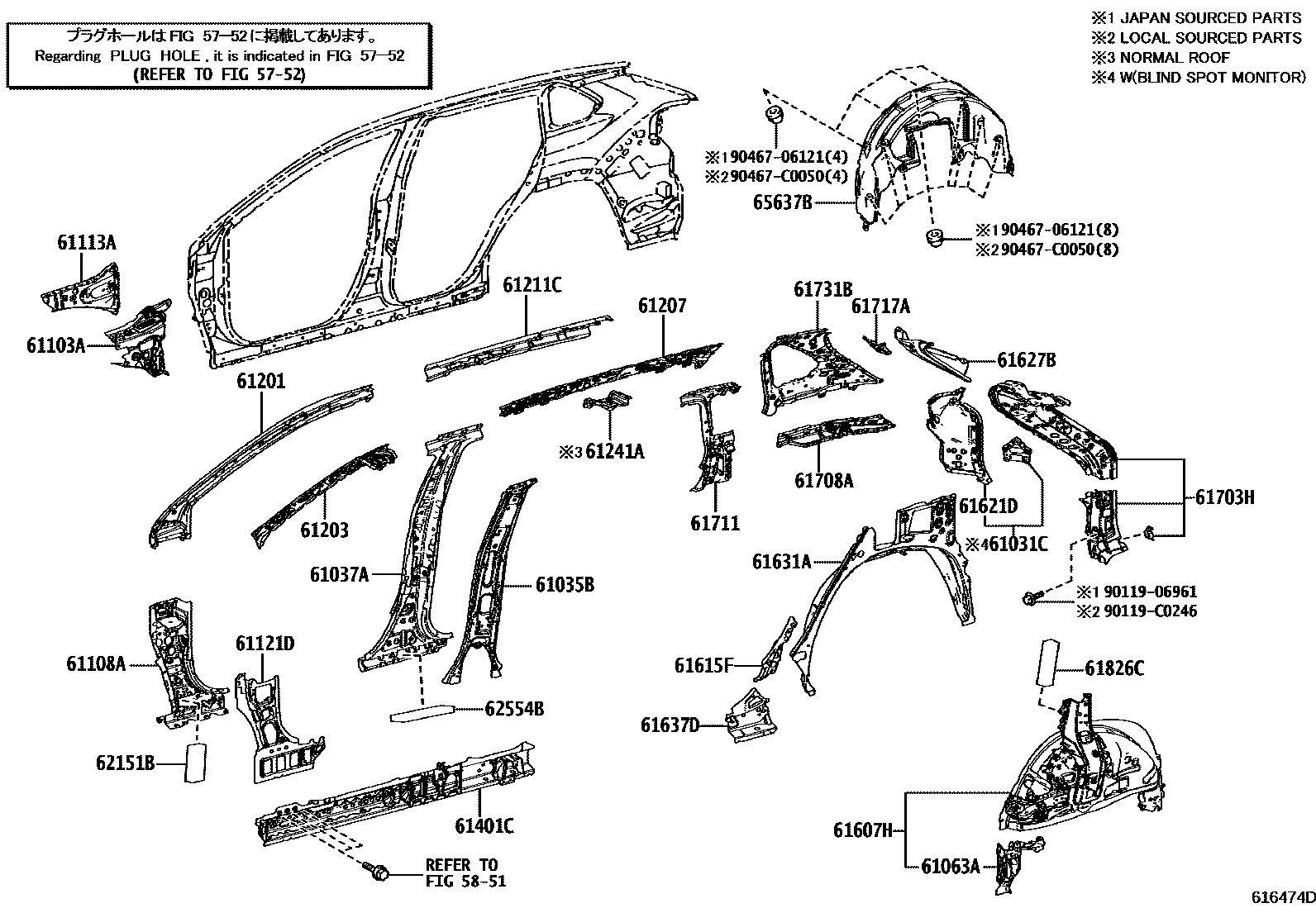

Toyota RAV4 EPC diagram 6151, 侧梁, with 3 images and 67 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53821B | Right front fender rear support | 53821-0R050 |
| 53822B | Left front fender rear support | 53821-0R050 |
| 53837C | No. 2 right front side panel bracket | 53837-0R020 |
| 53838E | No. 2 left front side panel bracket | 53838-0R020 |
| 61031C | Right rear side panel extension sub-assembly | 61033-0R050 |
| 61032C | Left rear side panel extension sub-assembly | 61034-0R010 |
| 61035B | No. 4 right inner column sub-assembly | 61035-0R040 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-0R904 · 61037-0R907 · 61037-0R912 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-0R904 · 61038-0R907 · 61038-0R912 |
| 61045A | No. 4 left inner column sub-assembly | 61045-0R040 |
| 61063A | Right rear No. 2 fender external panel sub-assembly | 61063-0R040 |
| 61064A | Left rear No. 2 fender external panel sub-assembly | 61064-0R040 |
| 61103A | Right front wall side reinforcement sub-assembly | 61103-0R060 |
| 61104B | Left front wall side reinforcement sub-assembly | 61104-0R060 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-0R070 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-0R070 |
| 61113A | No. 2 right outer panel | 61113-0R010 |
| 61114B | No. 2 left outer panel | 61114-0R020 |
| 61121D | Right front panel | 61121-0R060 |
| 61122D | Left front panel | 61122-0R050 |
| 61131C | Right body outer front pillar | 61131-0R070 · 61131-0R071 |
| 61132B | Left body outer front pillar | 61132-0R080 · 61132-0R081 |
| 61201 | Roof right side longitudinal beam sub-assembly | 61201-0R902 · 61201-0R905 |
| 61202 | Roof left side longitudinal beam sub-assembly | 61202-0R902 · 61202-0R905 |
| 61203 | Roof right inner longitudinal beam sub-assembly | 61203-0R020 |
| 61204 | Roof left inner longitudinal beam sub-assembly | 61204-0R020 |
| 61207 | Right center roof inner longitudinal beam sub-assembly | 61207-0R030 |
| 61208 | Left center roof inner longitudinal beam sub-assembly | 61208-0R030 |
| 61211C | Roof right side rail | 61077-0R020 |
| 61212C | Roof left side rail | 61087-0R020 |
| 61225A | No. 1 longitudinal beam on the outer right side of the roof | 61210-0R020 · 61210-0R021 |
| 61226A | No. 1 longitudinal beam on the outer left side of the roof | 61220-0R020 · 61220-0R021 |
| 61241A | Right rear roof rail corner panel | 61241-0R020 |
| 61242A | Left rear roof rail corner panel | 61242-0R020 |
| 61311B | Right body outer center pillar | 61311-0R070 · 61311-0R071 |
| 61312B | Left body outer center pillar | 61312-0R080 · 61312-0R081 |
| 61401C | Right door outer sill panel sub-assembly | 61401-0R020 |
| 61402C | Left door outer sill sub-assembly | 61402-0R030 |
| 61601E | Right side enclosure outer panel sub-assembly | 61601-0R170 |
| 61602D | Left side enclosure outer panel sub-assembly | 61602-0R170 |
| 61607H | Right side wheel cover lining plate sub-assembly | 61607-0R070 |
| 61608H | Left side wheel cover lining plate sub-assembly | 61608-0R070 |
| 61615F | Right side enclosure outer panel reinforcement | 61615-0R020 |
| 61616E | Left side enclosure outer panel reinforcement | 61616-0R020 |
| 61621D | Back door right opening slot | 61621-0R060 |
| 61622D | Rear door left opening slot | 61622-0R060 |
| 61627B | Right rear side panel extension | 61627-0R060 |
| 61628B | Extension on left rear side panel | 61628-0R060 |
| 61631A | Right wheel cover outer panel | 61631-0R070 |
| 61632A | Left side wheel cover outer panel | 61632-0R901 |
| 61637D | Right side enclosure inner panel reinforcement | 61637-0R020 |
| 61638D | Left side enclosure inner panel reinforcement | 61638-0R030 |
| 61703H | Roof inner right reinforcement sub-assembly | 61703-0R100 |
| 61704J | Roof inner left reinforcement sub-assembly | 61704-0R902 |
| 61708A | Right seat belt anchor reinforcement sub-assembly | 61708-0R060 |
| 61709A | Left seat belt anchor reinforcement sub-assembly | 61709-0R020 |
| 61711 | Roof right side outer panel | 61711-0R060 |
| 61712 | Roof left outer panel | 61712-0R060 |
| 61717A | Right side panel extension reinforcement | 61717-0R040 |
| 61718A | Left side bulkhead extension reinforcement | 61718-0R040 |
| 61731B | Roof right inner panel | 61731-0R060 · 61731-0R061 · 61731-0R080 |
| 61732B | Roof left inner panel | 61732-0R060 · 61732-0R061 · 61732-0R062 |
| 61826C | No. 3 silencer panel gasket | 61826-0R040 |
| 62151B | Front cowl side silencer pads | 62151-0R060 |
| 62554B | No. 4 column pad | 62554-0R270 |
| 65637B | Right rear wheel house lining | 65637-0R030 |
| 65638A | Left rear wheel house lining | 65638-0R030 |
